    Hi all
    Before I get the frame away for bead blasting I'll be having welded on the later side stand support bracket,
    Can you suggest any strengthting upgrade mods/gusset plate introduction I should be considering before hand... the frame is on a 72

    Thank you

    Tags:
  2. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    But not a '72 frame it seems?

  3. kommando

    kommando

    Joined:
    May 7, 2005
    The rear rail is best supported with extended gussets at the top shock mount, I add a flat plate on the bottom frame rail where the later side stand knob uses the frame as a stop stop, as you are going to that side stand that will help stop the stand going too far in and stop the frame from wearing.

  4. olympus

    olympus

    Joined:
    Aug 5, 2017
    Indeed sir, 72 in the docs..... Heinz 57 in reality

  5. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
  6. olympus

    olympus

    Joined:
    Aug 5, 2017
    It does have the lower top tube fitted....phew
    I can hazard a guess why it was called the "widowmaker"
    Unfortunately there is no stamped on frame numbers (that I can see with it painted) or ID plate riveted on

    Regards

  7. rvich

    rvich VIP MEMBER

    Joined:
    Jul 25, 2009
    It has been recommended that a cross tube between the forward downtubes is a good modification particularly if the front brake is upgraded.

  8. olympus

    olympus

    Joined:
    Aug 5, 2017
    I have just checked out these rear gusset plates on "old Brits" so will add these to the ever increasing list
    Can yo give me a bit more info (photo?) of this plate which stops the side stand as the stop??

  9. kommando

    kommando

    Joined:
    May 7, 2005
    Pad to protect frame from sidestand and stop the side stand going back to far.

    [​IMG]

  10. rvich

    rvich VIP MEMBER

    Joined:
    Jul 25, 2009
  11. chaztuna

    chaztuna VIP MEMBER

    Joined:
    May 5, 2017
    You might want to consider simply buying a 1971-1974 style frame. At least then, the frame would be correct for the paperwork. I assume that your engine numbers match the paperwork? How about the numbers stamped into the top of the transmission case? Maybe you have a 1969 or 1970 with a Combat engine installed?

  12. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009

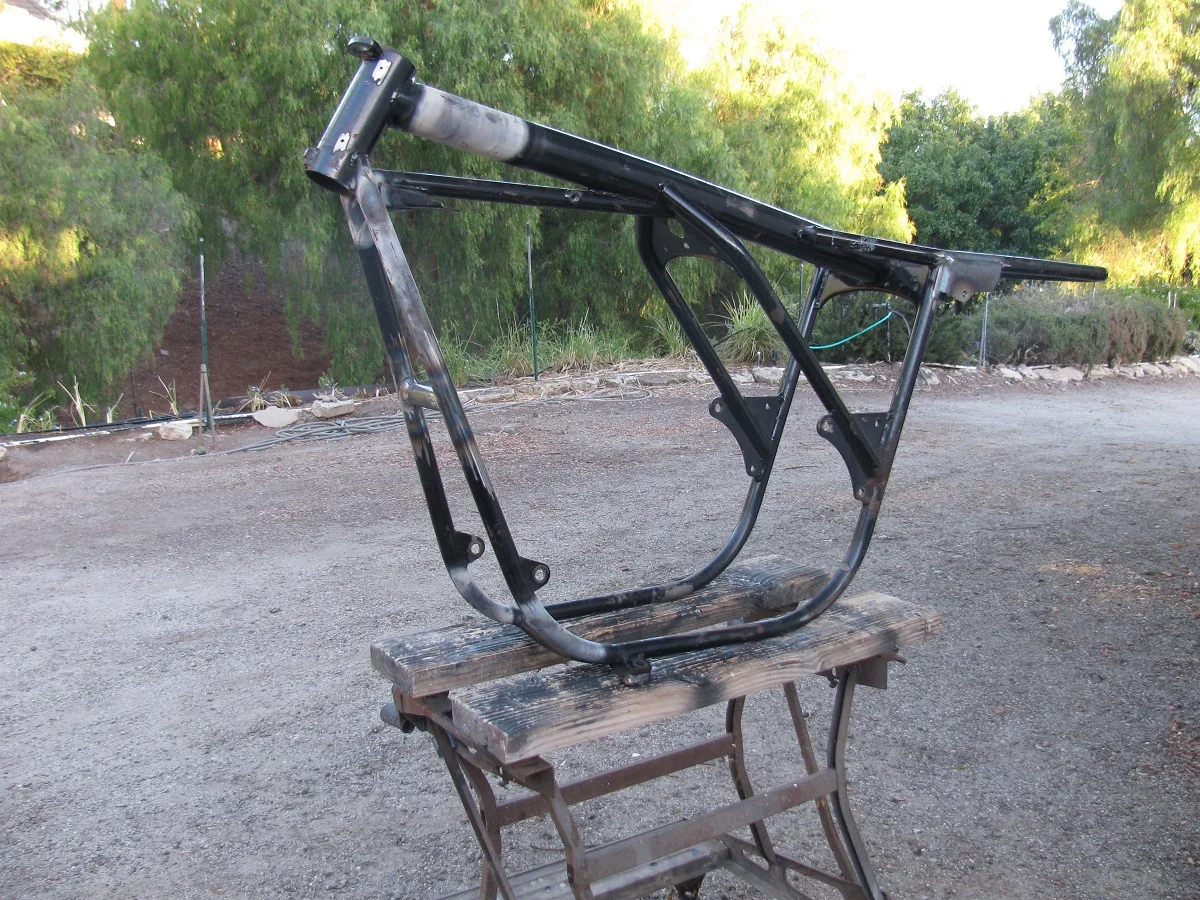

    This is the sort of front cross tube piece mentioned above by rvich. The rear shock mounts on this frame are also modified for a little more support for the rear loop, but mostly to move the mounts a but further apart for this particular build.

    IMG_2216 1200.jpg

    Ken

  13. olympus

    olympus

    Joined:
    Aug 5, 2017
    Engine & tranny number do match and are correct for the year..

  14. rvich

    rvich VIP MEMBER

    Joined:
    Jul 25, 2009
    Olympus, how far do you want to go on this build? There are people here who have added tie rod links between the frame and cradle and all sorts of stuff that are all good to get done when the frame is bare, if at all. The following link has some very cool ideas in it.

    https://www.accessnorton.com/NortonCommando/race-commando-handling-secrets-revealed.8641/

    The links (rose joints) don't get discussed much these days. I know there have been some other mods more similar to the Doug MacRae as above that have been successful. This is not a bad time to think about this kind of stuff.

    https://www.accessnorton.com/NortonCommando/to-link-or-not.8326/#post-109341

    https://www.accessnorton.com/NortonCommando/extra-isloastics.5227/page-2#post-55455

  15. olympus

    olympus

    Joined:
    Aug 5, 2017
    Many thanks rvich. its like opening a can of worms for sure.
    I will fit the lower front tube cross brace & side stand support
    Cut off the old side stand bracket as is restricts fitting the lower engine bolt
    Leave the original rear cross brace in place to give extra rigidity, but cut off the stand support brackets
    Fit the rear top rail strengthening gusset plates
    Another question.... on the above frame photo from Icrken, i see that he has fitted a front down tube horizontal brace.... cant see this on AN pages??? is this a home made mod do you know???

  16. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009
    It's just a tube I cut to fit and welded in. It was a pretty common mod for racing Commandos back in the '70s and '80s. I did it on both my Commando framed race bikes back then.

    Ken

  17. Dean

    Dean VIP MEMBER

    Joined:
    Jul 26, 2014

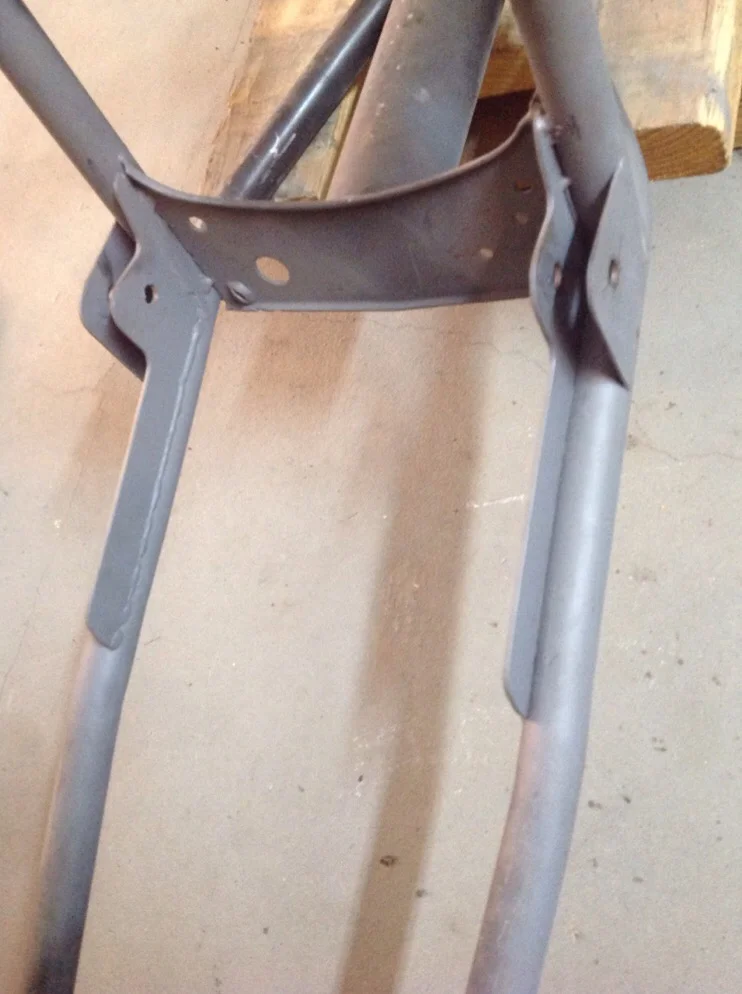

    My version of rear frame loop support. IMG_1182.JPG

  18. 84ok

    84ok

    Joined:
    Aug 10, 2014
    Last edited: Mar 18, 2018
  19. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    On my frame I added and extra mk3 type isolastic under the gearbox and another in place of the head steady,
    I converted the gearbox cradle to take a mk3 swing arm pin with the cotter pins,
    And I over braced and under braced the swing arm with steel pressings,

  20. 84ok

    84ok

    Joined:
    Aug 10, 2014
