Ride height

Discussion in 'Norton Motorcycles (Modern)' started by David Hales, Aug 25, 2019.

  1. David Hales

    David Hales

    Joined:
    Sep 22, 2018
    ok how do you adjust the ride height on a naked?

  2. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    Front or rear??
    On the front of any 961 you can’t. The front fork tubes don’t allow you the room due to the shape of the fork tube. At most you’ll get only 1/4” or about 6mm.
    The rear you can adjust the spring height a little.

    TonyA likes this.
  3. David Hales

    David Hales

    Joined:
    Sep 22, 2018
    Rear as the spec says adjustable ride height, mine is on eBay and I was asked the question tion

  4. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    If its like the twin shock , there is a lock nut and threaded shock lower eye.

  5. BritTwit

    BritTwit VIP MEMBER

    Joined:
    Aug 25, 2009
    Dave,

    Don't you have a Dominator shop manual?
    If the Dominator mono-shock setup is like modern sportbikes, you may need to buy a different bellcrank mechanism that connects the swingarm/shock to the frame. It will have a different geometry which allows the bike to sit higher or lower in the rear.
    I have never seen the Domi's mono-shock setup so can't be sure.

    Max at Norton should be able to provide guidance on this issue.

  6. David Hales

    David Hales

    Joined:
    Sep 22, 2018
    There is an adjustment at the top of the shock

  7. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Can you take photos and post ? Maybe then we can see how to do it. You want to adjust ride height without changing the pre -load etc.. There needs to be a way to lengthen the shock eye to eye distance . Maybe it is in the owners manual ? Or Ask Max at Norton.

  8. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Hello Voodoo , There is no way to lengthen the monoshock ? The only way to raise the ride height is to change the spring pre-load ?

  9. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016

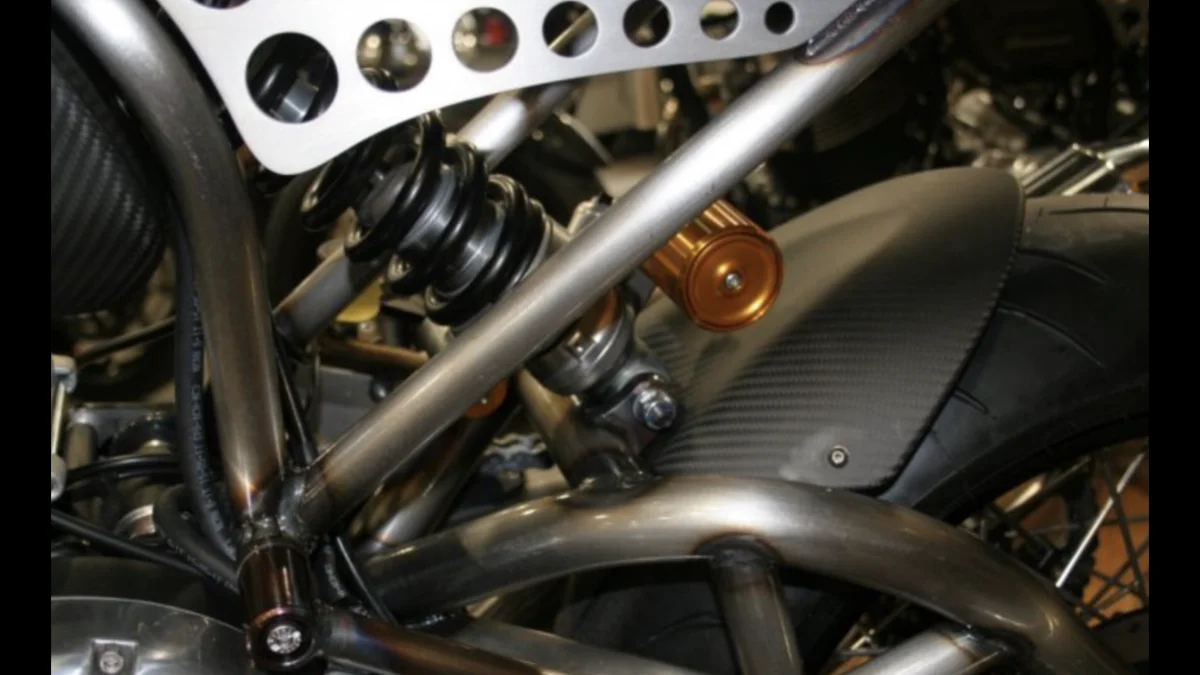

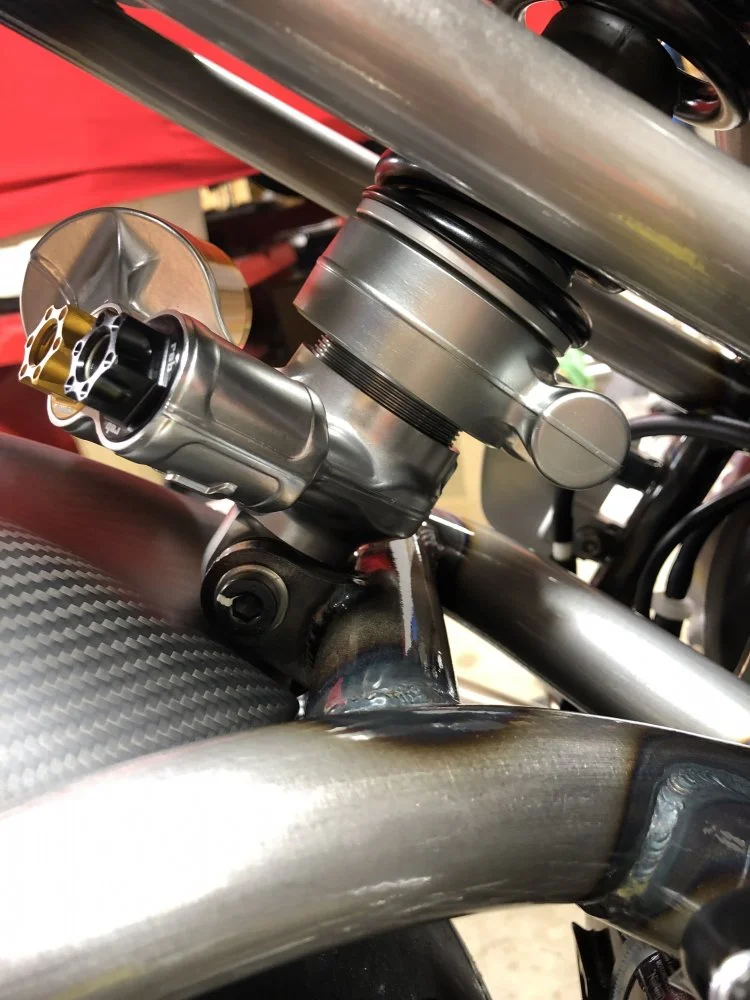

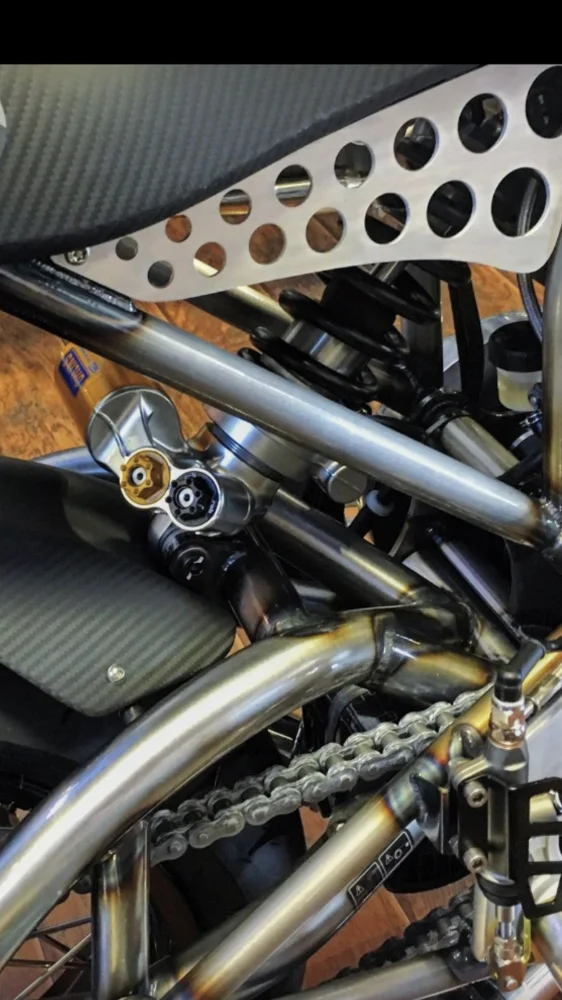

    4B7D400F-B744-474F-B147-8311273F923E.png 0931F5F8-170E-431A-98EC-A98523B59B50.png The rear mono shock is mounted direct without a bellcrank.


  10. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016

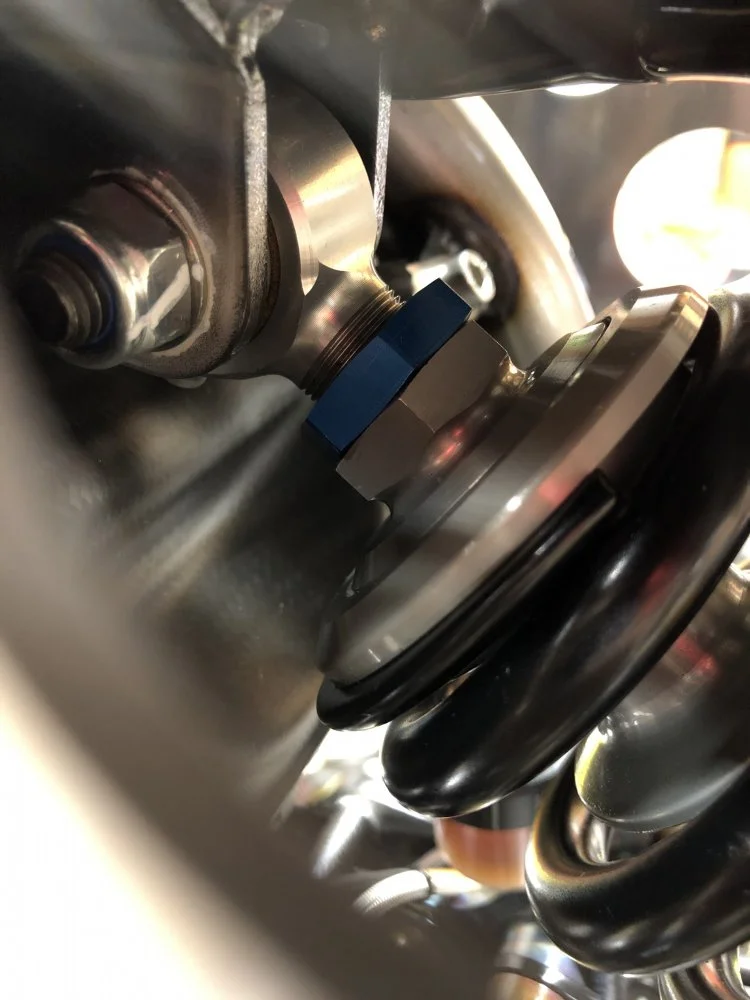

    You have slight adjustment at the lower spring perch

  11. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015

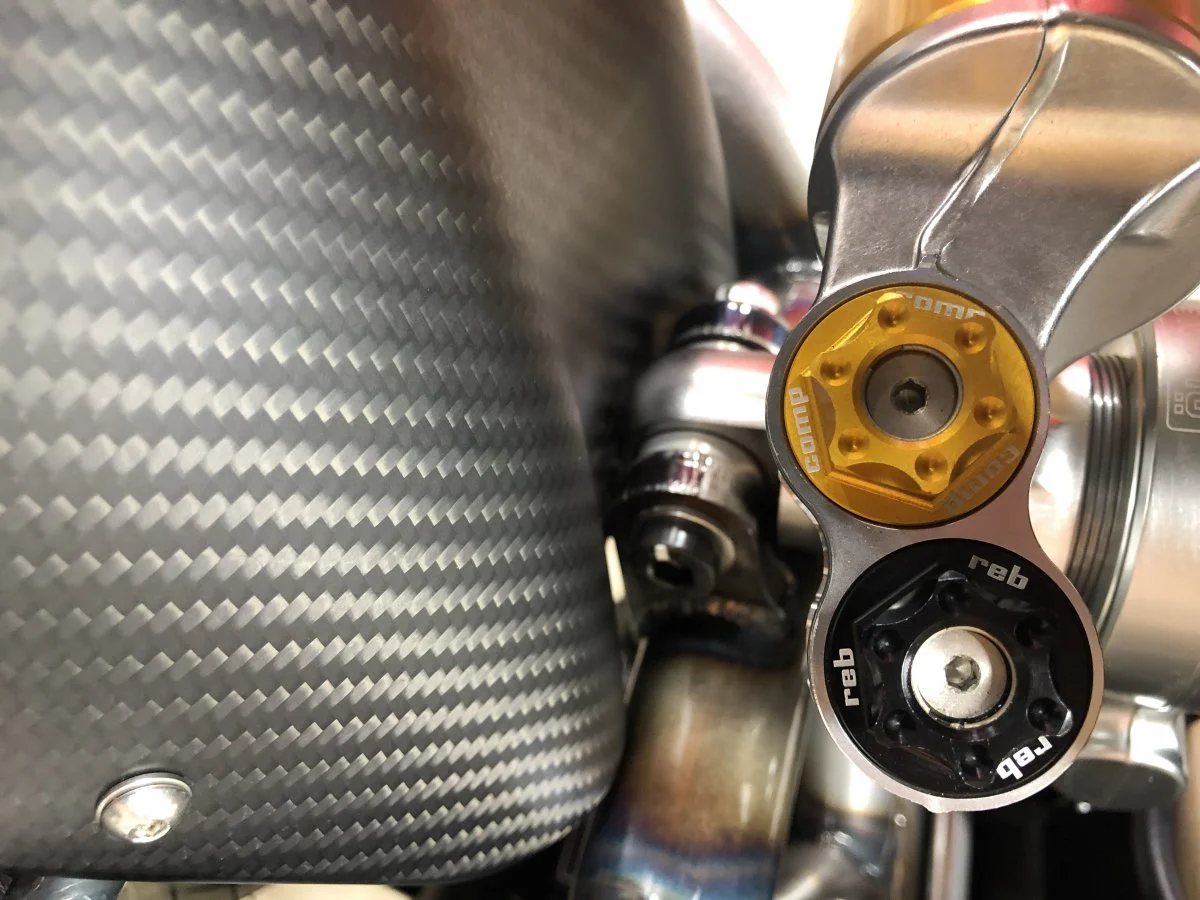

    I see , One of those knobs adjusts ride height ? . So there is compression , rebound , spring pre-load and a ride height adjustment . Nothing at the top like David said ?

  12. BritTwit

    BritTwit VIP MEMBER

    Joined:
    Aug 25, 2009
    That's great, straight forward.
    Just like the early Yamaha mono-shocks from the late 70's racers.

  13. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
  14. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015

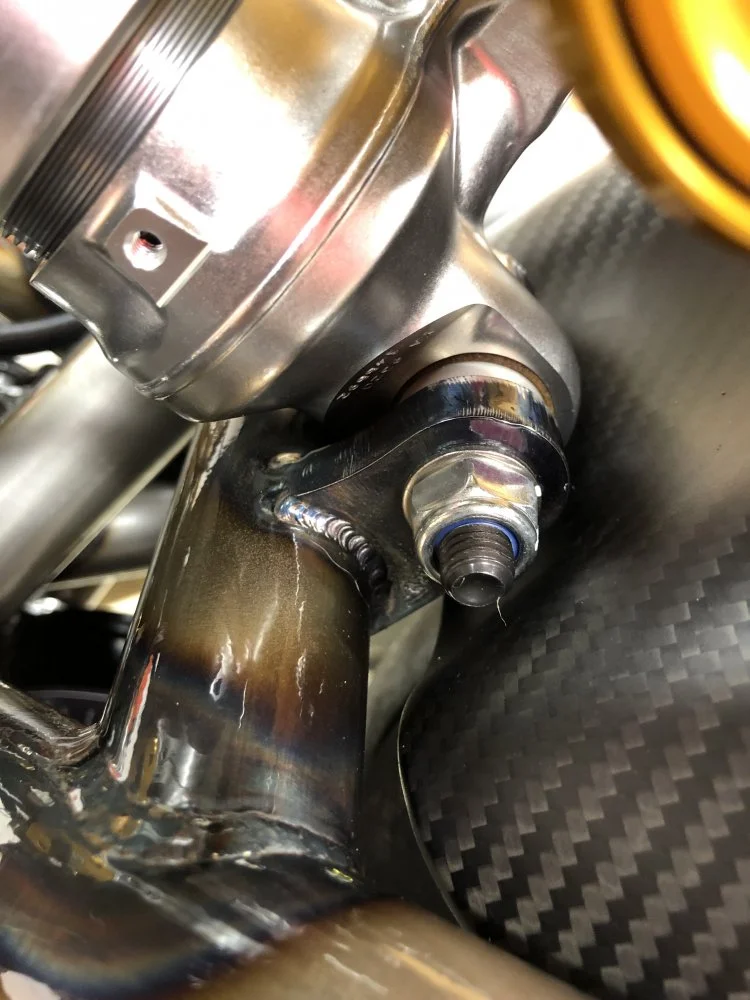

    Awesome photos ! That shows every adjustment . Your bikes are clean Bro !

  15. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    I think clean is an understatement Tony... might even be an insult...!

  16. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Actually, I take that back.

    Pretty sure I can see a piece of lint or hair or similar on the end of the shock bolt in the second pic.

    Filthy and neglected.

    Voodooo likes this.
  17. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    Dammit you caught that. I noticed it after I took the pics and posted them. I’m gonna have to take care of that right now! Totally unacceptable. Lol.

  18. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    I’ve yet to make any adjustments as it seem about right for my inseam and weight.
    Thanks again for the compliments lol.

    TonyA likes this.
  19. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    How tall are you ? You've got to be taller more inseam than me. When I sat on a Domi I was on my toes/balls of feet. I'm 5'8" ..

    MxMartin likes this.
  20. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    6’
    34” inseam
    170 pounds
