Rgm brake upgrade,

Joined
Apr 21, 2020
Messages
11
Country flag
Am sorry if this has been covered before, but had a quick look and couldn't see what am looking for.

But am busy fitting the rgm race brake kit to my 72 750, but what am finding is when am tighting the wheel spindle the disc clips hit the fork leg and lock the wheel, so is there a space or some thing am missing to push the wheel or fork leg out.

Any help with this would be great so I can get it sorted or i'll just have to wait unit rgm are open again.

Joined
May 7, 2005
Messages
4,162
Country flag
The disc clips will be very close but not touching, have you put the spindle spacers the right way round on the hub. Parts 20 and 21, 20 is non disc, 21 is disc side.


Joined
Apr 21, 2020
Messages
11
Country flag
Hi Kommando, yes I put the spacers in the same way they came off which is same as the drawing, and the clips have hit the fork leg, that is why Ive walked away to see were am going wrong with this.


acadian

VIP MEMBER
Joined
Mar 5, 2010
Messages
1,047
Country flag
The disc clips will be very close but not touching, have you put the spindle spacers the right way round on the hub. Parts 20 and 21, 20 is non disc, 21 is disc side.

The item list description on the Andover page appears to be incorrect, showing #21 as "non disc side"

Joined
Apr 21, 2020
Messages
11
Country flag
Fast eddie, yep wheel is in the middle (best I can do by myself), what it looks like it needs is a 2mm spacer, don't know if originals worn/material removed, taken in out a fair few times today and each time its the same, so starting to grab at straws

If somebody else has this disc setup could you measure the depth of the clip head, or even the spacer depth.

Joined
Dec 13, 2010
Messages
401
Country flag
I also have the RGM front disc setup, already in use for several years. Indeed, the pins are close to the fork leg, there is just slightly less than 1mm of space, but not touching.
Dumb question perhaps, but is the dust cover (item 20 on the AN drawing) on the disc side in place ?
I measured the depth of the clip head, it protrudes 1.4mm from the alloy disc center.

Last edited:
Joined
Apr 21, 2020
Messages
11
Country flag
Hi Peter R, its part 21 on the disc side, thanks for measuring the clip head, mine is 1.4 mm as well, so that rules that out.


acadian

VIP MEMBER
Joined
Mar 5, 2010
Messages
1,047
Country flag
Is the disc centered between the pads or offset as well?

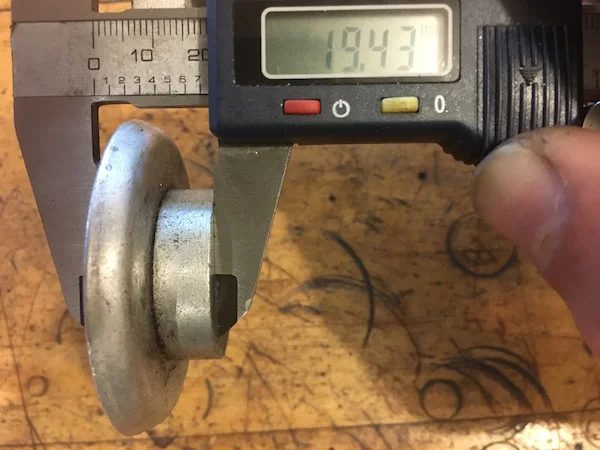

The disc side spacer measures approx. 19.4mm

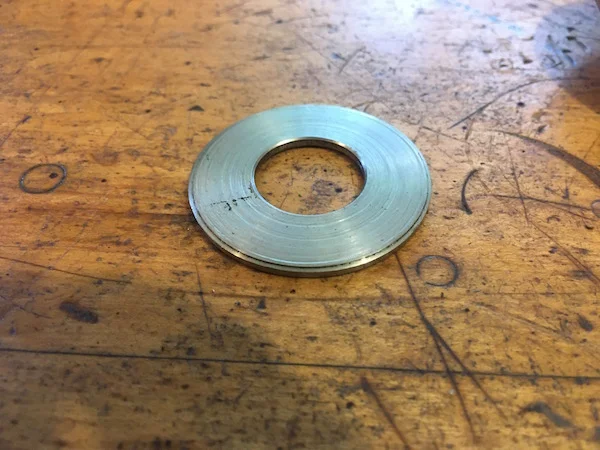

It's not uncommon that a spacer is needed, here is a 2mm spacer that I had to machine sometime ago (different setup, but same problem)

Joined
Jan 1, 2012
Messages
59
Country flag
Am sorry if this has been covered before, but had a quick look and couldn't see what am looking for.

But am busy fitting the rgm race brake kit to my 72 750, but what am finding is when am tighting the wheel spindle the disc clips hit the fork leg and lock the wheel, so is there a space or some thing am missing to push the wheel or fork leg out.

Any help with this would be great so I can get it sorted or i'll just have to wait unit rgm are open again.
Many years ago I fitted the Fair Spares disc system and had to file 1-2mm off the inside of the fork slider to clear the disc itself. My new RGM disc and new oval sliders have about a 1mm gap to the disc clips and no filing is necessary. Perhaps you have the round fork sliders and they need to be relieved by some judicious filing. Adding an additional spacer will push the sliders apart which may or may not be a problem with stiction and bush wear longer term.


acadian

VIP MEMBER
Joined
Mar 5, 2010
Messages
1,047
Country flag
Many years ago I fitted the Fair Spares disc system and had to file 1-2mm off the inside of the fork slider to clear the disc itself. My new RGM disc and new oval sliders have about a 1mm gap to the disc clips and no filing is necessary. Perhaps you have the round fork sliders and they need to be relieved by some judicious filing. Adding an additional spacer will push the sliders apart which may or may not be a problem with stiction and bush wear longer term.
The larger OD on the non disc side of the axle passes through the LH slider and presses against the dust cover, leaving a gap between the spindle boss on the slider and the hub. As long as there's some clearance there the sliders will not be pushed apart.

Joined
Apr 21, 2020
Messages
11
Country flag
Hi acadian, just measured my spacer, it comes it at 19.36 mm so not that much difference, best I can tell disc is in middle of caliper, so it looks like it needs a 2mm spacer to give me the clearance.

Thanks for all your help


acadian

VIP MEMBER
Joined
Mar 5, 2010
Messages
1,047
Country flag
Hi acadian, just measured my spacer, it comes it at 19.36 mm so not that much difference, best I can tell disc is in middle of caliper, so it looks like it needs a 2mm spacer to give me the clearance.

Thanks for all your help
If the disc is in centered in the caliper then I would not use a spacer, the spacer is only useful if the problem is with the entire hub/disc assembly being improperly spaced, I would look to rectify the clips instead. Have you pinged RGM to ask their opinion?

Joined
May 7, 2005
Messages
4,162
Country flag
If your disc is centered in the caliper, the wheel is centered between the legs and your clips are 1.4mm high then you probably have a thickly cast leg on the disc side. In that case it needs thinning on the inside of the leg to restore clearance.

Joined
Apr 21, 2020
Messages
11
Country flag
Thanks for all the help, spoke to RGM today, yes they say 1 in 50 have this issue (just my luck) so they will sort out shims I need to keep disc off leg, caliper has shims in kit so I should be able to shim that as well,
