Rear Lamp Wiring loom Routing

Discussion in 'Norton Commando Motorcycles (Classic)' started by olympus, Jul 28, 2019.

  1. olympus

    olympus

    Joined:
    Aug 5, 2017
    Hi There
    Can someone advise me on the correct wiring loom routing / cable positioning to the rear lamp assembly, from the cross brace rearwards??

    Thank you

  2. tomspro

    tomspro VIP MEMBER

    Joined:
    Jan 25, 2014
    My 72 passes thru the frame plate hole behind the oil filler neck, along the inside of the right side seat loop, then under the stop lamp housing.

  3. Gadge

    Gadge VIP MEMBER

    Joined:
    May 21, 2019
    Same on mine.

  4. maylar

    maylar VIP MEMBER

    Joined:
    May 13, 2007
    My 74 does the same.

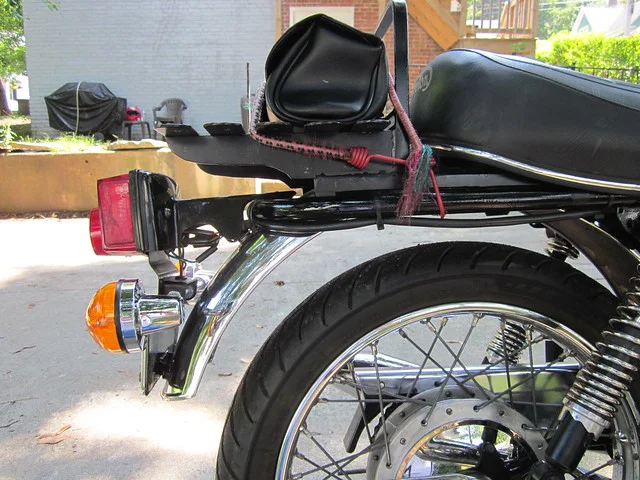

    [​IMG]

  5. olympus

    olympus

    Joined:
    Aug 5, 2017
    Great thank you..
    Whilst on wiring loom routing and the hole in the cross brace..
    looking forward from the rear of the bike is the loom branch which has the wiring terminals to stop lamp switch, rectifier, and flasher relay...positioned at the front of the cross brace or the back of it??
    Or put another way, are these terminals pulled through the hole in the cross brace??

    Regards

  6. illf8ed

    illf8ed

    Joined:
    Dec 30, 2003
    Yes they are. All the branches are rearward of the brace.
