Production race installation sheets

I've missplaced my copy of the Norton Commando Production Rcaer sheets. I believe it's about a 10 page article.
Doe's anybody have a scanned version they can foeward onto me.
I'm trying to install a PR 1/2 fairing & it's not going well, spacing wise.
Thanks

pouchy750 said:

I've missplaced my copy of the Norton Commando Production Rcaer sheets. I believe it's about a 10 page article.
Doe's anybody have a scanned version they can foeward onto me.
I'm trying to install a PR 1/2 fairing & it's not going well, spacing wise.
Thanks

Click to expand...

I'm doing one right now too. What's the problem? I thought it was pretty straight forward.

final-proddy-build-t11284.html

How does the 1/2 fairing attach to the steering head bracket?
Do you use the 2 studs that stick up off the stearing head braket to holes that you have to drill into the top flat part of the feairing inside the screen?
Thanks

pouchy750 said:

How does the 1/2 fairing attach to the steering head bracket?
Do you use the 2 studs that stick up off the stearing head braket to holes that you have to drill into the top flat part of the feairing inside the screen?
Thanks

Click to expand...

Ah, yes. The Norvil fairing I have is predrilled with pilot holes. This helped tremendously. I could give you measurements but a different manufacturer of the bracket or fairing that I have might be off.

Did the pictures in that link I provided help? If you need more pictures just let me know. I hope to work on the side brackets tonite, they are currently just loose fitted.

pouchy750 said:

I've missplaced my copy of the Norton Commando Production Rcaer sheets. I believe it's about a 10 page article.
Doe's anybody have a scanned version they can foeward onto me.
I'm trying to install a PR 1/2 fairing & it's not going well, spacing wise.
Thanks

Click to expand...

I have a high quality .pdf scan of them that I made some time ago. If you send me your email address, I'll send them to you. It's 16 pages, including the cover, and the official title is "750 RACER AND 750 FORMULA RACER CONVERSION KITS".

I posted them several years ago to the files section of the INOALIST yahoo group, and they are still there, so you can also download them from there.

Ken

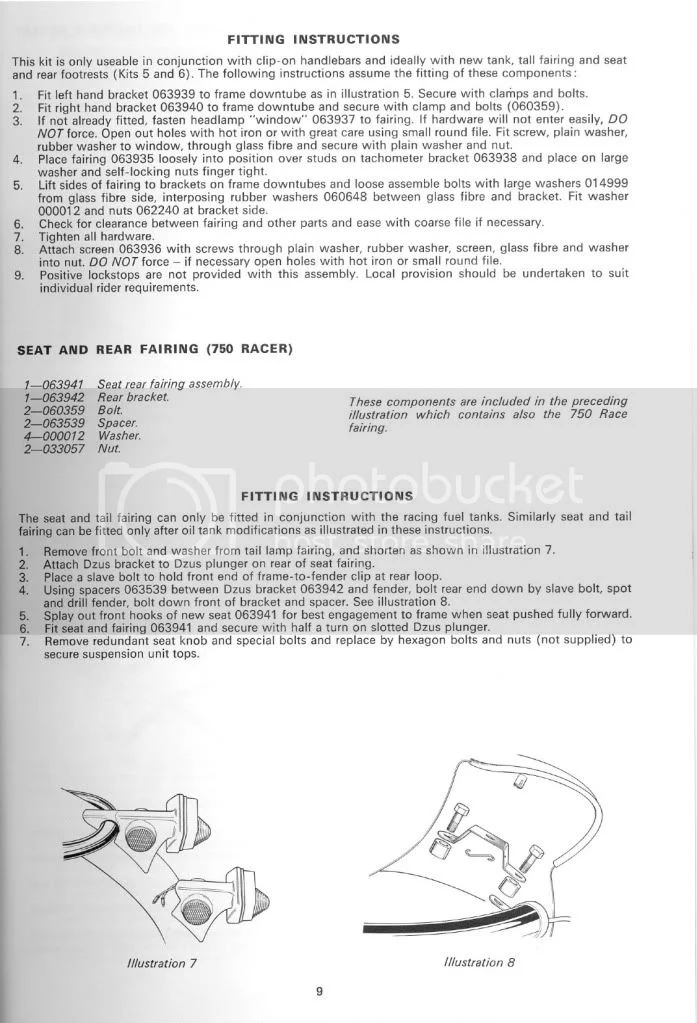

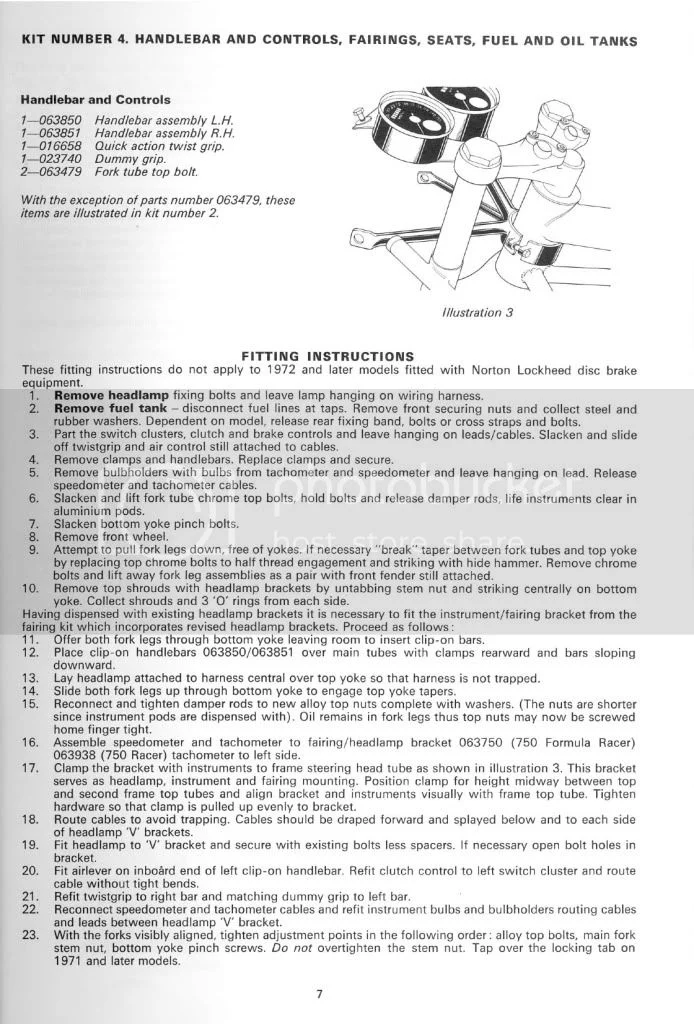

Here's just the page for the fairing installation.
