Positive earth speed sensor?

Status
Not open for further replies.

click

VIP MEMBER
Joined
Dec 27, 2008
Messages
1,010
Country flag
Hi,

I'm looking at fitting one of the classic electronic Smiths speedo's.

I want to eliminate the mechanical gearbox drive & I'm not keen on the GPS solution so . . . . . .

Ideally I need to use a sensor BUT my bike has still got the original positive earth system.

Does anybody know of a sensor which will work with a positive earth system?

As long as they do not earth to a metal surround modern electronics can be wired either way.

Smiths' sensors work with either earth polarity.


Interesting, my understanding is that you have two options with the new Smiths electronic speedo's, run them off the original mechanical drive using a sensor that screws in like the old speedo cable or use a GPS signal cable.

Are you saying there's a third option?

Interesting, my understanding is that you have two options with the new Smiths electronic speedo's, run them off the original mechanical drive using a sensor that screws in like the old speedo cable or use a GPS signal cable.

Are you saying there's a third option?
Magnetic pickup. I fitted 2 magnets (but 1 will do) onto the aluminium rear wheel hub cover and made a bracket for the pickup unit (see 'digital speedo' site or 'Puca' site. Bracket is bolted onto the very convenient slot under the spindle (1974 Mk2) which allows for re-adjustment when chain adjusted.

As long as they do not earth to a metal surround modern electronics can be wired either way.

I have a very basic understaning of electrics. This would mean isolating the sensor from a metal mount i.e. rubber mounting it.

Have I got this right?

I have a very basic understaning of electrics. This would mean isolating the sensor from a metal mount i.e. rubber mounting it.

Have I got this right?
If you use the magnetic pickup it has 2 wires coming from it to connect to the speedo, fit either way because the sender is not polarity sensitive. Wiring speedo can be done for positive or negative earth as in the (confusing) wiring instructions supplied.

I have a very basic understaning of electrics. This would mean isolating the sensor from a metal mount i.e. rubber mounting it.

Have I got this right?

If the sensor has two wires, and neither wire is connected to the metal sensor frame, then, as Kommando says, the sensor can be wired either way.

If the sensor has one wire, and if the earth connection is intended to be made by mounting to a negative earth system, then you are right....... electrically isolate sensor, connect the one wire to positive (+), then attach a second wire to the metal frame of the sensor and connect this wire to negative (-).

Slick

Take a multi meter set to ohms and probe the wire ends and the body, both will be infinity as they are isolated from the body internally.

Take a multi meter set to ohms and probe the wire ends and the body, both will be infinity as they are isolated from the body internally.

Switch the meter lead wires around and do this test again. A reading of infinity should ALWAYS occur if the lead wires are isolated from the sensor metal body.

Example .... meter red lead wire on body ..... check both sensor wires .....> infinity
Switch ........ meter black wire on body ...... check both sensor wires .......> infinity

Slick

OK, I'm just about keeping up with you guys!!

I'll explain a little bit more, I was in touch with Matt in CNW, he has enough 'bits' to make up a 'kit' which will replace the mechanical speedo drive when fitting one of the new Smiths electronic speedo's using a sensor.

He has never fitted this setup to a positive earth system, he was kind enough to test the system for me on a postive earth & said it did not work, he uses a 3 wire sensor.
There might be more to this than my explination but it's my understanding of what Matt did.

So, I thought I'd ask if you can get a negative earth sensor to replace the one Matt supplies.

Not sure if that changes any of the helpful comments above?

Last edited:
I am using the magnetic pickup supplied by Smiths on a positive ground bike. Would work on negative ground systems too.
It uses two wires - not clear what Matt is using.

Appreciate the info. I just checked the http://www.puca.co/tech.html site which is much better than the Smiths UK site! Are you using the M8 reed-switch sender and M6 magnetic bolt they supply? Did you mount the sensor on the front or rear wheel?

This is my set up:

Plain large nut from Matt (no ‘dimples’ as per his standard one), machined to take one magnet (can use more, but one works fine).

Matts speedo sensor holder.

Puca Smiths m8 pic up.

I had to machine an eccentric bush for the pic up as A) the hole is too big and B) align it perfectly with the magnet.

Bike is positive earth.

Very easy. Works perfectly. Very neat set up.



Positive earth speed sensor?
Positive earth speed sensor?

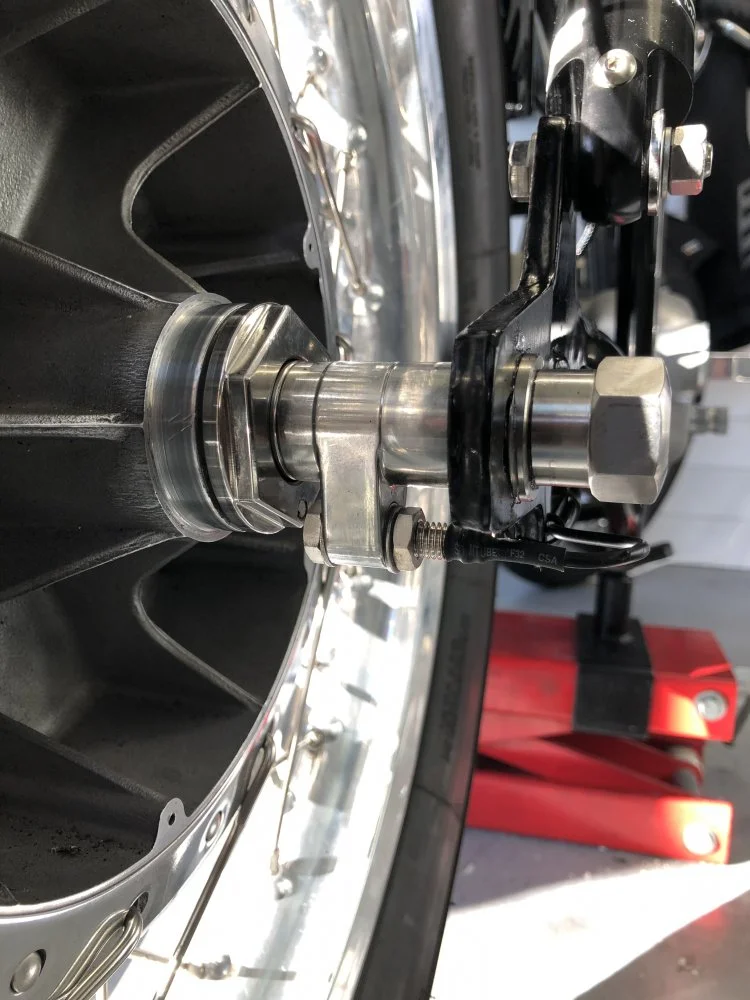

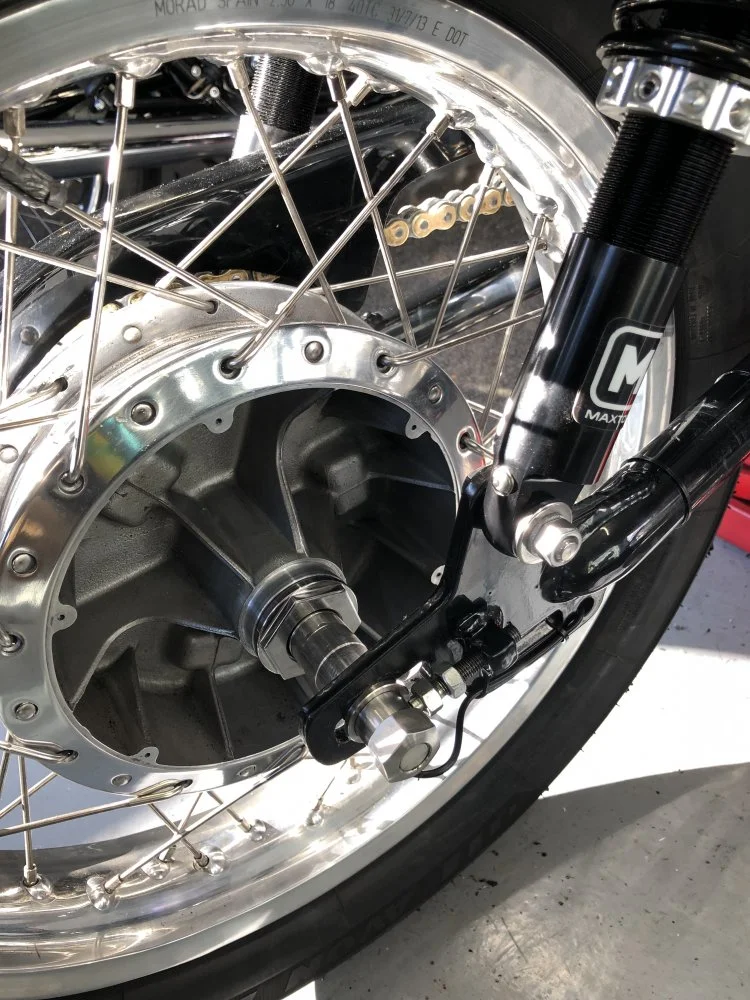

This is my set up:

Plain large nut from Matt (no ‘dimples’ as per his standard one), machined to take one magnet (can use more, but one works fine).

Matts speedo sensor holder.

Puca Smiths m8 pic up.

I had to machine an eccentric bush for the pic up as A) the hole is too big and B) align it perfectly with the magnet.

Bike is positive earth.

Very easy. Works perfectly. Very neat set up.



View attachment 11325 View attachment 11326

Bingo! That’s the setup I’m looking for.

The nut Matt supplies with the dimples must be for use by a different type of sensor, not magnetic?

I’ll see if Matt can supply the plain nut. Did you machine the nut to take a magnet or Matt?

Appreciate the info. I just checked the http://www.puca.co/tech.html site which is much better than the Smiths UK site! Are you using the M8 reed-switch sender and M6 magnetic bolt they supply? Did you mount the sensor on the front or rear wheel?

No, on puca page it is listed as for Honda and Triumph.
I glued a ceramic magnet onto my rear brake drum and attached the sensor to inside of chainguard.

Eddie I don't understand how your Commando runs because there appears to be no oil, grease, or grime to permit your bike to pass through the atmosphere which is fairly dense near sea level.

Bingo! That’s the setup I’m looking for.

The nut Matt supplies with the dimples must be for use by a different type of sensor, not magnetic?

I’ll see if Matt can supply the plain nut. Did you machine the nut to take a magnet or Matt?

Matts dimples (triggers) are none magnetic and his pick up is magnetic. You have to do it the other way around.

I drilled the nut and fitted the magnet myself. Asked Matt for a ‘special’ none dimpled nut.

Eddie I don't understand how your Commando runs because there appears to be no oil, grease, or grime to permit your bike to pass through the atmosphere which is fairly dense near sea level.

The bike is so fast dirt can’t stick to it...:rolleyes:

Mine must be awful slow then because everything sticks to it.....including seagull crap, which is donated on a regular basis. Reminds me of an old time whorehouse...scrub it before you ride it.
