Part number help

Skyguyz · Nov 21, 2011

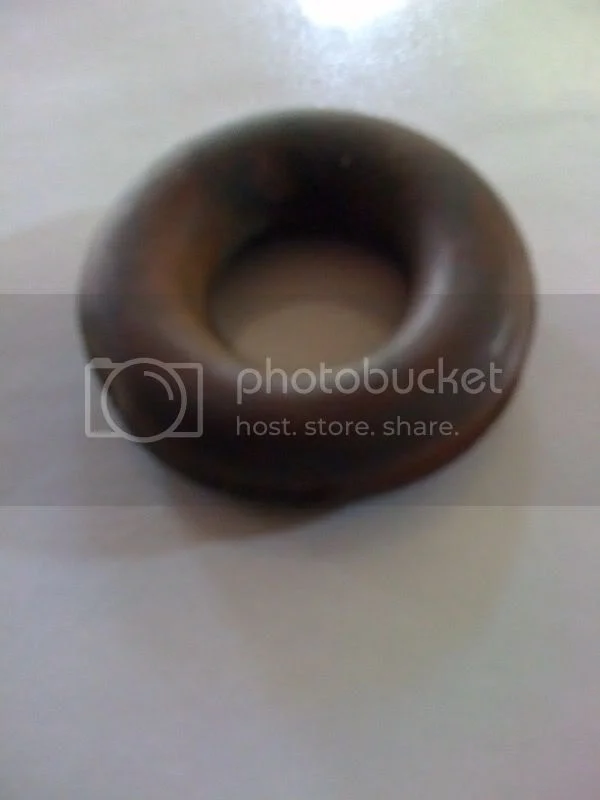

OK, So I have done due diligence on trying to find the part number for this frame grommet. It is the big donut one on the upper frame where the main wire bundle passes through.
I have searched the parts book, but no can find. I looked in the obvious places like sec 14 frame & sec 29 electric, but no go. Anyway, If you can help identify this part number, I would be grateful.

Cheers,

Skyguyz

grandpaul · Nov 21, 2011

http://www.oldbritts.com/nor_comm_73_29.html #17

http://www.oldbritts.com/1973_g29.html #17

drones76 · Nov 21, 2011

http://www.oldbritts.com/1973_g29.html

Check part #20
(20 NM18285 Grommet, 3/8 x 1/2 x 1/16)

grandpaul · Nov 21, 2011

Come to think of it, I believe it might be part of the actual wiring harness bundle...

ZFD · Nov 21, 2011

If looking for a part I suggest you use our Andover Norton webshop. Here is your part:
http://www.nortonmotors.de/ANIL/Norton% ... 25&Part=17
Joe Seifert

L.A.B. · Nov 21, 2011

Skyguyz said:
It is the big donut one on the upper frame where the main wire bundle passes through.

Item [53]?
http://www.nortonmotors.de/ANIL/Norton% ... 25&Part=53
067177 GROMMET - W-HARNESS THRO"FRAME

ZFD · Nov 21, 2011

Depends- even 01-9490 is available in two sizes, 01-9490 and 01-9490/1, depending on the year the frame was made..... But I think LAB is right, the centre one should be the 06-7177.

bill · Nov 21, 2011

THAT'S why you left it off chip's bike along with the other wiring grommet's.

grandpaul said:
Come to think of it, I believe it might be part of the actual wiring harness bundle...

mikegray660 · Nov 21, 2011

bill said:
THAT'S why you left it off chip's bike along with the other wiring grommet's.

grandpaul said:

Come to think of it, I believe it might be part of the actual wiring harness bundle...

Click to expand...

must of been a lot of extra parts on that wiring harness in that rebuild......
