P11s with FBS head work?

Joined
Apr 22, 2020
Messages
136
Country flag
How many have a FBS ported head on their P11s?

I have a Fred Barlow Spares ported head on my old turd. Works pretty good.

The story: I gave my head to Phil at Fair Spares America and he either sent it to Fred Barlow in England, or took it with him when he went on a parts buying vacation over there. Well, that's what I remember anyway. It was in 1988. Receipt says Remodeled Cyl head $225. So it's remodeled. Ole Fred went through the side of the left cylinder intake port a little. I had to epoxy fill the hole and hand sand it down. He did not touch the exhaust ports. Before I put it back on the cylinders, I remodeled the exhaust ports a little to match the diameter of my exhaust headers and do some general casting clean up. Doing that was suggested by Bob Raber.

I think I drove those two guy nuts buying nickel and dime stuff. I did show up at Phil's garage unannounced frequently. They had a tendency to passively but humorously bad mouth one another, and I'd catch Phil in Raber's buying stuff now and again when Raber opened up. Kinda funny thinking back on it.

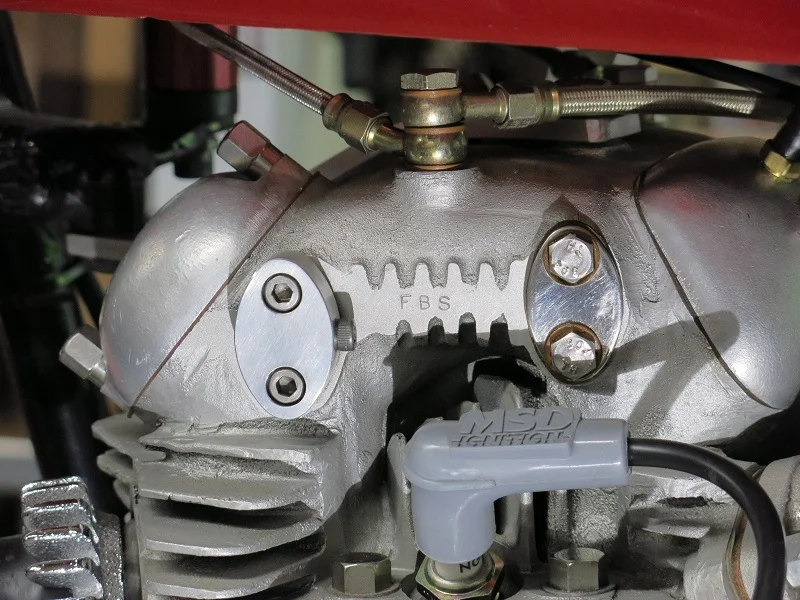

That aluminum block on the exhaust spindle was for a oil pressure gauge I had on the motor for a while. I took the oil pressure gauge off. Having a skinny tube exposed there and hooked to my oiling system never made me feel that comfortable. No tach on this bike either. Never had clue how hard I was ringing its neck when I was a young buck. It stayed together, so I must not have been hurting it.

The FBS remodeled head works a lot better than a stock head. I tested it in the 1990's, by putting a new stock head on the motor while I put some inserts in the FBS head, and was considering retiring it. The stock head felt very pedestrian by comparison, so I installed inserts, lightened up the rocker arms, put bronze valve guides and Black Diamond valves in the FBS head and put it back on. Much better.

Last edited:
Joined
Feb 5, 2011
Messages
1,911
Country flag
Neat!, looks nice and well cared for now., thx for posting- great back story BTW.

Joined
Apr 22, 2020
Messages
136
Country flag
Neat!, looks nice and well cared for now., thx for posting- great back story BTW.
Thanks. I try to keep it clean. Not riding it much anymore helps.

I should pull that head off and look at it again. I could probably clean up the rockers more, and I made the mistake of putting lash caps on the valves and not paying attention to push rod length. One of those if I only knew then what I know now situations. Only reason I haven't started doing it is does run and my memory tells me I never liked messing with the head R&R in that tight frame. I believe I always wanted a third arm when doing it.

Joined
Apr 22, 2020
Messages
136
Country flag
I'm thinking having a FBS ported head on a P11 motor is about as common as having a 2S cam in one.
