P11 Sump Guard/ Bash Plate

Discussion in 'Norton P11' started by elefantrider, May 7, 2015.

  1. elefantrider

    elefantrider VIP MEMBER

    Joined:
    Apr 6, 2013
    Recently found an original one to match the condition of my original, non-restored bike. Where can I find some suitable clamps that will hold it to the front tubes?

    Tags:
  2. jerrykap

    jerrykap VIP MEMBER

    Joined:
    Jul 23, 2014
    Get out your tools they're easy to make. I have a pattern, get in touch and I'll email it to you.

  3. BillT

    BillT

    Joined:
    Jan 27, 2008
    Walridge should have them - they're the same P-clamp for the G15 and G80, or...

    you can modify the P-clamps for a Commando grab rail - the Commando rear loop is almost the same diameter as the P11 down tubes

  4. Warren Dagnall

    Warren Dagnall

    Joined:
    Oct 28, 2017
    Hi jerrykap. I am restoring a Norton p11 No 121057 Would you email me the sump guard plan if it not to much trouble. I cannot buy a guard anywhere. Thanks my email is warren.dagnall@yahoo.com Many thanks

  5. jerrykap

    jerrykap VIP MEMBER

    Joined:
    Jul 23, 2014
    Look for my email soon. I have to go on my older computer to get the drawings.

  6. jerrykap

    jerrykap VIP MEMBER

    Joined:
    Jul 23, 2014
    Done.

  7. rhino64

    rhino64

    Joined:
    Feb 22, 2017
    These drawings would be a great reference. Can you please post photos to the forum? How many are used? What direction do the clamps attach to the down tubes?

    Warren Dagnall likes this.
  8. perilouspierre

    perilouspierre

    Joined:
    Jun 13, 2017
    I bought a sump plate with clips from Baxters Cycles around three months ago - have you tried them?

  9. Ron L

    Ron L VIP MEMBER

    Joined:
    Feb 27, 2004
    Walridge Motors (Canada) also now has them in stock. They are complete with clips.

  10. Warren Dagnall

    Warren Dagnall

    Joined:
    Oct 28, 2017
    I am in the UK and import fees add to much to the cost

  11. jerrykap

    jerrykap VIP MEMBER

    Joined:
    Jul 23, 2014

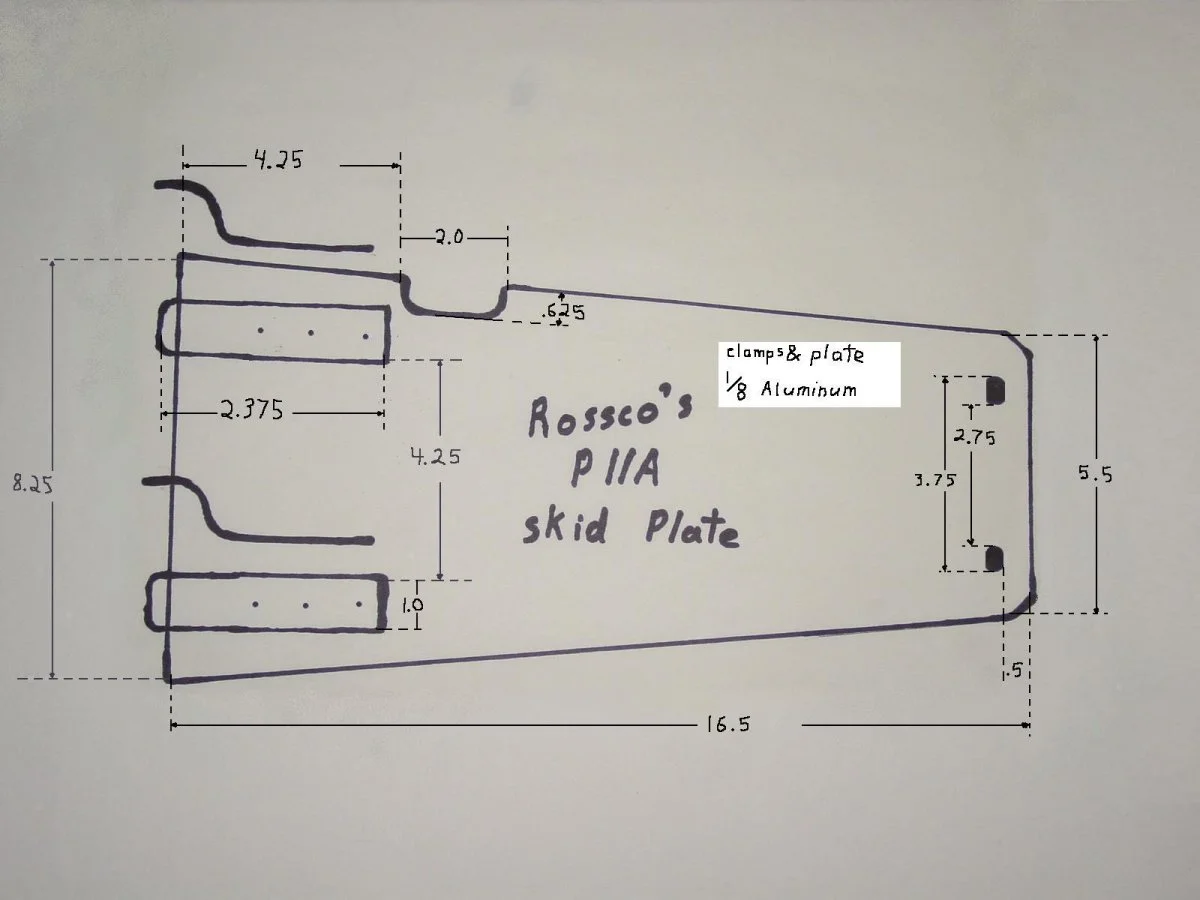

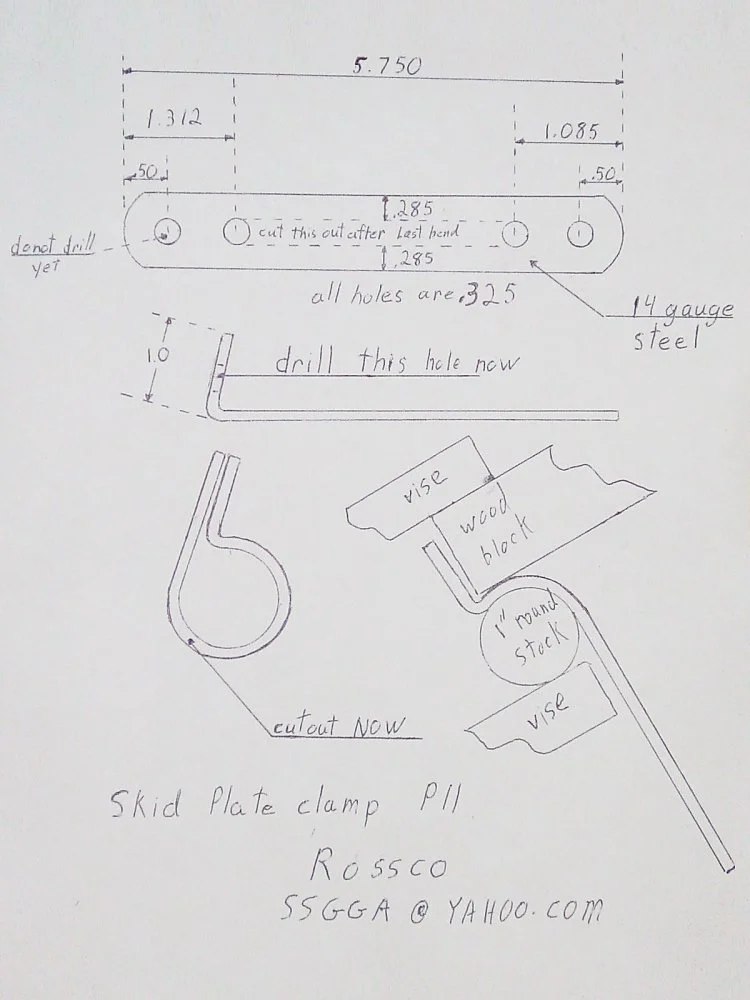

    P11 Skid plate 2.jpg P11 Skid plate.jpg

    Here they are for all to use. Thanks to Rossco's diligent work.

  12. rhino64

    rhino64

    Joined:
    Feb 22, 2017
  13. Paul W

    Paul W VIP MEMBER

    Joined:
    Dec 17, 2009
    Thank you for posting the drawings.
