P11 rear brake pedal hardware

elefantrider

VIP MEMBER
Joined
Apr 6, 2013
Messages
943
Country flag
Looking for a picture or description of the correct hardware of the rear brake pedal mount.
It looks like my pedal has hit my primary cover near the stator area.

Joined
Apr 22, 2020
Messages
136
Country flag
p400 probably knows what it should look like.

Mine has not been messed with (looks about as sophisticated as a 1967 desert bike would), but the only thing keeping the brake lever in a reasonable position is my foot peg when it is down with my foot on the foot peg. You might have to come up with a spacer that goes between the primary cover and foot peg hardware to get the foot peg in a position that prevents the brake lever from coming up as far as the stator hump on the primary cover.

I'll look at mine tomorrow. I did add a piece of vinyl hose held on with a ziptie to prevent the bottom of the foot peg hardware from putting a big dent in my brake lever bar. I'm not a restorer though, so grain of salt goes with anything I've done.

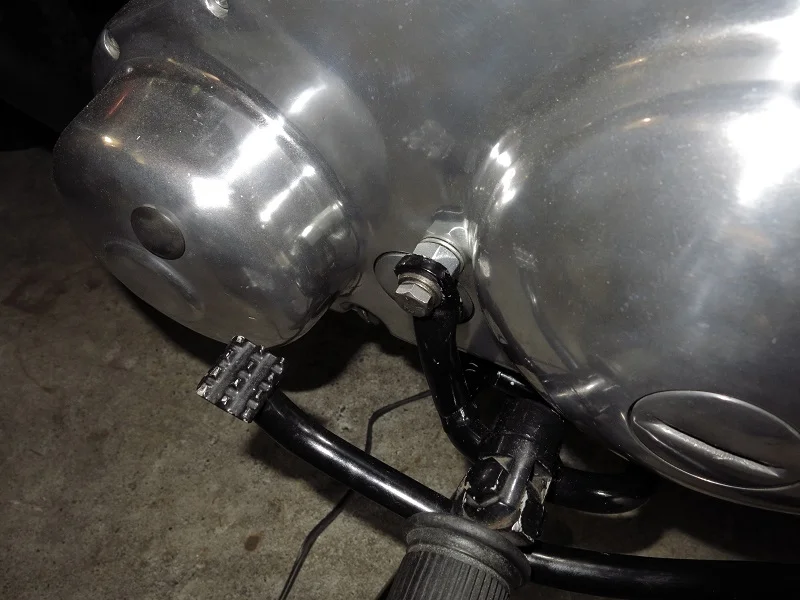

Big nut spacer for foot peg mount. Gonna change that nut to a aluminum spacer when I pull the primary cover off to replace my crank seal and reseal the cover with hylomar and a modern gasket. If you look closely you can see a small mark where the pedal pad hit the primary cover at some point. Probably when the bike was laid over sliding off HWY 9 in the late 70's. Stuff happens.

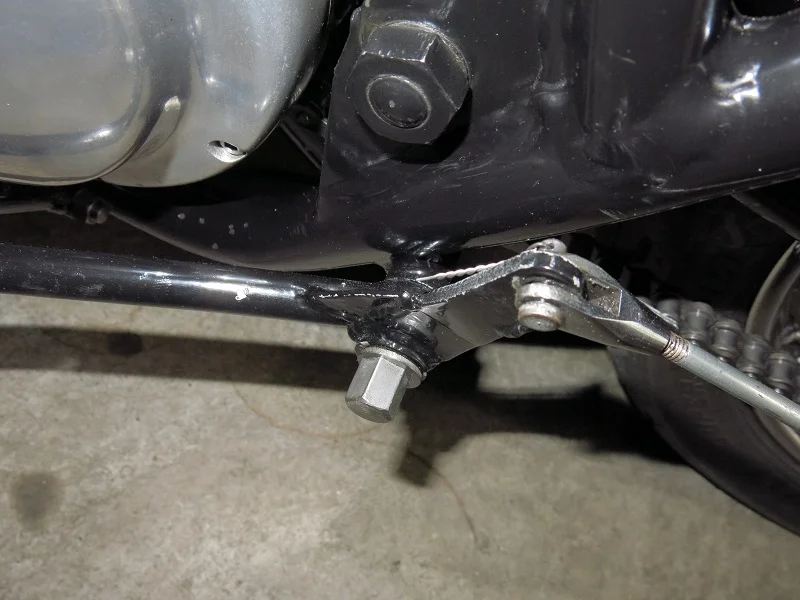

The stock lever mount on the frame. Not sure this image is of much help though. Kind of a weird angle.


Last edited:

elefantrider

VIP MEMBER
Joined
Apr 6, 2013
Messages
943
Country flag

This looks a bit different than my arrangement.

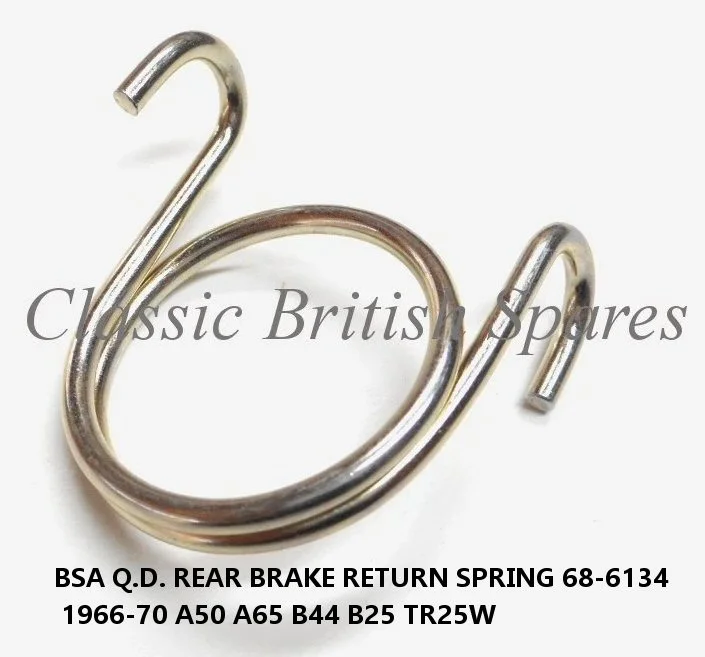

I would like to find a source for this safety spring.

Joined
Apr 22, 2020
Messages
136
Country flag
Mine does not have that Steve McQueen special spring set up (I understand that is a joke) or the brake switch mount on the frame, but the bike was a disassembled flat tracker before I got it, so the switch mount could have been ground off. My brake switch is on the front brake lever (Magura levers). Schwany special.

That spring reminds me of the return spring for a kick starter or a spring used on some of the foot pegs used on modern motorcycles. Anyway I know I've seen similar. Good luck finding one

Last edited:
Joined
Apr 22, 2020
Messages
136
Country flag
If I could weld that nub under the pedal mount, I'd do that spring. Never learnt myself how to weld unfortunately. Thanks p400.
