OMEX BRACKET UPGRADE FOR SINGLE SEAT

Discussion in 'Norton Motorcycles (Modern)' started by richard-7, Aug 6, 2019.

Tags:
  1. richard-7

    richard-7

    Joined:
    Feb 24, 2014

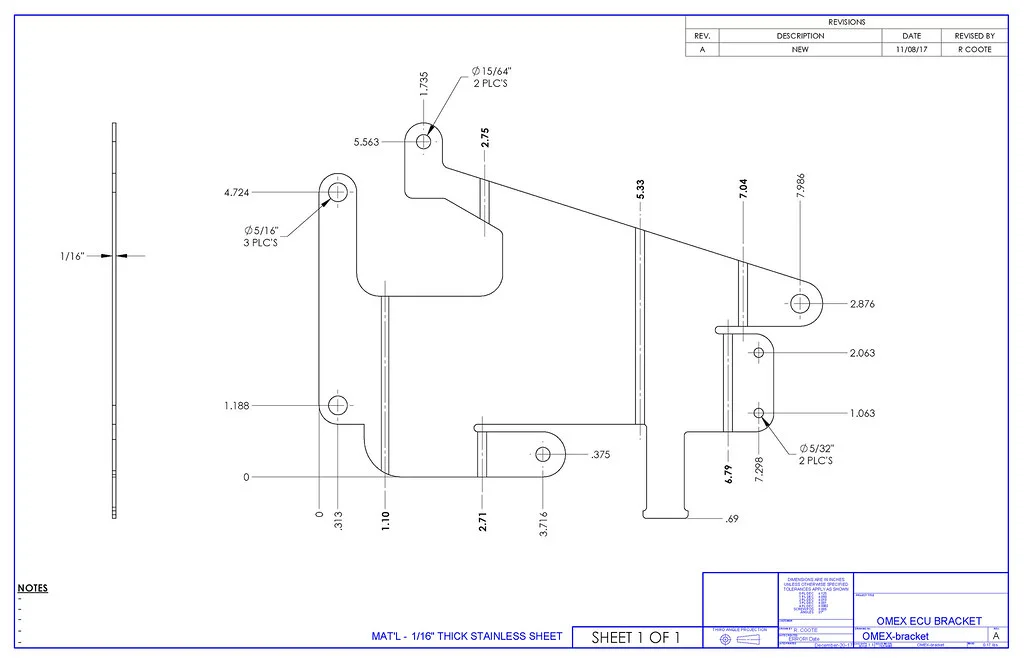

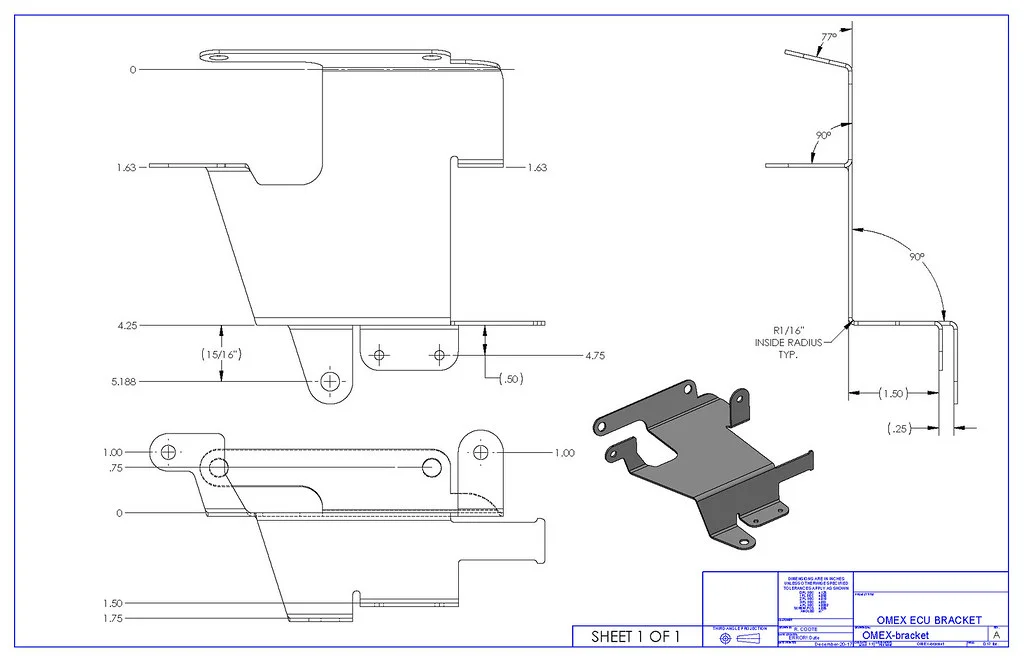

    We were going to make these to sell. We've made a few proto's from these prints (TONYA has one) but decided to share it instead. So the prints are good and dimensions acccurate. Not professional as I would like to share but this is where it stopped in 2017.

    This is for those with Single Seat bikes who want to upgrade to the OMEX ECU but Norton doesn't have a bracket for a single seat. So here you go. The one thing missing is you need to tig weld NUTS to the back of the holes.

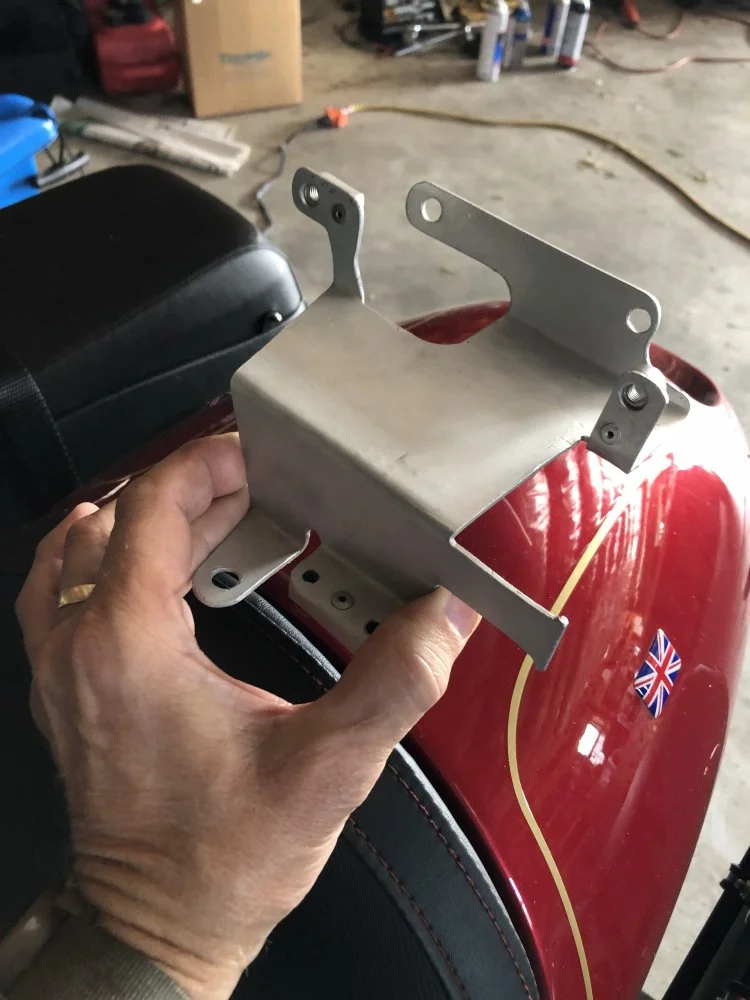

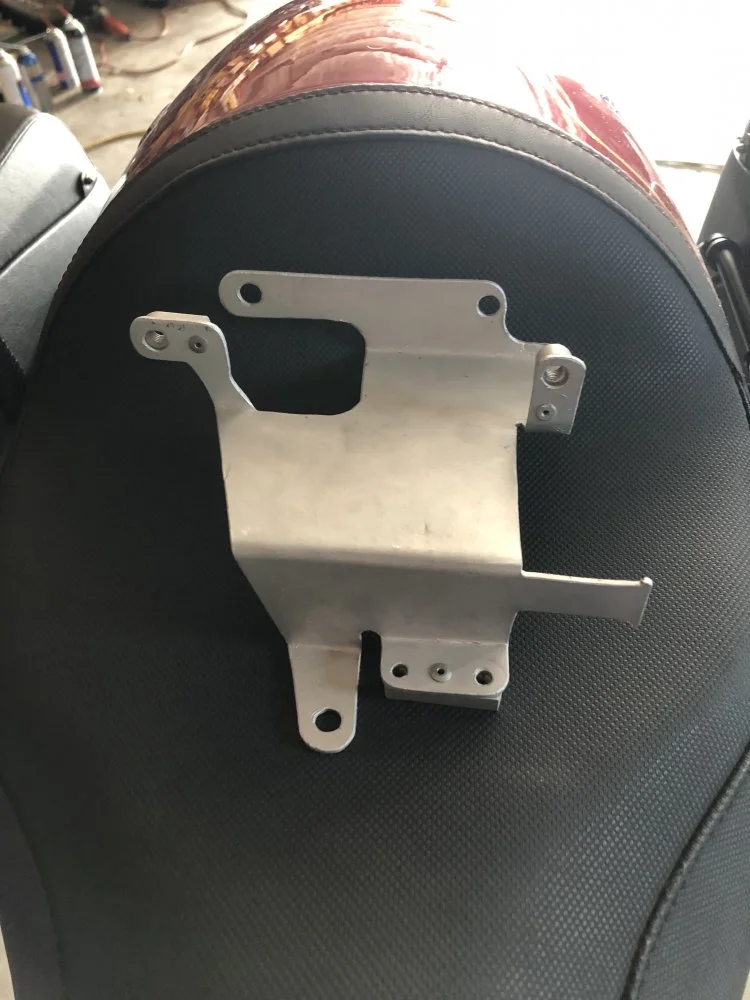

    TONYA: do you mind posting some pics of your proto bracket. ALL the ones we have are on bikes. In fact my dad gave Tony one that was for SE111.

    [​IMG]
    [​IMG]

  2. ntst8

    ntst8 VIP MEMBER

    Joined:
    Feb 14, 2004
    Nice work, thanks for this.

    richard-7 likes this.
  3. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
  4. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    [​IMG]


    Look in TonyA visits Niagara Falls thread it's all in there. Even pictures of it with ECU installed.

    richard-7 likes this.
  5. richard-7

    richard-7

    Joined:
    Feb 24, 2014
    Thanks Tony.
