Oil pump difference Mk3/earlier (2016)

Discussion in 'Norton Commando Motorcycles (Classic)' started by Bob Z., Apr 4, 2016.

  1. Bob Z.

    Bob Z.

    Mar 30, 2012
    Curious to any differences between the Mark 3 oil pump and earlier Commandos.
    I see that there are 2 different part numbers.
    Or is just the oil pump rubber sealing washer different?
  2. Mike B

    Mike B

    Oct 16, 2015
    The spigot that seal sits on is different, as in larger diameter, to support the larger seal.

    mike b
  3. jimbo

    jimbo VIP MEMBER

    Sep 25, 2004
    the oil pumps have two different parts numbers but AN supersedes the older number.

    new 06-6193

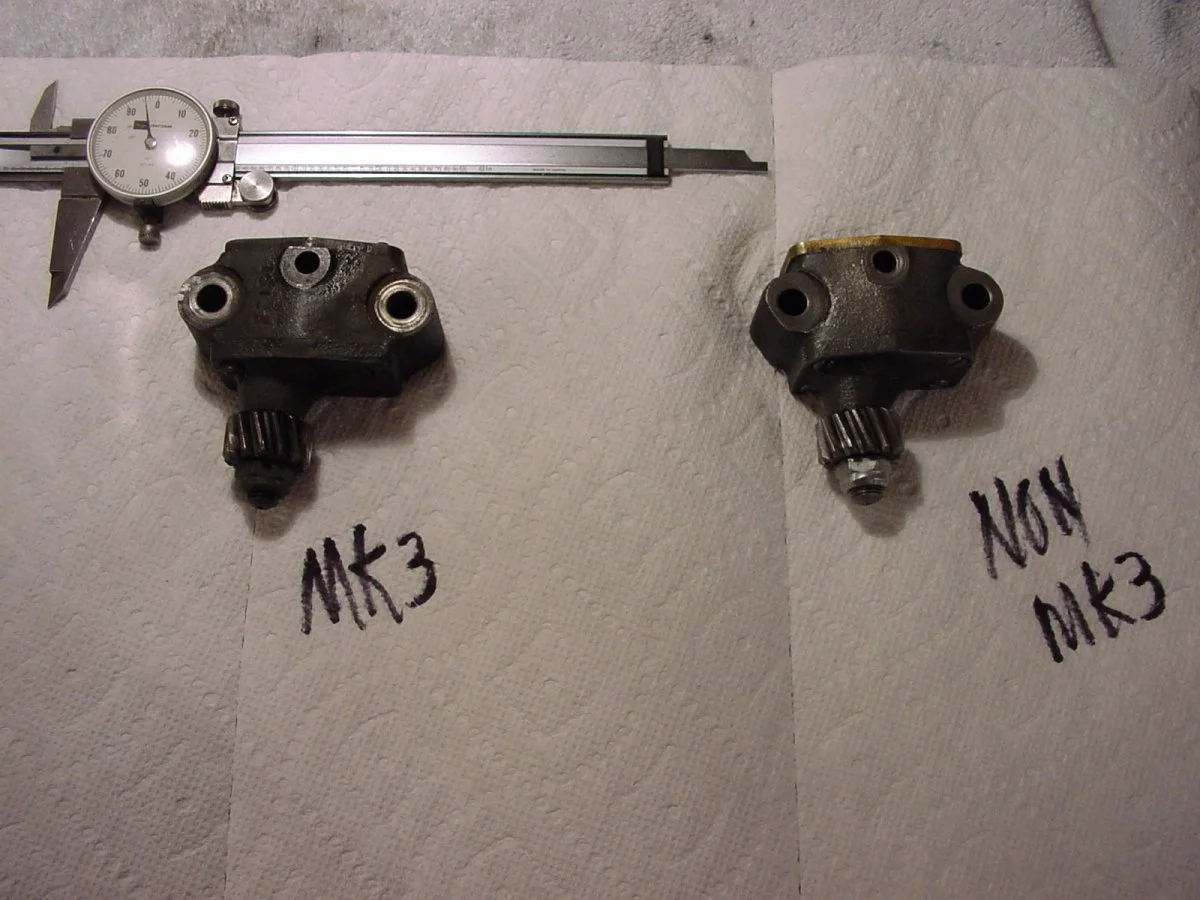

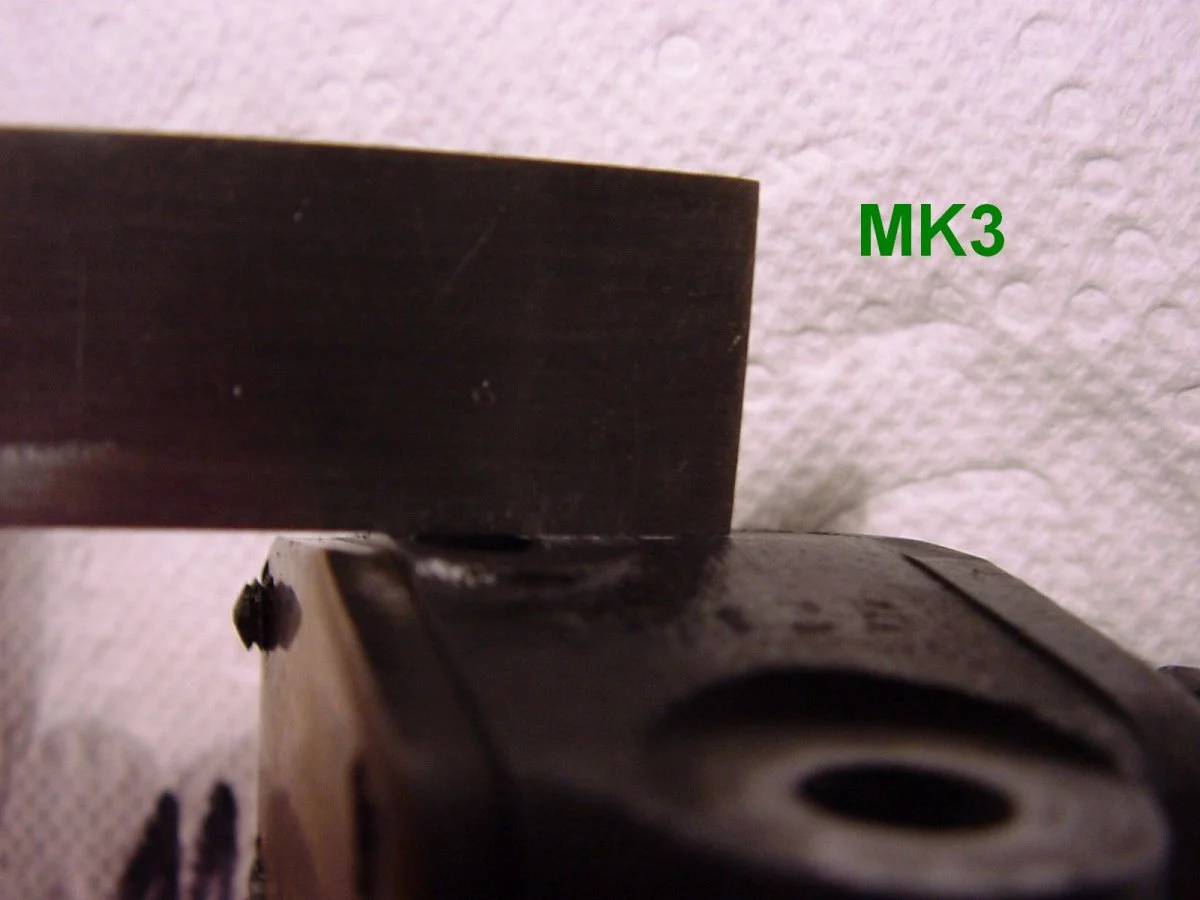

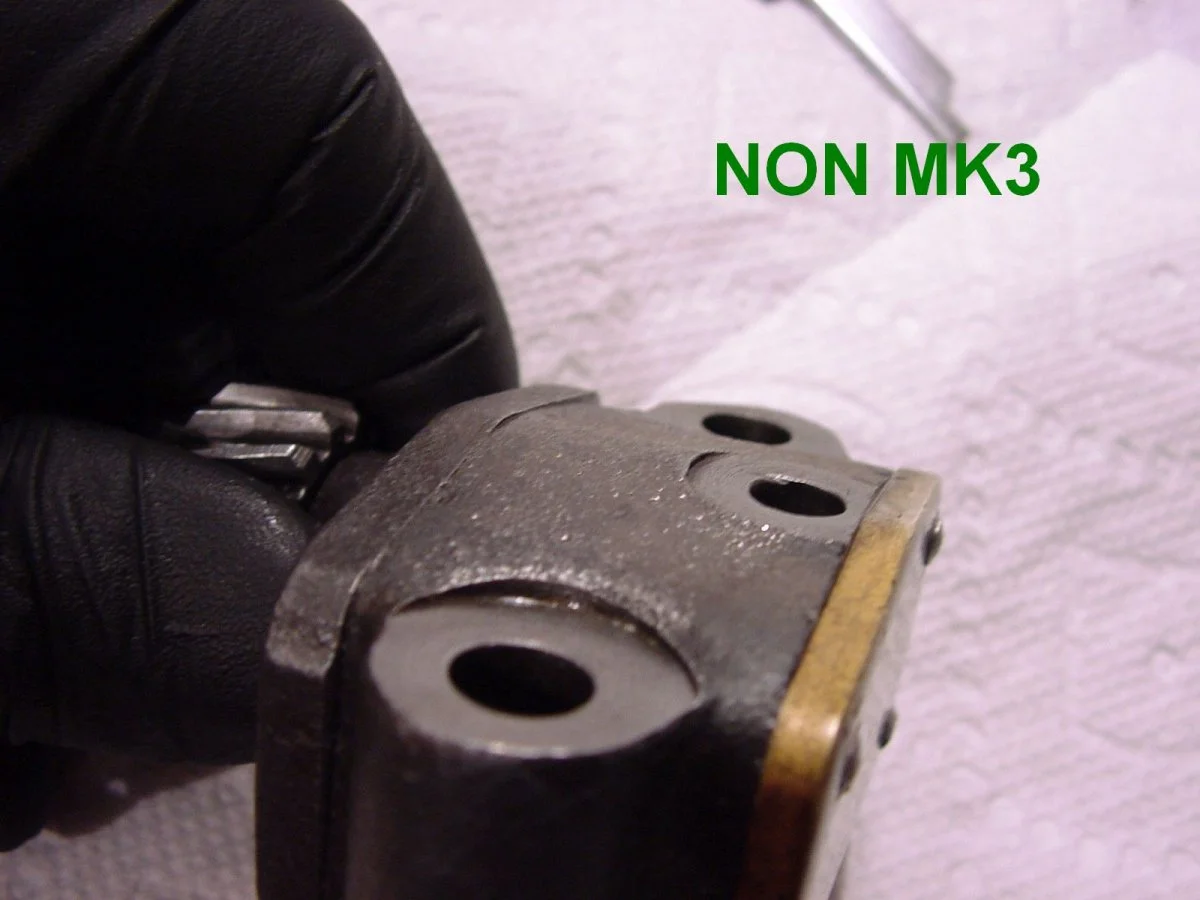

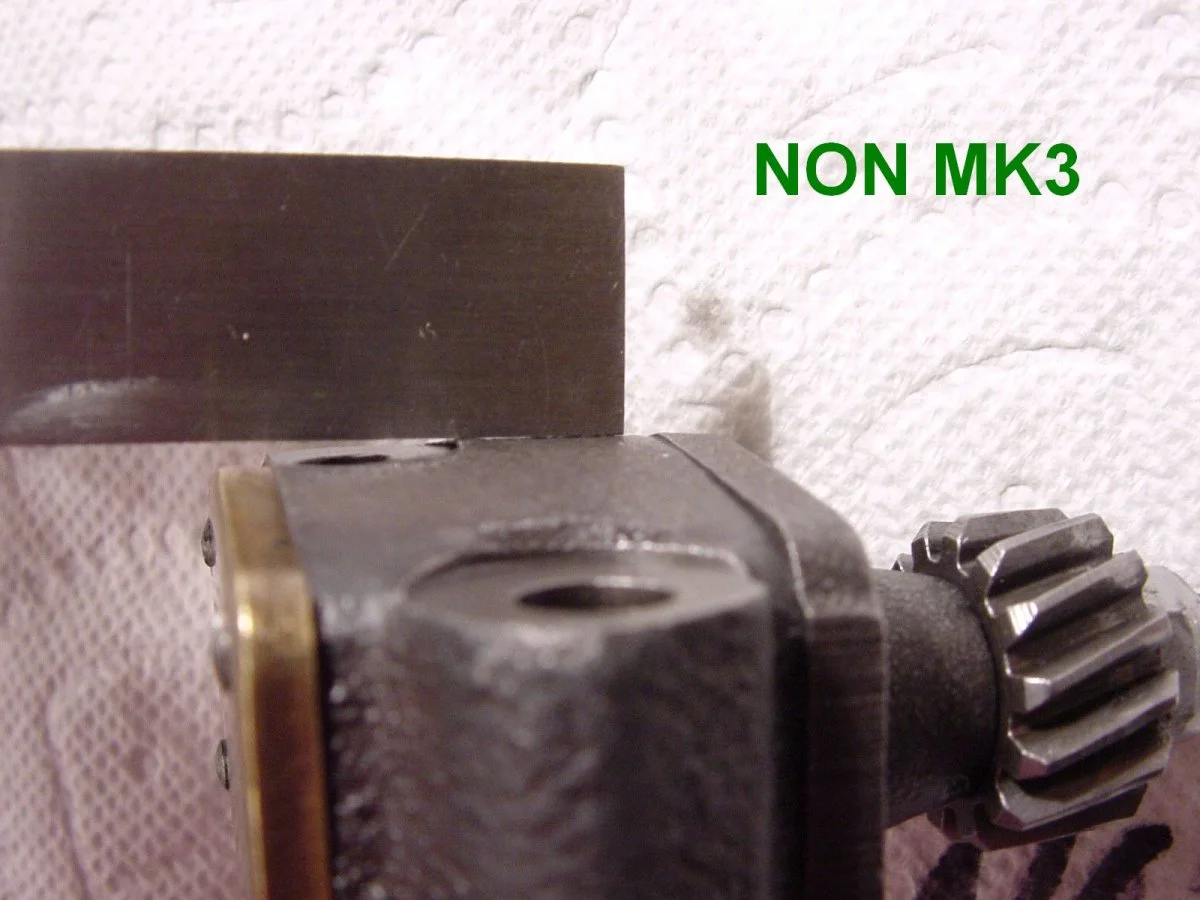

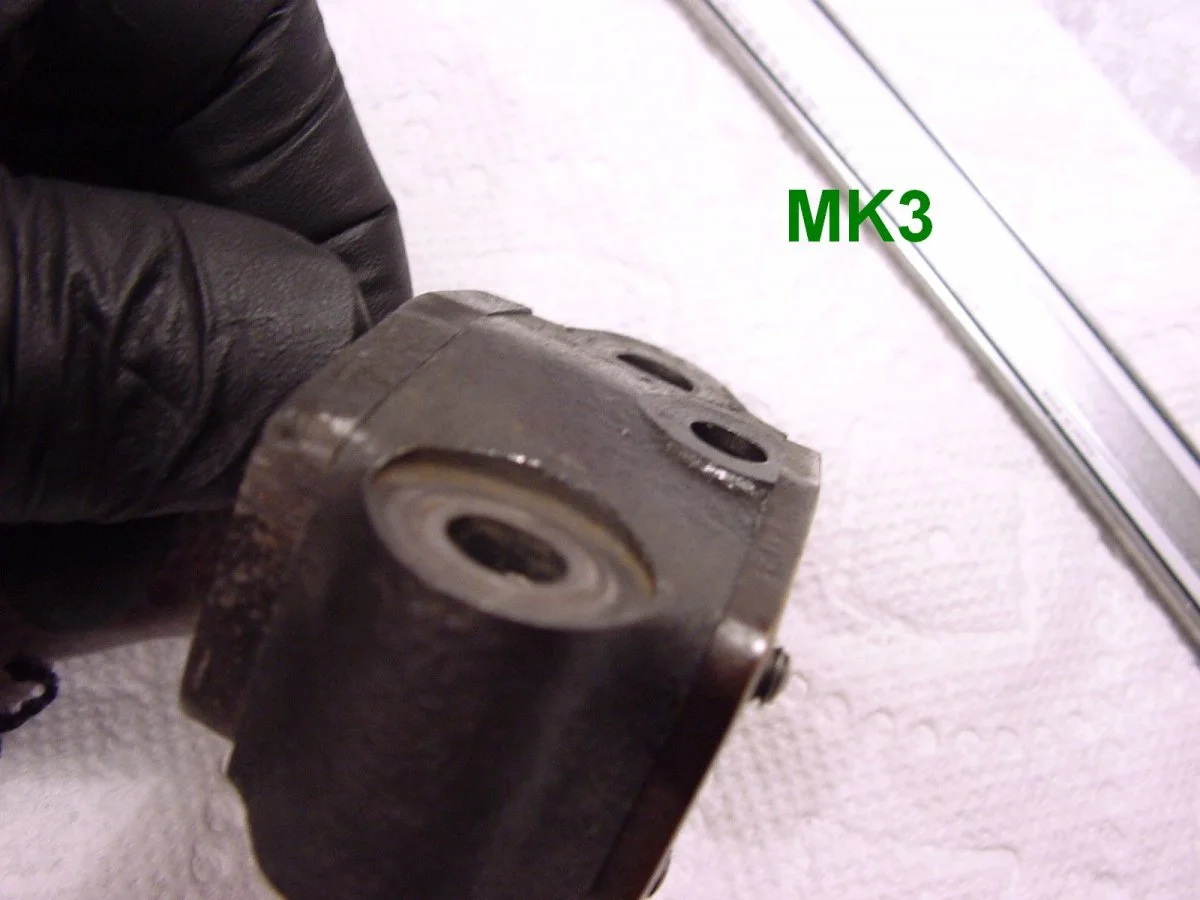

    I noticed the older pump I was going to use on my MK3 has more rough casting after the machined seal retainer area. No problem with older bikes that use the smaller dia seal . But with the MK3 that causes the larger retainer not to sit properly flush. A little grinding is in order.

    DSC09620.JPG DSC09621.JPG DSC09622.JPG DSC09623.JPG DSC09616.JPG
    The Buckeye Rider likes this.
  4. jimbo

    jimbo VIP MEMBER

    Sep 25, 2004

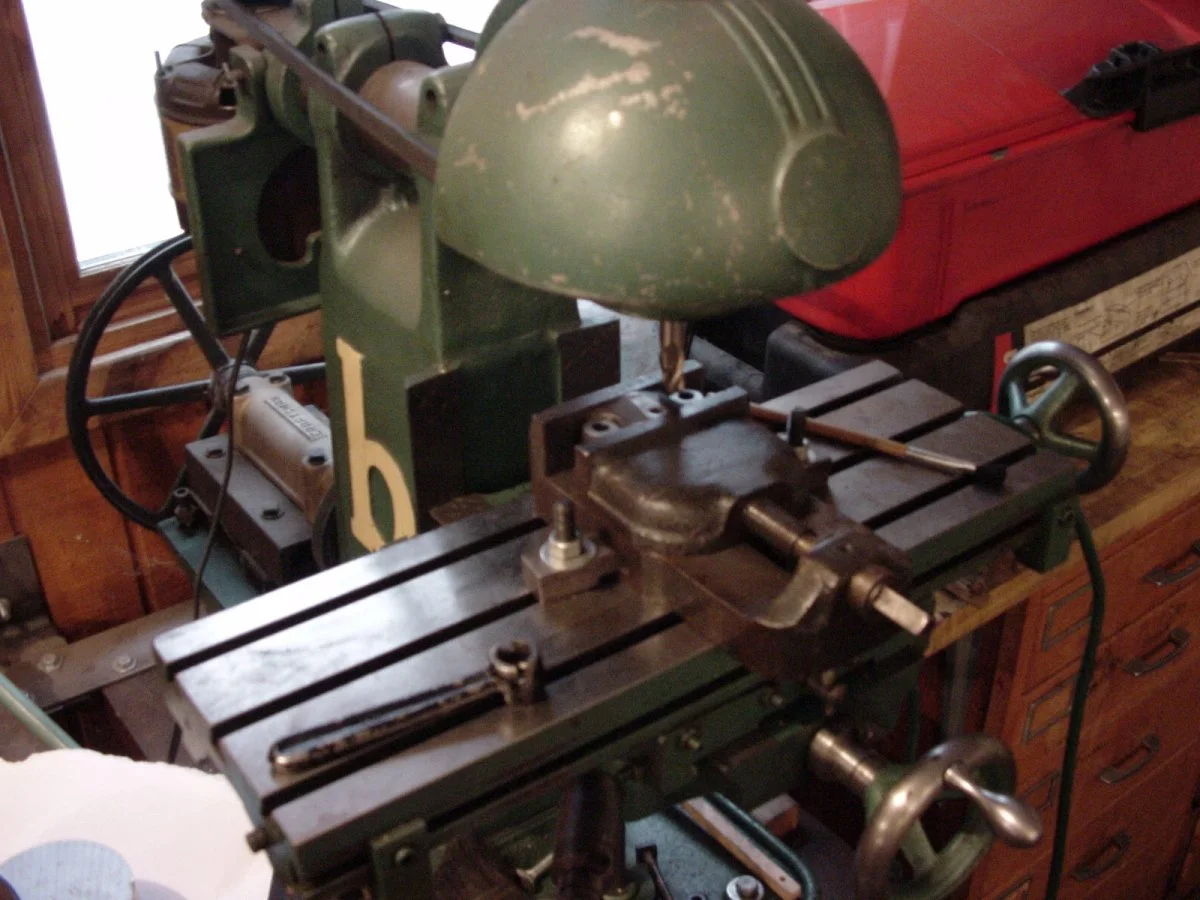

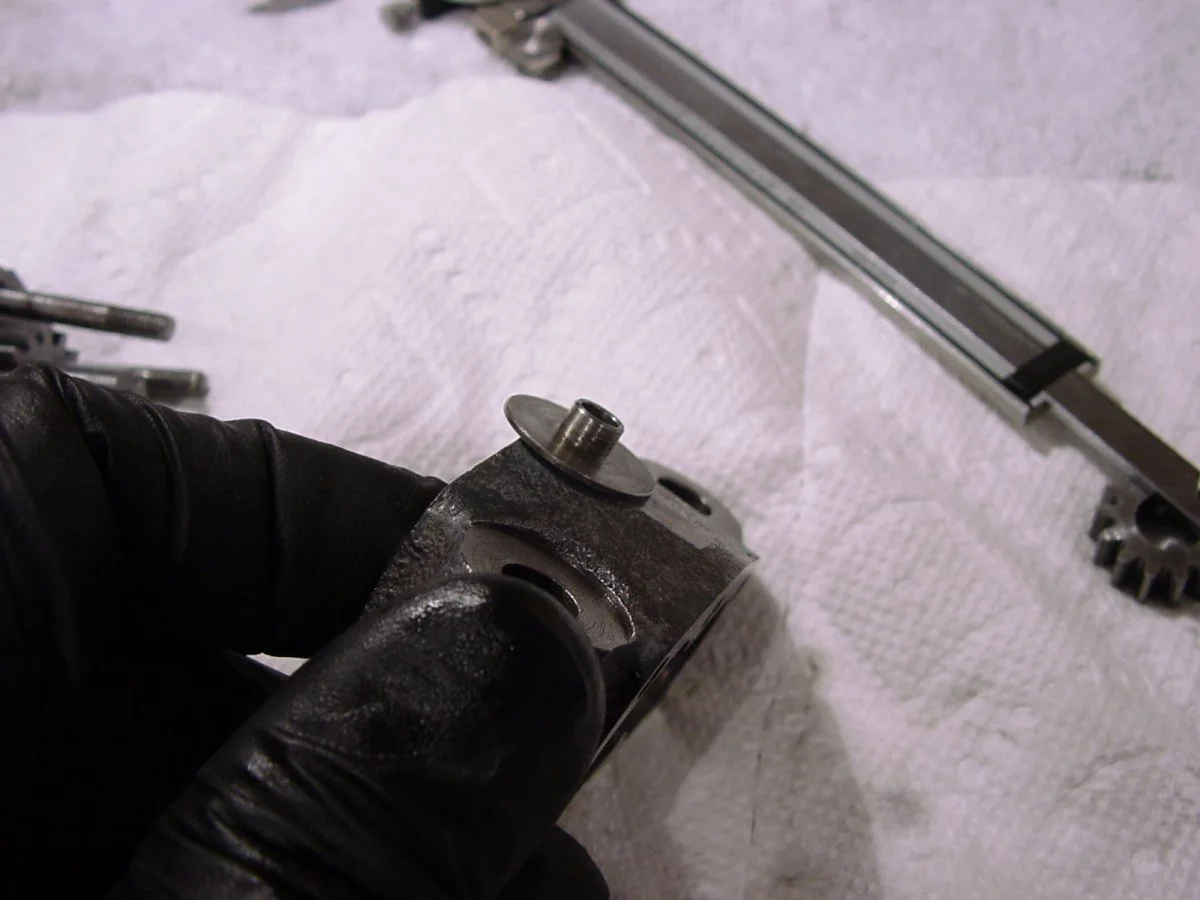

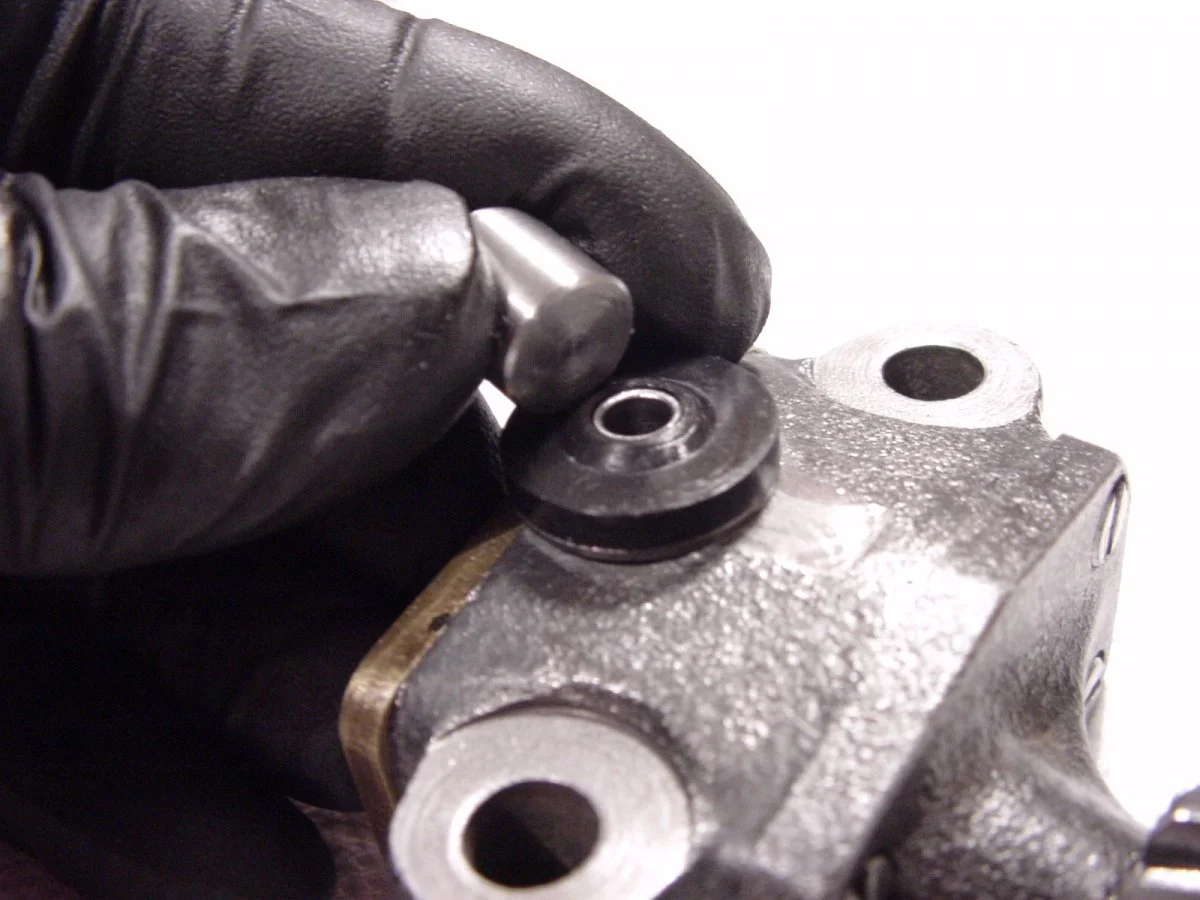

    gotr done, not much rubber to seal off the anti wet sump plunger

    DSC09627.JPG DSC09628.JPG DSC09633.JPG
