Oil pressure gauge

ashman · Aug 7, 2012

Hi All

Mounting up a oil pressure gauge on my 850, like to know how everyone else that is running a gauge where they connect it to the oil line, I was given this new Smiths gauge over 35 years ago and never fitted it, I forgot all about it till last year when found it still in its box, when I got my Smiths speedo and Taco rebuilt at Otto's Insturments in Brisbane, Ian had the oil line kit for this gauge, so its about time I should put it on and it looks good.

Ashley

maylar · Aug 7, 2012

Typically they attach with a banjo fitting where the high pressure side feeds the head.

Reggie · Aug 8, 2012

Ashman wrote;

like to know how everyone else that is running a gauge where they connect it to the oil line

A double banjo bolt in the near side of the rocker feed.
I can post a photo if it helps?

ashman · Aug 8, 2012

Hi Reggie

A pic would be great, its what I was planning on doing but just throught I ask before I started it, the other way was to put a tee peice in between the oil line that goes from rightside to the left rocker,

Many thanks

Ashley

Foxy · Aug 9, 2012

Gday Ash, Nortonspeed posted a while back a pic of his T junction feed to an oil pressure gauge. It was a very neat job along with the rest of his build! Do a search and hopefully the pic is still there as sometimes they are removed from photobucket etc!
foxy

Hobot · Aug 9, 2012

Ya know if ya drill through either the two outer head steady holes ya can tap oil PSI there with a banjo bolt. If the spindles are drilled through then head can feed from one side and the other can be gauge tap. This is how I think I'll do Peel, but I have not yet figured out how to connect the standard oil line to the tiny gauge tube. Ms Peel should be as tight inside as these things get so with a gauge I can play with oil grade till some pressure still shows at hi heat rpms. I like seeing the gauges that run the tube up through the steering stem but its extra effort I don't expect I'll ever do on my special. Space is limited on Peel bars for all the gauges she'll have so considering a digital display cluster.

Reggie · Aug 9, 2012

Sorry about the delay......have had to go to work today. :cry: :cry:

I have the Old Britts oil pressure gauge assembly on my Norton,If you go to Old Britts web site, then to the "manufactured products," then to " oil system," then down to "38-240010" you will see a picture of the gauge mounted on the top yoke. There is a stand pipe that runs from the bottom yoke through the yoke stem to the gauge. It's very neat.

Sorry about the poor quality, but I've had to use the flash as it's dusk here now.

ashman · Aug 9, 2012

Hi Reggie

Thanks for the pics, they look OK to me and probly go the same way but using the nylon lines that come with the kit for the Smiths gauge, we all have busy lives with work and not much play as those nasty bills keep coming in, and thanks to all the others as there are so many ways of running the lines and fittings, another way is to get another twin fitting that goes to the right rocker and replace the single left one with the twin fitting and put the pressure gauge hose to that side.

Thanks all

Ashley

Snorton74 · Aug 9, 2012

A guy in Colorado told me one time " you don't want to see the oil pressure on a commando all the time. It'll just stress you out."

ashman · Aug 10, 2012

It don't realy worry me I just like the look of the Smiths oil gauge between the Smiths speedo and taco, a perfect match.

Ashley

RennieK · Aug 10, 2012

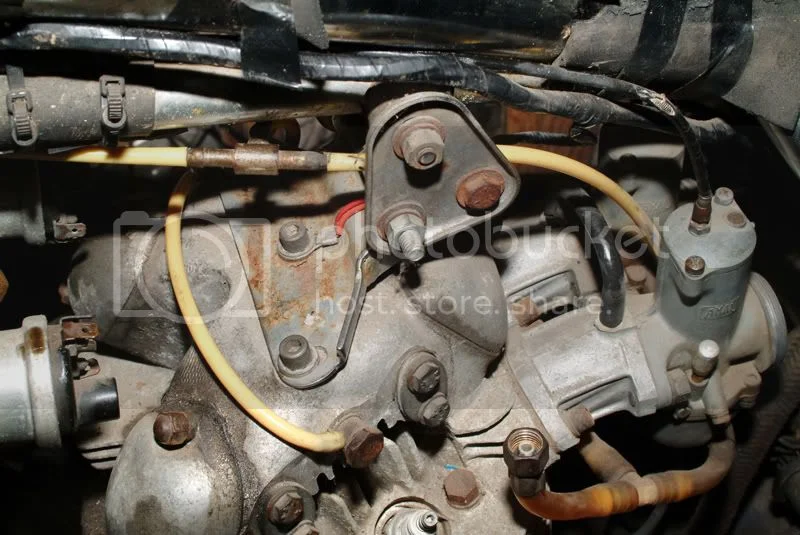

Here's how I did mine with the "T" fitting. I used air brake hose and it pressed on with a lot of elbow grease. It hasn't deteriorated in 35 years so I guess it's ok.

DogT · Aug 10, 2012

Rennie,

Don't tell me you're running that bike with those hoses? I have some Nylon 11 I'll send you for the postage. Those fuel lines look good too. I think I've seen that picture before? And didn't anyone tell you that early head steady is going to fracture?

Dave
69S

RennieK · Aug 11, 2012

No worries Dave, this photo is of my bike that's been in storage for about 30 years. The yellow air lines stayed fresh and bright looking while I rode it back in the day. I likely rode it for 7 - 8 years with those lines and then all the while it sat there is no sign of deterioration inside, just faded colour on the outside. This was was my favorite bike but will be the last one I get back on the road. I just want to slap together a runner and then take my time with this one. I'll be changing the head steady for sure.

Hobot · Aug 11, 2012

Just to keep the mental oil pressure flowing over a weekend, with most away from work stations... Btw Norton did issue some Commandos with oil pressure gauges, I've never seen one, has anyone? Does blend well with oil cooler threads but Norton never offered one I know of. This of course leads right back to grade of oil and climate.

http://www.nortonownersclub.org/support ... l-pressure

http://home.clara.net/captain.norton/cnn4sec23.html

oh yeah about that 750 head steady plate... on a rather long in tooth patina Cdo.
http://rides.webshots.com/photo/1039685 ... 1179EVIUaq
