What are the original Norton P11 spring rates for the Teledraulic forks and the Girling rear dampers?

I would not expect either to be a progressive rate, just a simple linear spring rate.

Last edited:
Norton P11 Spring rates, forks and rear shocks

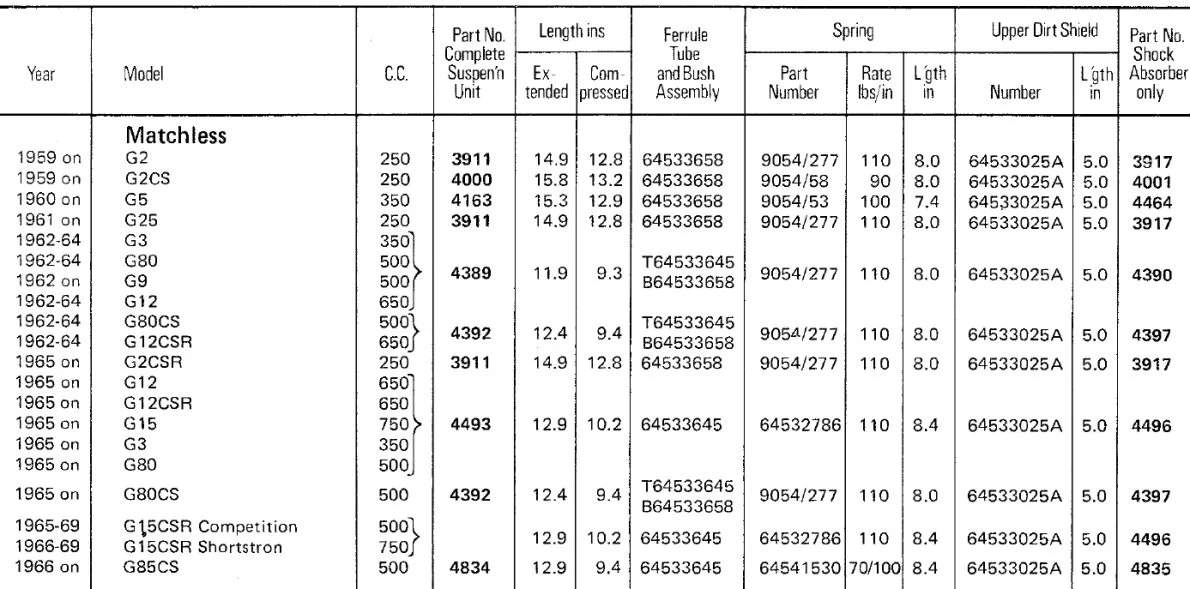

I thought the Matchless chart would have a similar Girling application.

Does not appear so!

Last edited:
So I measure rear spring rate at 110 lbs/in.

220 lbs at 2.0 inches compressed.

preloaded installed Girling spring length - about 8.6" at the softest Girling preload setting.

P11 Girling free spring length unknown at this time.
Anybody got a spring off they can measure?

Girling suspension shock unit, my 67 P11, is eye to eye about 13.25"

Last edited:
So I measure rear spring rate at 110 lbs/in.

220 lbs at 2.0 inches compressed.

preloaded installed Girling spring length - about 8.6" at the softest Girling preload setting.

Free P11 spring length unknown at this time.

Girling suspension shock unit, my 67 P11, is eye to eye about 13.25"

Mine rear are 13,3 eye to eye.
