Norton gearbox powering a vintage 1917 lathe...

bluto

Joined

Jul 15, 2010

Messages

637

• Dec 2, 2015

• #1

Saw this in a British amateur machinist magazine (Model Engineer's Workshop), the articles author used the Norton gearbox to convert a vintage 1917 lathe from flat belt to v belt drive and gained another gear in the process....very cool and FWIW the lathe is an American made Hardinge.



R

Rohan

Joined

Aug 26, 2010

Messages

8,215

• Dec 2, 2015

• #2

Be interesting to see the other end of it, the business side of things as it were.

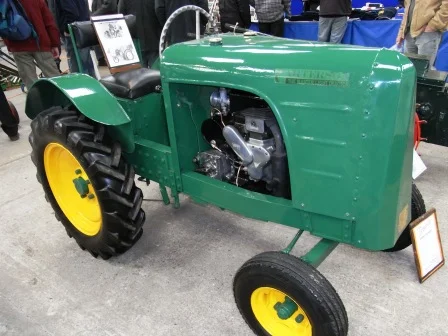

Makes a change from seeing engines powering wood saws, or lawn mowers or tractors !



Fast Eddie

VIP MEMBER

Joined

Oct 4, 2013

Messages

22,121

• Dec 3, 2015

• #3

I doubt many speeding fines have been issued to drivers of those tractors over the years!



R

Rohan

Joined

Aug 26, 2010

Messages

8,215

• Dec 3, 2015

• #4

Is that a concern ? !!
Tractors usually go round and round, slowly, in fields.

Raw slogging power is probably quite a suitable choice (?).



bluto

Joined

Jul 15, 2010

Messages

637

• Dec 3, 2015

• #5

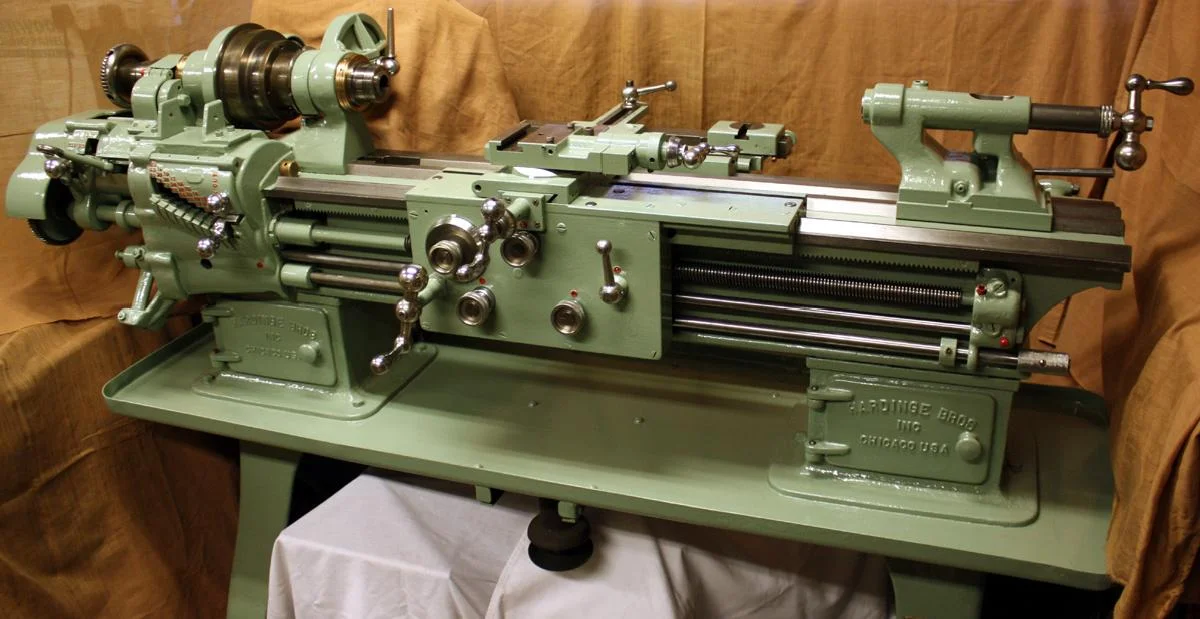

Here is another picture of the same beautifully restored machine but for whatever reason the Norton gearbox is not visible in this shot...

from http://www.lathes.co.uk/cataract/page5.html



Fast Eddie

VIP MEMBER

Joined

Oct 4, 2013

Messages

22,121

• Dec 3, 2015

• #6

Rohan said:

Is that a concern ? !!
Tractors usually go round and round, slowly, in fields.

Raw slogging power is probably quite a suitable choice (?).

Click to expand...

"Raw slogging power"... :shock:



R

Rohan

Joined

Aug 26, 2010

Messages

8,215

• Dec 3, 2015

• #7

bluto said:

but for whatever reason the Norton gearbox is not visible in this shot...

Click to expand...

Because its not actually fitted in that shot.

Amazing what a nice coat of paint can do, if the rest of it has been done to the same standard must be good.
Lathes can be terribly worn, and not show it....
