norton exhaust thread

[lytedrive]

hi,
i have perfected exhaust thread repair on commando heads,

reply to me for a good look,



[Snorton74]

You're a day late and a dollar short.



[lytedrive]

14 tpi is original pitch

i do 18 tpi, superior

sorry im late,



[Time Warp]

You're a day late and a dollar short.

Nice to see the work of a craftsman in this day and age.
Kibblewhite valves and guides ?



[comnoz]

You're a day late and a dollar short.

Nice to see the work of a craftsman in this day and age.
Kibblewhite valves and guides ?

Yes, Jim



[lytedrive]

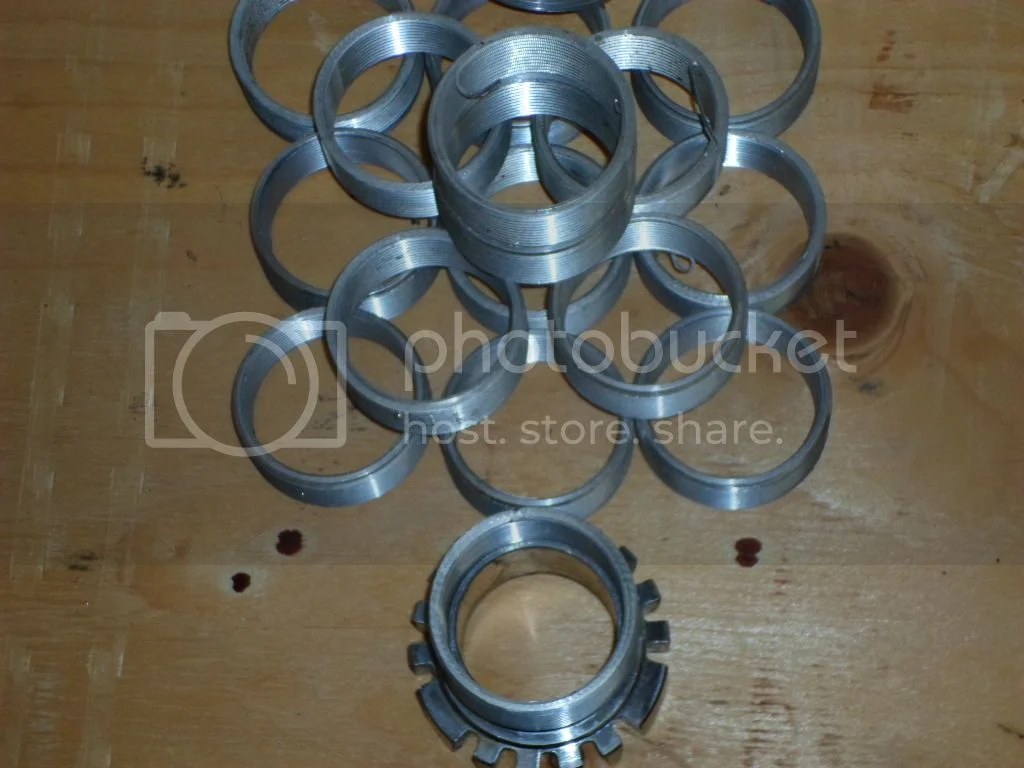

billet alloy and bronze inserts,

fully cnc fitted,

custom stainless steel rosettes ,

std 14 tpi

special 18 tpi sorry i,m late



[nortonspeed]

billet alloy and bronze inserts,

fully cnc fitted,

custom stainless steel rosettes ,

std 14 tpi

special 18 tpi sorry i,m late

Very nice effort, but really who wants an 18 tpi insert as all available exhaust lockrings are 14 tpi (except for yours) :? :?:



[Time Warp]

As you are in Australia how much to have two bronze 14 tpi inserts fitted ?
I take it the heads ports are CNC threaded so those screw in and hope that parting off swarf is removed and replaced with a machined chamfer for the lead in.

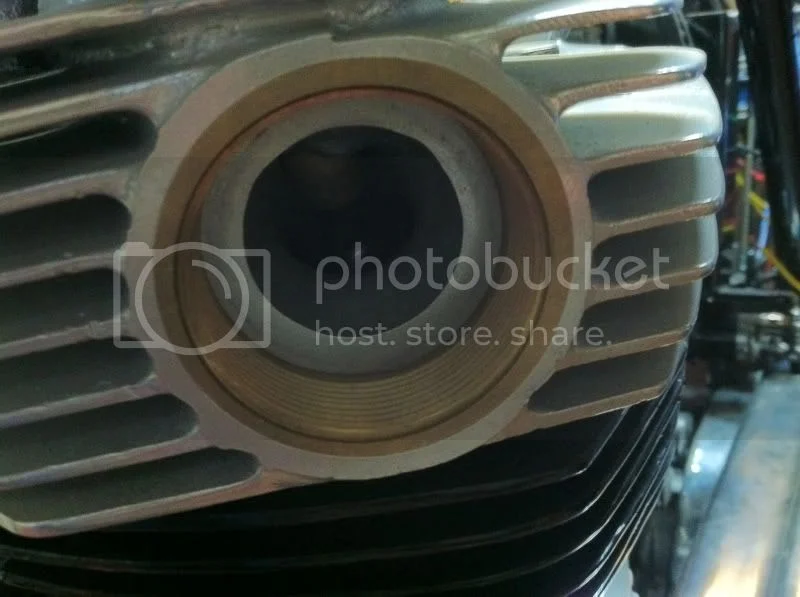

What about pictures of the finished installed product thanks ?

billet alloy and bronze inserts,

fully cnc fitted,



[lytedrive]

hello there .

thread milling is wickid,

i have a haas horizontal

i have mastered threading left and right hand ports,

dont ask me to make the inserts in AB2 but i can be bought,

i need your exhaust spigots ro size them correctly,
i have new chrome finned exhaust rosetts if u need, ( 750 and 850(
i chargee AU$280.00 both sides,

john
