New game - ID this part!

tomspro · Dec 23, 2014

I am not easily embarrased when it comes to my Norton knowledge - and lack thereof.
No trace of Jim Comstock genes here!

So I have been working on upgrades to the old beast and making good progress.
Persistent leaking of oil from multiple places started the project, and now it has taken on a life of it's own.
Renewing seals, replacing primary with a belt, oil tank and tranny redo, new sprockets & chain, etc. Even got a new paint job (thanks Brett!).

But... after sorting things in the primary, discovered a rather substantial part that is without a home.
Perhaps I replaced it and do not remember.
Perhaps it needs to be installed where it belongs.

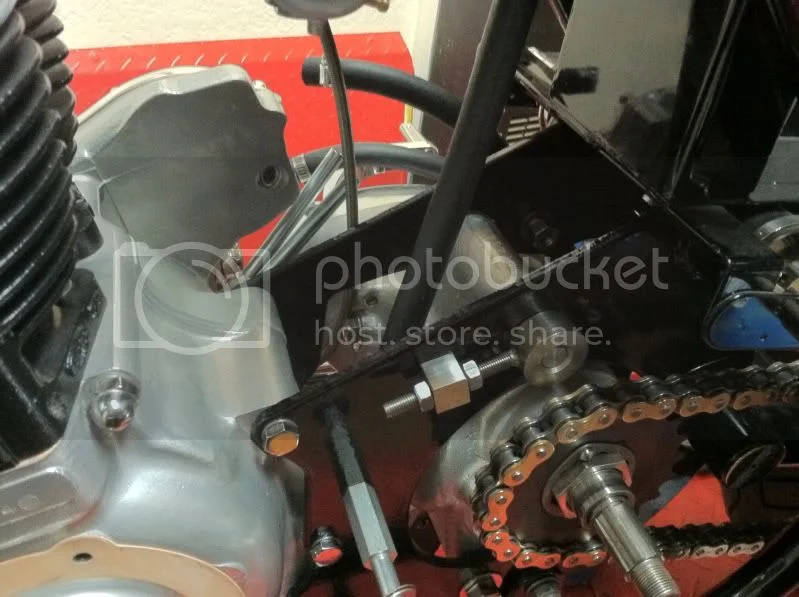

Dunno... but here are pics.

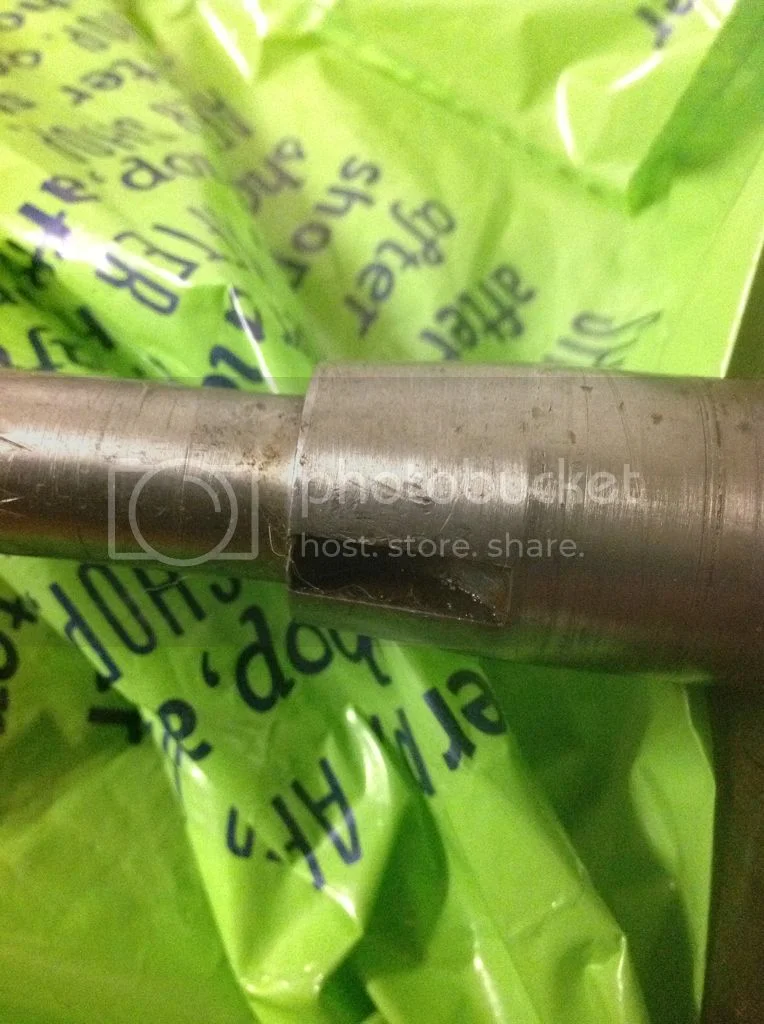

It measures about 1 5/16" OD, 3/4" ID, and 1/2" thick. One side is clearly worn, the side with the recess looks good.

]

Snorton74 · Dec 23, 2014

I think its the Alternator/ rotor spacer. #31-060402

Nater_Potater · Dec 23, 2014

I'm thinking it's #54 that should go over the clip ring on the input shaft of the transmission. http://www.oldbritts.com/1973_g10.html If I'm correct, you get to take the clutch and primary drive back apart.

Nathan

Nater_Potater · Dec 23, 2014

Snorton74 said:
I think its the Alternator/ rotor spacer. #31-060402

Better yet! #31 on http://www.oldbritts.com/1973_g10.html That way, you only have to pull the rotor.

Nathan

auldblue · Dec 23, 2014

Have you not got a book?

J

1up3down · Dec 23, 2014

I hope we find out!

texasSlick · Dec 23, 2014

+3 on alternator rotor spacer.

Second guess is the spacer that goes over the clip on the main shaft.

tomspro · Dec 23, 2014

Nater_Potater said:
I'm thinking it's #54 that should go over the clip ring on the input shaft of the transmission. http://www.oldbritts.com/1973_g10.html If I'm correct, you get to take the clutch and primary drive back apart.

Nathan

Def NOT 06-0747 that goes over circlip on transmission shaft. Been there...done that. (and that spacer is not this thick)

tomspro · Dec 23, 2014

Nater_Potater said:
Snorton74 said:

I think its the Alternator/ rotor spacer. #31-060402

Click to expand...

Better yet! #31 on http://www.oldbritts.com/1973_g10.html That way, you only have to pull the rotor.

Nathan

Now that could be it!
Maybe not needed when changing to a belt?
Things seem to lined up proper on that shaft.

Snorton74 · Dec 23, 2014

I found that spacer to be incompatible with my beltdrive conversion. Hopefully you have the dual gearbox adjuster or atleast relocated the single one to the primary side.

tomspro · Dec 24, 2014

Snorton74 said:
I found that spacer to be incompatible with my beltdrive conversion. Hopefully you have the dual gearbox adjuster or atleast relocated the single one to the primary side.

Yes - new gearbox adjuster has been installed on the drive side.

N0rt0nelectr@ · Dec 24, 2014

Alternator spacer.
John in Texas

dennisgb · Dec 24, 2014

The dirt on that part is driving me nuts!

tomspro · Dec 24, 2014

dennisgb said:
The dirt on that part is driving me nuts!

now worries. that is how it came off, and it is no longer needed (thanks for the ID guys) so why bother...

Snorton74 · Dec 24, 2014

You might consider rotating the stator counterclockwise a bit. Edit: Upon closer inspection you seem to have it in the right spot, my bad.
