New engine

Buellingvincent

Buellingvincent

Joined
Oct 1, 2014
Messages
160
Country flag
New engine

Fast Eddie

Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
19,288
Country flag
Wow, sounds awesome !

Isn’t the weight saving in the region of 12kg or similar ?

Whats the capacity and spec (cams, CR, etc) and what are you gonna do with it?

Buellingvincent

Buellingvincent

Joined
Oct 1, 2014
Messages
160
Country flag
New engine

Fast Eddie said:
Wow, sounds awesome !

Isn’t the weight saving in the region of 12kg or similar ?

Whats the capacity and spec (cams, CR, etc) and what are you gonna do with it?
Click to expand...

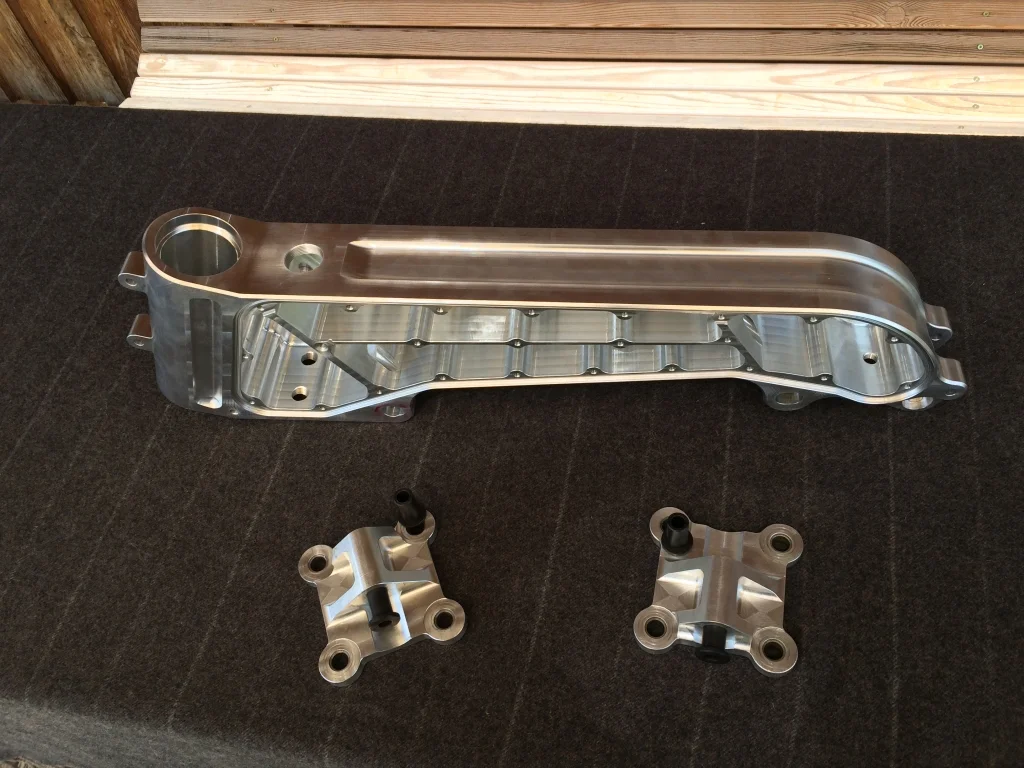

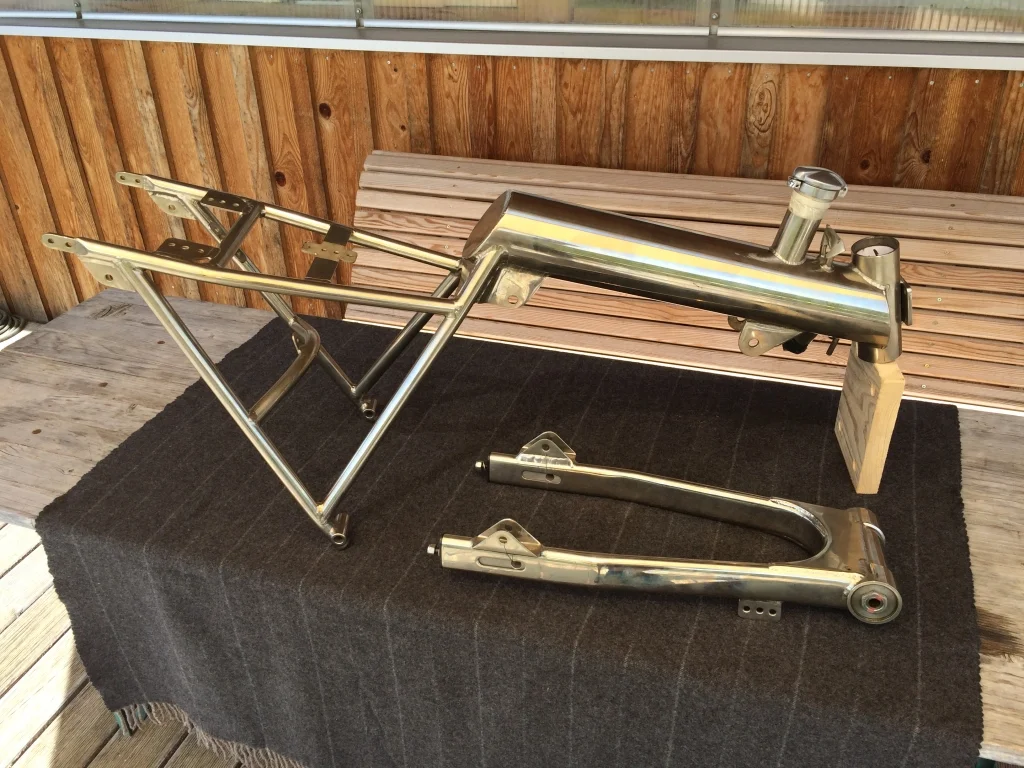

Nicasil coated alu liners. 92mm bore. 100mm stroke bob weight crank. Terry Prince cams. Bob Newby belt and clutch. 5 speed gearbox. Have a ETPV alu UFM and an Egli type frame. Not sure which one to use with the engine.

Buellingvincent

Buellingvincent

Joined
Oct 1, 2014
Messages
160
Country flag

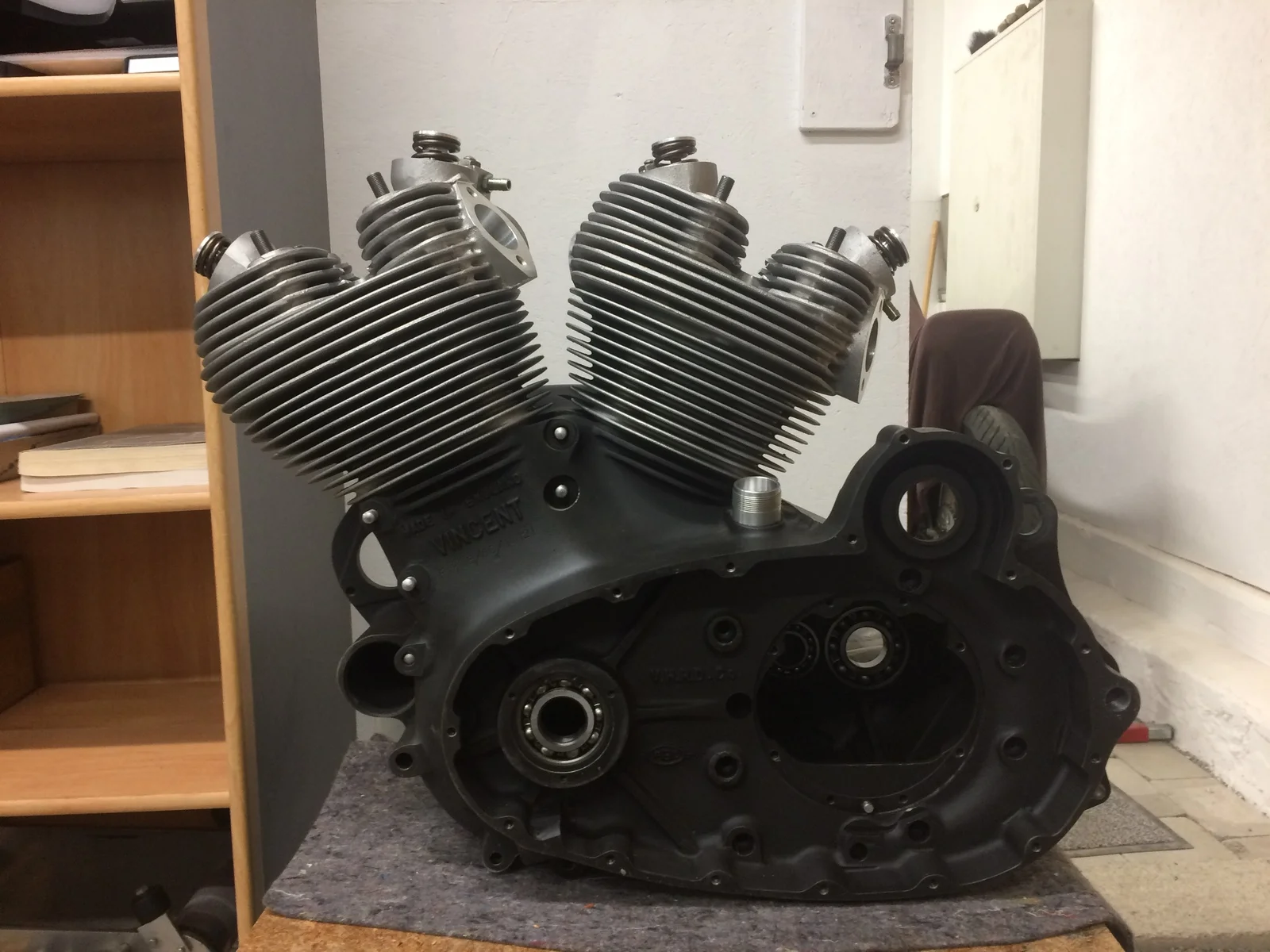

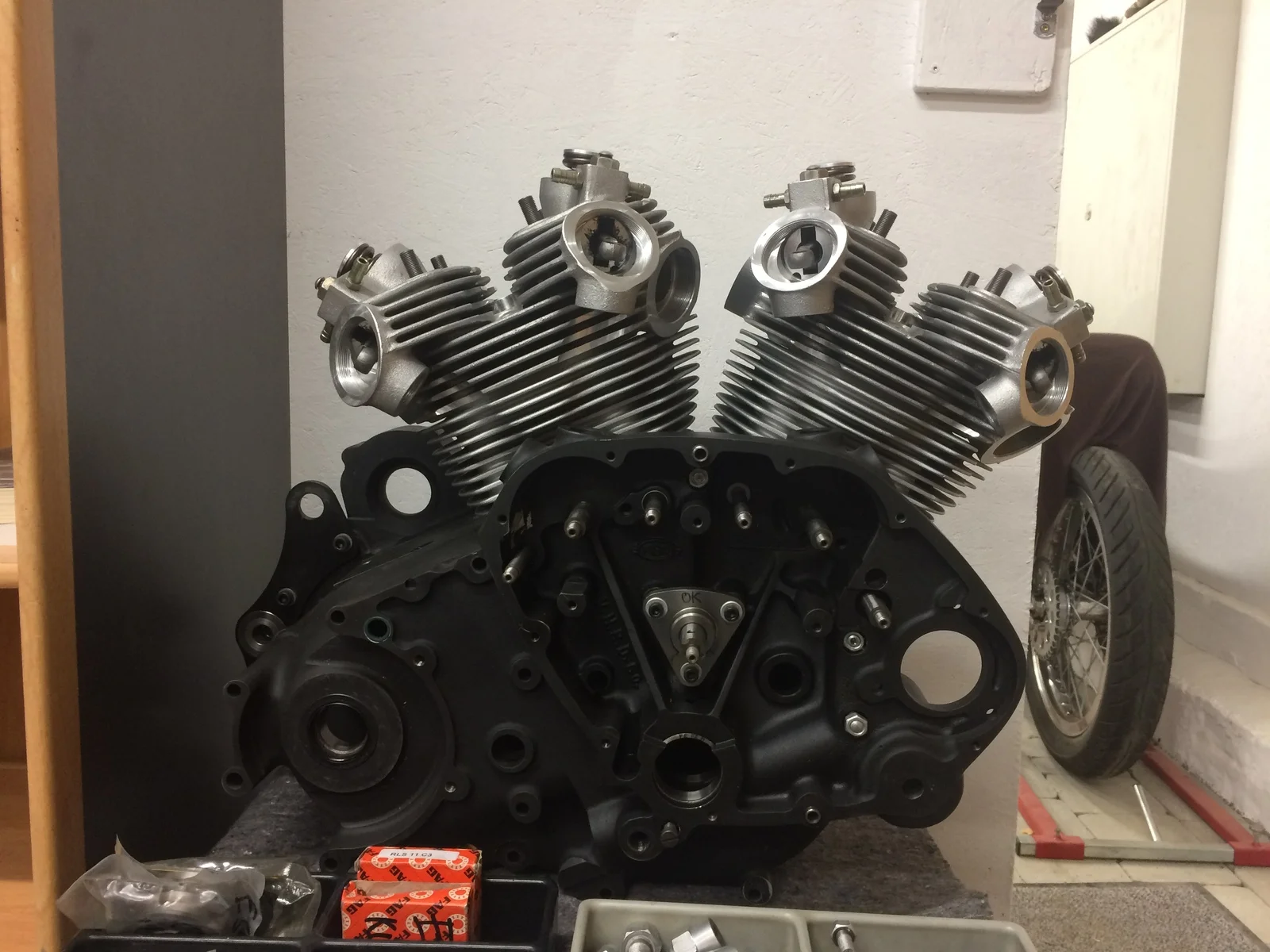

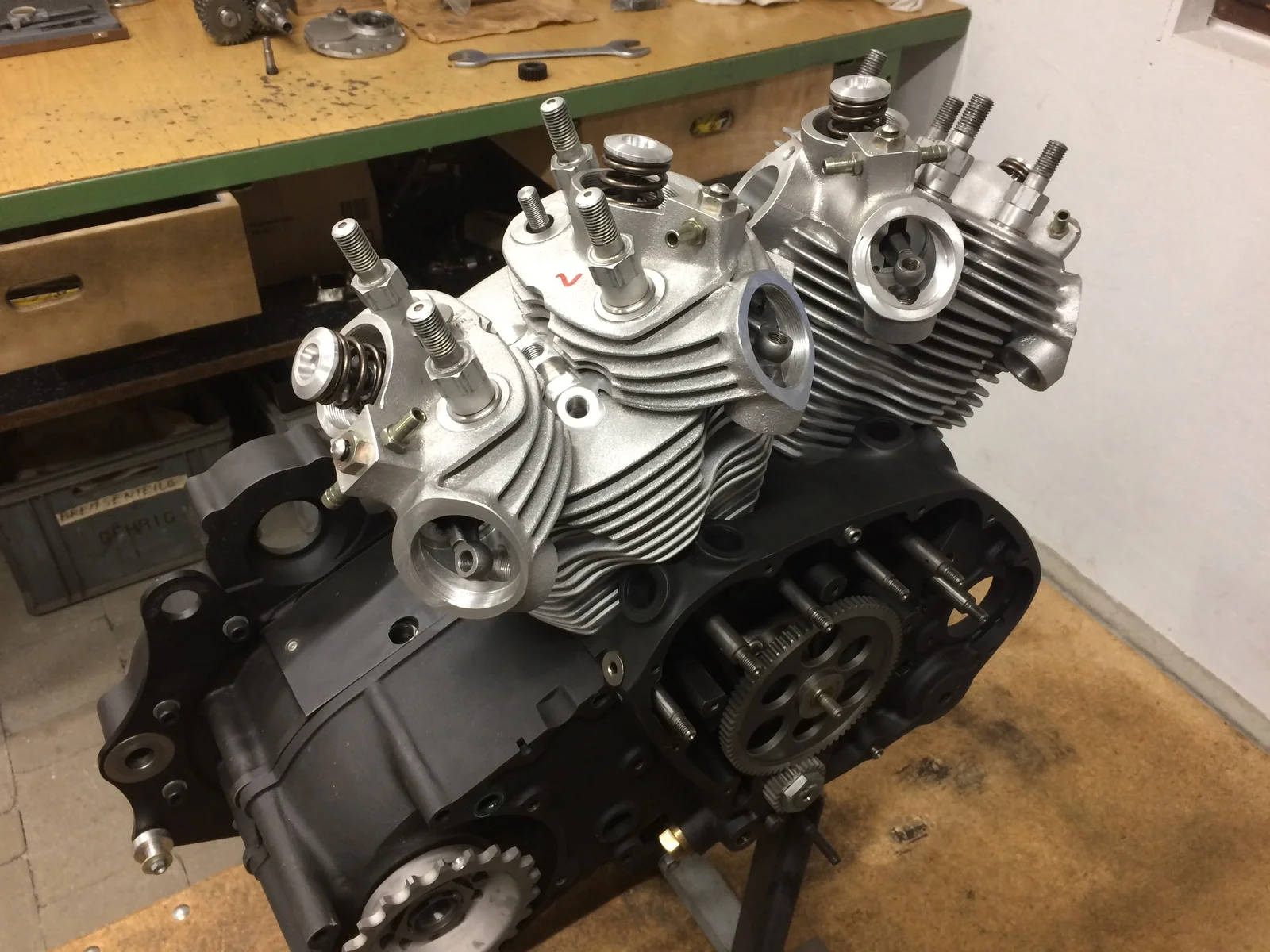

I sold the alu crank cases I bought from Neville Higgins once I found the Mg cases. The crank and top end kits I purchased from Terry Prince years ago got a new companion!

Fast Eddie

Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
19,288
Country flag
12kg is what I was told by Mr Godet (RIP).

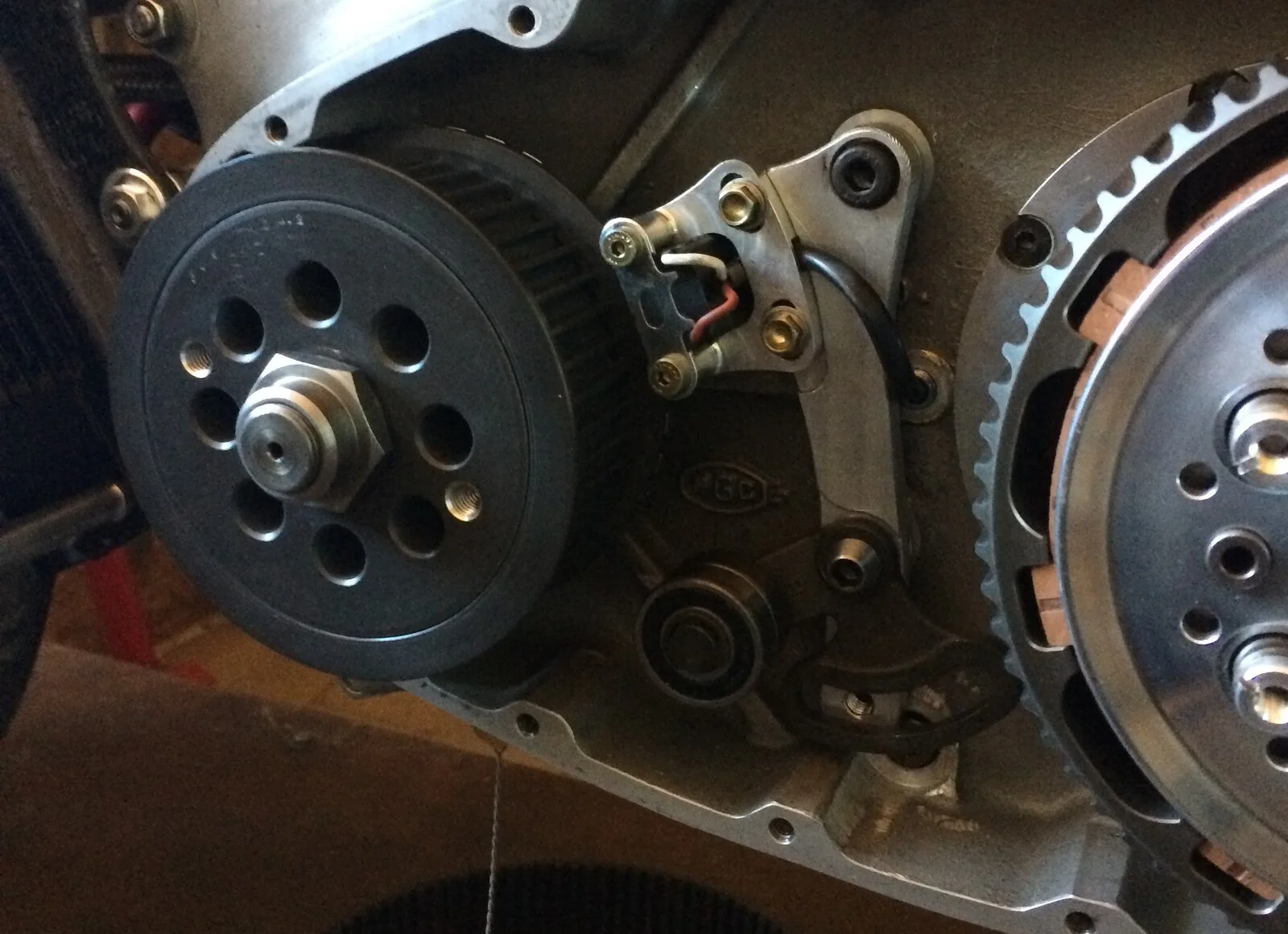

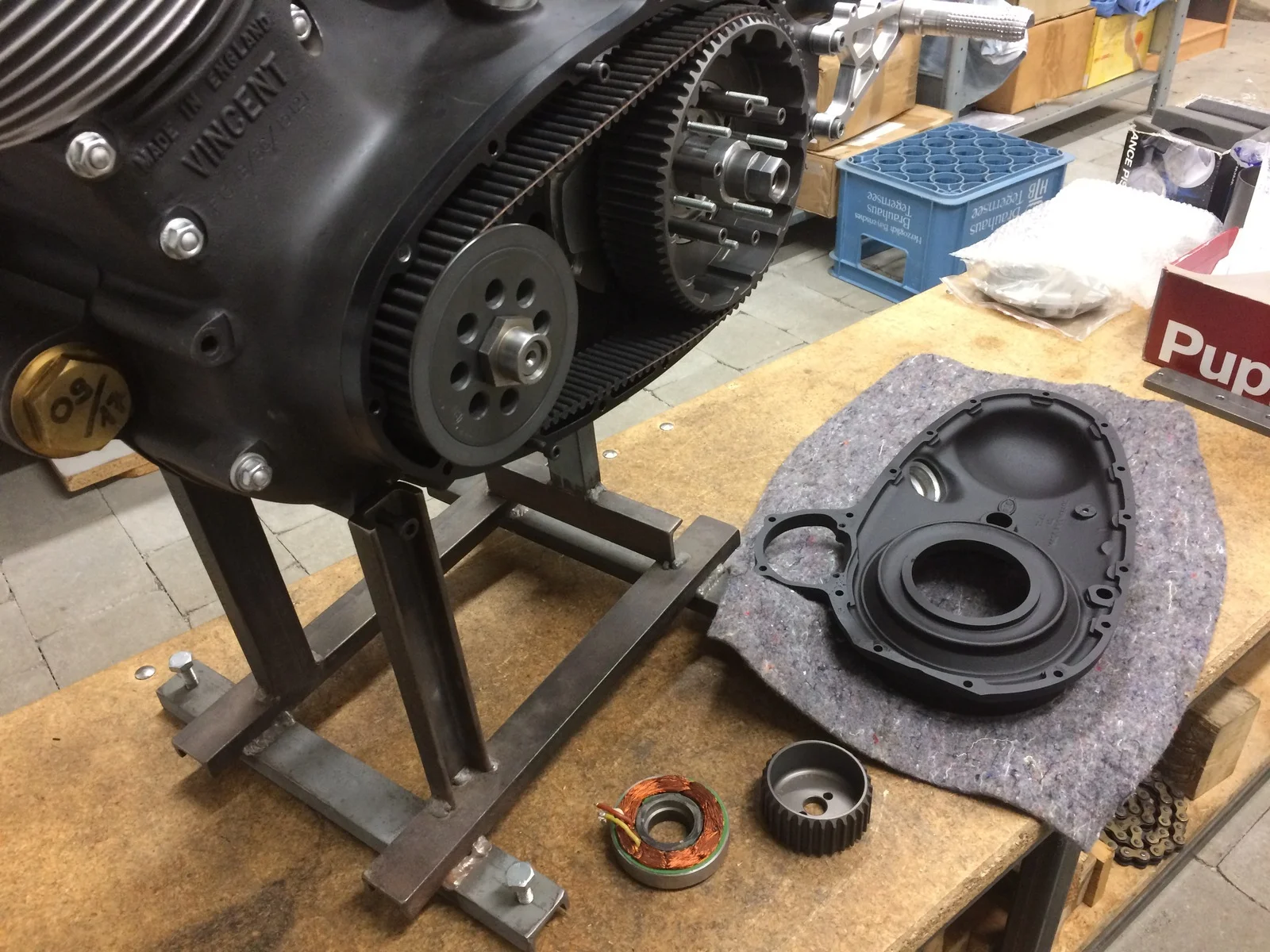

FWIW I would take care and keep a close eye on the double sided belt. Set up is critical. If the alternator / Dynamo is mounted too close, the belt can crush and the bearings in the alternator can fail due to the stresses applied as things expand / contract (which they do on such a huge lump). If it’s mounted with too much clearence, the pulley can skip over the teeth, also destroying the belt. This is not a consideration with the stock set up as the sprocket can move in / out of the chain to cope with expansion and contraction etc. I had that double sided belt set up some years ago and destroyed two belts learning the above points !

Last edited:
