Mystery Wheel

Discussion in 'Triumph (Classic)' started by swooshdave, Nov 5, 2018.

  1. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

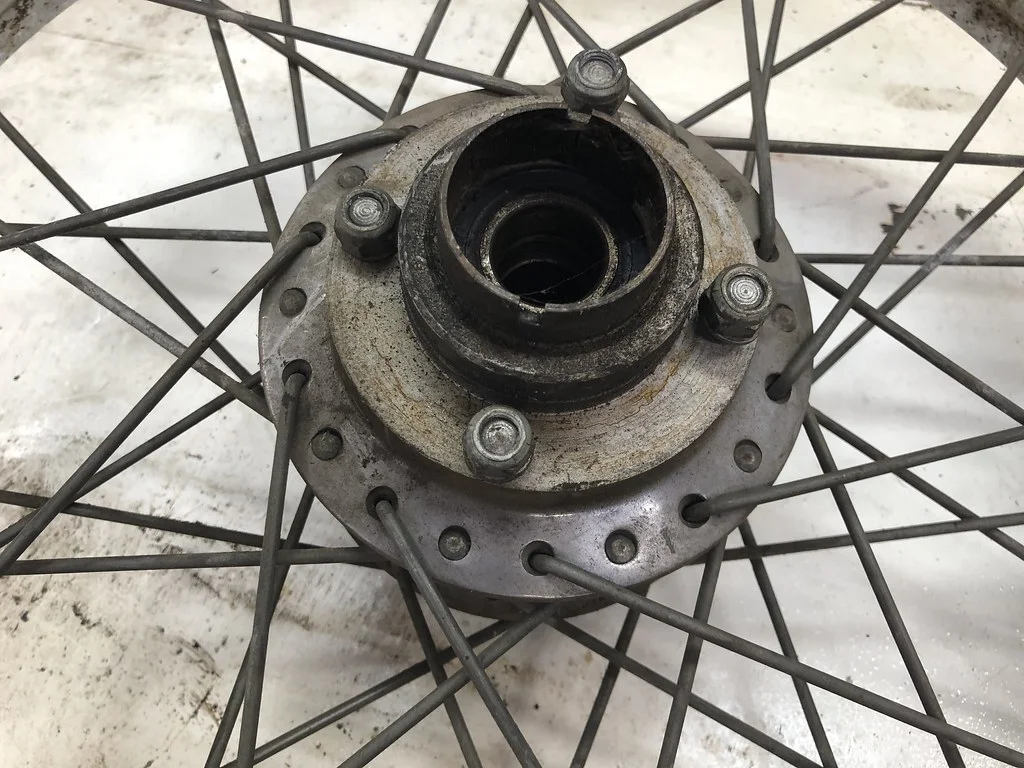

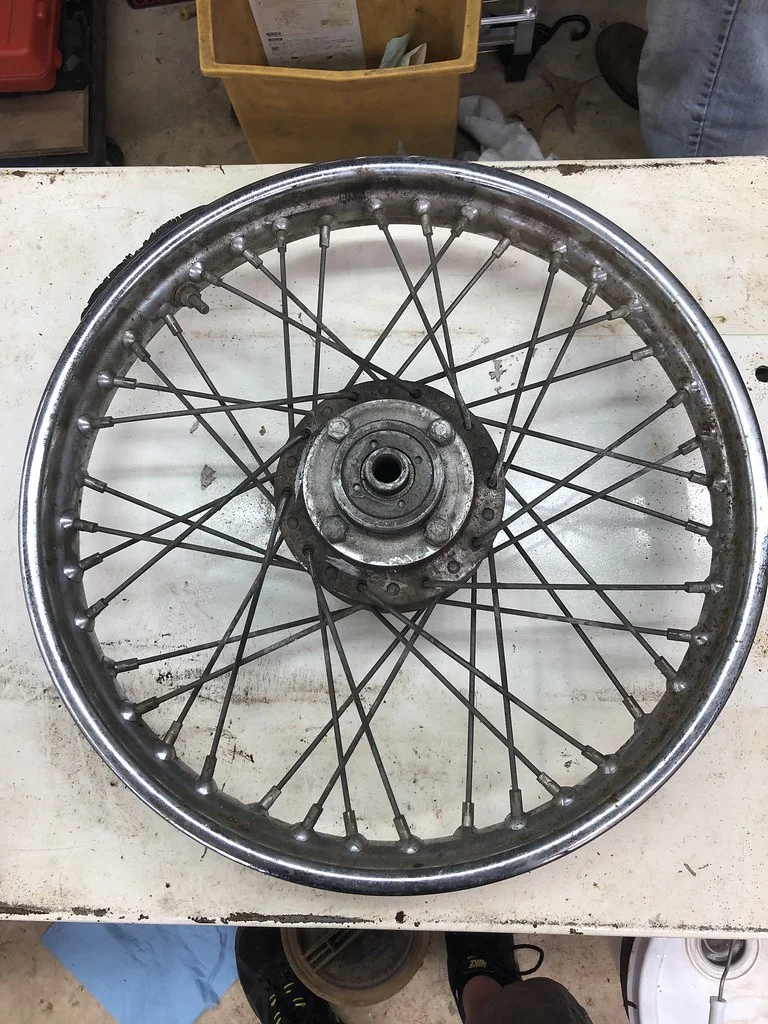

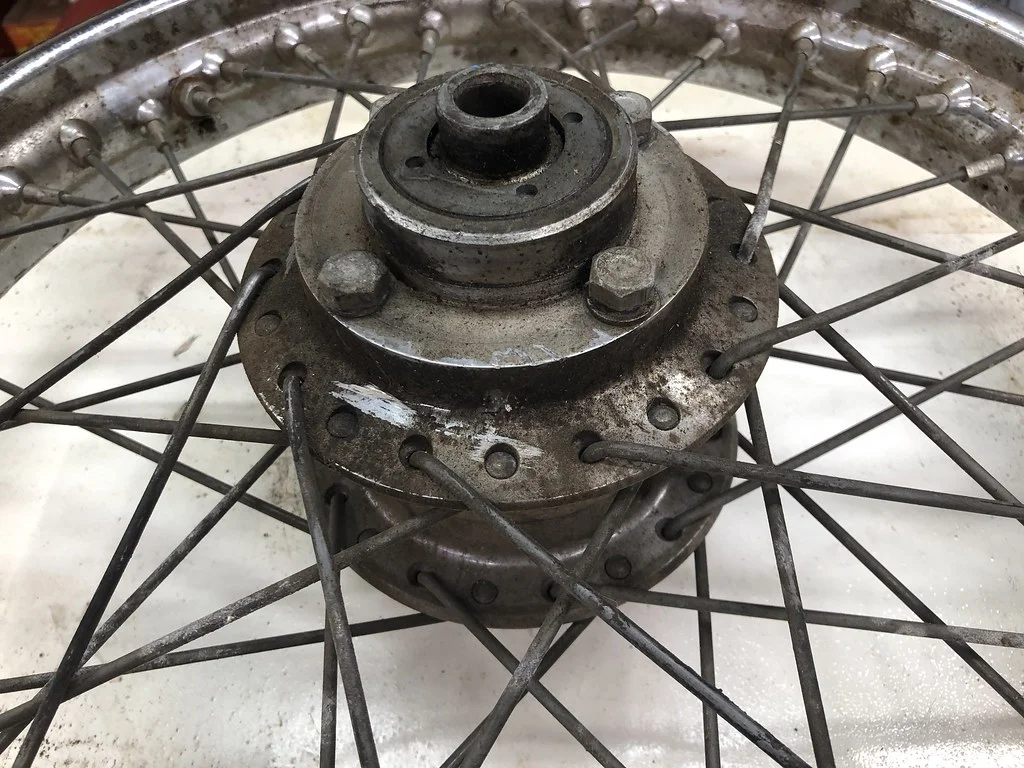

    I thought this might be a MkIII rear wheel but someone pointed out it’s not. Now I don’t know what it could be. Four bolts on each side but it’s defin not symmetrical.

    Thought?

  2. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Triumph T140 disc rear.

  3. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Well, how they hell did I end up with one of those? :confused:

  4. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Would it be the same as a T160 too?

  5. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    No.
    The T160 rear wheel is 19" WM3, with a 1x1 dimple pattern rim. T140 is 18" WM3, 3x1, the T160 (2-piece casting) hub is also different to (3-piece) T140 and the T160 has a LH/drive-side Smiths speedo drive gearbox.

    What you appear to have there is the early T140 type that had a Smiths speedo drive gearbox on the RH/timing side as later T140s had a Veglia speedo drive on the LH/drive-side.

    If Dunlop, look for Triumph part number (37-7030) stamped on the rim? Edit: Also MC296.

    Last edited: Nov 5, 2018
    manx850 likes this.
  6. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Yes, that is what is stamped on the rim. I’ve cut the spokes and tossed the rusty rim. I’ll probably do the same with the hub. I just don’t see anyone needing a hub for a Triumph.

  7. Nortoniggy

    Nortoniggy

    Joined:
    Nov 17, 2010
    Shame to bin them as someone would be interested in them. If it is a Dunlop rim, people (me included) get them rechromed for originality. They will sell on your favourite auction site I'm sure.

  8. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Somebody is sure to want it! That hub would sell for around £60 GBP on UK ebay.

    https://www.ebay.co.uk/itm/Triumph-...=item286ca76868:g:QxEAAOSw34Jb3bgu:rk:42:pf:0
    (Veglia drive type but same value)

    A new 'Jones' (Wassell) T140 hub is £250 GBP.
    https://www.classicbikepartscheshir...polished-billet-alloy-genuine-jones-hub-p2961

  9. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Except I don’t have a favorite auction site. So far I’ve only lost money on eBay. This seems like another useless part for a bike that’s just not popular over here.

  10. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Folk use the Triumph back hub in specials, the Steve Maney designed cush drive, as now used by NYC and Minnovation Racing uses a Triumph hub. I'm sure someone will give few $ for it.
    Not quite sure what you mean by 'not popular over here'... until the pound died against the dollar in '79 or so, making them prohibitively expensive, the USA was the biggest market for Bonneville's in the world.

  11. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    I mean the later Triumphs aren’t being collected and restored as frequently as the earlier bikes. At least in the States.

  12. comnoz

    comnoz VIP MEMBER

    Joined:
    Dec 10, 2008
    Well, before you throw it in the bin, throw it in a box and I will send you a shipping label.
    They make a good hub for a special.

  13. xbacksideslider

    xbacksideslider VIP MEMBER

    Joined:
    Aug 19, 2010
    Certainly lighter than other options. Every time I study a Commando/Atlas rear wheel and regret the tonnage and the limited gearing options, I dream of a cush/spool hub but . . . it has to be British.

  14. comnoz

    comnoz VIP MEMBER

    Joined:
    Dec 10, 2008
    I ran one of those hubs on the back of my bike for about the first 80,000 miles.
    No cush drive. No problems.

  15. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013

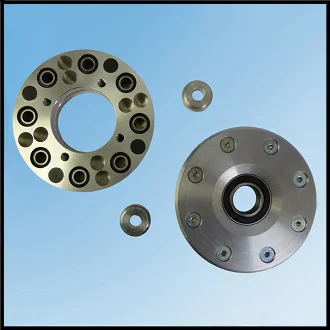

    xbacksideslider, it’s easy, get the unloved hub from swoosh, then order one of these nifty little kits from minnovationracing.co.uk and you got a light weight, Cush drive, British hub with infinite sprocket flexibility...


    swooshdave likes this.
  16. xbacksideslider

    xbacksideslider VIP MEMBER

    Joined:
    Aug 19, 2010
    Thanks Fast Eddie; I'm not ready; besides Comnoz has dibs.

  17. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
  18. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    It would need lacing up specifically, and customs spacers making I guess. NOT a drop in mod.
