MKIII Interstate Gas Tank Stripe Black/Red

Discussion in 'Norton Commando Motorcycles (Classic)' started by p400, Sep 12, 2018.

  1. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014
    Where can I get some double stripe tape, of the correct dimensions that matches the 1975 Black/red on the silver gas tank Interstate?

    Maybe 8-10 feet or so to do both sides.


    Last edited: Sep 12, 2018
  2. maylar

    maylar

    Joined:
    May 13, 2007
    I've bought rolls of double stripe tape from auto paint stores. They usually stock the standard dimensions for various car makers. Don't know if you'll find exactly what you want in black and red though - might have to be creative and do 2 separate stripes.

    p400 likes this.
  3. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014
    What is the official 1975 Norton Interstate tank stripe dimension please?

    Looks to be big and little.
    No Norton supplier sells a roll of this Black/Red stripe?




    Last edited: Sep 12, 2018
  4. maylar

    maylar

    Joined:
    May 13, 2007

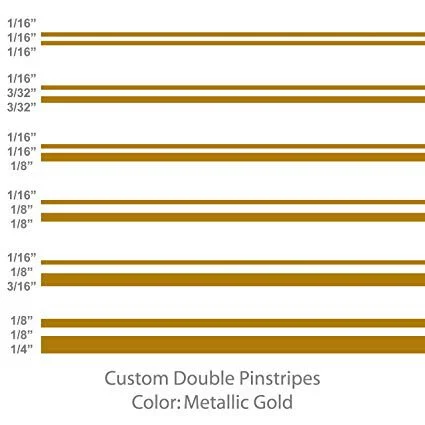

    Don't think I've ever seen one in person, but I have painted a couple older Interstates with a single stripe, and used 1/4" width. I'd say the 1/8 1/8 1/4 would work, but as I said I dunno if they sell multi color versions of those.

    p400 likes this.
  5. Torontonian

    Torontonian

    Joined:
    Dec 28, 2009
    Mine is the double red and black , on my Interstate. When this paintjob goes bad I have ready 2 new rolls of pinstriping.
    041-0417-2 Black 1/8 " x 36 "
    041-0418-0 Red 1/8" x 36"
    Trimbrite U.S.A.
    Just realized the black roll will be too thin. And possibly not long enough...
    If we can locate a source for double stripe one roll in black/ red in correct thicknesses that would be great.

    p400 likes this.
  6. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014
    Hi Tor, Thanks , can you hold a readable tape measure next to your OEM tank stripe, take a photo and post please?

  7. Torontonian

    Torontonian

    Joined:
    Dec 28, 2009
    Come by and take the photo when in T.O. next time in town as I have never posted a photo after Photobucketbastard wiped out recorded and posted photos.
    But I recall a recent thread showing the original Interstate paint.

  8. solarmoose

    solarmoose VIP MEMBER

    Joined:
    Aug 25, 2009
    I have what I believe is an original NOS silver Interstate tank and I'll post a pic of it within the next day or so.

    p400 likes this.
  9. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014
  10. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014

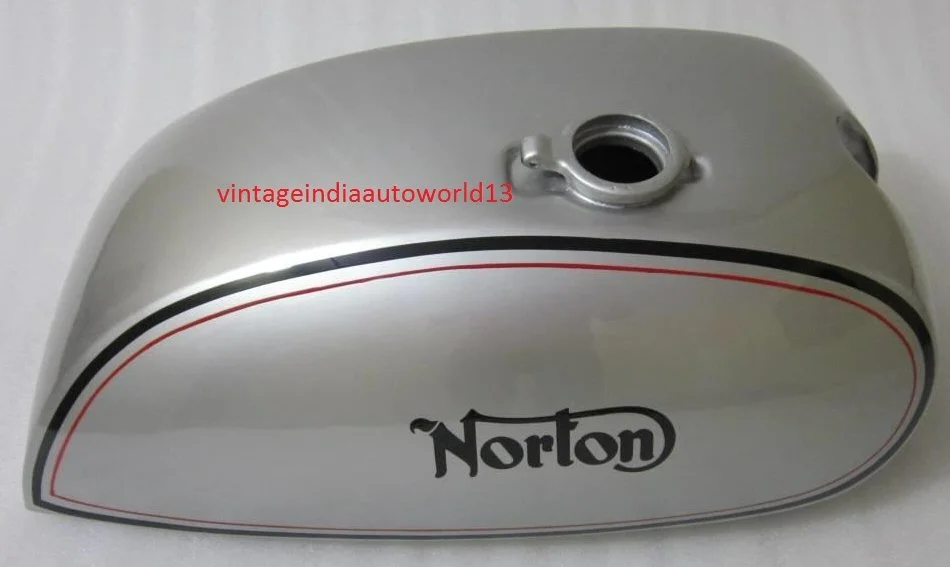

    how can you miss the target with so much information available?

    You could buy a brochure off eBay, WTF



    Last edited: Sep 14, 2018
  11. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014

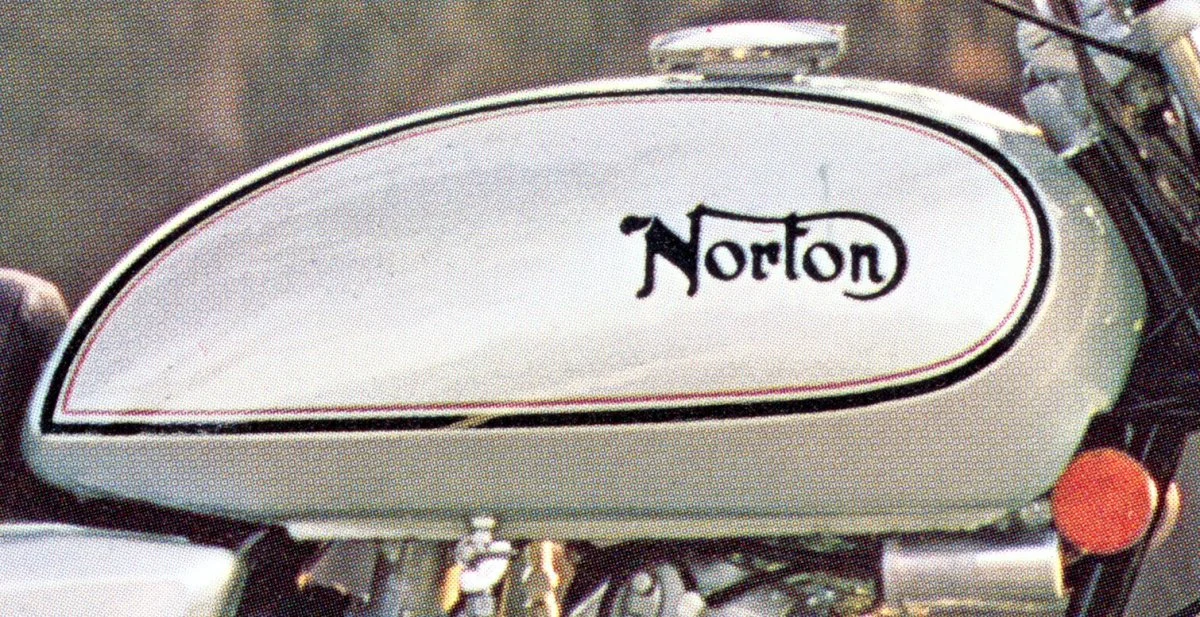

    Brochure close up crop


  12. Anglophile

    Anglophile

    Joined:
    Mar 6, 2010
    Were'nt the stripes painted and 'Norton' was a decal? I know that was the case for my old Black/Gold Interstate tank.

    p400 likes this.
  13. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014
    I think the stripes probably were painted . I am trying, with stripe tape, to give an old gal , with decent paint , a nice factory look.

  14. cNw

    cNw VIP MEMBER

    Joined:
    Apr 16, 2009
    Black is 5/16, Red is 3/32, space in-between is 1/8

    These dimensions off a NOS tank. The stripes are painted and the logo is a decal

    Matt

    nortriubuell and p400 like this.
  15. solarmoose

    solarmoose VIP MEMBER

    Joined:
    Aug 25, 2009

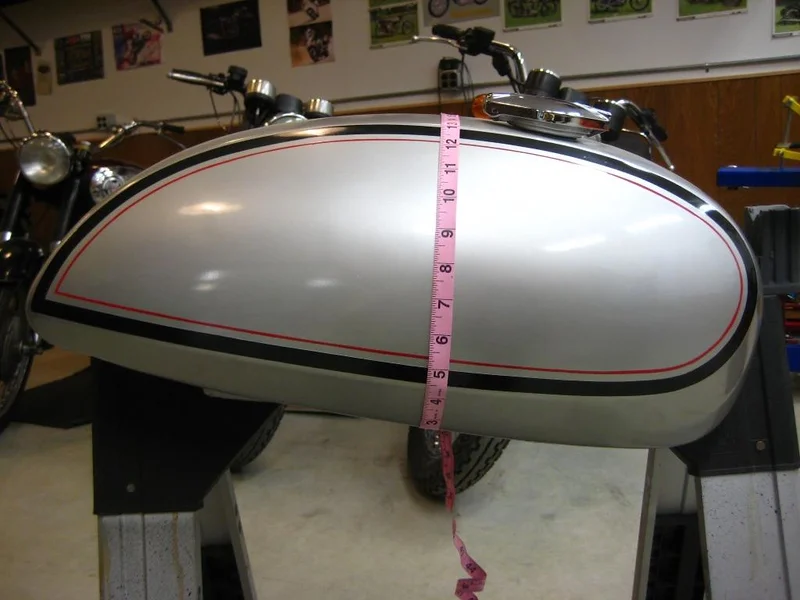

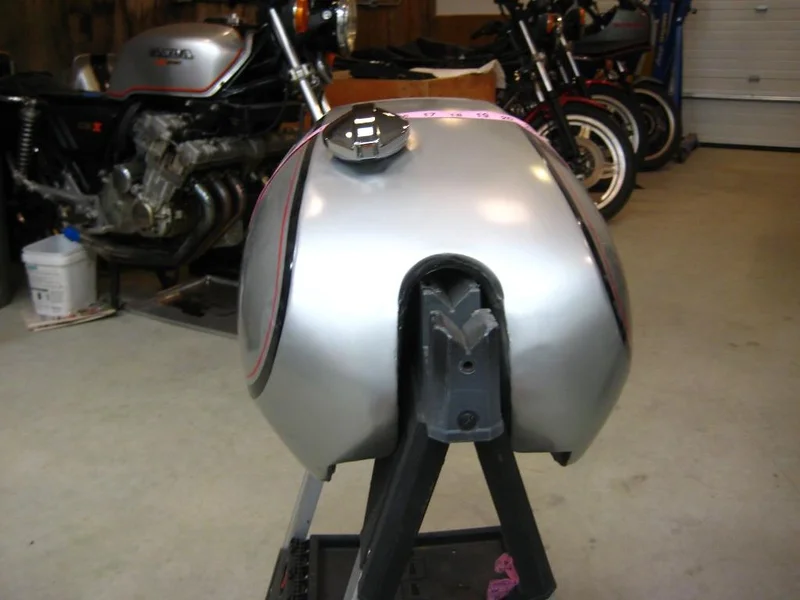

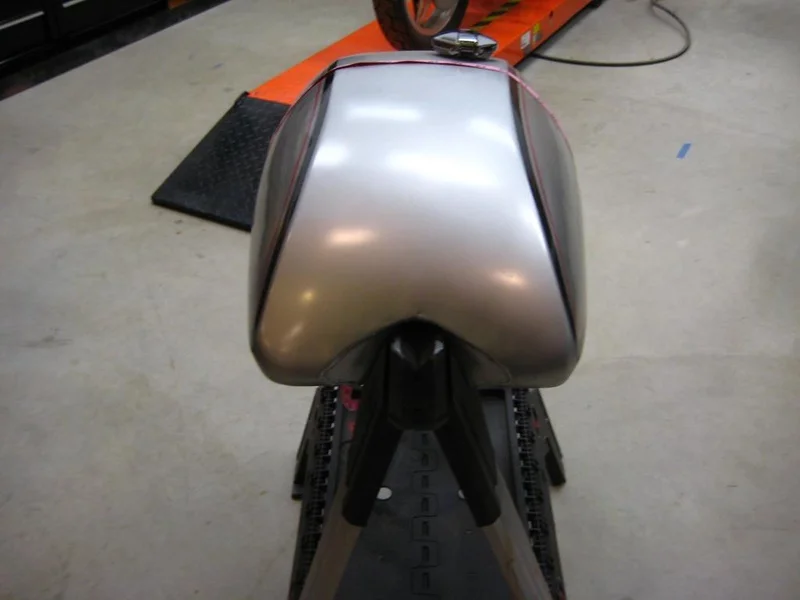

    Here's the pics of my silver interstate tank. I bought it off ebay a number of years ago before all the Indian tanks showed up and was sold as NOS.
    Came in a Norton box. Stripes are paint not tape.

    Measurements are slightly different from CNW so who knows what this really is but it looks close to the brochure pic.

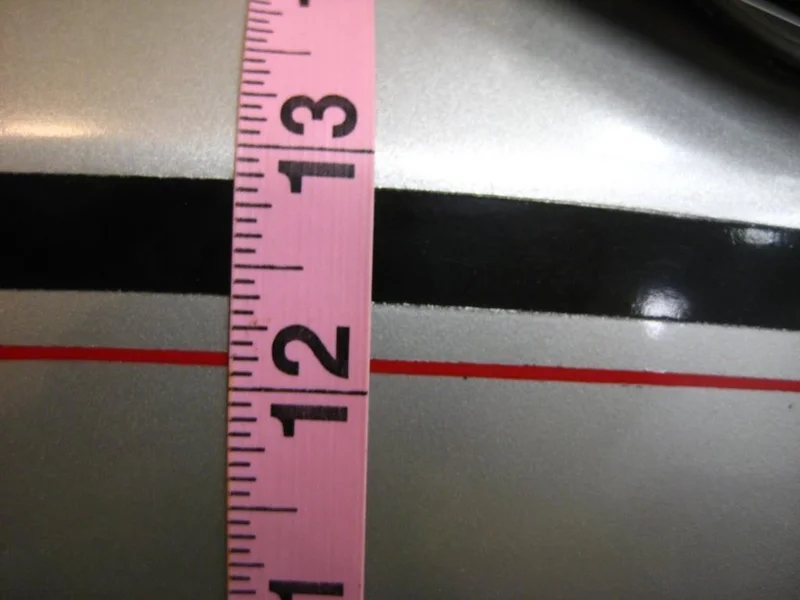

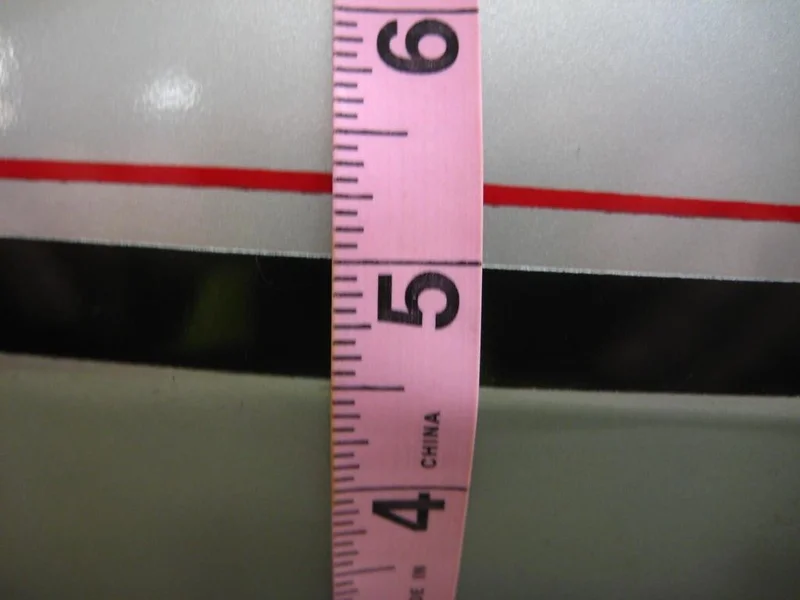

    Measuring tape starts at seam on the bottom of tank. Graduations are 1/16th.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    p400 likes this.
  16. batrider

    batrider

    Joined:
    Aug 9, 2008
    I have used striping tape on wheels and honestly, I thought it looked like hell. It is not that hard to paint them. You can buy very thin precut masking tape for 2 stripes in various widths. I got it from a local body shop supply house and there was a large selection. 3m I think.

    p400 likes this.
  17. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014
    I have to thank all photos posted here and the good advice. I have to keep this simple.

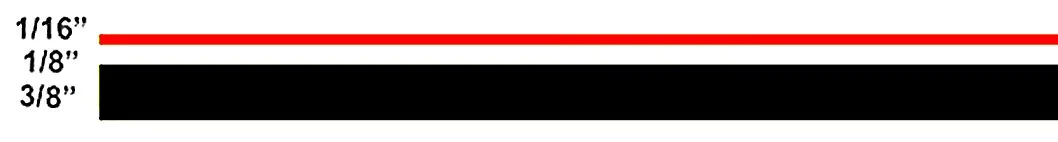

    I am going with 1/16x1/8x3/8 tape. probably two individual tape runs.



  18. Torontonian

    Torontonian

    Joined:
    Dec 28, 2009
    Proceed, Make it happen. (Jean Luc Picard).
