MK3 led speedo and tach bulbs

Discussion in 'Norton Commando Motorcycles (Classic)' started by seattle##gs, Mar 13, 2018.

  1. seattle##gs

    seattle##gs

    Joined:
    Oct 28, 2014
    does any one make led bulbs for a MK3 speedo and tach?

    Tags:
  2. cash

    cash

    Joined:
    Nov 10, 2006
    I got mine off ebay from china cheap as chips and bright.

    Dave

  3. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    Yep I did the same ,I bought the bulbs and holders very cheap

  4. chaztuna

    chaztuna VIP MEMBER

    Joined:
    May 5, 2017
    Dave & Baz, Could you give some specifics regarding these bulbs? Perhaps check your receipt regarding part number and the vendors eBay name?

    The Buckeye Rider likes this.
  5. The Buckeye Rider

    The Buckeye Rider

    Joined:
    Jan 1, 2005
    I found some bulb holders to fit my MKIII from Summit Racing but the led's were not bright enough, Would appreciate part #'s and suppliers contact info for really bright led's to fit stock bulb holders.

  6. Mr. Rick

    Mr. Rick VIP MEMBER

    Joined:
    Feb 6, 2009
    I found some good ones at Classic Car LEDs. 56 lumen
    Bright white:
    https://www.classiccarleds.co.uk/co...-gauge-bulb-glb233-glb989?variant=13039613063

    "Warm" white:
    https://www.classiccarleds.co.uk/co...-gauge-bulb-glb233-glb989?variant=13039742599

    These are for positive earth; they come in negative also.
    Shallow enough to fit in the cases on my 74. Don't know if the MK3 is different.

    Here is an ebay listing:
    https://www.ebay.com/itm/2X-MG-TR-J...fffd3309|iid:1&_trksid=p2481888.c100675.m4236

    Last edited: Mar 17, 2018
  7. The Buckeye Rider

    The Buckeye Rider

    Joined:
    Jan 1, 2005
    Thanks Rick but they won't fit the '75. We have a flat bladed bulb connector not the bayonet. The info on the bulb color and lumens will be helpful though.
    Ride On (in the dark)
    Dave

  8. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013

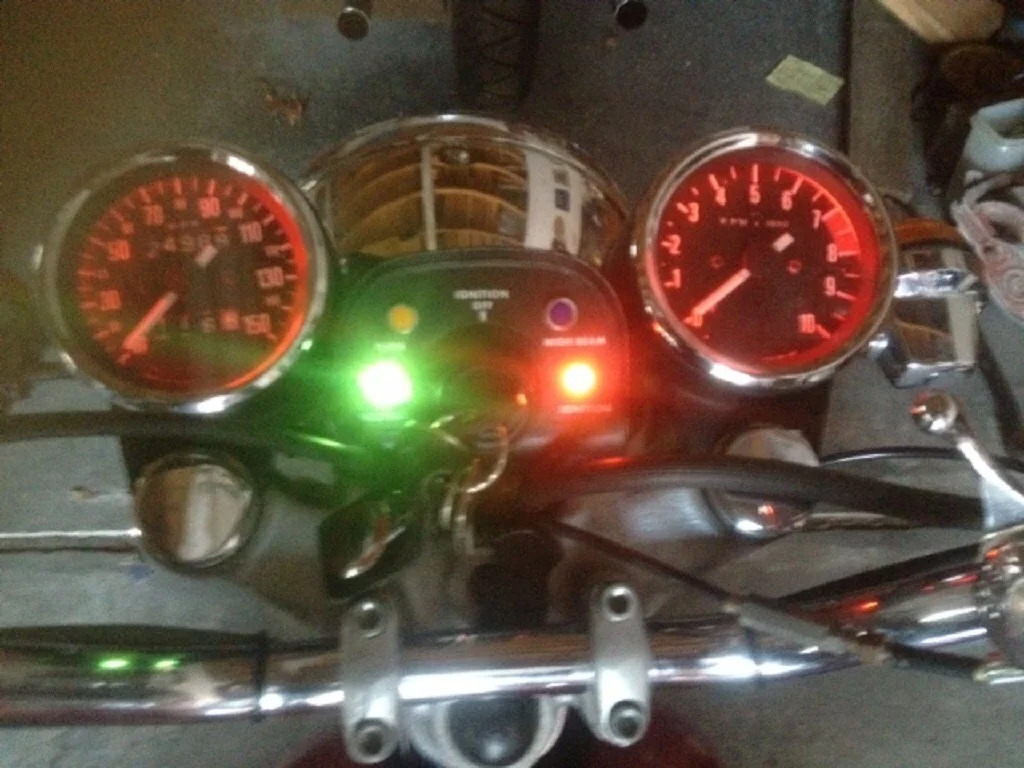

    I am pretty sure Veglia have wedge bulbs and Smith’s have bayonet type bulbs EDAFD12E-4D37-4F72-9B27-17169783AC8B.jpeg
    Veglia with these bulbs
    Bulbs have 16k on them now.
    Pete

  9. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    The ones I have are smd 501 t10 w5w these are wedge type fitting, ebay seller viigour ,I expect there may be brighter ones out there but I find the crisp white light good enough for me

  10. chaztuna

    chaztuna VIP MEMBER

    Joined:
    May 5, 2017
    Pete, So these bulbs are for Tach & Speedo illumination? Is that correct? Or are these for the 4 indicator lamps in the console? Thank you for the reply. OK, I verified that these are 194 style bulbs, so they are for the Veglia instruments. I love the brightness of those indicator bulbs. So, do you have a source and part number for them as well???:)

    Last edited: Mar 17, 2018
  11. chaztuna

    chaztuna VIP MEMBER

    Joined:
    May 5, 2017
  12. chaztuna

    chaztuna VIP MEMBER

    Joined:
    May 5, 2017
    Pete & listers,
    Pete installed red bulbs because they help to preserve your night vision. However, that was current technology in WWII. The US Air Force did a detailed study some years ago. They found that green or bluish green worked better in this regard. See

    http://www.aviationsafetymagazine.com/issues/35_10/features/Cockpit-Lighting-Choices_11065-1.html

    Flying aircraft at night, you are basically operating in the pitch black. Since night time motorcycle riding may or may not be taking place in a dark back ground [country versus city riding] the choice of red or green lighting will be a personal one. These bulbs are cheap enough that you can try both, then use whichever you prefer.

    Last edited: Mar 17, 2018
  13. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    No not those ones although they may fit, I just checked viigour has 1220 items for sale at the moment on eBay including the type led bulbs that I purchased ,this is on ebae UK , cheers

  14. chaztuna

    chaztuna VIP MEMBER

    Joined:
    May 5, 2017
    Pete, since like most LEDs these are polorized, and have a wedge base, I take it that you simply have to be aware of the terminal polarity of the socket base and install them correctly? Is that the case?

  15. chaztuna

    chaztuna VIP MEMBER

    Joined:
    May 5, 2017
    Thanks for clearing that up. I was looking on eBay USA. :confused:

  16. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    If they don't work you turn them through 180 degrees , cheers

  17. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013
    Chaztuna,

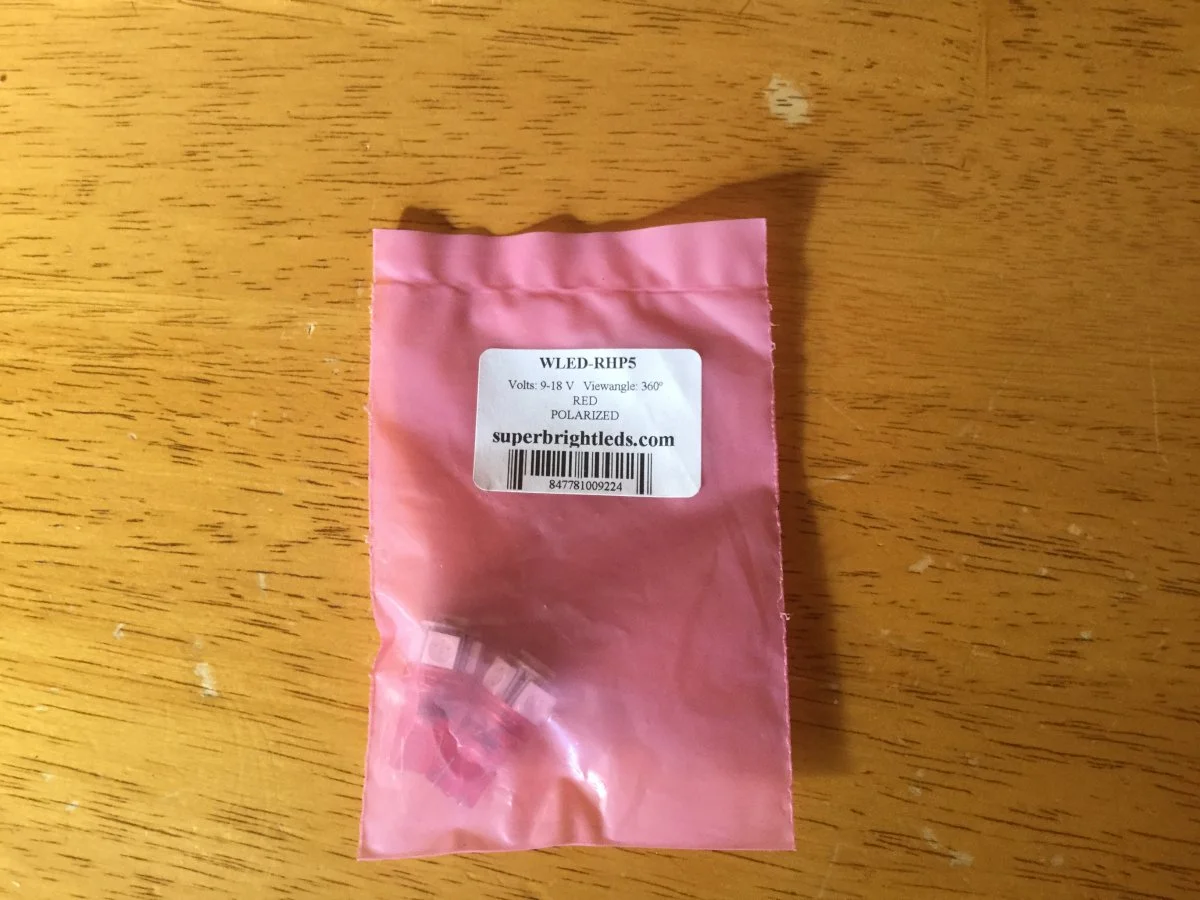

    Picture of red package has all the info you need Superbrights is the vendor.

    To answer your second question, yes since they are wedge bulbs they can be flipped in the holder. If they don’t work one way just reverse them.

    Pete
