Mk3 Canadian HL Unit function actual vs chart

Discussion in 'Norton Commando Motorcycles (Classic)' started by p400, Apr 10, 2019.

  1. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014

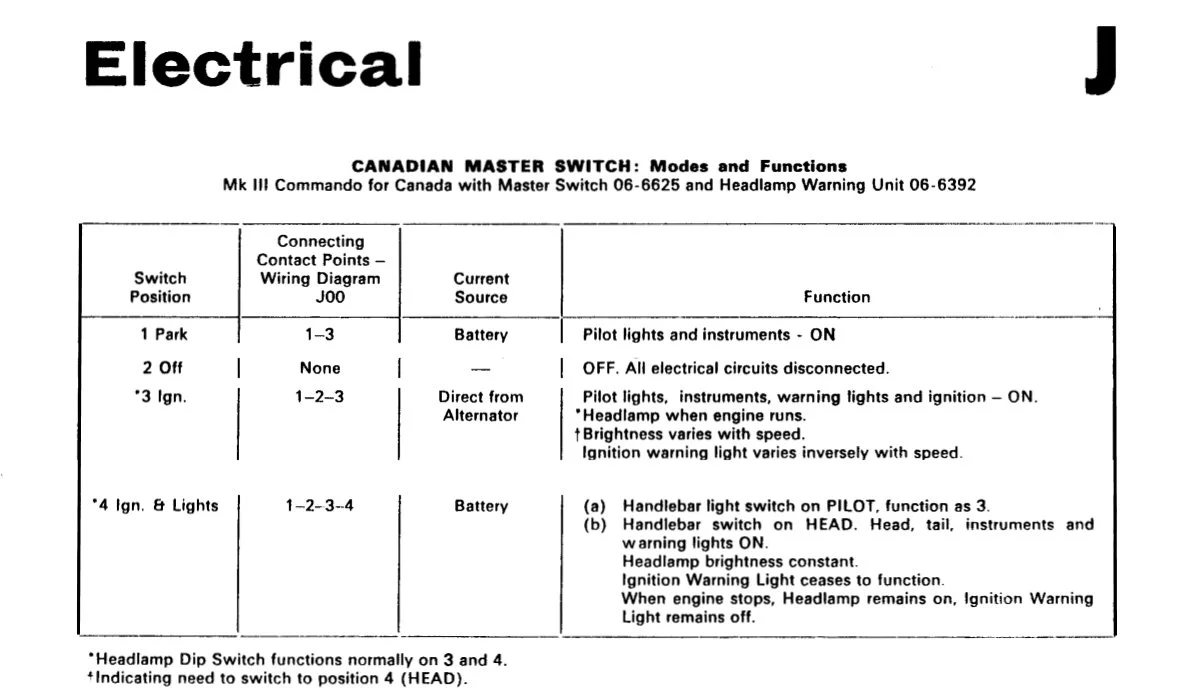

    I am working with a Mk3 that has the Canadian components fitted - 06-6625 switch and an ignition warning light unit that shows HL and TL connections.

    Ignition Switch pos Ignition only - Mk3 starts and runs well, red light fades with engine rev, but other descriptions on the workshop chart don't seem to match.

    Anyone running this HL unit, look over chart and confirm it is correct or not.
    According to me the chart is not.


  2. Torontonian

    Torontonian

    Joined:
    Dec 28, 2009
    I have the same machine ... But electrical with it stumps me badly.

  3. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014
    i checked my new 06.6625 ignition switch and contacts 2 & 3 show connected when at off position. supplied new from Andover recently.

    My biggest issue is the bike will not shut off when off is selcted. kill switch required

    Last edited: Apr 11, 2019
  4. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013

    Are you getting your key position confused with your terminal numbers.

    I.E.
    Terminals 1, 2 and 3 should be connected in key position #3
    Pete

  5. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    It's not the correct 'Canadian model' 06-6625 switch, as it can't be 06-6395 and 06-6625 which was the reason for the different Canadian ignition switch.

    The actual 06-6625 switch is probably unavailable Edit: unless it's original Lucas old stock?

    Last edited: Apr 11, 2019
  6. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
