Can anyone please post a picture of where exactly the two ends of the check wire under a 1975 mark 111 roadster seat are screwed/fastened into the seat and fender ? Also where is the oil tank decal and the positive earth decal located
Thanks

thackero said:
Can anyone please post a picture of where exactly the two ends of the check wire under a 1975 mark 111 roadster seat are screwed/fastened into the seat and fender ?

Seat end, drill and fix with a self tapping screw at an appropriate position.

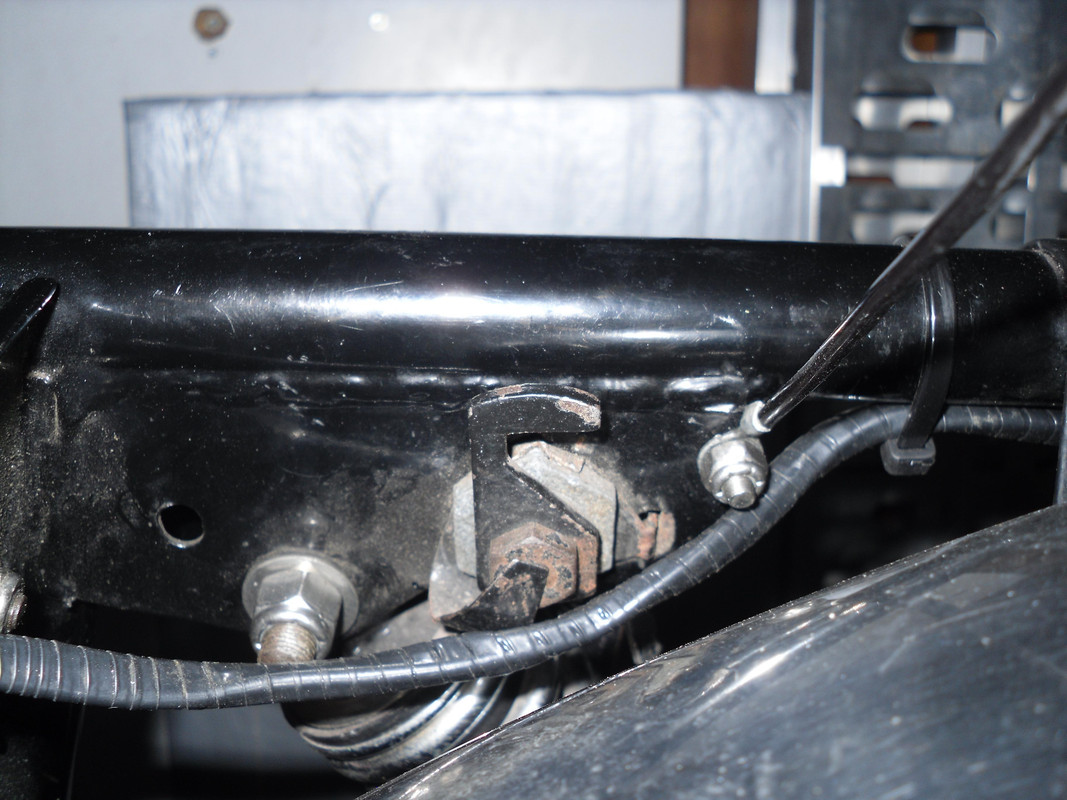

Fixed end:
MK 3 Under the seat Check wire. Decal location

MK 3 Under the seat Check wire. Decal location

Last edited:
Thanks,
Can you give me an idea where exactly to self tap on the seat end
Thanks

thackero said:
Can you give me an idea where exactly to self tap on the seat end
Thanks

The check wire should be positioned so it prevents the trim and hinge assembly from being damaged by the dummy seat knob.
MK 3 Under the seat Check wire. Decal location
