MK 3 left hand switch assembly

markdenny

markdenny

Joined
Dec 13, 2023
Messages
26
Country flag
My MK 3'S left hand switch assembly has pack up working, been looking around and they appear to be NLA. I have found Triumph T140 switches that look the same available as replicas but they have a separate clutch lever assembly. does anybody know if the internals are the same and could be just swapped over to my original switch ? I'm looking at this switch

Triumph Left Hand Switch Assembly - T140, TR7 and T160 Models Circa 1976-78​

OEM: 19-1965, 60-4586, 30447, 30707, 181SA

The above switch is available from
Feked Classic Bike Parts
The Old Racing Stables, Nine Yews, Cranborne, Dorset BH21 5PW, UK

Regards

Mark

Sounds very like LAB's suggestion will work. When you dismantle it to repair do it inside a plastic bag. There are many small parts including springs so you do not want to lose them if they go flying.

markdenny said:
It's the indicator part that no longer works, well sometimes it does other times it doesn't
Click to expand...

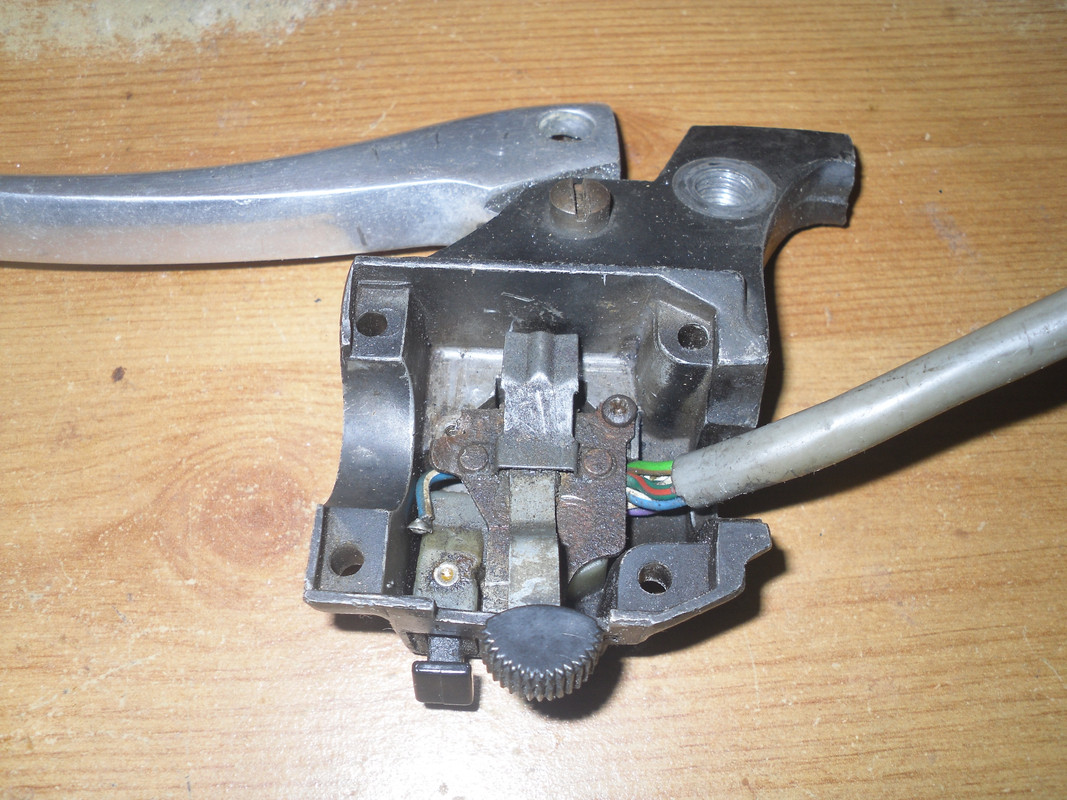

Then I suggest you remove the plate (3 Posidriv screws) one of which is missing in the picture as the plate is broken...
MK 3 left hand switch assembly

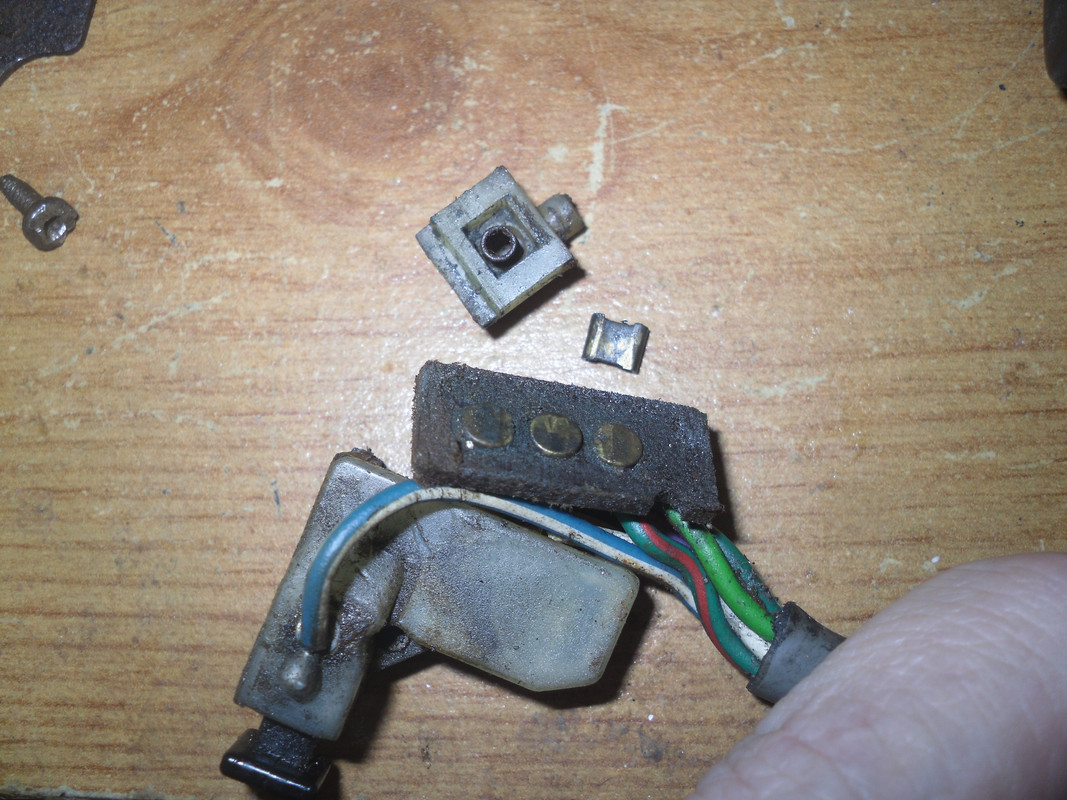

...remove the nylon sliding contact holder (with a brass contact and a spring behind) and the contact board...
MK 3 left hand switch assembly
...clean them up, reassemble and see if that cures the problem.
MK 3 left hand switch assembly

markdenny said:
My MK 3'S left hand switch assembly has pack up working, been looking around and they appear to be NLA. I have found Triumph T140 switches that look the same available as replicas but they have a separate clutch lever assembly. does anybody know if the internals are the same and could be just swapped over to my original switch ? I'm looking at this switch

Triumph Left Hand Switch Assembly - T140, TR7 and T160 Models Circa 1976-78​

OEM: 19-1965, 60-4586, 30447, 30707, 181SA

The above switch is available from
Feked Classic Bike Parts
The Old Racing Stables, Nine Yews, Cranborne, Dorset BH21 5PW, UK

Regards

Mark
Click to expand...
I have a Sparx L/H complete assembly in stock $300 Canadian chasfix@aol.com. This a copy of the original MKIII switch not the other Triumph switch.
