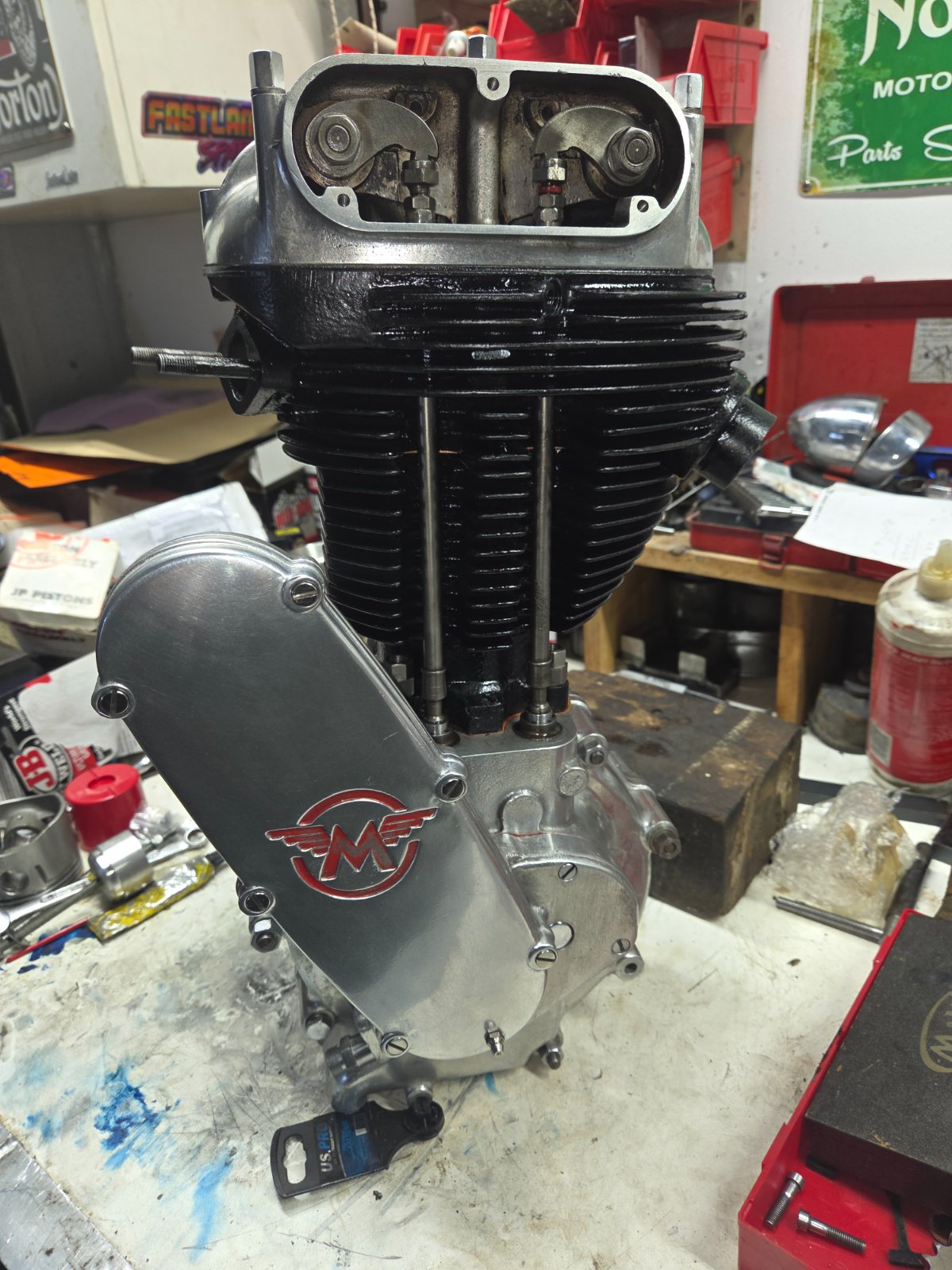

I finally got my 1949 motor back together, I have rebuilt the head with new guides cut the seats, top and throat cut to get the seat correct, the head isn't bolted on proper at the moment, I just need to aneal the gasket and sort out the pushrod/ tube, seals etc bottom end all new shafts bearings and camshafts.

Last edited:
Is it going into a rigid or spring frame?

My dad bought a new spring frame AJS 500 single from Colemans in Whanganui in 1949. He was told it was the 7th spring frame made. The first 6 going to the Belgium army. Cost him £240.

Unfortunately it was destroyed under a tram in Wellington by a latter owner.

johnm said:
Is it going into a rigid or spring frame?

My dad bought a new spring frame AJS 500 single from Colemans in Whanganui in 1949. He was told it was the 7th spring frame made. The first 6 going to the Belgium army. Cost him £240.

Unfortunately it was destroyed under a tram in Wellington by a latter owner.
Click to expand...

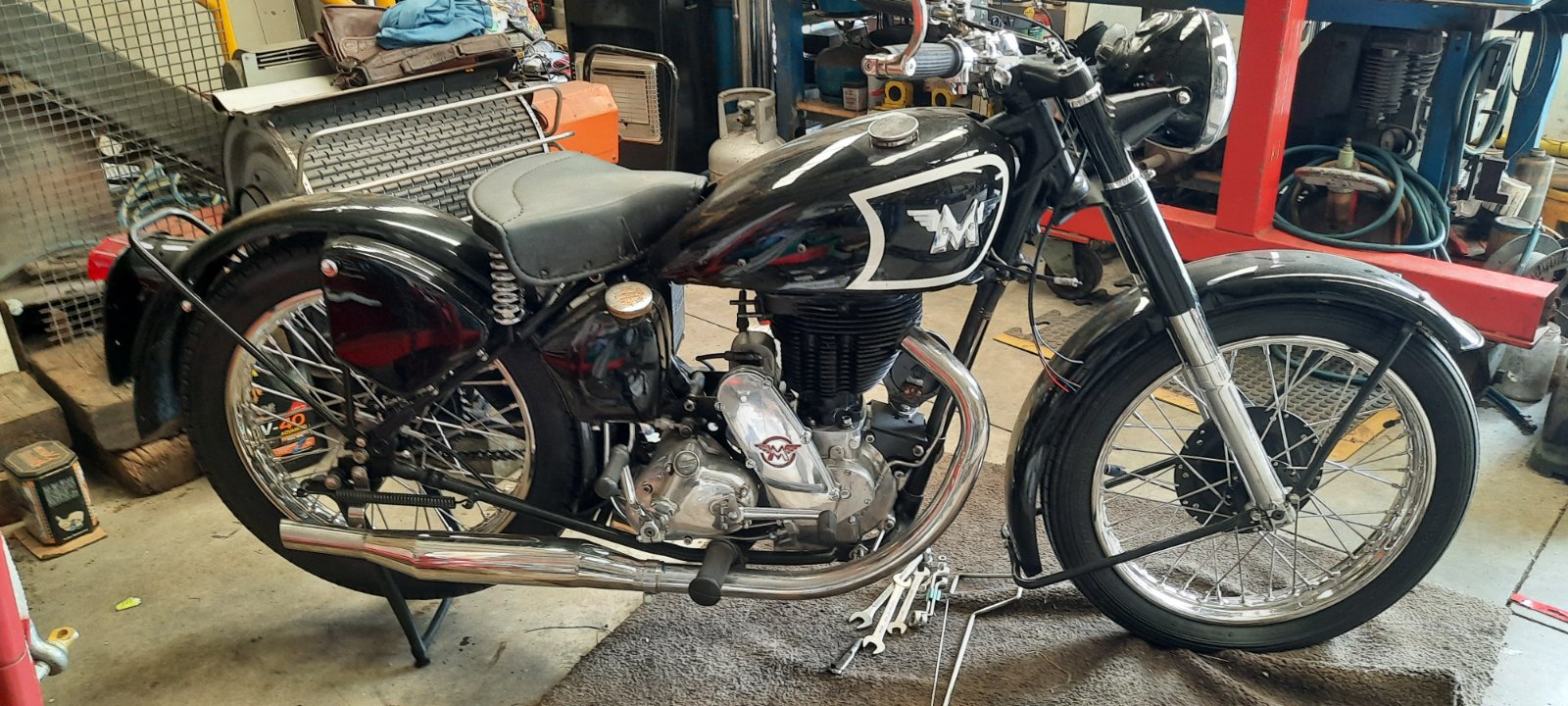

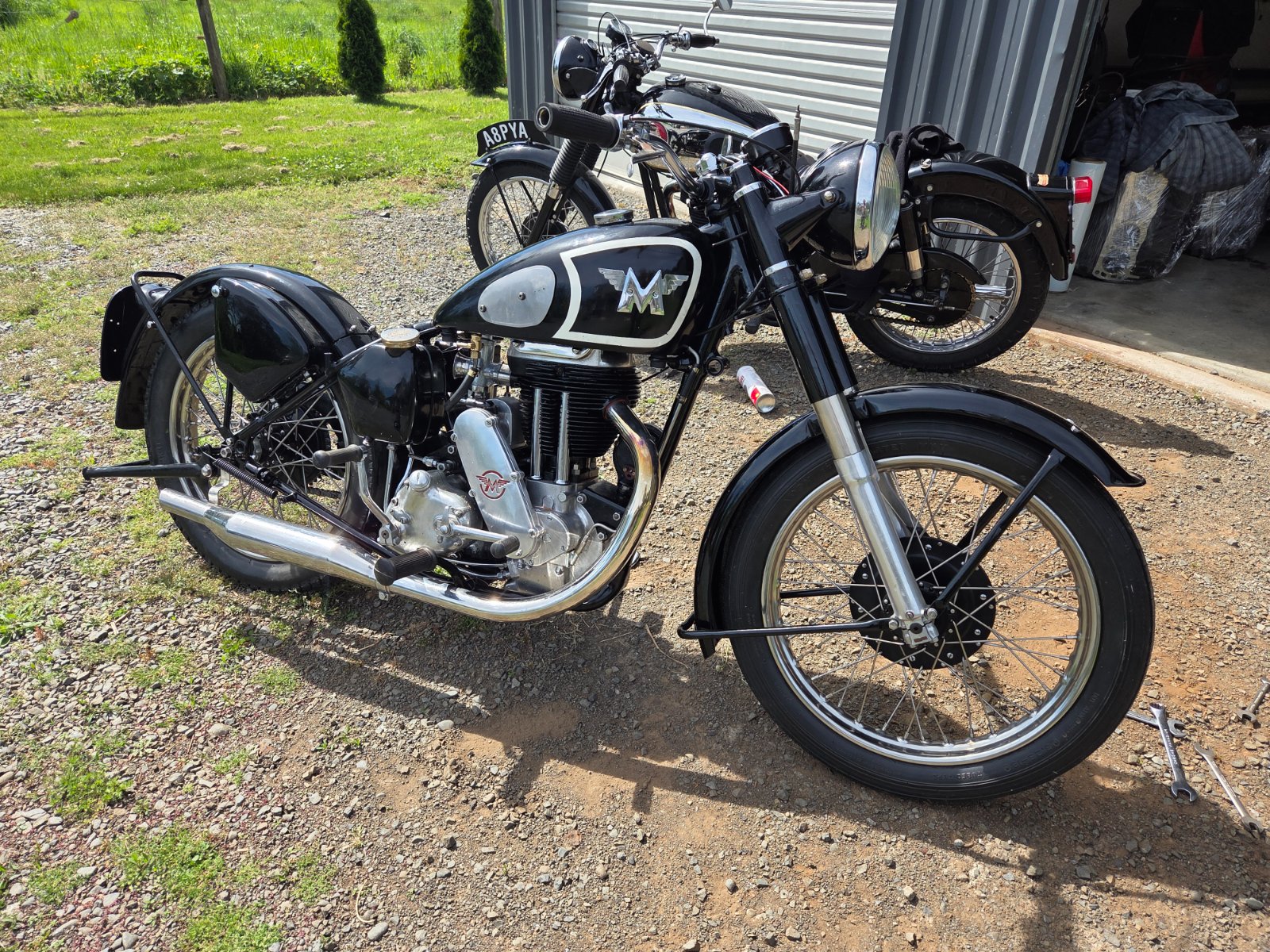

Hi John and gpz , it's in a rigid frame, this is it before the rebuild,the frame had a whitish boom on really old powder coat, and it originally had rusty rims, I've fitted stainless rims now in this Pic

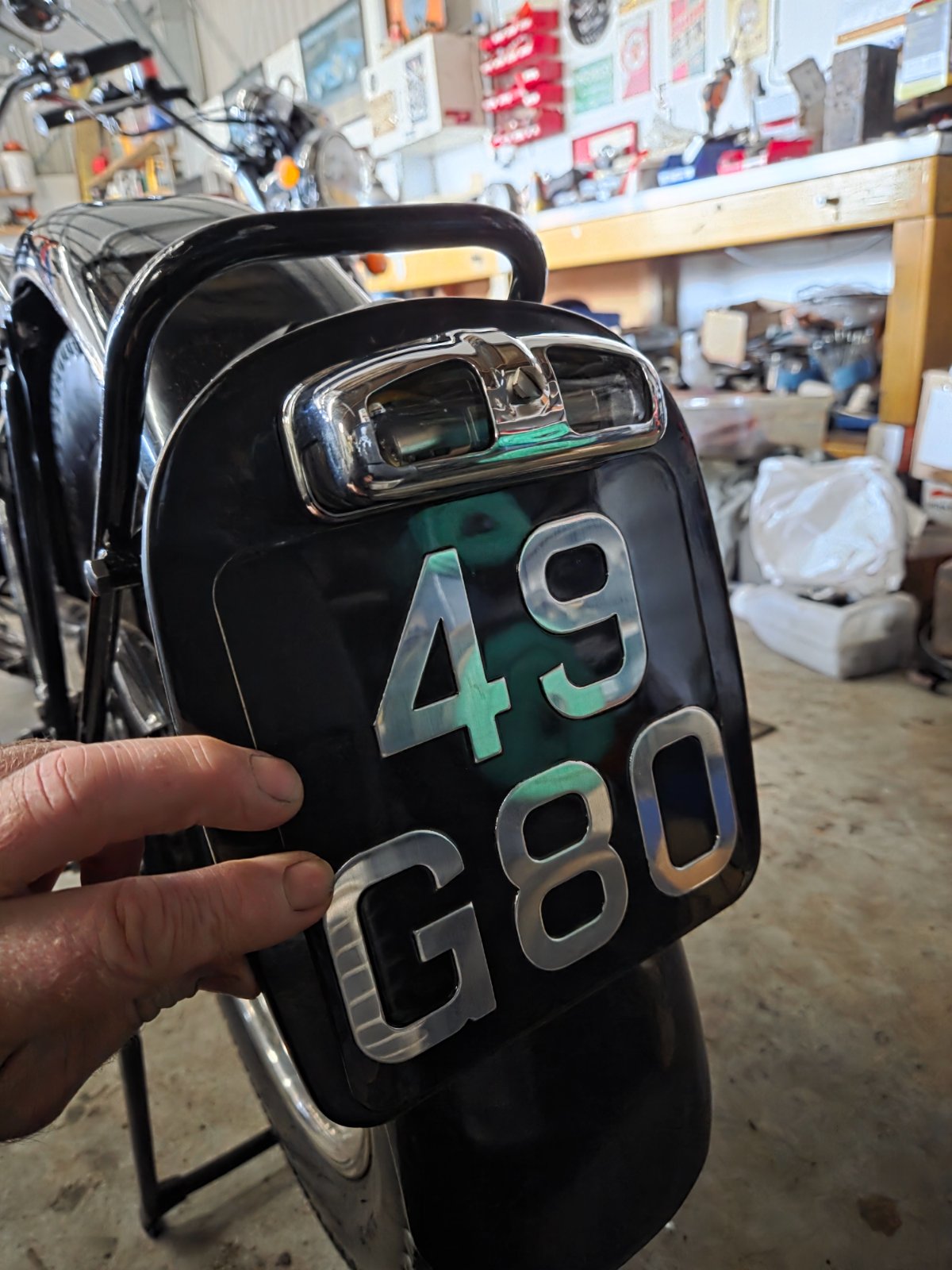

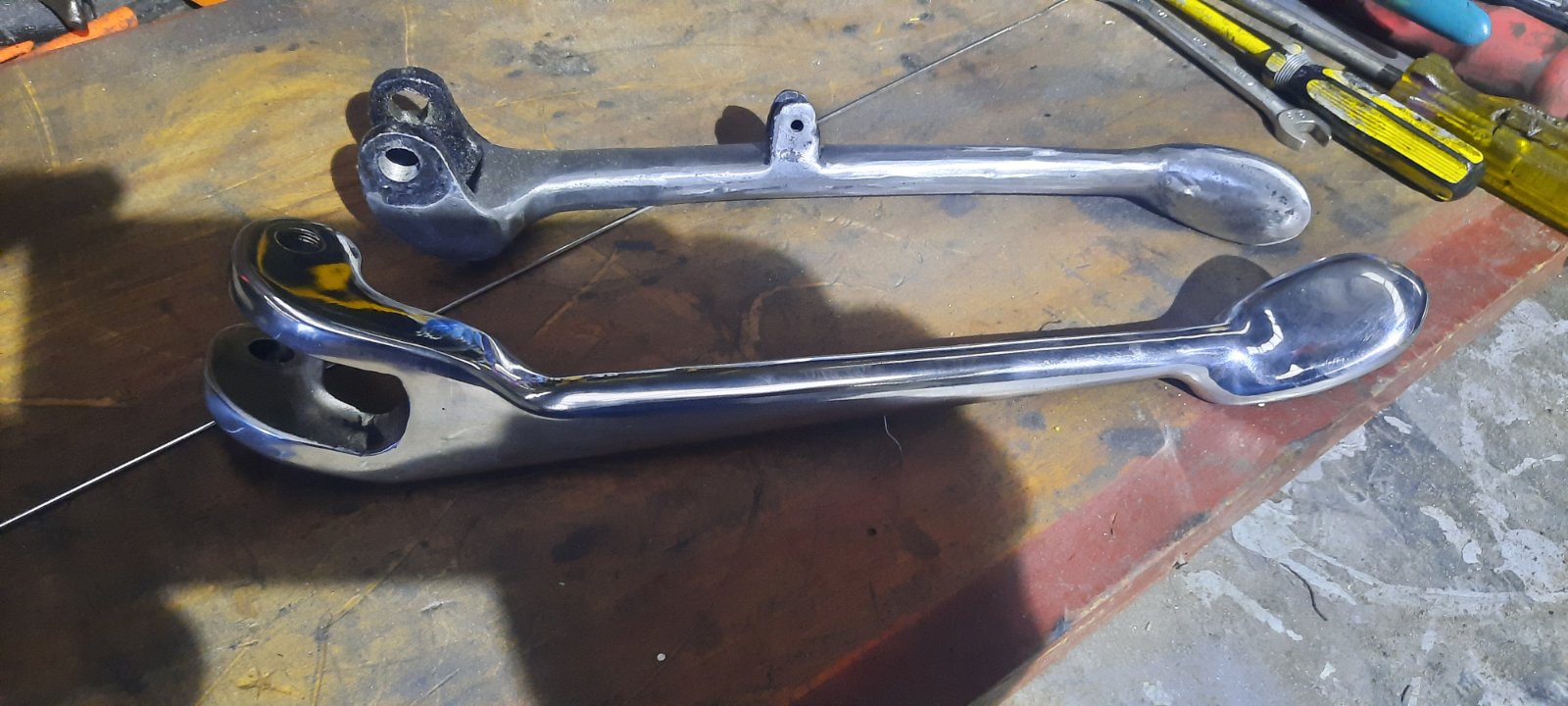

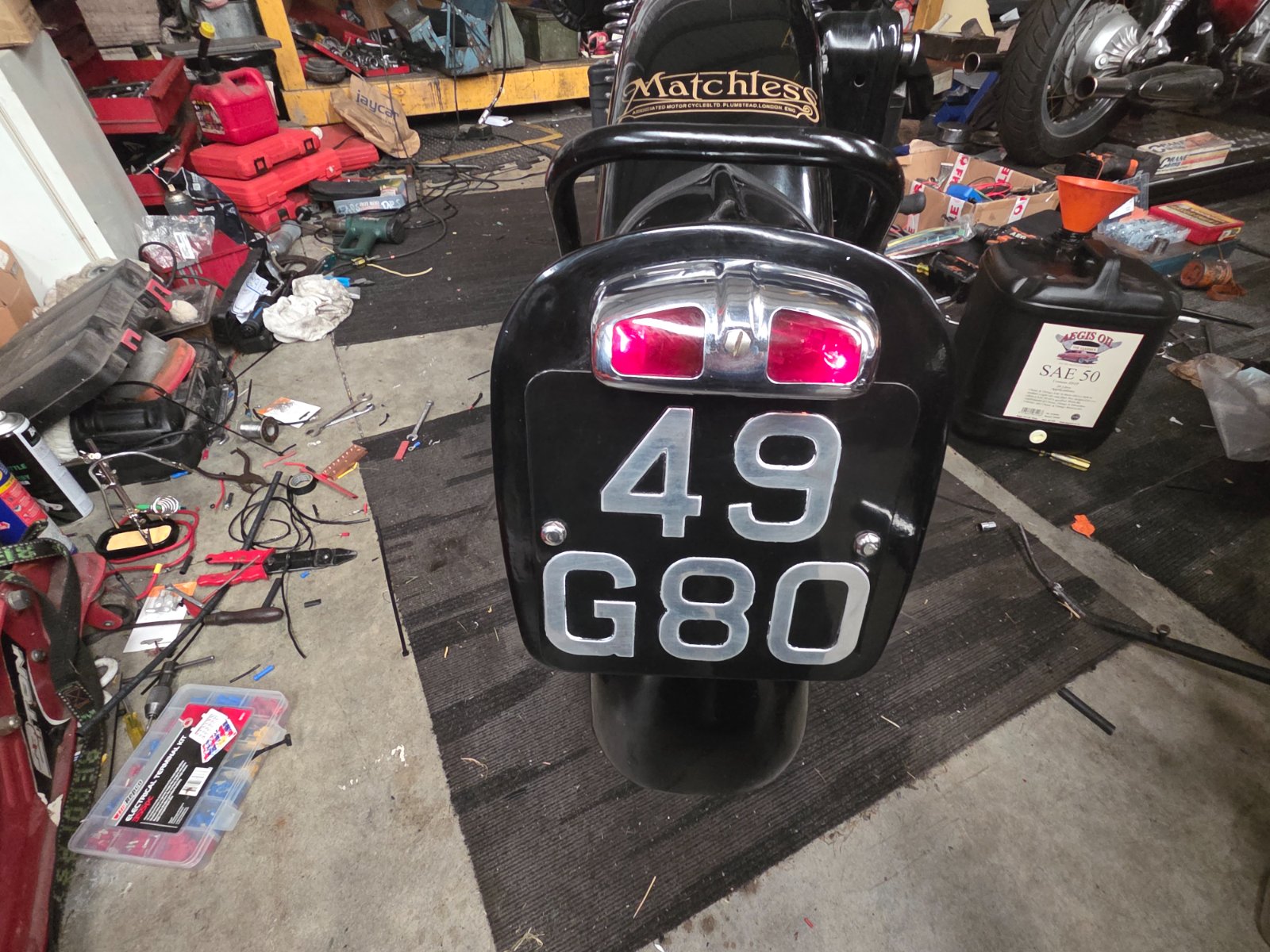

, I hand made the muffler, made a stainless side stand, hope to get the head on and torqued up , engine fitted and magneto timed this weekend, maybe get onto the primary, it will be great to have her running again, then the wiring 😗 I managed to find the windowed 467 lucas rear light and have since painted the clear glass with lense paint.
Matchless G80 Engine reassembly


Attachments

  • Matchless G80 Engine reassembly
    320.4 KB · Views: 90
Last edited:

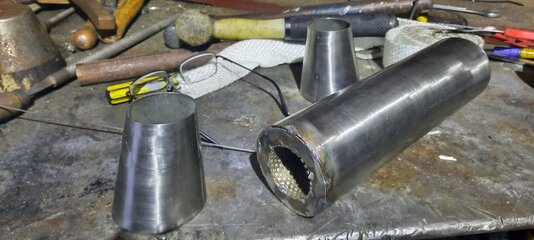

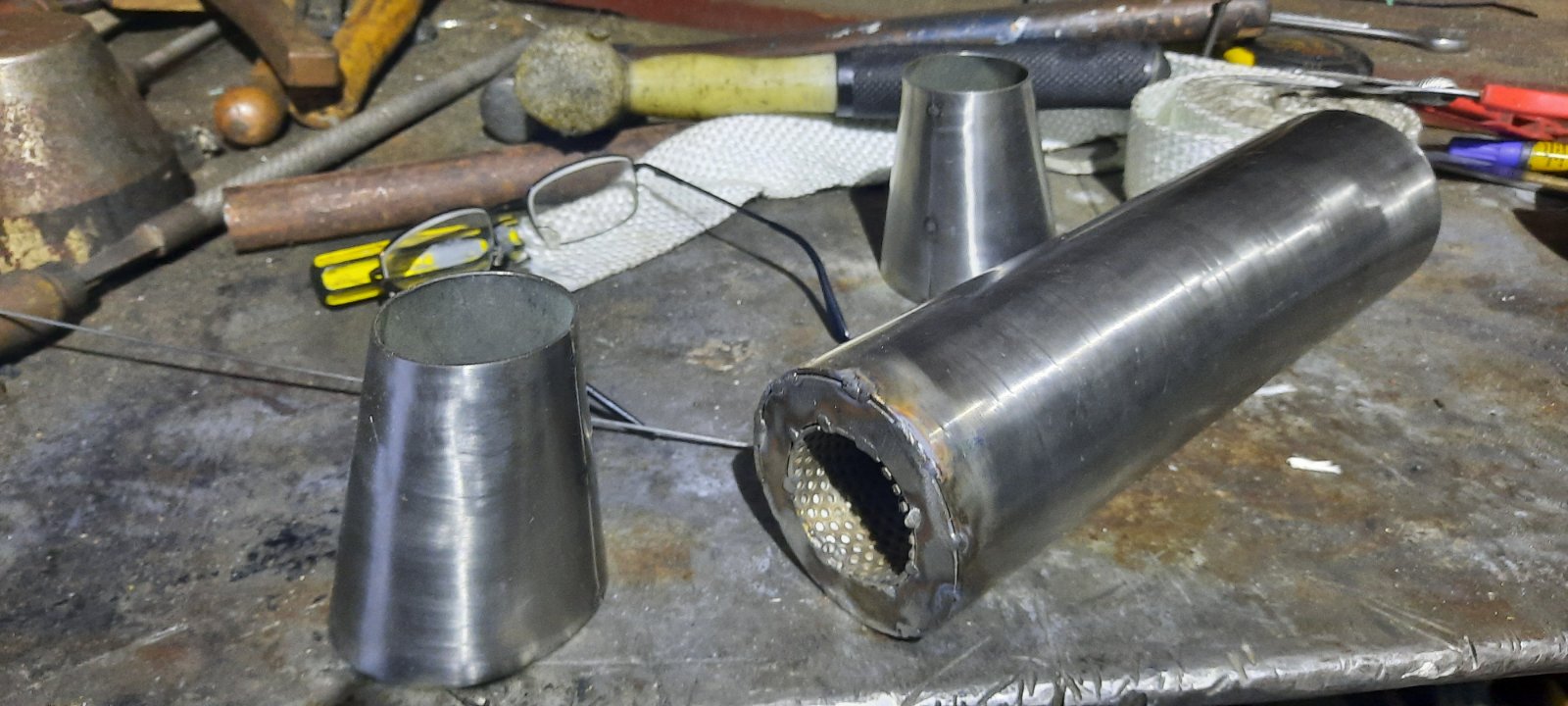

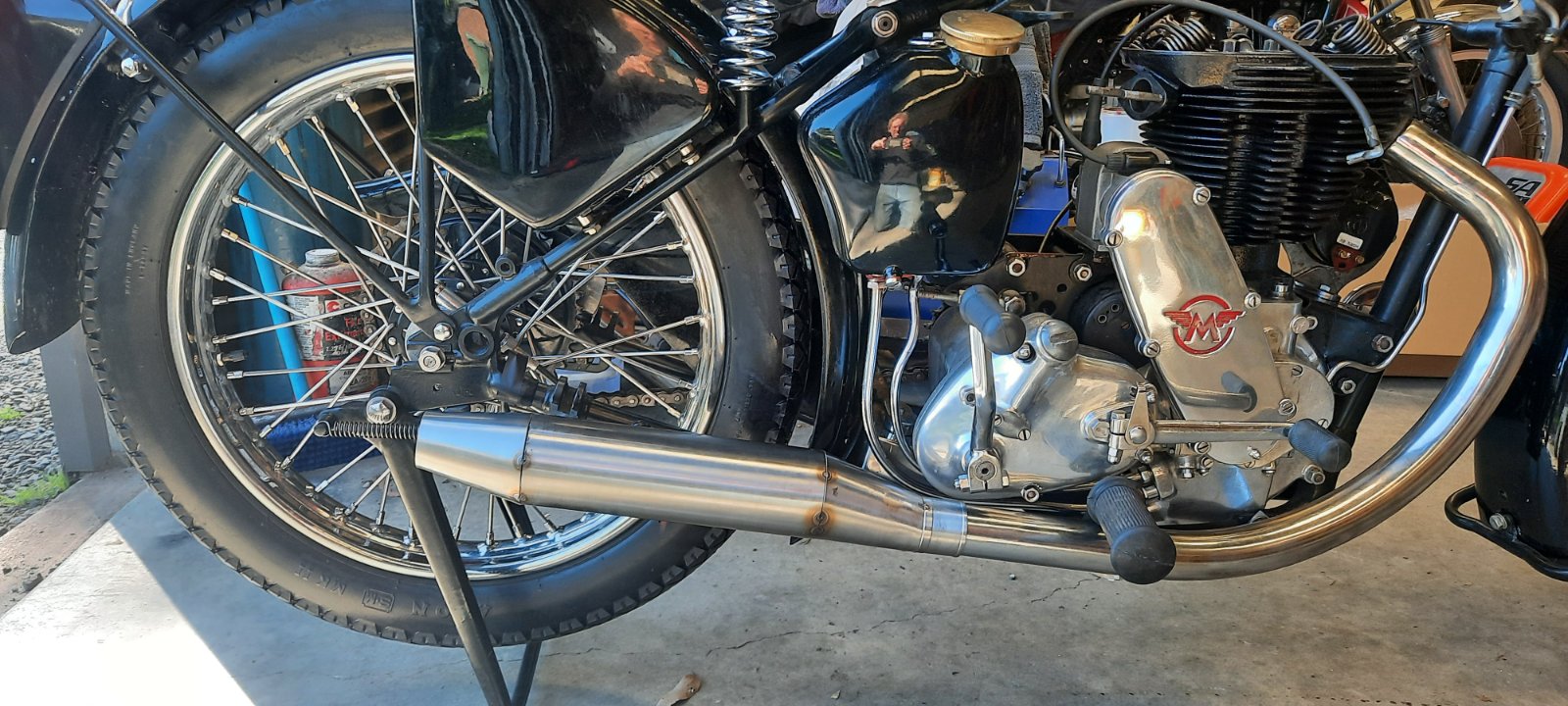

Cheers for that, I will add muffler pics

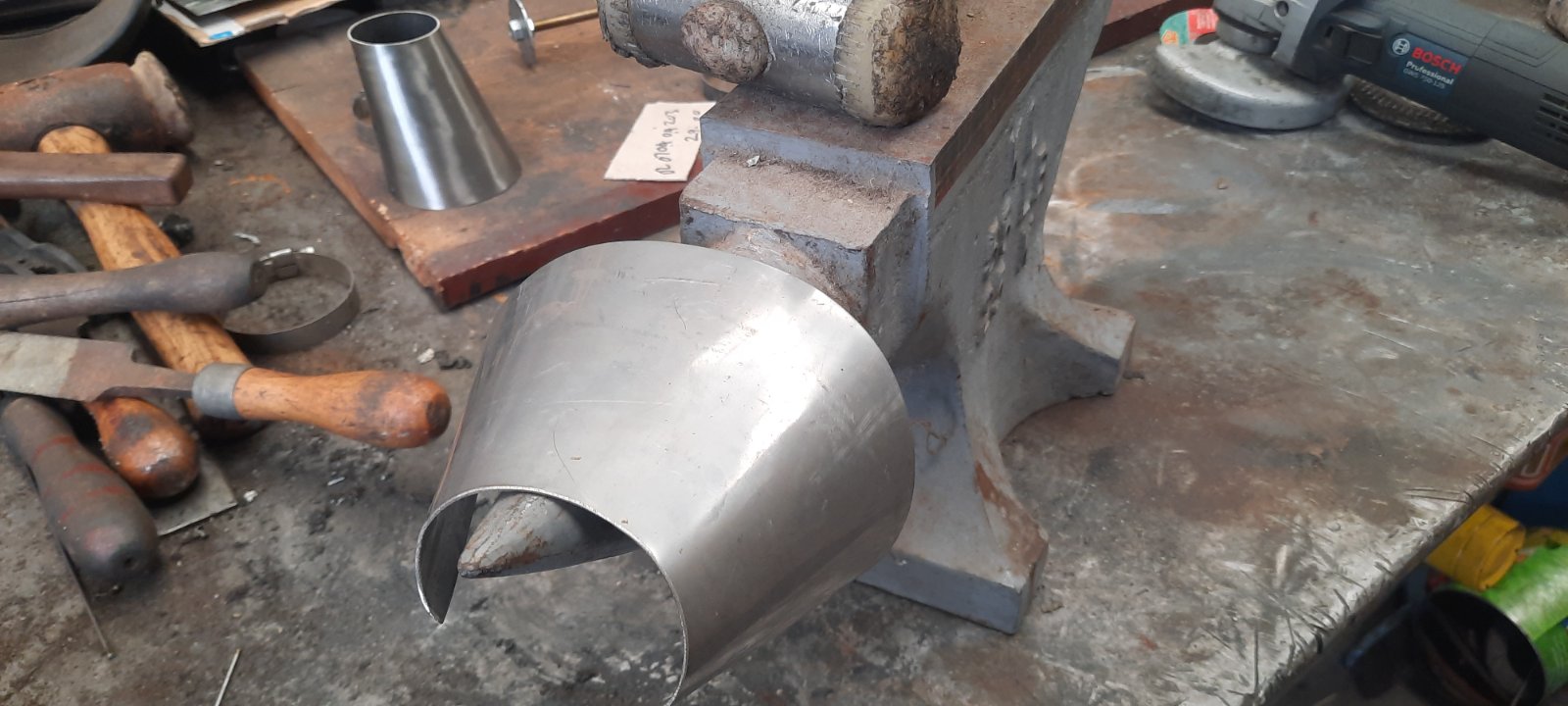

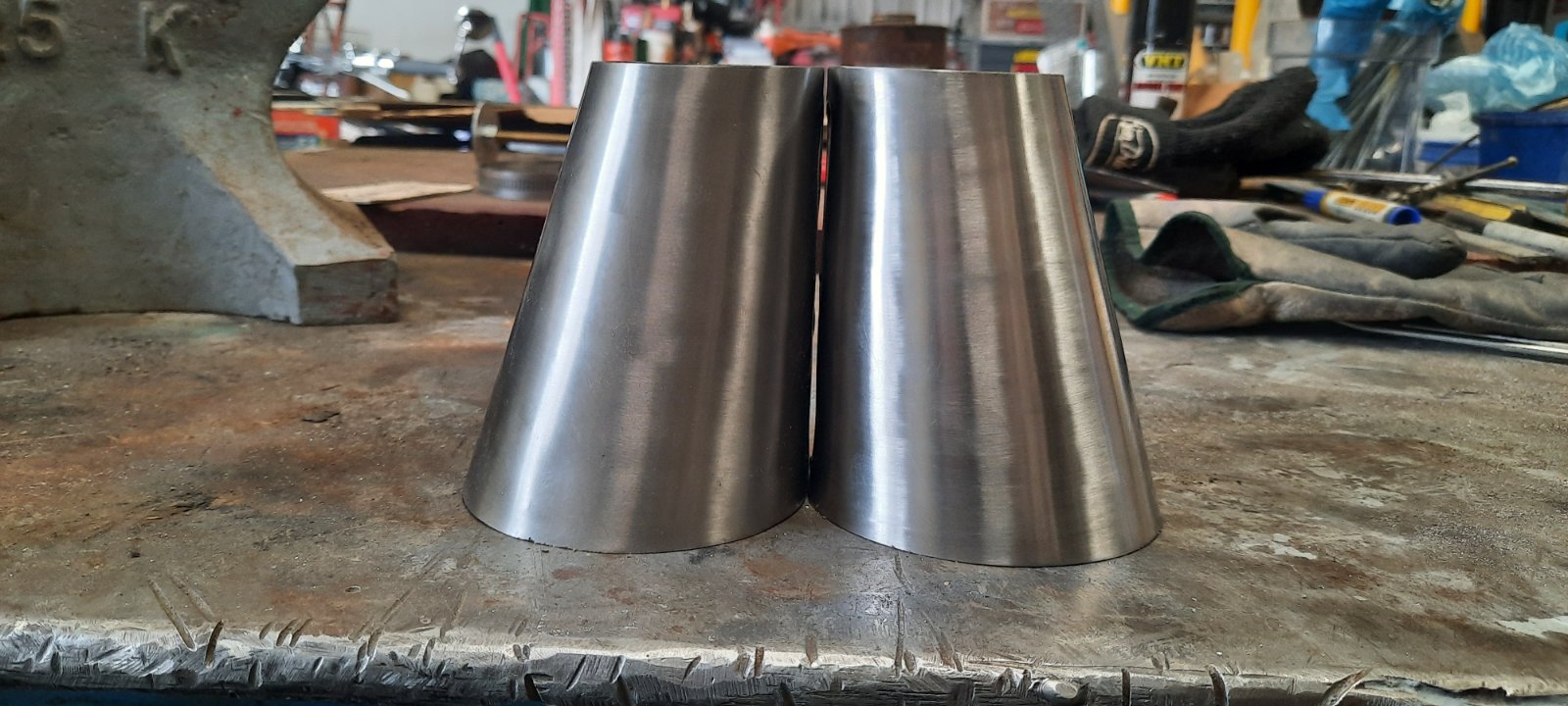

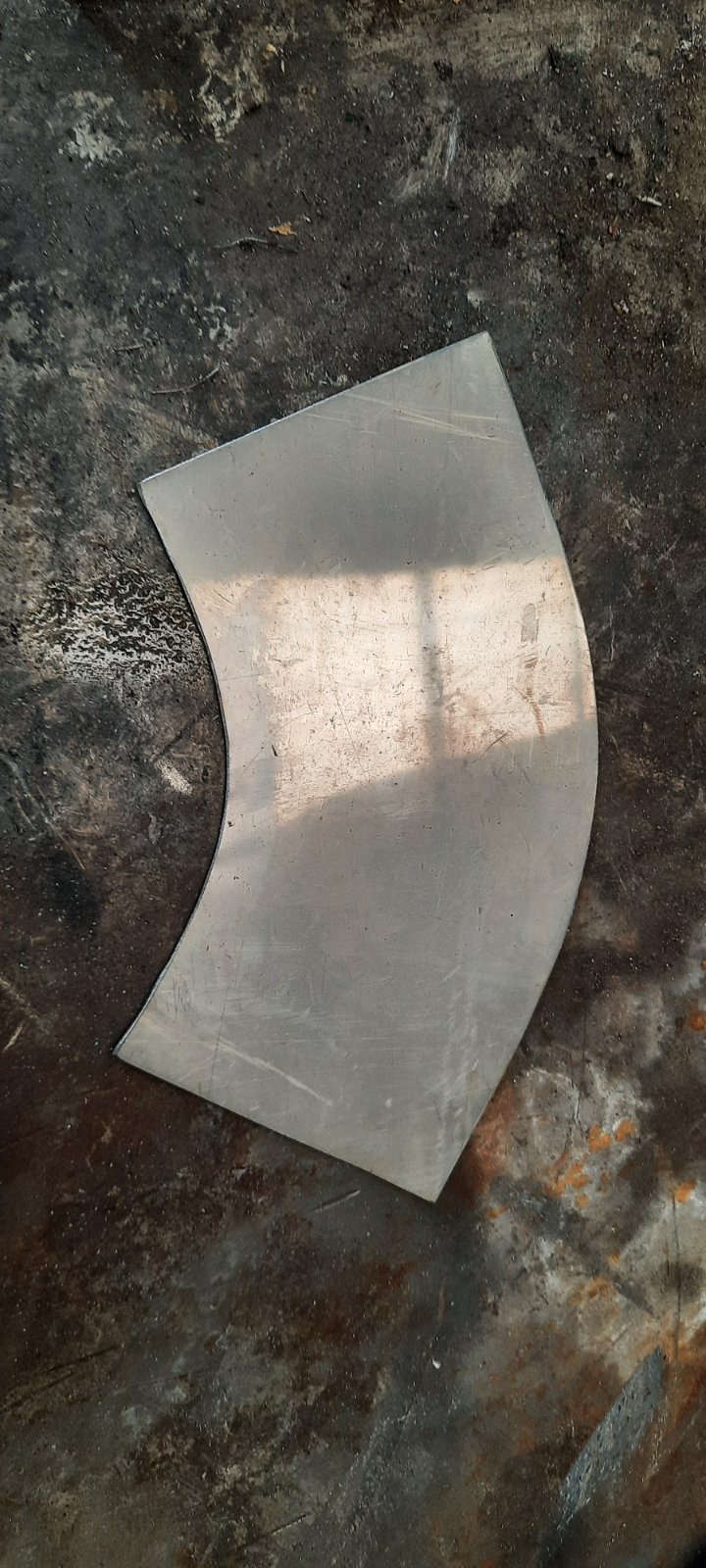

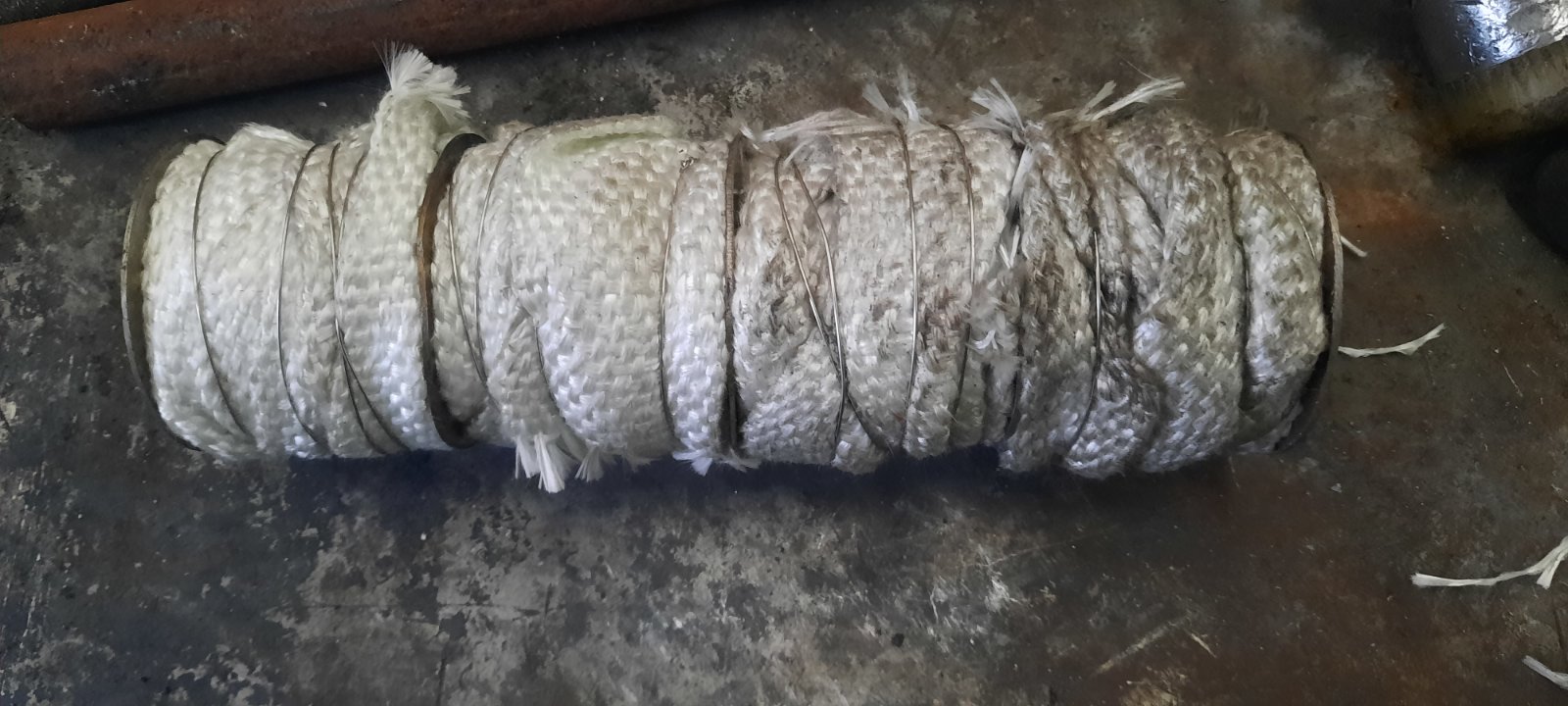

I've back purged the welds. If you want to know a cheat method to make your cone pattern, let me know, I made it because a muffler from the UK, plus freight was far to expensive. . Cheers


Attachments

  • Matchless G80 Engine reassembly
    251.9 KB · Views: 73
  • Matchless G80 Engine reassembly
    169.6 KB · Views: 64
  • Matchless G80 Engine reassembly
    216.4 KB · Views: 59
  • Matchless G80 Engine reassembly
    196.6 KB · Views: 61
  • Matchless G80 Engine reassembly
    193.4 KB · Views: 72
  • Matchless G80 Engine reassembly
    293.8 KB · Views: 71
Last edited:
Wow. You could make proper Norton kickstands (especially for N15CS, which is too short and has the wrong angle on the toe, and people would beat a path to your door. Not a lot of people, mind you, and fewer still with the kind of money they are worth, but people nonetheless. I'd be one of those people (admitteldy a small number), and wouldn't be able to afford what it's worth, but it's nice to dream :D. I hold fabricators like you in the highest regard, whatever that's worth.

gpzkat said:
Wow. You could make proper Norton kickstands (especially for N15CS, which is too short and has the wrong angle on the toe, and people would beat a path to your door. Not a lot of people, mind you, and fewer still with the kind of money they are worth, but people nonetheless. I'd be one of those people (admitteldy a small number), and wouldn't be able to afford what it's worth, but it's nice to dream :D. I hold fabricators like you in the highest regard, whatever that's worth.
Click to expand...
A lot of the side stand you can make yourself , just cut out the two top side plates then taper turn the shaft., make a pad etc then just tack it together bit by bit, if you haven't got tig then just use stainless stick ( but make sure you keep your safety goggles on as the flux likes to ping off, and guaranteed to land on your eyeball 😪, it will all sand and polish up later. Cheers

Shelby-Right said:
A lot of the side stand you can make yourself , just cut out the two top side plates then taper turn the shaft., make a pad etc then just tack it together bit by bit, if you haven't got tig then just use stainless stick ( but make sure you keep your safety goggles on as the flux likes to ping off, and guaranteed to land on your eyeball 😪, it will all sand and polish up later. Cheers
Click to expand...
I can do a lot of things, but welding isn't one of them. Not enough space, no gear, and not enough payback in it at this point in my life. If I could turn back time, I'd have gone for it.

Is the side stand correct for the G80? I ask because it looks very similar to the stand on my 1957 ES2.

Hi possm, "Is the side stand correct for the G80?" well I did have a new Indian one AE or some brand like that, all I can say is it bolted on, but when folded up ended up about 45 degrees under the bike, so I just made mine to look sorta right and hopefully work, my matchy won't be concourse but tidy and usable, I hope. Cheers.

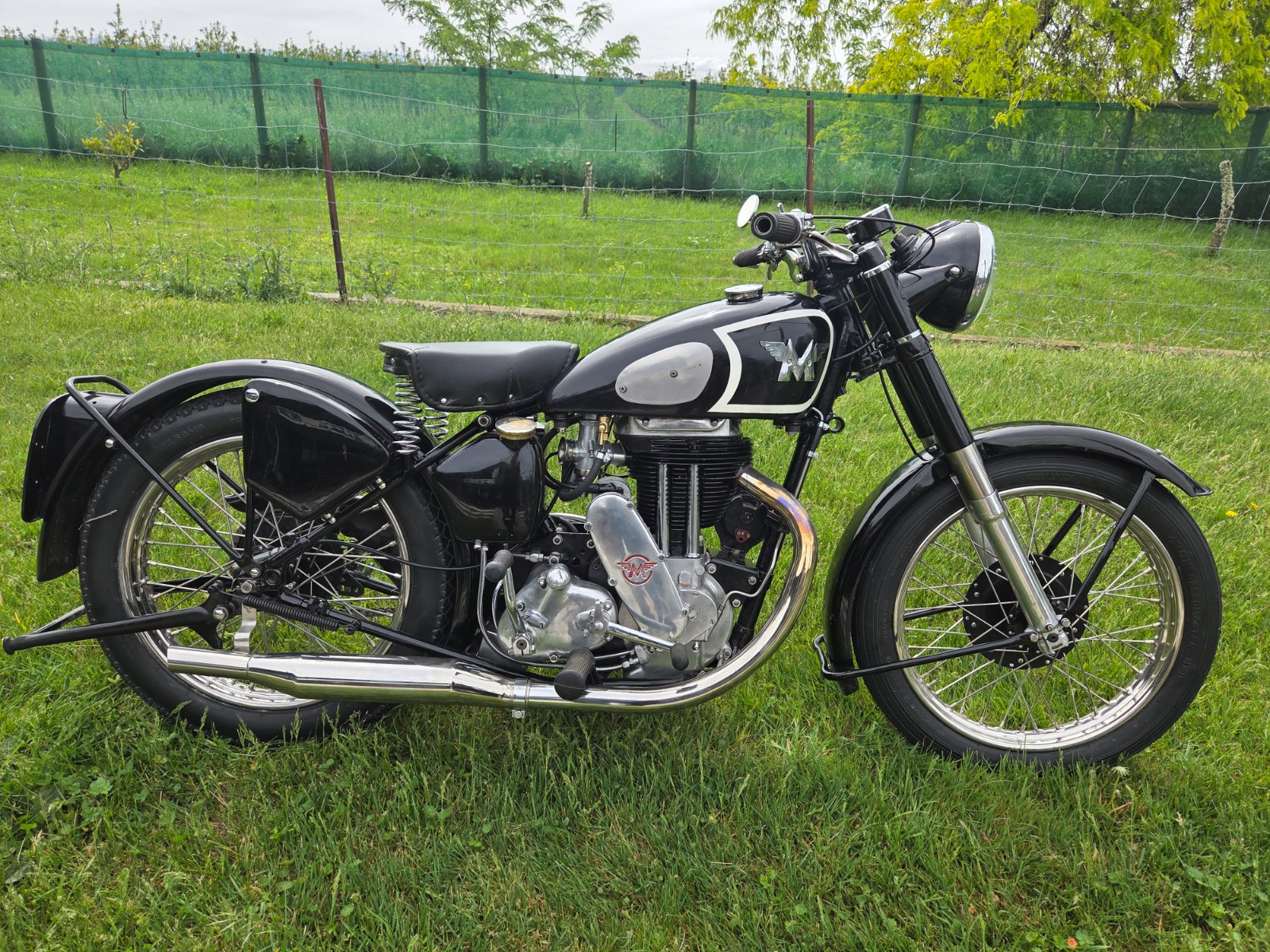

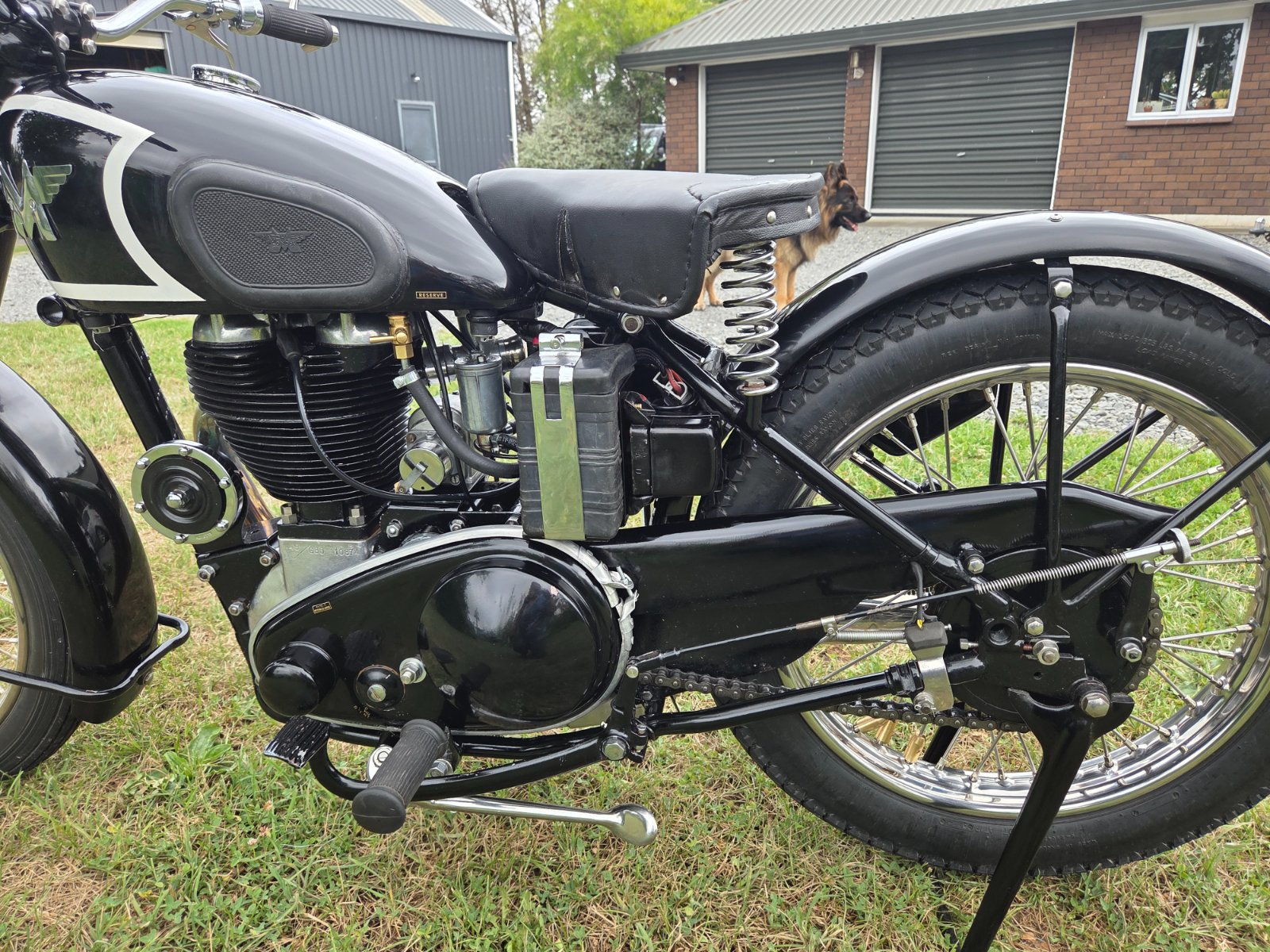

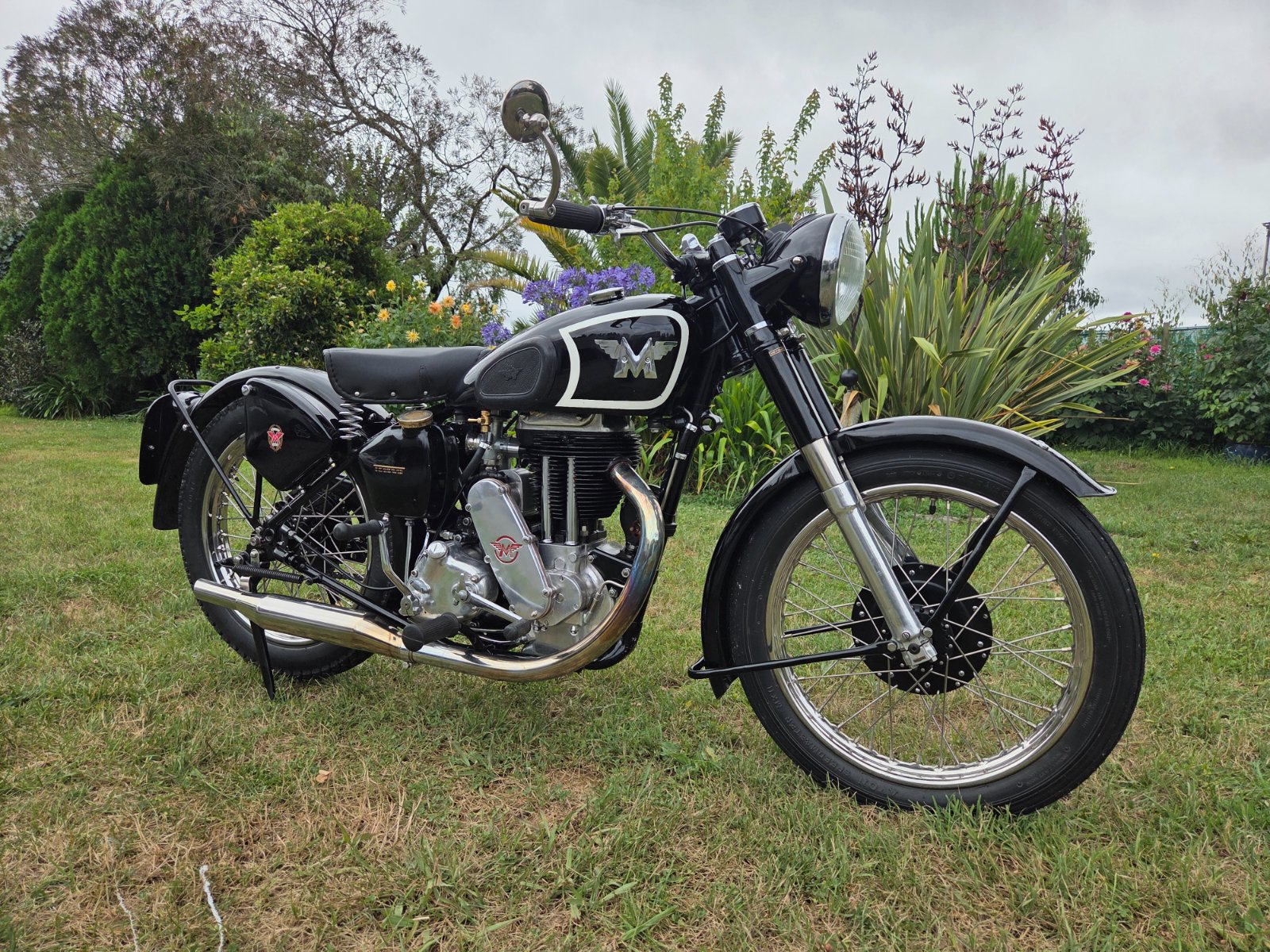

Well, I've had the matchless going, I wasn't holding a lot of hope for the plain cast oil ring, as it was a bit smokey on the second run, I'm not sure if it had some oil in the crankcase, on the next run more throttle and full advance around the 2 acre block, all seems well, it's starting better, previously was flooding, but I think the float was slipping up past the groove on the pre monobloc, my seat that I carefully sprayed with conditioner a couple of years ago must have been the most corrosive liquid known to man, as all the bifurcated rivets were turned to rust 🙄, so I made my own out of stainless, and now the seat is back on, still need to make a longer decomp cable and get the tail light on and then the wiring 😗
