Magneto mounting fasteners

Joined
Jan 9, 2011
Messages
111
Country flag
Hello
The rebuilt magneto has gone intermittent and the removal was a chore due to using the bottom fastener. This is the one that has the hex head bolt from inside the timing cover.
The nut is will hidden and buried. I was able to modify a wrench into an arc and use that to hole the nut.
I seem to recall a different fastener, it had a hex wrench recess in the end of the bolt where the nut goes on. This allowed the head to be on the outside of the timing case, and not needed for tightening and loosing this fastener, as you could hold the bolt with a hex wrench and then run the nut down to tighten and reverse for loosing. This was all inside the timing cover.

Has anyone else knowledge of such a fastener and if so any part numbers or ordering information?

Thanks

Magneto mounting fasteners

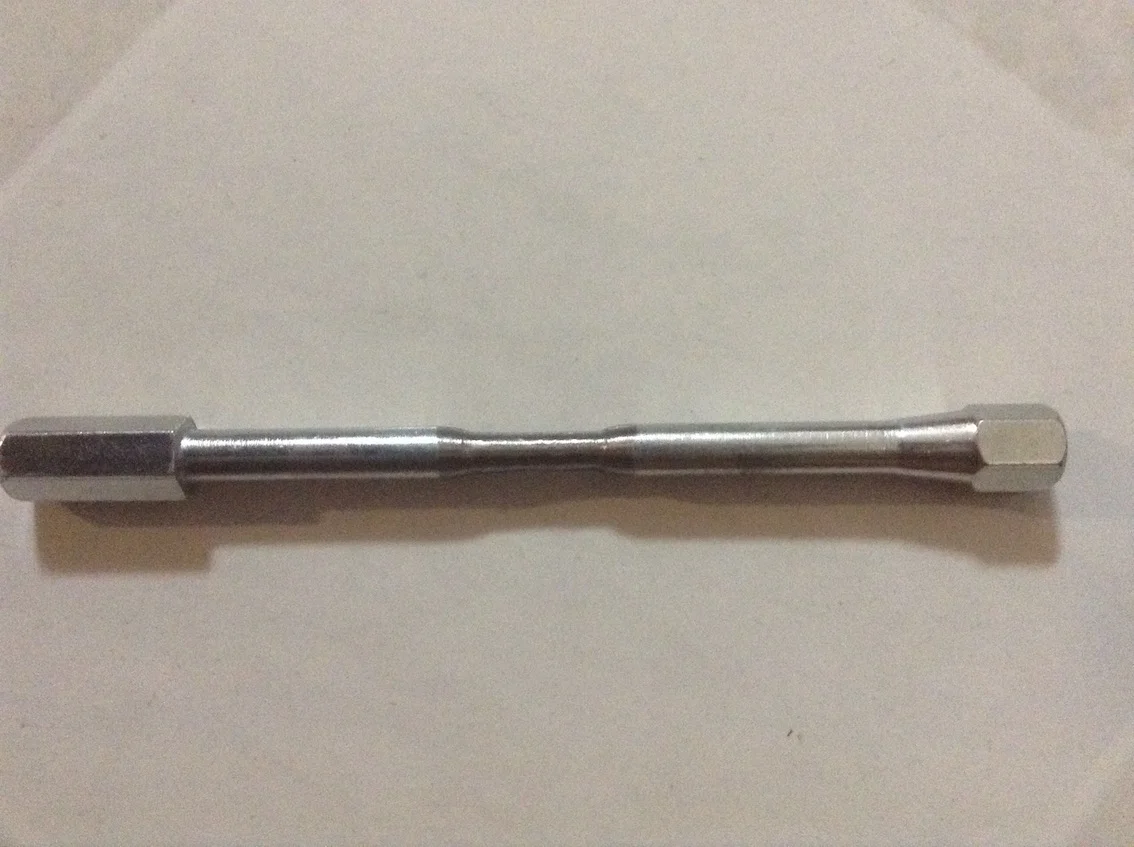

I used one of these but had to waist the shank to avoid a clash with the crankcase flange - still strong though!
Cheers
Rob

Last edited:
+1

Slick and no modification needed for my Dominator, a little jimmy to get it around the engine plates but tightens up nice.

Scott
