losing the will to live re: JPS rear mudguard

Discussion in 'Norton Commando Motorcycles (Classic)' started by SteveJPS, Aug 18, 2018.

  1. SteveJPS

    SteveJPS

    Joined:
    Aug 17, 2018
    i have recently purchased a John Player Commando as a restored bike but with bits and bobs to tinker with.
    one of these is the JPS tail/seat unit which when viewed from the rear just didn't seem to sit right, what i thought would be easy as turned into a bit of a nightmare, it seems that the rear mudguard isn't a good fit which on turn throws the seat unit out, no matter how i try it will either end up with the seat unit not sitting correctly (the seat unit on the JPS as the same contour as the mudguard underneath) so a couple of mm out and it throws the seat unit, get the top of the mudguard correct with the seat unit sitting correctly and it ends up a good 10mm out below the number plate.
    I'm thinking a couple things, is it a bad mudguard? I have heard that the replacement mudguards can be a pain to fit correctly, but to me it looks impossible with the current mudguard, what is a bit odd the receipts are showing a mudguard from norvil, but there isn't a indent to clear the oil tank pipes? I hsve been told the norvil mudguards hsvr always had the indent, I wonder if it could be a bad mudguard.
    option 1: Buy a replacement mudguard from the like of rgm or norvil and see if there is a improvement.
    Option 2: Modify the replacement mudguard if its the same, i am fortunate in knowing a really good fabricator.
    Option 3: Can't think of a 3rd option :)
    I presume the mudguard originally fitted to the JPS is the same as the mk2a commando?
    The main issue is the mudguard will have to be spot on in relation to the seat unit, maybe on a standard commando it wouldn't be as critical.
    Any thoughts really appreciated.
    Steve

    Tags:
  2. Time Warp

    Time Warp .......back to the 70's. VIP MEMBER

    Joined:
    Dec 3, 2012
    I think back to basics is a start.

    Remove the 'offending fender and lay it on the flat to see if it is flat/straight without the problem being there.
    Are the mounting holes of that fender/mudguard central.

    The mounting of it to the bike is fairly basic.
    The front portion in the centre of the bike as would be the rear at the loop, the centre section should measure central, if that all says the fender is in the centre of the bike and the shape of it fits the seat unit with some clearance then you might want to be checking the seat unit itself.
    One or the other is wrong as long as the frame itself is not the problem.

  3. 850commando

    850commando

    Joined:
    Nov 1, 2014
    is the seat you are trying to fit an original parts , or a more recent manufacture? if original; my bet is the fender... find an old fender and compare then try and fit it. I've had a bad experience with parts supplied by norvil....

  4. SteveJPS

    SteveJPS

    Joined:
    Aug 17, 2018
    Back to basics tomorrow then, i still have a feeling the mudguard is twisted to a degree, what worries me more is that i spoke to the above parts supplier and he said that none of them are straight because of the rolling process, hopefully this will be to a lesser degree the the current guard, i have a feeling that all of the well known parts suppliers will use the same manufacturer, which leads me to think its going to be a prob with the jps seat unit.
    Tbh looking at some pictures oof restored JPS's a good percentage of them seem to have the prob with the seat unit not parallel to the mudguard/number plate mount inc one on a thread on here. I'll live in hope .....

  5. kommando

    kommando

    Joined:
    May 7, 2005
    Norvil no longer have access to Andover Norton's parts as they were dropped from the approved distributor list. So they have had to resource away and create their own suppliers and seem to buy a lot from India, so if have bought this mudguard from Norvil it being twisted is not a surprise and other suppliers will have access to better examples.

    SteveJPS likes this.
  6. 850commando

    850commando

    Joined:
    Nov 1, 2014
    i think i would like to call B.S. on the suppliers claim that none of them are straight.... maybe the stuff he supplies...

  7. Nortoniggy

    Nortoniggy

    Joined:
    Nov 17, 2010
    I had to buy a new rear mudguard after an accident. I can't remember if it came from RGM or Norvil. It didn't have the clearance for the oil pipes so I had to do that myself but I have never managed to get it fitted straight. I have tried several times and it's extremely frustrating. Friends follow me and ask if I know my mudguard is out of line. if I was sure that AN supplied one that fitted properly, I would buy one from them.

    Ian

  8. SteveJPS

    SteveJPS

    Joined:
    Aug 17, 2018
    I’ll telephone some of the suppliers tomorrow and try and find out the situation, kommando are you sure they were dropped from approved distributors list? When I spoke to Norvil it came across that they are on the approved list.
    I wouldn’t have thought it’s asking to much to be able to supply a quality mudguard. I was told that you have to bend them when mounting them on the bike maybe mine is more twisted then others. As mentioned previously the JPS tail unit really highlights this perhaps more then a standard Commando.
    I’ll give RN Ring tomorrow aa d ask. Any other suggestions re: purchasing a straight one, perhaps India

  9. SteveJPS

    SteveJPS

    Joined:
    Aug 17, 2018
    just wondering if the way forward is a good genuine s/h mudguard? Any pointers ?

  10. Nortoniggy

    Nortoniggy

    Joined:
    Nov 17, 2010
    I've been keeping my eye on that well known auction site for an original but not seen one. But there is no way of knowing if one does come up that it is the real thing.

    The other option is to ask Andover Norton if their rear guard has the clearance for the oil pipes and if it does, hope it fits properly as it's different to the ones without the oil pipe clearance.

    Ian

  11. kommando

    kommando

    Joined:
    May 7, 2005
    110% sure, the owner of Andover Norton posts on this forum as ZDF and he announced it on this forum, partly on the basis that Norvil were selling parts as being from AN but were not. Norvil recently tried to get the NOC to drop Andover Norton ads as they included 'Commando' and he had trademarked Commando, hardly the action of a customer buying parts from Andover Norton, it cost the NOC £600+ to be told his claim was nonsense. Les is not to be trusted.

  12. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    We should have a FAQ here. Number 1? Whatever Norvil says is not true.

  13. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    SteveJPS likes this.
  14. SteveJPS

    SteveJPS

    Joined:
    Aug 17, 2018
    Ordered one today, so fingers crossed re: quality .......

    gortnipper likes this.
  15. SteveJPS

    SteveJPS

    Joined:
    Aug 17, 2018

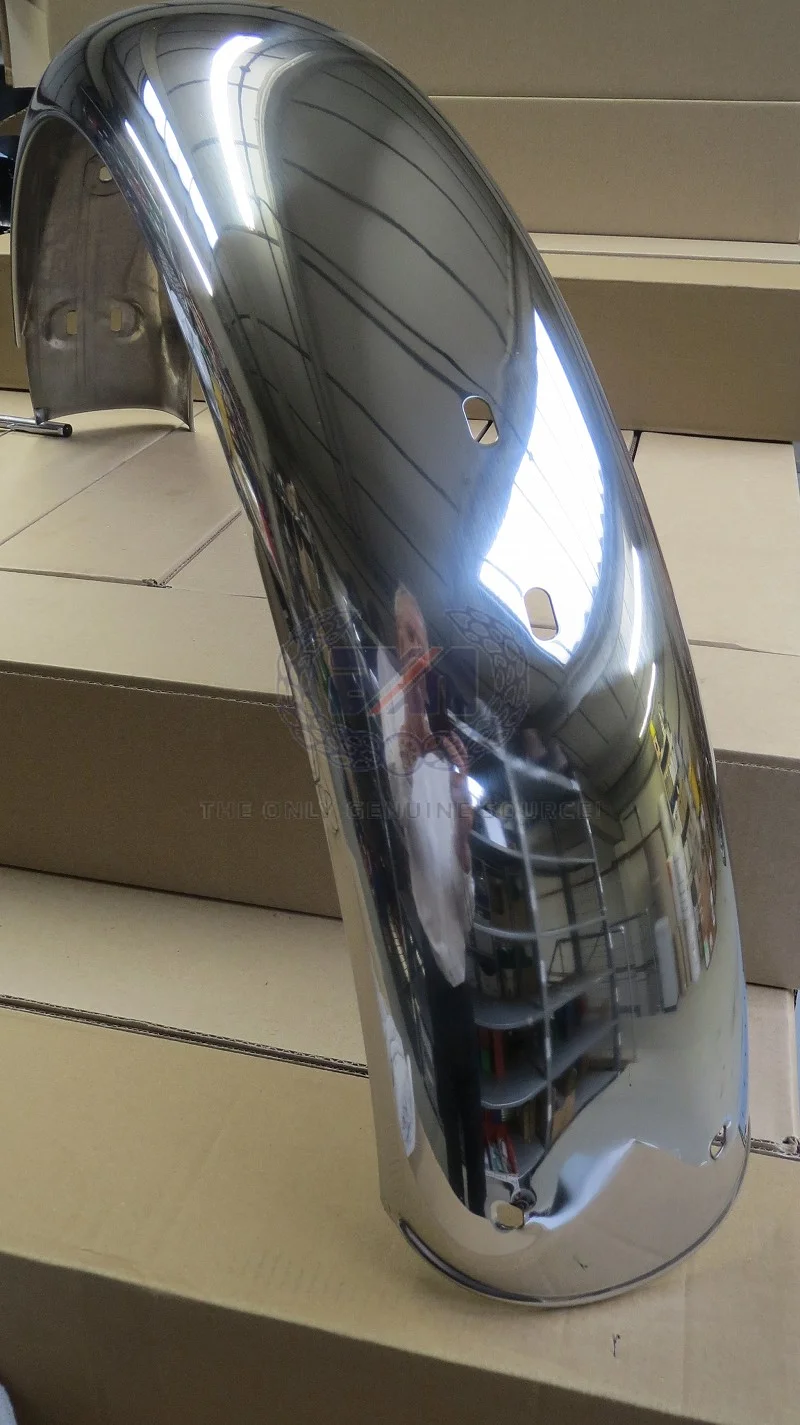

    Arrived Today, looks MUCH better quality, made in Italy hopefully will get it fitted over the weekend

  16. bill

    bill

    Joined:
    Jun 1, 2003
    just typical norvil questionable qualty and poor customer service.

    what is a bit odd the receipts are showing a mudguard from norvil, but there isn't a indent to clear the oil tank pipes? I hsve been told the norvil mudguards hsvr always had the indent, I wonder if it could be a bad mudguard.

  17. SteveJPS

    SteveJPS

    Joined:
    Aug 17, 2018
    Just a quick update re: The rear mudguard, the new one fitted from AN, 95% better, fairly pleased with the fit, prob a little more time on it, it would be 100%, in comparison with the old one its much!! Better, after taking the mud guard off it became obvious what was causing the issue, the lower number plate holes were a mile out, there were a good 5mm variation with them which was causing the guard to twist, anyway all is well that ends well.... I'll try and post some pics of the ugly duckling

  18. triumph2

    triumph2

    Joined:
    Aug 13, 2008
    FWIW I just received a new chain guard. The label said Norvil and the holes didn’t line up, The reinforcing plates were half the size of the original!

  19. 850commando

    850commando

    Joined:
    Nov 1, 2014
    as a fellow canadian i believe we are allowed to beat you for continuing to shop poorly:(. consider yourself reprimanded :D

    triumph2 likes this.
  20. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    My original rear guard on my 74 is the same - to get it to line up properly I had to fettle the holes.
