LED Turn Signal Bulbs Question

Discussion in 'Norton Motorcycles (Modern)' started by rod frost, Nov 13, 2018.

  1. rod frost

    rod frost VIP MEMBER

    Joined:
    Nov 9, 2017
    I went to replace the turn signal bulbs with LED bulbs on my 2015 961 SF and started with the rear signals. All went well, blinks a little fast but very bright and noticeable. When I completed the front signals and tested them the fast blinking changed to blinking and then a pause and so on... So I ended up with LED in the rear and the old bulbs in the front which is fine, I want to be seen more from the behind. Does anyone know why the LED bulbs worked in the rear (or one set of signals) but not in all the signals?

    Last edited: Nov 13, 2018
  2. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    There is not enough current drawn to work when all are replaced . Meaning that when you turn on the r/h signals the front right is still drawing enough through the normal filament bulb to operate the turn signal relay. You may try an led approved flasher available on ebay that fits the 961 . Or go the resistor route which will provide the current draw that the turn signal relay needs. Also , without the resistors when using LED turn signals you might have the 4 way flasher issue,. This is when you activate the l/h or r/h turn signal all 4 will flash like a 4 way hazard. This happens when there is only 1 turn signal indicator light in the gauges. Both left and right use the same gauge indicator like the 961 does. There is no more low resistance path to ground through the normal bulbs. You may be forced to go with resistors . Others who have done this can be more helpful . You should only need one resistor properly sized resistor per side . The LED signal installation kit should have this for you.

  3. regental

    regental

    Joined:
    Dec 21, 2009
    I have fitted LED indicators at the front - each one required a resistor pack - awaiting a pair to fit at the back. Some LEDs require one resistor pack for the whole system - the ones I'm fitting obviously need 1 resistor pack per indicator so there are different regimes out there

  4. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    After looking at the electrical drawings it appears that the proper diodes are in place at the guage cluster turn signal indicator . There should be no problems with the 4 way flasher issue. I should have looked first !

  5. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Hello , where do the resistor packs reside ? Inside the signal body ? Could you provide some pics showing what the mounted LED signal look like ? Thanks !

    Last edited: Nov 14, 2018
  6. regental

    regental

    Joined:
    Dec 21, 2009
    Am not a VIP member so cannot post pics but have changed avatar to show the indicators which are bog standard BMW items - they are solid plastic mounts but I really wanted rubber mounted as I've already broken one moving about the garage - put the R&G resistor packs in the headlight shell - some LED indicators come with inbuilt resistors so a neater solution

    Last edited: Nov 14, 2018
    rod frost likes this.
  7. MxMartin

    MxMartin

    Joined:
    Nov 13, 2017
    I put led's on front and rear with an led flasher unit but my flasher repeater/idiot light stopped working. I reverted back to using standard flasher unit and put 1 resistor on left and 1 on right... all works as it should. My resistors are tucked up in the carbon number plate bracket.

  8. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Thanks Gents , I am clear on this now . But I wanted to ask about the mounting of the indicator stems. Is there a plate that is provided for the second hole ? The Norton indicator has a bolt and a hole for the wires . The LED's are much sleeker .

    rod frost likes this.
  9. regental

    regental

    Joined:
    Dec 21, 2009
    The BMW indicators use the same bolt hole for fixing/extra hole for wire as our originals but I had to trim some material off the spigot that the wire passes through

  10. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Good news , which BMW model did you order from ?

  11. regental

    regental

    Joined:
    Dec 21, 2009
    Got my indicators from Ebay second hand so don't know which model - there are also Chinese versions - just search for 'BMW motorcycle LED indicator' and you should bet tons of hits

  12. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    You can use an external photo hosting site and post the pictures here.

  13. gchoppin

    gchoppin

    Joined:
    Sep 26, 2017
    I have installed a really nice turn signal set on my Triumph Bobber , 961 and BMW R9T sold by British Customes (California). The Bobber needed a LED bulb set. I ordered them from "Super Bright LED.com". Built in resistors to accommodate the incandescent system. The Norton and Beemer just needed the right wattage bulb to flash properly. Got a set ordered for my Triumph Street scrambler too.

  14. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015

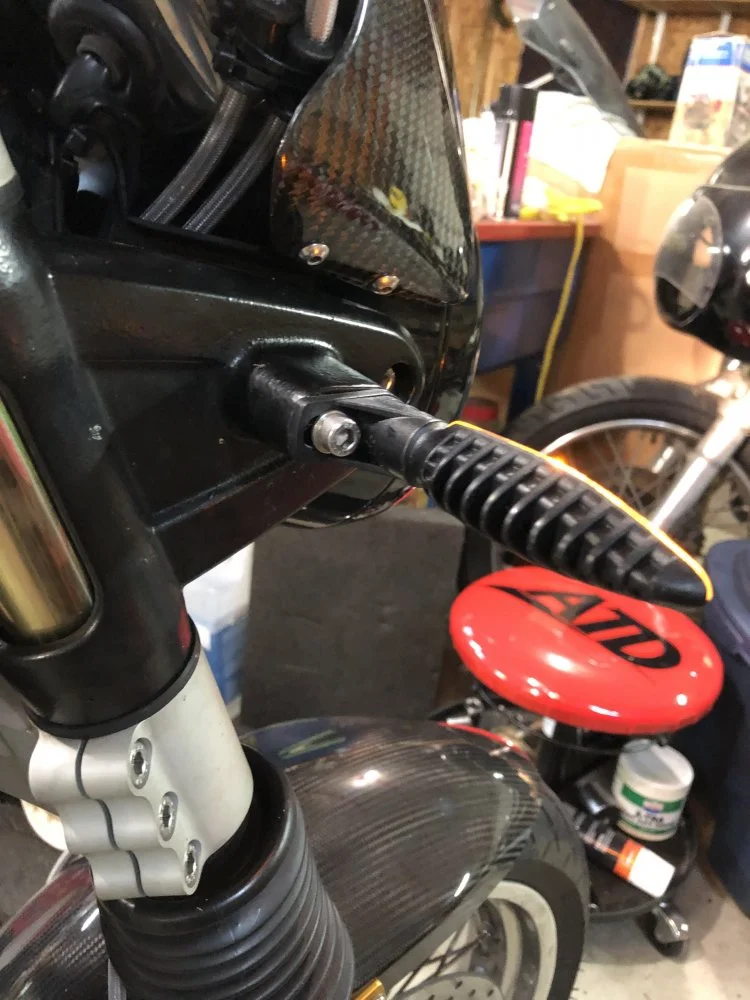

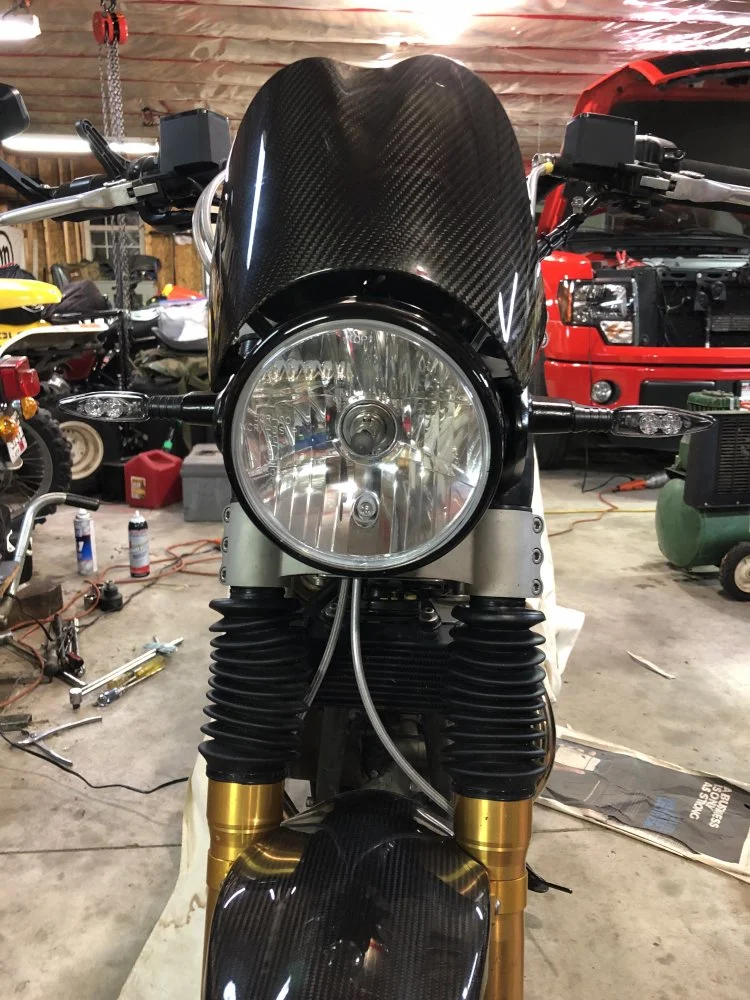

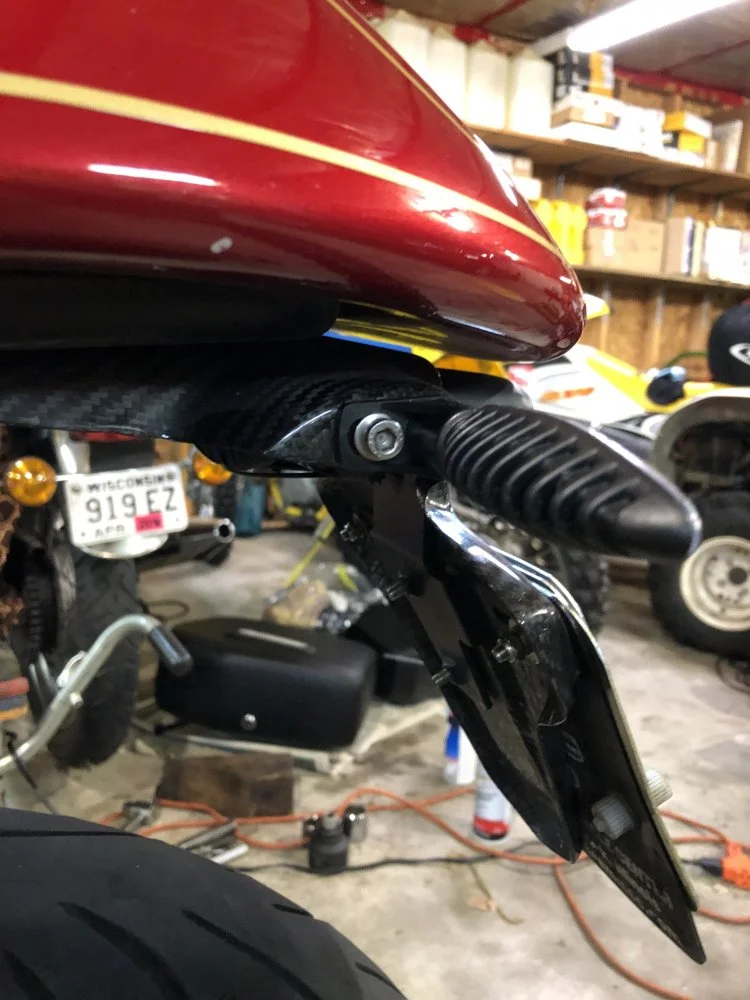

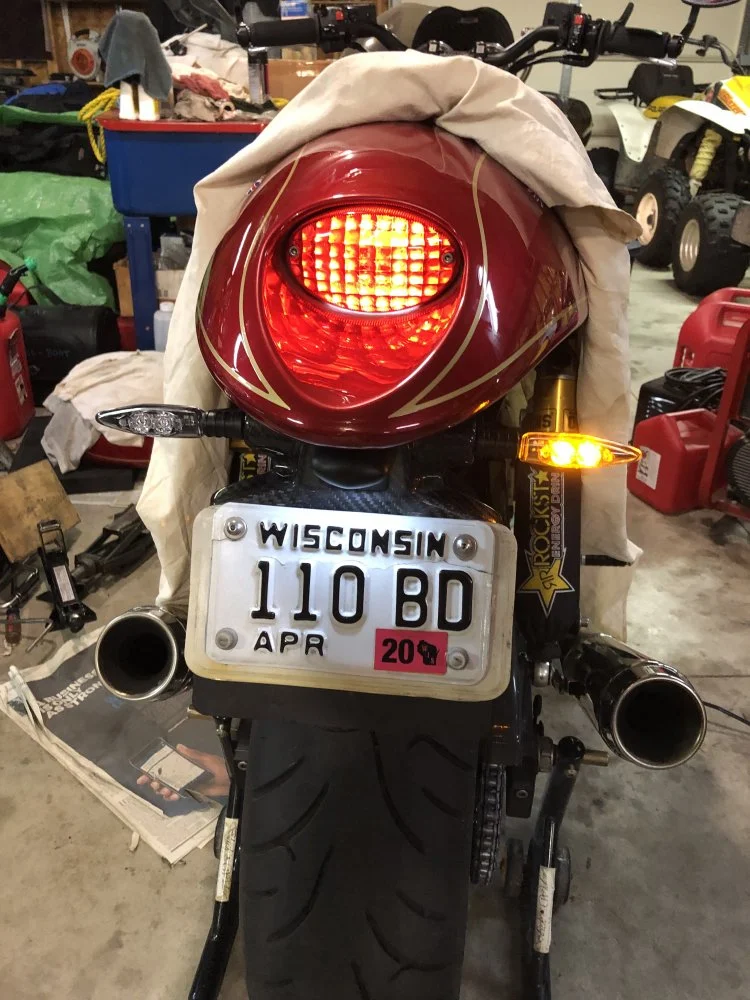

    IMG_3153[1].JPG From China with love . IMG_3154[1].JPG IMG_3154[1].JPG IMG_3156[1].JPG IMG_3151[1].JPG
    Thanks to Regental for the BMW type LED turn signal idea and to MXmartin for the resistor hiding location.

    Last edited: Nov 28, 2018
    Britfan60 and rod frost like this.
  15. regental

    regental

    Joined:
    Dec 21, 2009
    Glad you got sorted - looks just like mine

  16. Britfan60

    Britfan60 VIP MEMBER

    Joined:
    Jan 5, 2014
    They look good. Did your plate crack too? Mine is cracked almost all the way across.

  17. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Yes , Almost all the way across. I am buying a thick stainless license plate backer from Barnett (the clutch plate co.). If you want I can link to it .

    Britfan60 likes this.
  18. BritTwit

    BritTwit

    Joined:
    Aug 25, 2009
    Tony,
    You have 10,000+ miles on your bike.
    Is this a vibration problem?
    I have less than 4,000 miles on my 961, but no evidence of any cracking yet.

  19. regental

    regental

    Joined:
    Dec 21, 2009
    My 2013 Sport developed a crack around the rear indicator mount holes on the tail fairing so I made a bracket to brace the indicators - this stopped further cracking & guess what? - new bikes have this bracing piece as standard now

  20. Britfan60

    Britfan60 VIP MEMBER

    Joined:
    Jan 5, 2014
    I bought a plate backer a few weeks ago. Doesn't quite line up. Have to drill it. Great quality though. Nice and heavy.
