Kick start assembly question

Mofosheee

VIP MEMBER

Joined

Aug 4, 2020

Messages

205

• May 22, 2025

• #1

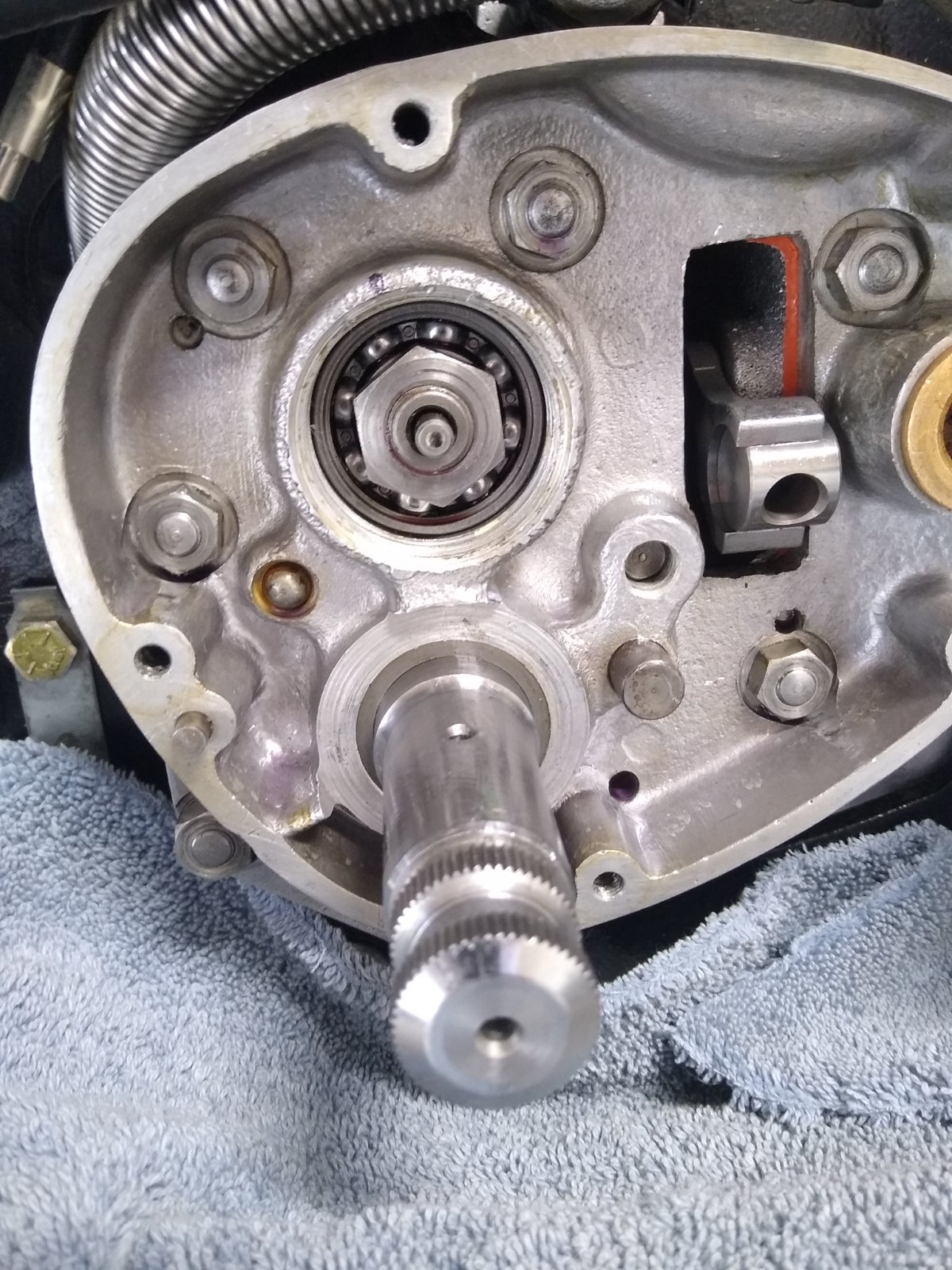

Things came to a screeching halt on the assembly of my gear box. My understanding is that the kick start spring hole should not be at the 12 o'clock position as I have assembled it.
I believe that the spring hole should be about 45 degrees counter clockwise to it's current location.
What assembly mistake did I make here?

Thanks



Attachments

•

  374.4 KB · Views: 119

L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,784

• May 23, 2025

• #2

Is the kickstart shaft a new part?



Mofosheee

VIP MEMBER

Joined

Aug 4, 2020

Messages

205

• May 23, 2025

• #3

Yes
This is a reassembly after being one tooth off on the shift quadrant. It was correct before I took it apart.
Thank you



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,784

• May 23, 2025

• #4

Ok, as I was thinking if it was a new part then it could be an early Dominator shaft but if it was correct when previously fitted I can only think the head of the shaft is the wrong side of the stop plate.



Mofosheee

VIP MEMBER

Joined

Aug 4, 2020

Messages

205

• May 23, 2025

• #5

It looked correct going together.
Excuse me, I'm not understanding what your statement; "the head of the shaft is the wrong side of the stop plate"
So, apart it comes..............
Thanks Lab



Mofosheee

VIP MEMBER

Joined

Aug 4, 2020

Messages

205

• May 23, 2025

• #6

Hello
Inner cover removed.

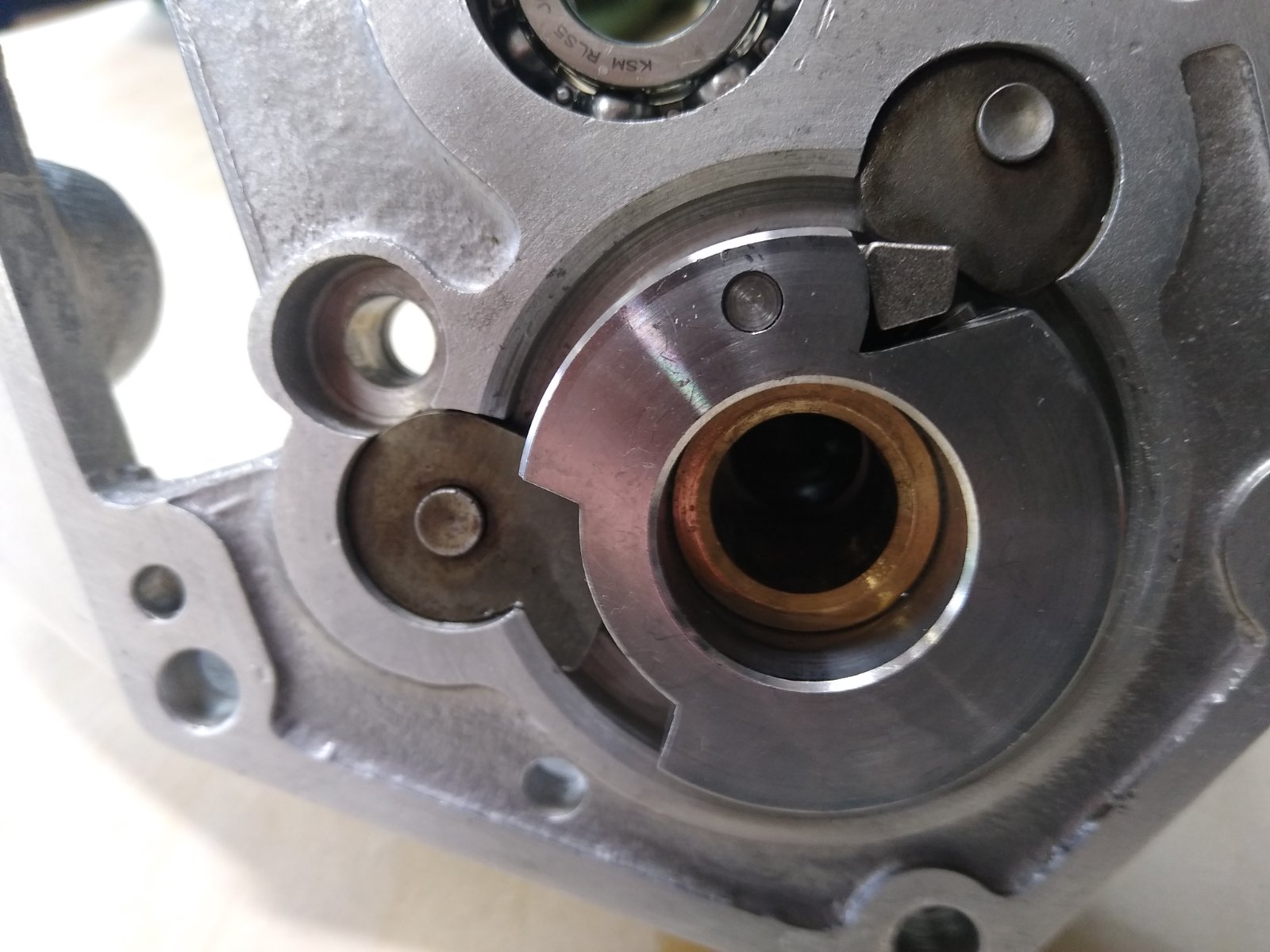

1st picture is of inner cover (inside) with the kickstart mechanism rotated to the stop.

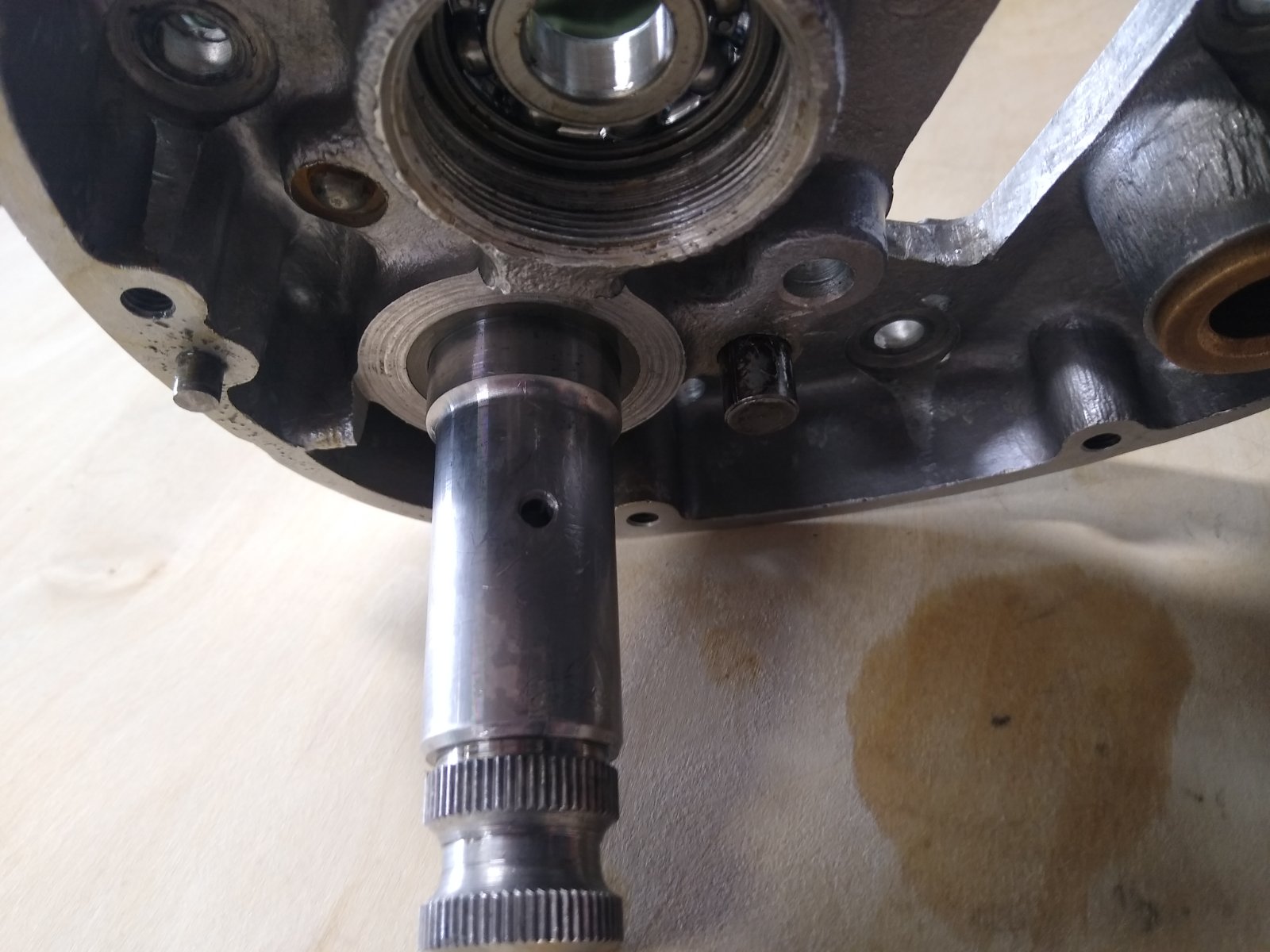

2nd picture is of the spring hole at the 12 0'clock position in the same position as above.

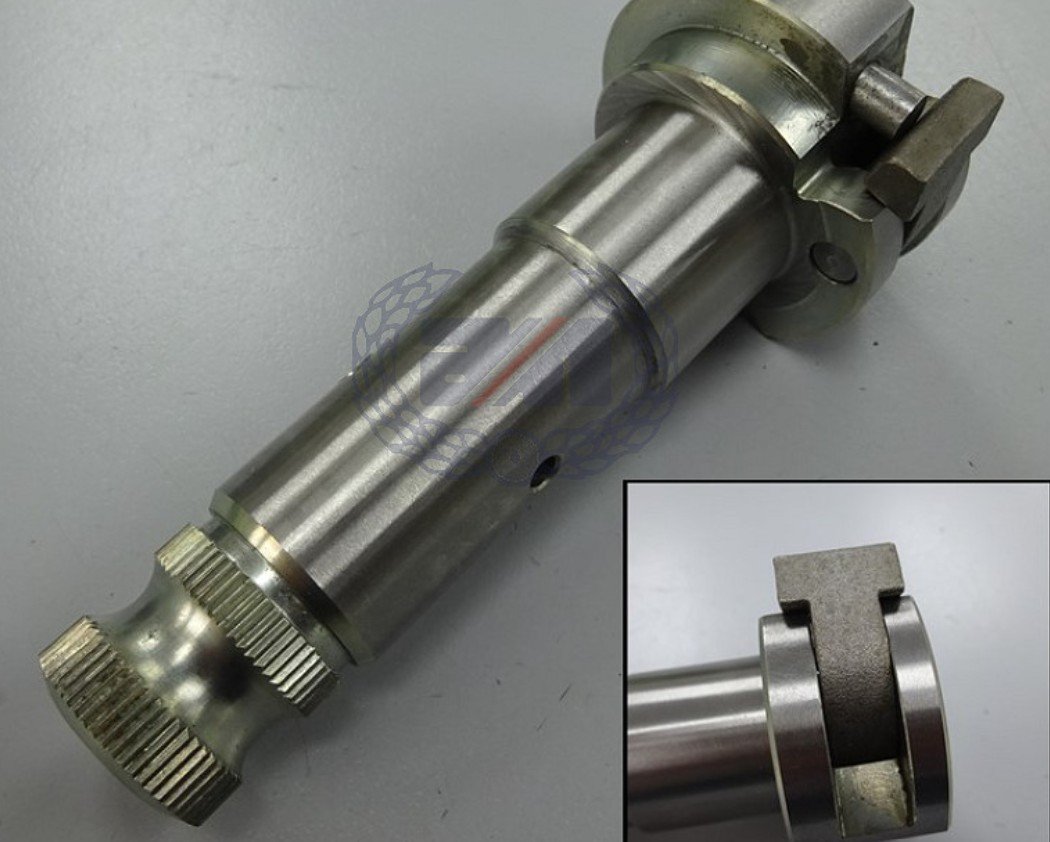

The pin and hole positions of my kickstart match that of the Andover part.
Did I take a perfectly fine gear box apart? What am I missing please?
Thanks again.



Attachments

•

  210.3 KB · Views: 84
•

  203.2 KB · Views: 71
•

  107 KB · Views: 61
•
  IMG_20250523_082944286 (5).jpg

  137.3 KB · Views: 71

Last edited: May 23, 2025

L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,784

• May 23, 2025

• #7

The first picture looks correct so are you sure it's not an early Dominator shaft?

The current shafts have two holes so they will fit the early and late case and spring.
https://andover-norton.co.uk/en/shop-details-2/16720/kickstart-shaft-bush-04-0477-



Mofosheee

VIP MEMBER

Joined

Aug 4, 2020

Messages

205

• May 23, 2025

• #8

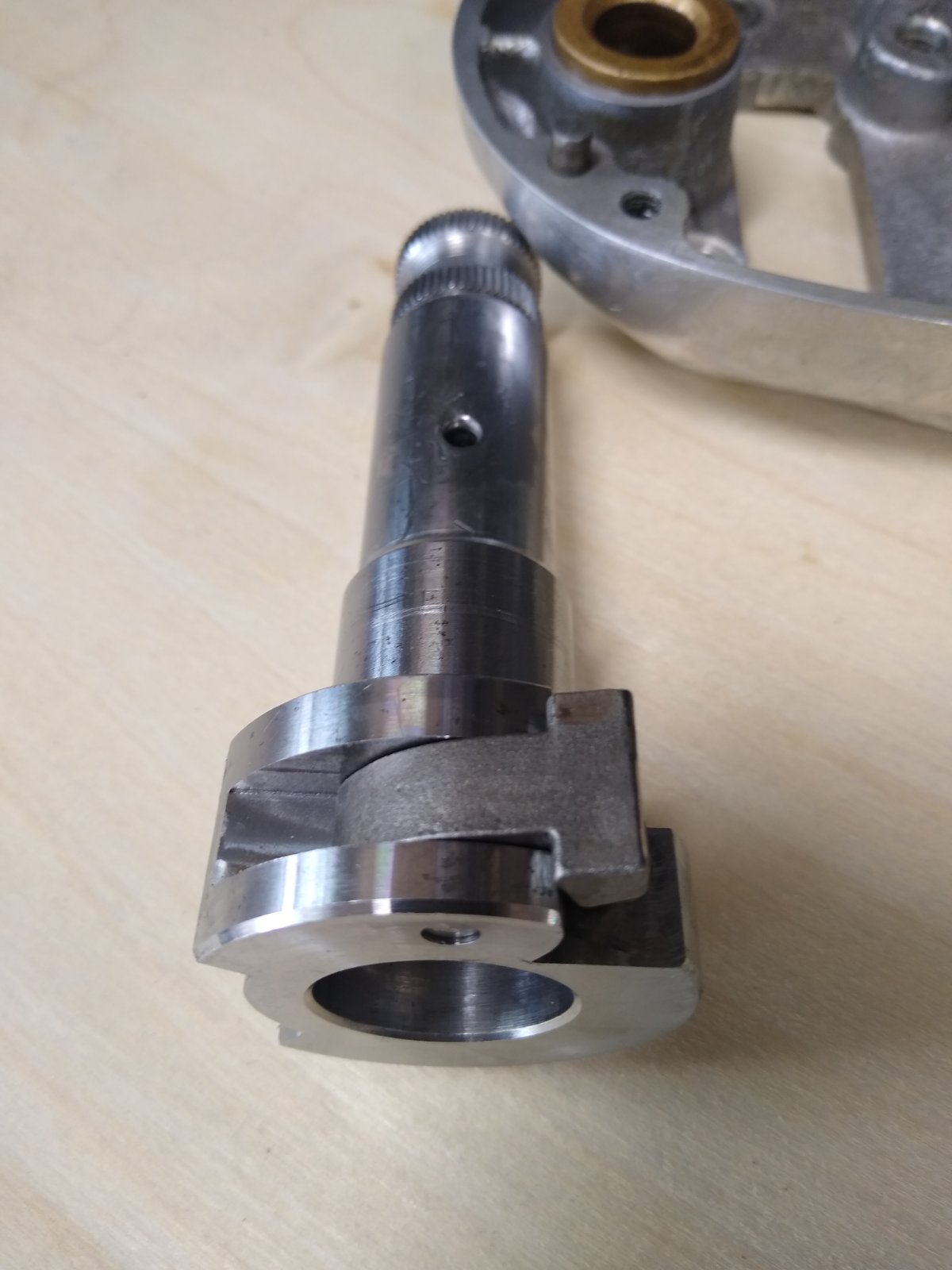

Positive it's not a Dominator shaft. Yes, mine has two holes.
The one closest to the splines is threaded and I didn't think it for a spring.
All good now.
Thank you again, LAB
