JPN Colour Scheme

Discussion in 'Norton Commando Motorcycles (Classic)' started by Leonc, Mar 12, 2020.

  1. Leonc

    Leonc

    Joined:
    Feb 10, 2018
    I will be re-painting my Mk3 roadster shortly and will be looking for modern colour codes to use, taking it from black and silver to John Player colours.
    Has anyone been through this exercise recently and can quote modern codes that I can use at the paint shop, and that they were happy with the final results?
    If I need to I can make an educated guess, but any experiences or input would be appreciated. Thanks.

  2. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
  3. kommando

    kommando

    Joined:
    May 7, 2005
    I got in my files

    Ford Diamond White
    Red was BMW Zanzibar (Zinnoberrot ?)
    Vauxhall Atlantic blue

    Leonc likes this.
  4. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Go Leonc, that colour scheme is SO cool on a Roadster...

    Leonc likes this.
  5. dynodave

    dynodave

    Joined:
    May 28, 2003

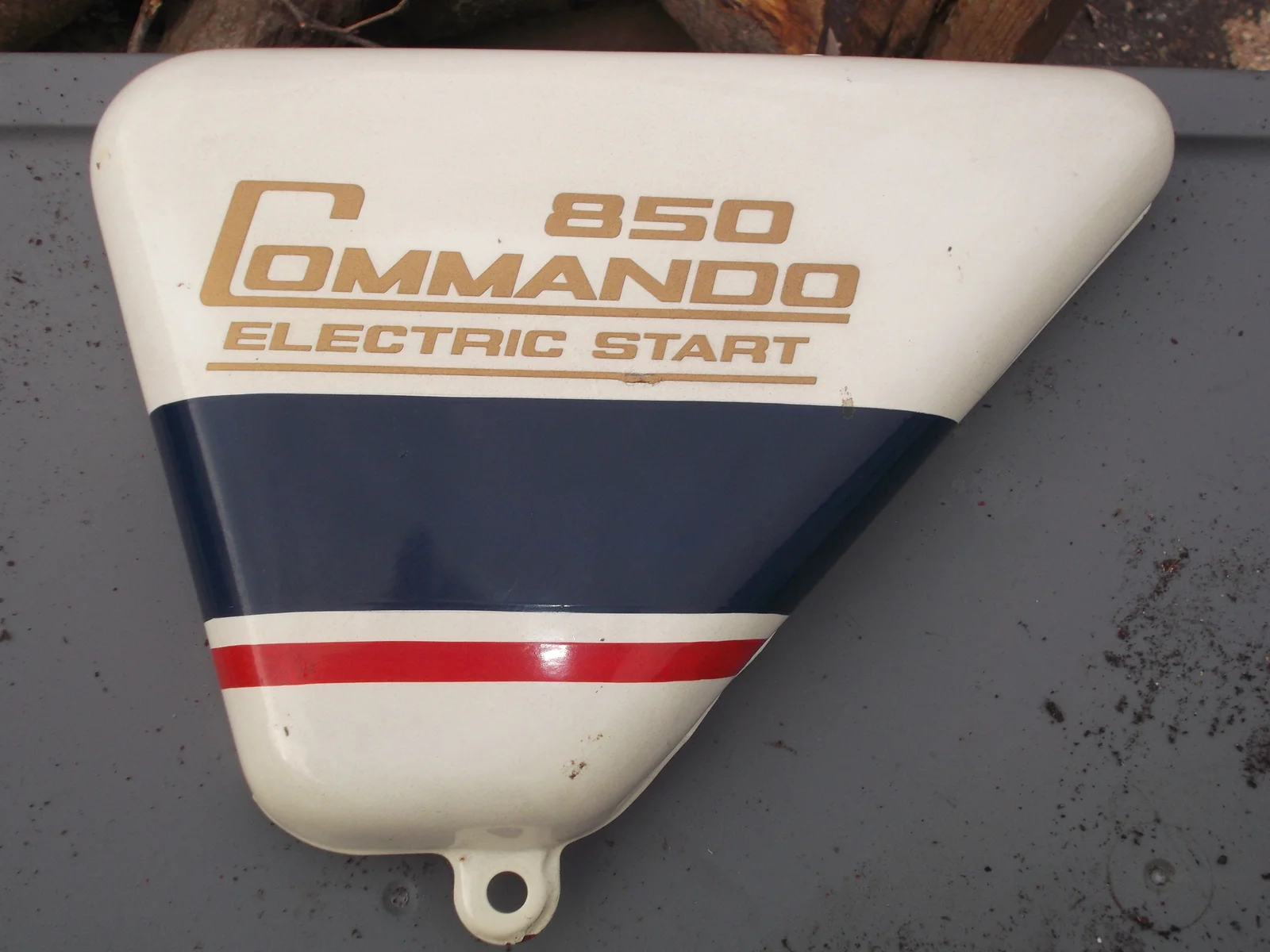

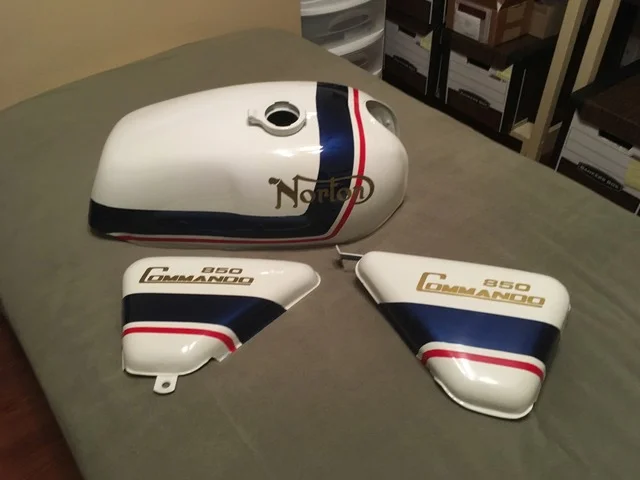

    Yes I did this exercise long time ago (thanks MichealB) but don't have color codes here in the USA. Very happy with results however my decals are for 750 Commando

    06-3504-163 oil tank cover
    called "white"
    but really white/blue/red + 06-6388 gold

    [​IMG]

    nortriubuell and Leonc like this.
  6. YING

    YING VIP MEMBER

    Joined:
    Aug 12, 2011
    Leone
    I have the Napa Auto Parts numbers if you are still looking
    Mike Yingling

    Leonc and dynodave like this.
  7. nortriubuell

    nortriubuell VIP MEMBER

    Joined:
    Aug 29, 2010
    IMO, I wouldn't bother with all the "legwork" you may expend. Just call Brent (forum member here) ... and have him do it. Then you KNOW you will NOT be disappointed. Period. Save yourself some possible grief.

    https://vintage-vendor.com/

    Leonc, lazyeye6 and Fast Eddie like this.
  8. dynodave

    dynodave

    Joined:
    May 28, 2003
    Any chance of posting them here?

    Leonc likes this.
  9. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    The trouble with this paint scheme is that you see so many with droopy lines.

    I would have thought the best way to get the best job would entail leaving the bike with the painter so he can mask for the lines with the tank and side panels in situ.

    I’ve never done it, jus’ think in’ outloud.

    nortriubuell and Leonc like this.
  10. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013

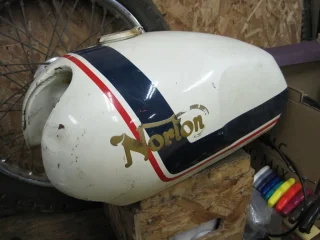

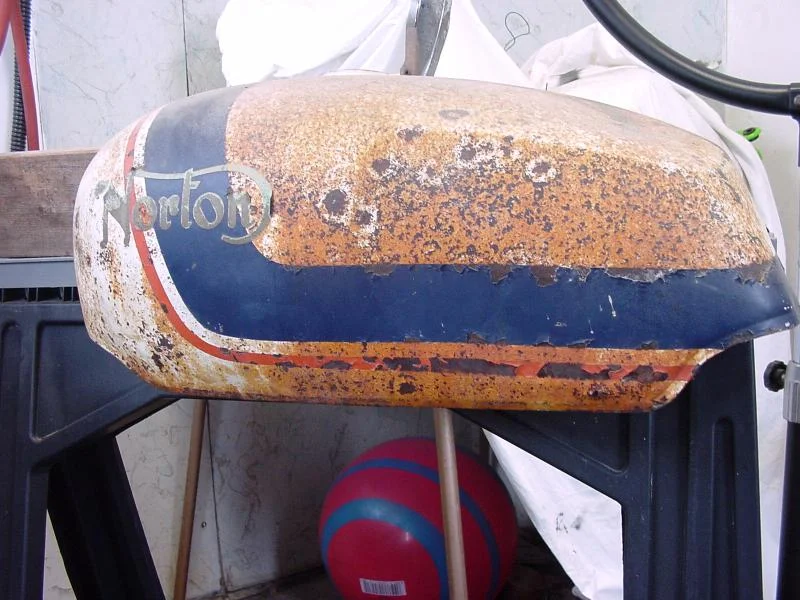

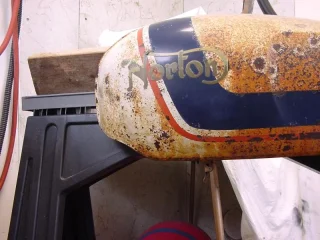

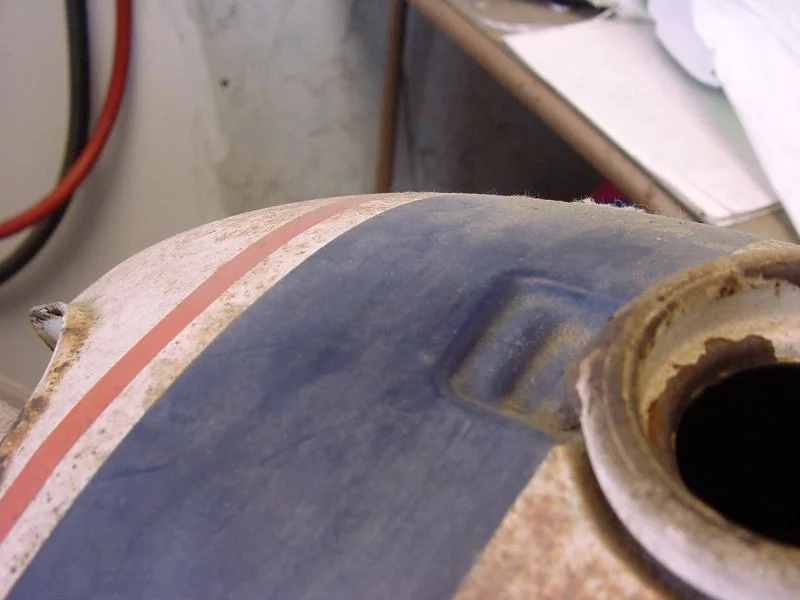

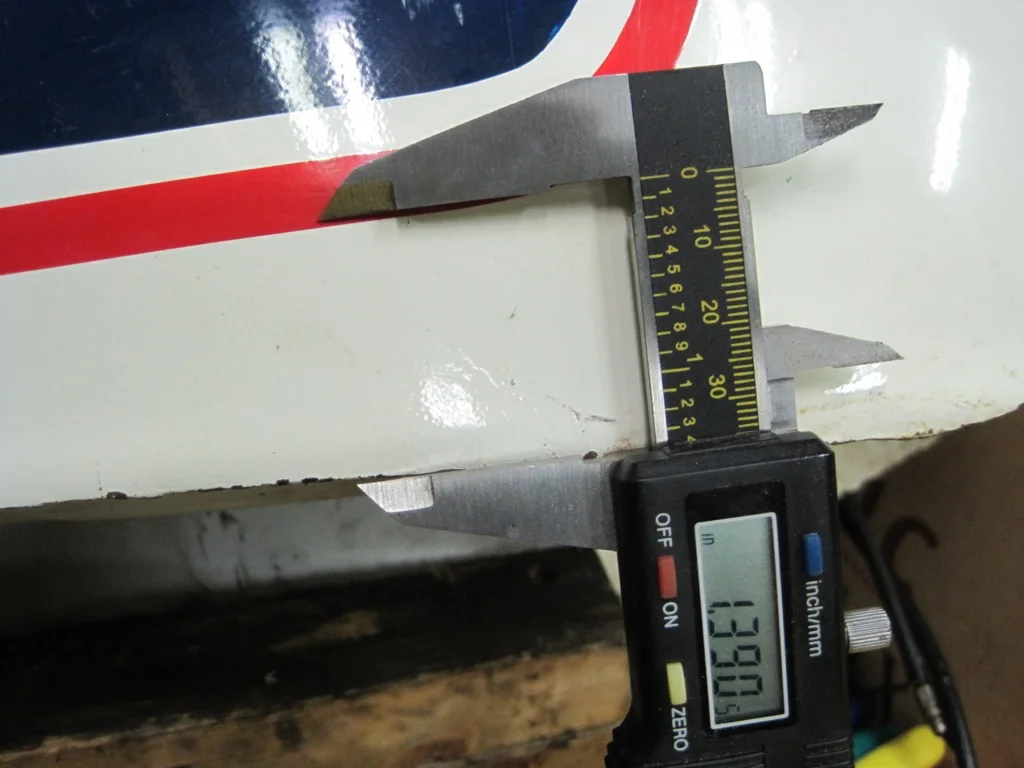

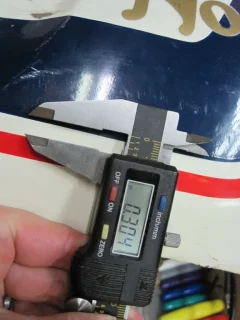

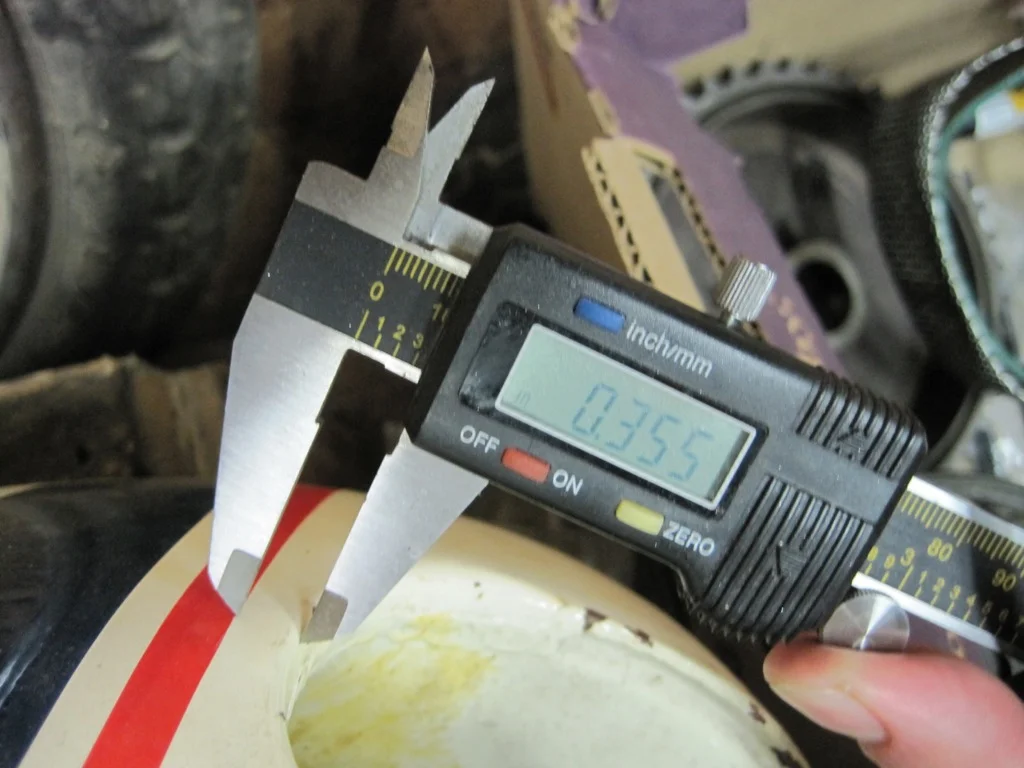

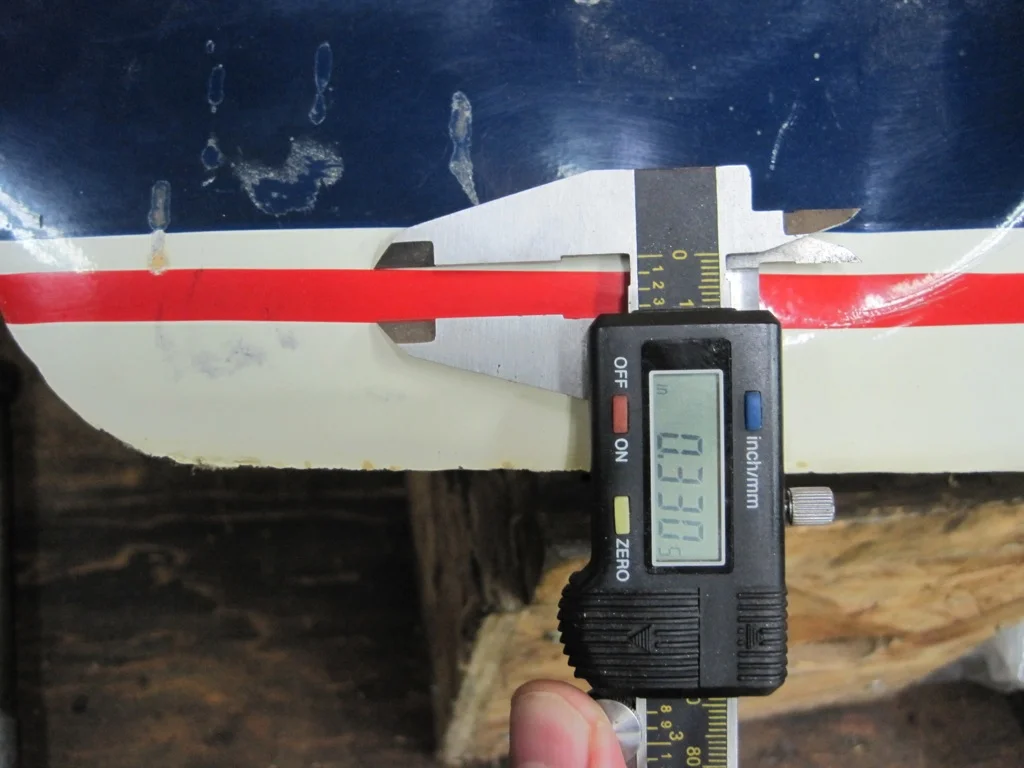

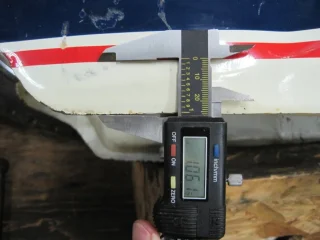

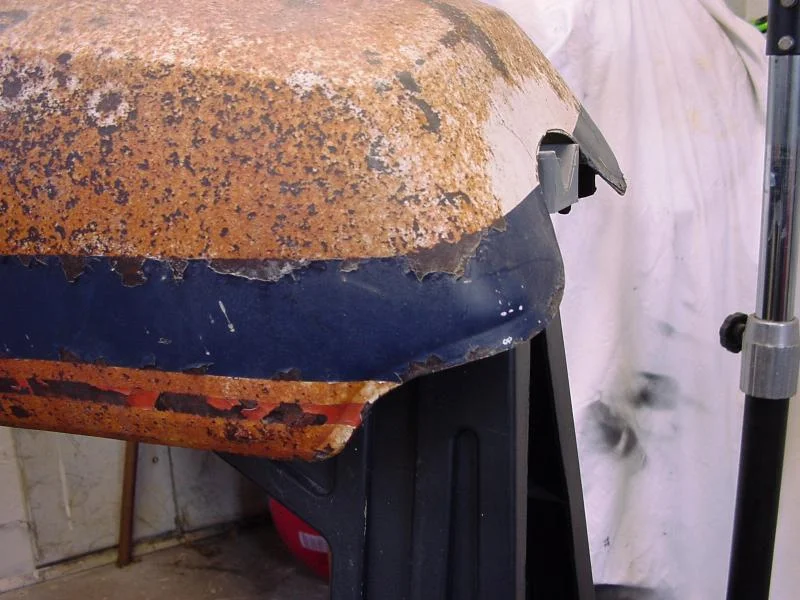

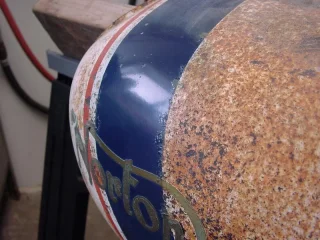

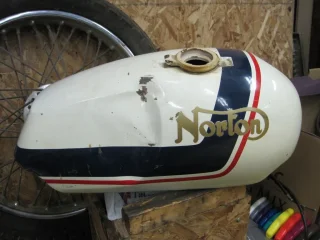

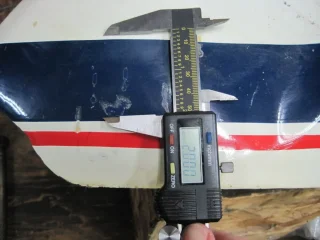

    I collected some good pics of original tins for this paint job a while back, might help some...


    47CA419B-18FE-4606-9631-C8BEC228DF4C.jpeg 25E9F47C-50F6-4D25-BF26-989663D34BBC.jpeg 4C81F055-C534-40E4-B16F-E87A2CB83D1E.jpeg 61F79FFA-0CB1-4A23-ACA8-2FE29ECA1B89.jpeg 7DC56D6A-2F59-4B59-980A-A60FB90AC5D5.jpeg 875A59B6-9D1C-4FFE-BF5E-96689D24E640.jpeg 9EF0780D-1725-4968-95E2-13F36FD5FAC0.jpeg 037D89DD-90C4-48B2-A338-BC7AC17CD660.jpeg F4A2C94C-0CA2-40E0-9383-BBE61DBC9510.jpeg

    3F5E7D70-6245-4E97-B020-E4DF15002FFE.jpeg 1E766089-B96A-4570-ABDD-C7E9E7D19D2A.jpeg FBAD0361-FDF4-4E7C-9554-5DAC32E01CE0.jpeg F5AF13CF-BA35-4D24-9286-904C9DEF6A75.jpeg 73BBFA5C-A632-4AF8-8888-73E574FB81A7.jpeg

  11. joe czech

    joe czech

    Joined:
    Feb 21, 2019

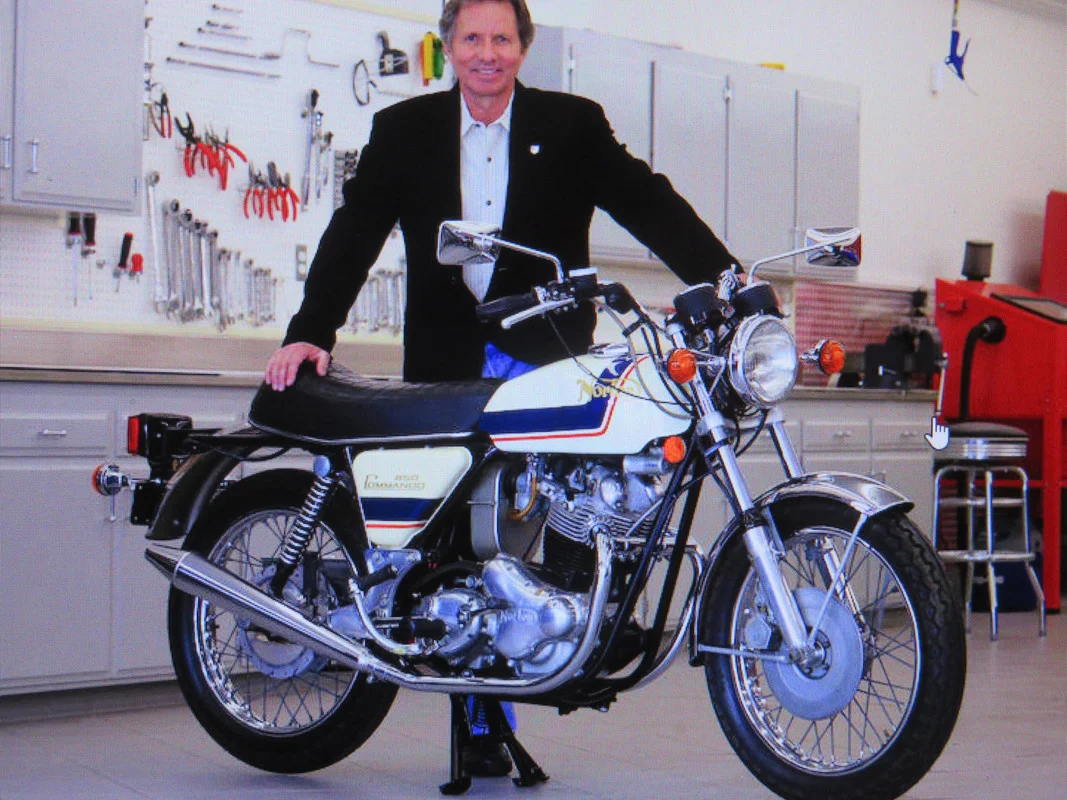

    not sure what you mean by droopy lines, but here's a pic of what is supposed to be a "crate" find commando. note the lines on the tank. they are not parallel to the bottom edge of the tank, but appear to follow the chrome trim on the seat, and the side cover appears to run parallel to the ground. BTW, the guy that laid out the side cover must have had one pint too many - :D. I have seen photos of other originals, and they all follow that same layout. many repaints I've seen show the paint stripe parallel the the bottom edge of the tank.

    [​IMG]

    [​IMG]

    nortriubuell and Leonc like this.
  12. dynodave

    dynodave

    Joined:
    May 28, 2003
    In my 40+ years with MG, Lotus and nortons I have always painted my own. Except 2 most recently, a club friend body shop professional did two tanks and one pair of side covers for free. Otherwise a few hundred $ for paint supplies and chemicals. So at least the side cover commando decals are not "going up hill" LOL like many high buck $$$professional$$$ (not norton savy) painters do.

    nortriubuell and Leonc like this.
  13. Moto55UK

    Moto55UK

    Joined:
    Apr 23, 2010
    in the joe czech picture is that Eddy lawson?

  14. kommando

    kommando

    Joined:
    May 7, 2005
    Yes

  15. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Joe: “ note the lines on the tank. they are not parallel to the bottom edge of the tank”

    That’s basically what I mean Joe. If lines are painted to align with the tank they look wrong when you stand back and look at the bike. Ditto the side panels, they need to align with the top of the Z plate to look right.

    Obviously the factory would have had stencils etc to ensure things were done right in the paint shop. But how do you know if your painter / restorer has this same info 45 years later? It’d be a bummer to find out the he hasn’t on the day you bolted on your shiny tins!

    If you painter can assure you that he knows his shit then fine, but if in doubt, I reckon the best approach would be to let him paint the base coat etc. Take the bike to him, mount the tinware, and let him mark it up, mask it, etc. Then remove the tins for finishing off.

    That’s where I was going with mine. But then I decided to leave blue instead !

    nortriubuell and Leonc like this.
  16. EstuaryBoy

    EstuaryBoy

    Joined:
    Mar 7, 2020
    Would a: 'Crate find' have run peashooters with a balance pipe? Just asking...

  17. MichaelB

    MichaelB VIP MEMBER

    Joined:
    Jan 14, 2004
    Yes.. that's a Mark 2.
    The 2A would have Bean cans..


    What's interestesting to me is the lack of grab bar.

  18. htown16

    htown16

    Joined:
    Apr 29, 2009

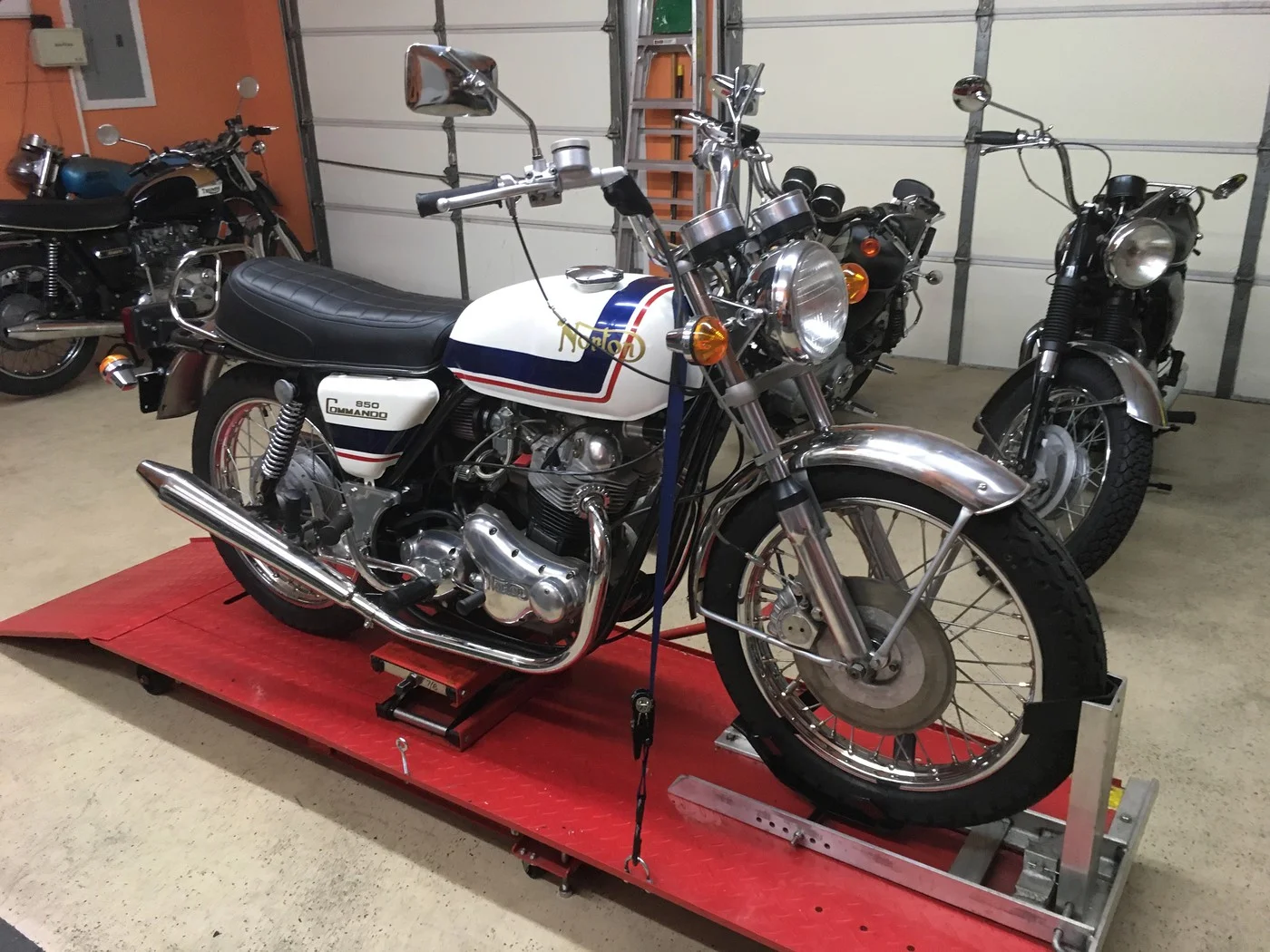

    My rattle can paint job. Paint was Duplicolor from Autozone. Topped with SprayMax 2k clear. If you're interested I will check for the codes as I still have a can of each. As noted tank lines are not parallel with tank bottom but are parallel with ground and match base of seat. The side covers were installed and then the lines marked with a level with bike sitting on wheels. Always do that to install sidecover decals.
    [​IMG]Hosted on Fotki
    [​IMG]Hosted on Fotki

  19. joe czech

    joe czech

    Joined:
    Feb 21, 2019

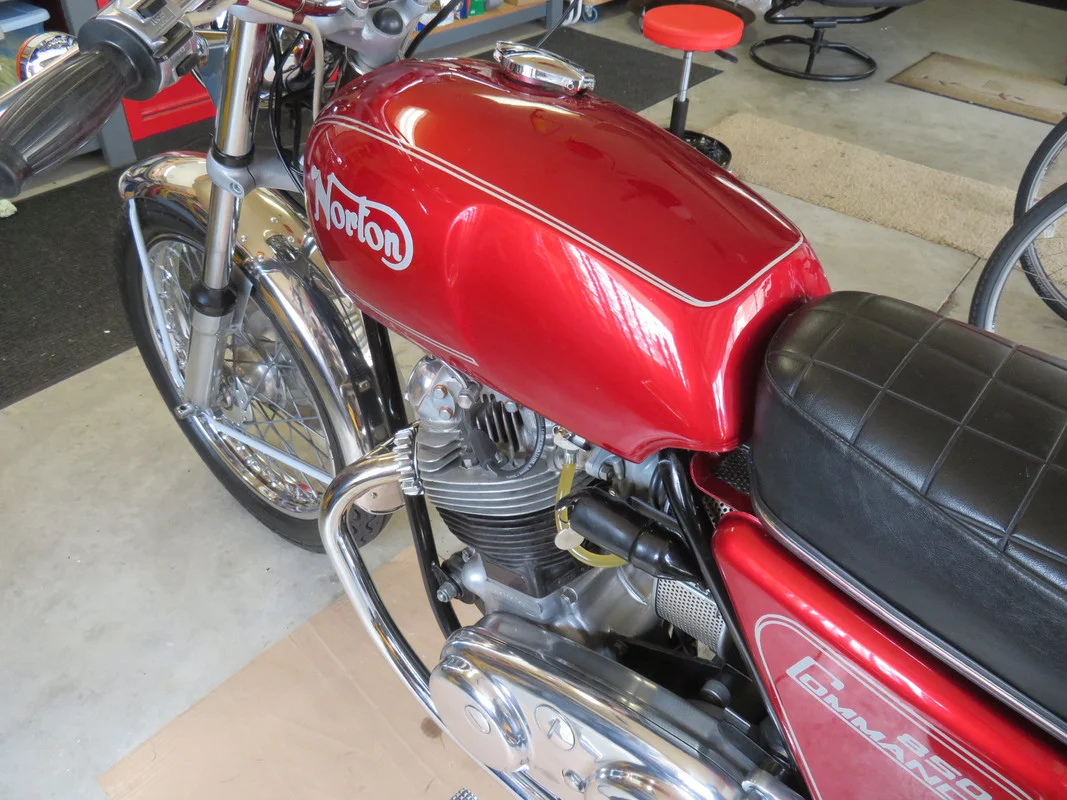

    same here - I was thinking about a JPN colors repaint on mine, but my original paint, although showing it's age, still looks fairly decent for 45 year old lacquer. didn't have the heart to take paint stripper to it. so, CAR it stays... ;)

    [​IMG]

    nortriubuell and Leonc like this.
  20. MichaelB

    MichaelB VIP MEMBER

    Joined:
    Jan 14, 2004
    That looks great! Be almost criminal to strip it.
    Original paint jobs are becoming less and less.

    jimbo and Leonc like this.
