Isolastic PTFE washer wear

Joined
Dec 22, 2006
Messages
5,067
Country flag
I removed the front isolastic mount from the MK3 to have a look at how it is made.
This is most likely the original iso. The original owner supplied all repair/parts bills with the bike and there are no iso parts shown.
Total mileage from new is 27,000.
The washer from the adjuster side measures 40 thou in the wear area and about 72 thou in the unworn area. So they do wear quite a bit!
I've been a bad owner and never adjusted the isos, other than the head steady after removing the head early on.
There was about fifty thou of play in between the washer and end plate, roughly ten times spec. Funny thing is, the handling was fine. The bike is also very smooth, that's my excuse for leaving the isos alone.
The head steady spring tension was enough to hold the engine weight completely. After removing nuts, the mounting bolts slid out with fingers pulling lightly, no pressure down or up on them. That head steady spring tension is something I have played with quite a bit. Too much or too little tension really brings on vibes. It seems the neutral spot is also the Goldilocks place for vibes.
I guess that has also helped to keep the iso rubber central.

Glen



acadian

VIP MEMBER
Joined
Mar 5, 2010
Messages
1,074
Country flag
What is the distance from the pin to the bracket in your goldilocks spring set up?

Joined
Dec 22, 2006
Messages
5,067
Country flag
Sorry I don't know, haven't got the tank off right now.
I know it was a fair bit off the number in the big white shop manual.
Its probably a little different for every bike.
One could start by adjusting tension until the centre bolt in the iso is free to slide in and out, or either of the iso/ engine bolts are same.



Glen

Joined
Dec 28, 2009
Messages
3,634
Country flag

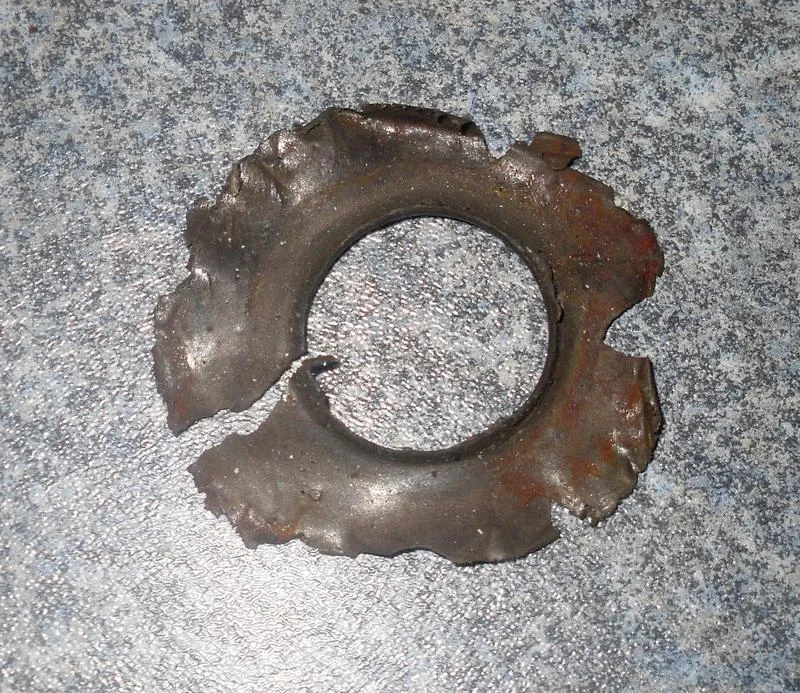

You are lucky to have pulled the washers out with that uneven wear in one piece. I've bought bikes where they come out in pieces from zero lubrication over the years.

Joined
Dec 22, 2006
Messages
5,067
Country flag
The wear is very even, no more than +- 2 thou difference measuring various places in the contact portion of the washer.

Glen


illf8ed

VIP MEMBER
Joined
Dec 30, 2003
Messages
2,798
Country flag
You are lucky to have pulled the washers out with that uneven wear in one piece. I've bought bikes where they come out in pieces from zero lubrication over the years.
What lubrication is necessary of the PTFE washers?

Joined
May 7, 2005
Messages
4,198
Country flag
PTFE bushes can be run dry, but if you grease the Bush then the expected life doubled and friction is reduced. But these Isolastics collect dirt which would contaminate any grease so best run dry. I have some Graphite impregnated bronze washers to try as an alternative.

Last edited:
Joined
Dec 28, 2009
Messages
3,634
Country flag
What lubrication is necessary of the PTFE washers?
Peel back the rubber covers then spay the washers with silicone lubricant from a spray can . Washes out dirt at the same time. The rubber covers are needed on the front to help keep out the dirt but the rear iso covers are optional IMO as little dirt gets in there .


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,180
Country flag
I would have thought that ‘dry film’ PTFE lubricant would be best. It’s a highly penetrative and cleansing aerosol spray, and when the propellant and solvents evaporate, only a dry PTFE lubricant remains, which will not attract dirt and grit.

It’s what I use, but I don’t do enough miles to claim to be a good test case !


L.A.B.

VIP MEMBER
Joined
Nov 20, 2004
Messages
15,588
Country flag
Total mileage from new is 27,000.
The washer from the adjuster side measures 40 thou in the wear area and about 72 thou in the unworn area. So they do wear quite a bit!
I wonder how many miles this one has done! :)

Joined
Aug 28, 2012
Messages
118
Country flag
For the folks that have turned their own. If you some pex or Delrin but no ptfe which would you use?

Joined
Dec 22, 2006
Messages
5,067
Country flag

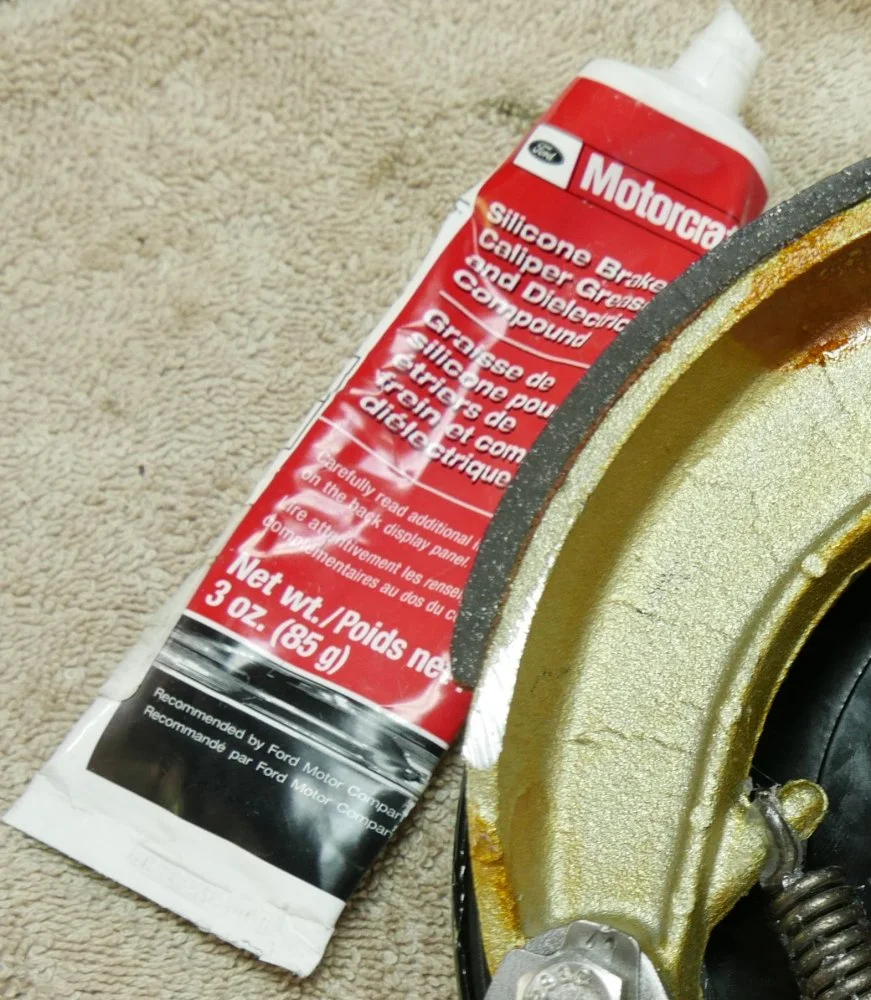

The manual suggest using a silicone grease to coat all of the wear surfaces.
Venhills advises to not to lubricrate their PTFE lined cables with anything as PTFE does not require lubrication and all types of lubrication tend to add potential for grit.

The boot kept things very clean so maybe this is an OK result, just tighten things up once in awhile. A new PTFE washer every 50,000 miles or so isn't a problem. I will slide some new ones in here at 27,000 but they aren't really needed yet.
The iso itself looks good, not going to change it. Others have done so and ended up with increased vibration.
All in all it looks like a well designed piece of engineering that does exactly what was intended.
In reference to the " What to build thread" where it was decided to use parts for models pre 74 only, I think that is missing some real opportunities for easy improvement.
One look at a sagged out pre MK 3 front iso vs this serviceable and still centered original tells you that the adjustable spring added to the MK3 head steady was a pretty clever idea.
The vernier adjustment and the single tube with rubbers bonded on is also the way to go.
I'm fabricating one of these in alloy and had another plan for the innards, but realize this is reinventing the wheel. So it will get an alloy housing but standard MK3 guts.

Glen

Last edited:

Lineslinger

VIP MEMBER
Joined
Feb 26, 2017
Messages
532
Country flag
For the boots, rubber fittings and all metals....



From my organic chemist friend Chloe...

" Forgive my seeming ignorance here but I have read, over the years, that PTFE is essentially inert regards it's interaction with aliphatic hydrocarbons such as what one encounters with "grease. Under the conditons for this use involving light pressure and minimal torque, softening is probably not an issue or at least no more than a surface effect."
I should think that it would be more prone to damage by abrasion, such as would be encountered if pushed up against a rough surface area. Then grease would likely act to protect the PTFE component."

Joined
Dec 22, 2006
Messages
5,067
Country flag
Venhills advises against lubing their PTFE lined cables but said they realized some owners will lube anyway, not content to leave things dry. For lubing to make owner feel good but cause minimal damage to product, they recommended a spray lube that evaporates leaving a dry film.

Glen


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,180
Country flag
I think it was someone on this site that put me on to this stuff initially, I use it more and more now...


illf8ed

VIP MEMBER
Joined
Dec 30, 2003
Messages
2,798
Country flag
Peel back the rubber covers then spay the washers with silicone lubricant from a spray can . Washes out dirt at the same time. The rubber covers are needed on the front to help keep out the dirt but the rear iso covers are optional IMO as little dirt gets in there .
PTFE is polytetrafloroelthylene and is naturally slippery. No lubricant needed for these. Is the lube for the steel shims to prevent rust?


illf8ed

VIP MEMBER
Joined
Dec 30, 2003
Messages
2,798
Country flag
I wonder how many miles this one has done! :)
?? I put new PTFE washers in my ‘72 during the rebuild 1998. They have more than 35,000 miles and look fine and no lubing. Anyone have worn out washers with known conditions?

Joined
Dec 28, 2009
Messages
3,634
Country flag
W
PTFE is polytetrafloroelthylene and is naturally slippery. No lubricant needed for these. Is the lube for the steel shims to prevent rust?
Well I use a silicone spray but you could also use a PTFE spray. It's just easier than getting die-electric or silicone based grease into both sides of the washers (4 involved , front and back ) . I figure any lube in there is better than running them dry , but yes the PTFE washers can be run dry. Ask your expensive fry pan what it prefers ? . Got rid of shims a long time back for the vernier set ups.


illf8ed

VIP MEMBER
Joined
Dec 30, 2003
Messages
2,798
Country flag
W

Well I use a silicone spray but you could also use a PTFE spray. It's just easier than getting die-electric or silicone based grease into both sides of the washers (4 involved , front and back ) . I figure any lube in there is better than running them dry , but yes the PTFE washers can be run dry. Ask your expensive fry pan what it prefers ? . Got rid of shims a long time back for the vernier set ups.
Speaking of vernier, how often do you find you have to re-adjust the isolastic clearance? Are you checking and setting to .010" both sides total?
