Ignition switch

Hello, Could someone please post a picture or a simple wiring diagram of the correct wiring to the ignition switch fitted to my Commando mk2a 1975. The switch has 4 wires attached to the spade connectors. Blue/ Brown
Green/ Brown
White
Green / Yellow
Thanks Neil.

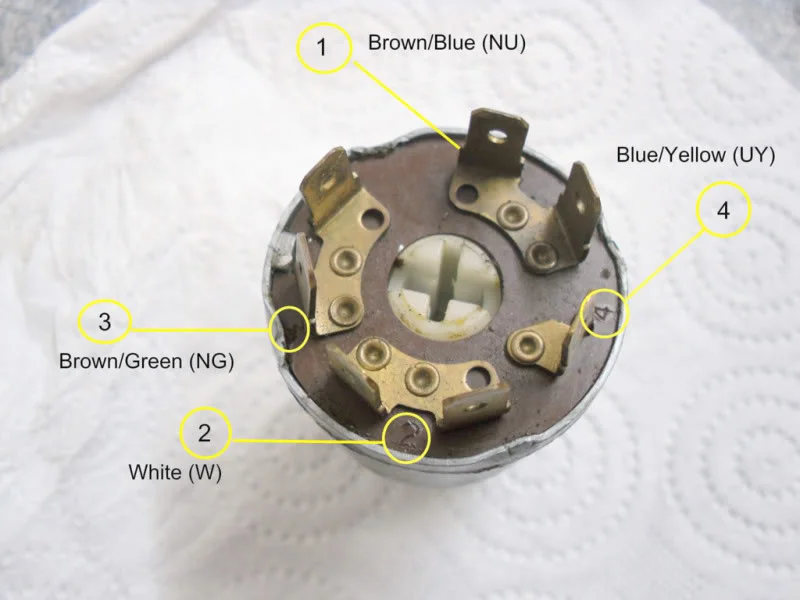

Here’s a wiring diagram


The numbers on the ‘master switch’ should tally with numbers etched into the bottom of your switch.

Nortoncommandoneil said:

Green / Yellow

Click to expand...

Should be blue/yellow (terminal 4).
