Ignition/Kill Switch Assembly

Discussion in 'Norton Commando Motorcycles (Classic)' started by 47Driver, Nov 12, 2018.

  1. 47Driver

    47Driver

    Joined:
    Aug 10, 2018
    First post and very much a rookie.

    My '75 Commando 850 is pretty much all original. Driving home the other day, I noticed excessive play in the throttle. Upon inspection...the Lucas starter/kill switch assembly where the throttle cable enters housing has corroded and the aluminum casting is falling apart. I have been searching for days, but I cannot find a replacement casting/housing.

    Can anyone point me in the right direction?

  2. Torontonian

    Torontonian

    Joined:
    Dec 28, 2009
    Well if Andover Norton does not have it then I don't know.

  3. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    Sparx makes a replacement. Any JRC reseller will have them available.

  4. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013

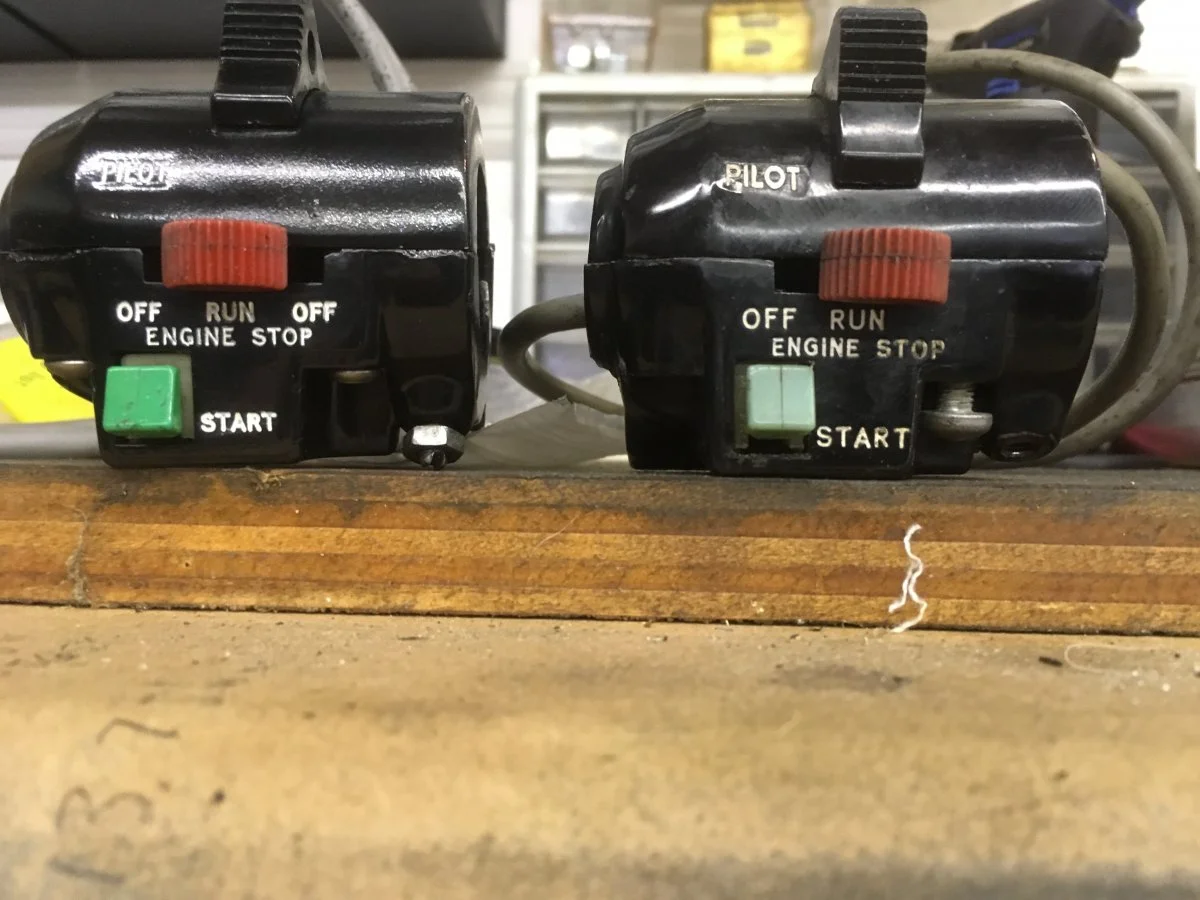

    Just watch out. Triumph uses the same switch. The kill lever is a little different.
    Norton is OFF-RUN-OFF
    Triumph is OFF-RUN

    And they have the same part number.

    PM sent.
    Pete
    1A894A6B-1FC0-4F45-A776-021CE54DB8AD.jpeg D75414EB-E905-42FD-82EC-48728F4C90D2.jpeg

    Last edited: Nov 13, 2018
  5. 47Driver

    47Driver

    Joined:
    Aug 10, 2018

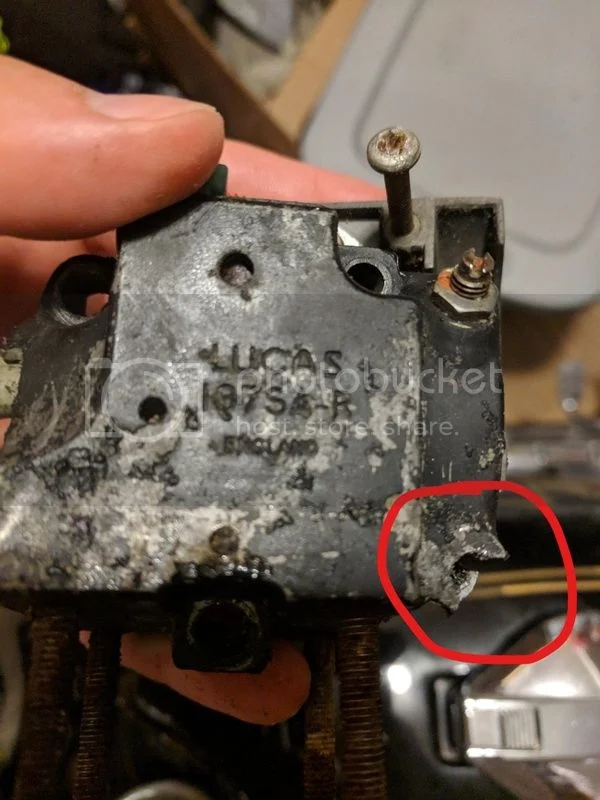

    Here is my case. Notice the area where it is broken. It is just enough that the throttle cable isn't sitting right and is drawn into the case with a twist of the wrist.

    [​IMG]

  6. 47Driver

    47Driver

    Joined:
    Aug 10, 2018
    Deets...your stuff is so clean! I feel like a turd with my old janky looking stuff.

  7. PeterJoe

    PeterJoe

    Joined:
    Dec 8, 2011
  8. 47Driver

    47Driver

    Joined:
    Aug 10, 2018
    Peter...you are life saver! Thank you!

  9. Saber13

    Saber13 VIP MEMBER

    Joined:
    Dec 22, 2010
    Damn, just when I thought I had run out of things to spend on. The Kill switch internals were corroded to the point of un useable.

    Thanks Peter

  10. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013

    Thanks,
    Stock Norton switch gear was a repaint job. Something to do when it’s snowing out.
    Pete
