Identifying intake manifolds (2013)
- Thread starter maylar
- Start date
- Status
- Joined
- Dec 3, 2009
- Messages
- 205

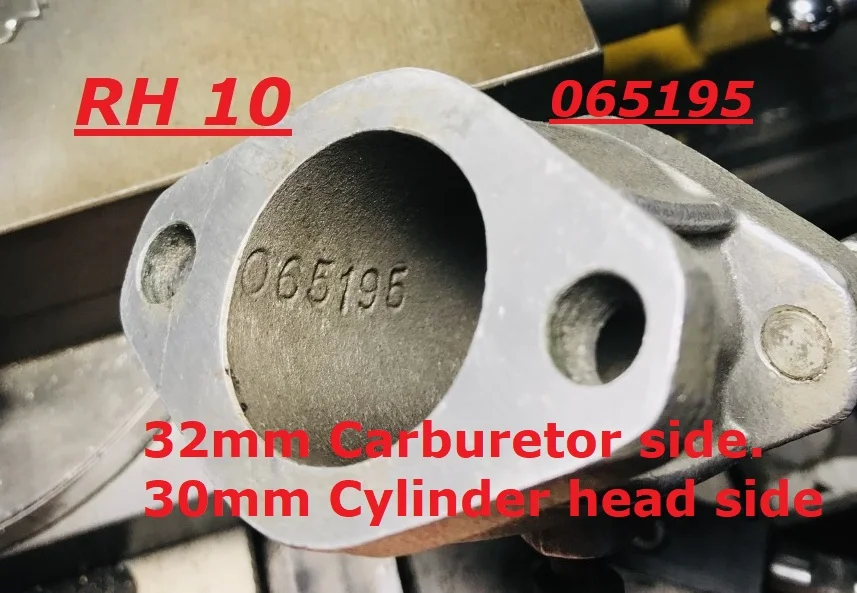

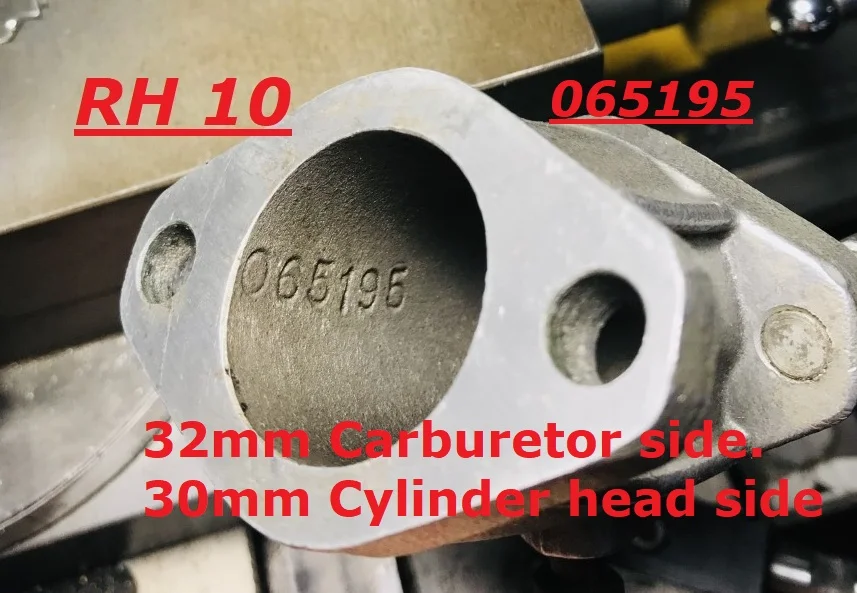

065195 on the inside
Dave
The tapered 32mm x 30mm manifolds sometimes have 06-5196 crudely lettered inside--best to check the internal diameters at each end with calipers or a micrometer. The ones I've looked at are very close to the nominal values
Tim Kraakevik
kraakevik@voyager.net
The tapered 32mm x 30mm manifolds sometimes have 06-5196 crudely lettered inside--best to check the internal diameters at each end with calipers or a micrometer. The ones I've looked at are very close to the nominal values
Tim Kraakevik
kraakevik@voyager.net
- Joined
- Aug 29, 2010
- Messages
- 4
I bought a pair of carb manifolds for my new-to-me MKIII motor a while back on ebay. Recently I measured the inlet & exhaust ends, and the hole near the cross-over tube is 32mm and the opposite is 30mm. Inside the manifolds the number 065195 is stamped (yes, 065195). Both ends should be 32mm (the p/n for 32mm manifolds is 062711, and I have also seen 30mm manifolds, p/n 060509). Obviously these won’t work on my engine, and getting proper ones shouldn’t be a problem. These look like Norton manifolds, but I cannot find the 065195 number. Anyone know what these are? Thanks in advance.
- Joined
- Dec 28, 2009
- Messages
- 5,496
So how did they stamp inside such an awkward area ?
They employed little helpers from Santa Claus when they were not busy durning the Christmas rush.
Last edited:
- Joined
- Dec 28, 2009
- Messages
- 5,496
Oh , Elves.
- Joined
- Nov 20, 2004
- Messages
- 20,778
If examined closely then it can be seen that the number isn't a stamp but what I think is an imprint left by the casting core (which in turn would have got the number stamp from the core mould).

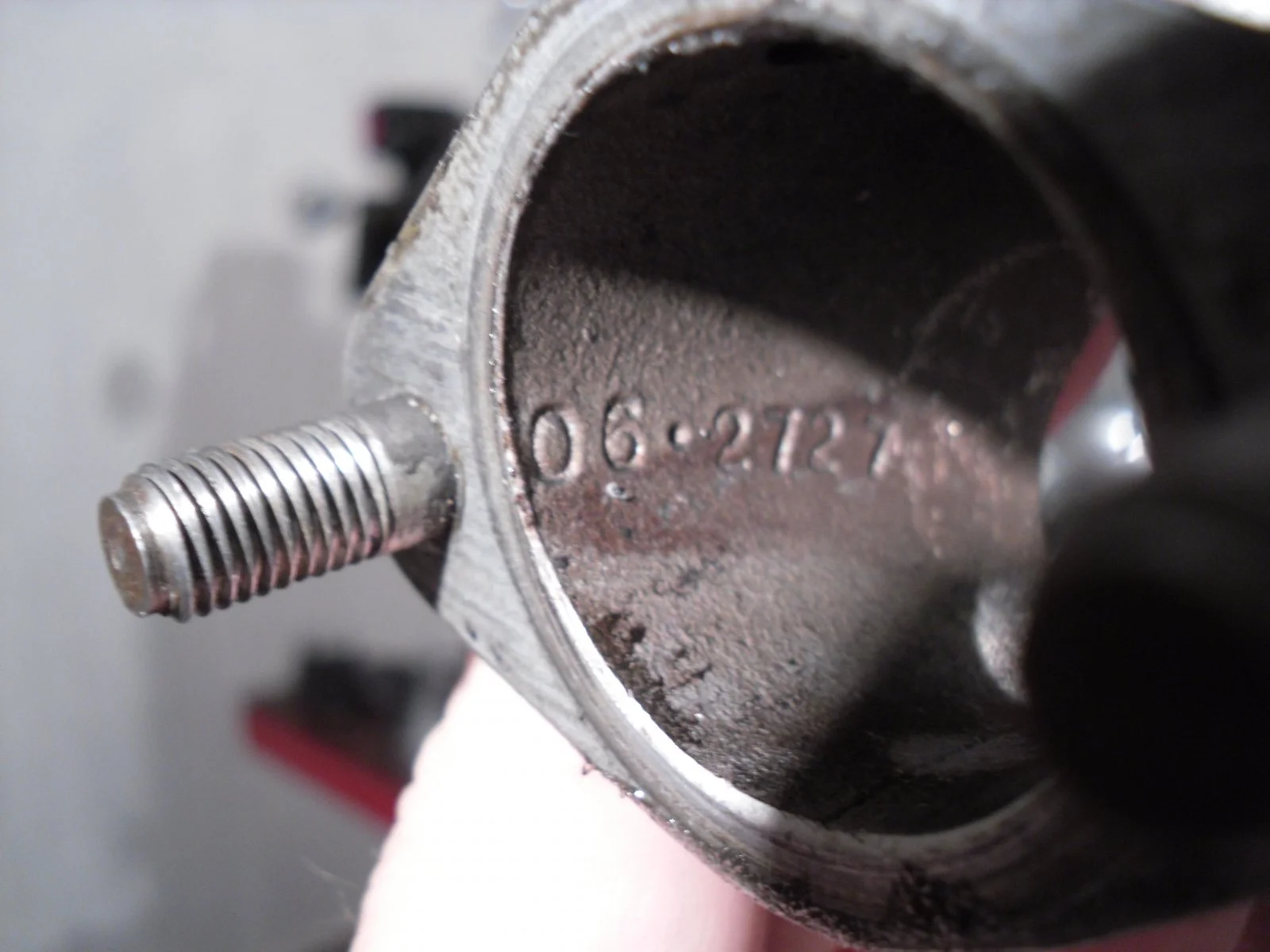

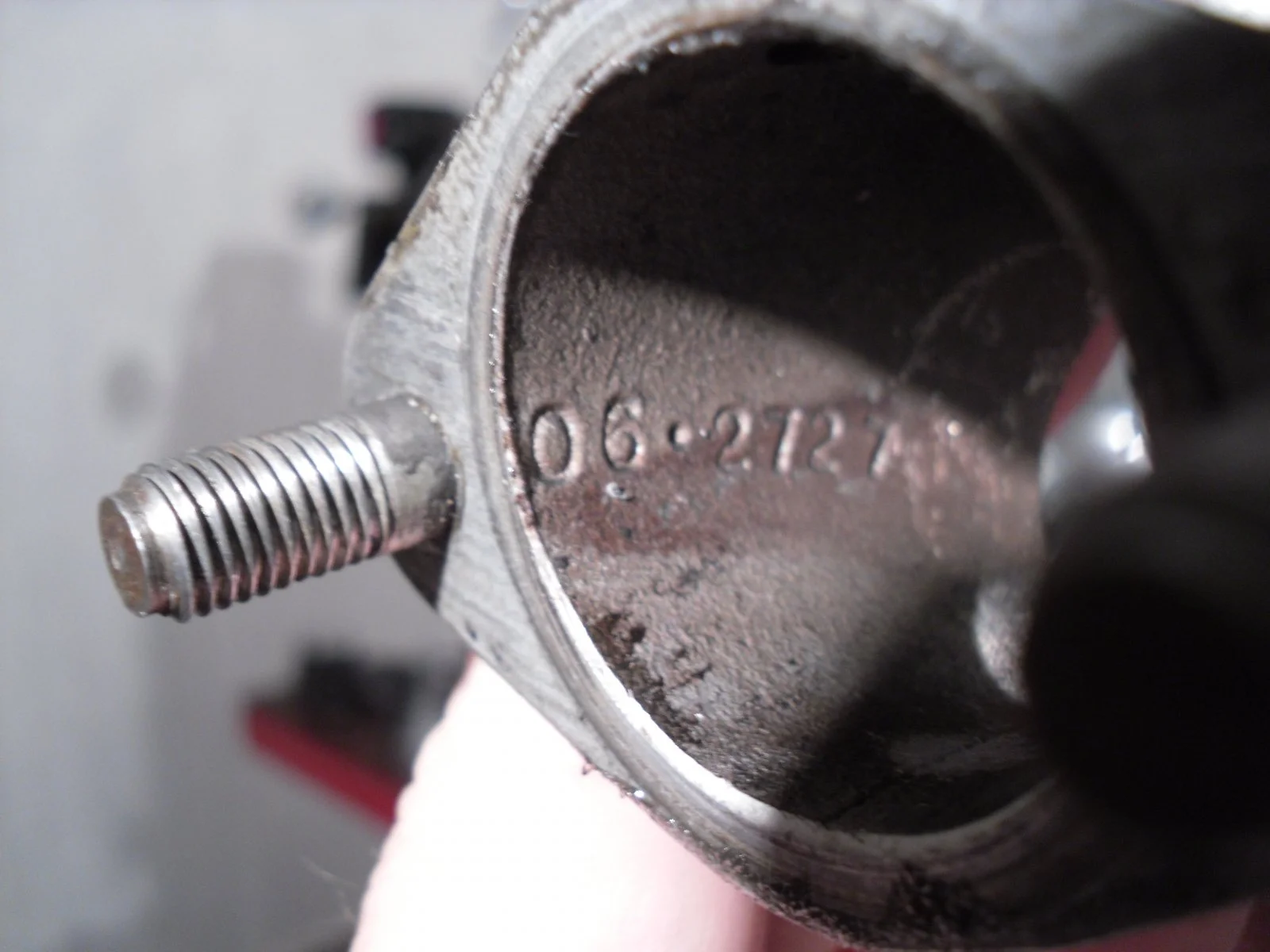

My 850 Mk3's 32-32mm manifolds have the number 06.2727.
- Joined
- Dec 28, 2009
- Messages
- 5,496
O.K. , So It's not stamped by Santa's elves , but actually part of the casting process. Thanks , ( just was curious ). I'll look at mine next time the carbs are off.
- Joined
- Jan 14, 2004
- Messages
- 2,524
Never noticed the stampings before.
I have two sets of the 2727's. One set is stamped like above, the other has larger stampings that run the whole length of the manifold.
Different supplier? Different casting? Intetersting none the less?
I have two sets of the 2727's. One set is stamped like above, the other has larger stampings that run the whole length of the manifold.
Different supplier? Different casting? Intetersting none the less?
- Joined
- Dec 28, 2009
- Messages
- 5,496
Thought about that. Extra turbulence factor. Elves factor.
