Heinz Kegler Clamps

Skelly · Jan 19, 2014

does anyone know where I can by a set of these?

rvich · Jan 19, 2014

Forum member Windy. Contact him with a PM or at his web site:

http://www.switchbackcreek.com/toc.htm

concours · Jan 20, 2014

rvich said:
Forum member Windy. Contact him with a PM or at his web site:

http://www.switchbackcreek.com/toc.htm

User name "bill" here.

norton73 · Jan 21, 2014

Make your own; http://www.nortonclub.com/docs/swingarm.pdf

bill · Jan 21, 2014

pm sent.

Towner · Jan 23, 2014

Hi,

no big job. I bought this clamps from Amazon and let the threads drill at a machine shop.

http://www.amazon.com/dp/B0063KZI58/ref ... 1_ST1_dp_1

Ralf

Peter R · Jan 23, 2014

You can drill two holes in the swingarm, and weld on two 5/16 nuts, and insert the bolts, this is just as efficient at the Kegler clamps, at no costs.

concours · Jan 23, 2014

Peter R said:
You can drill two holes in the swingarm, and weld on two 5/16 nuts, and insert the bolts, this is just as efficient at the Kegler clamps, at no costs.

I considered this, but given the thin wall tubing, concluded the nuts would pull/pucker upward when tightened. :shock:
The clamp is a better fix, IMO

Towner · Jan 23, 2014

I experienced that a very small play at the pivot pin can disappear only by mounting the clamps without the fixing bolts. With the bolts additionally it is a secure fix.

Ralf

chasbmw · Jan 23, 2014

Towner said:
I experienced that a very small play at the pivot pin can disappear only by mounting the clamps without the fixing bolts. With the bolts additionally it is a secure fix.

Ralf

Looking at the web, it is easy enough to source the clamps in the UK, in stainless steel too if you want some bling.

Towner · Jan 24, 2014

chasbmw said:
Towner said:

I experienced that a very small play at the pivot pin can disappear only by mounting the clamps without the fixing bolts. With the bolts additionally it is a secure fix.

Ralf

Click to expand...

Looking at the web, it is easy enough to source the clamps in the UK, in stainless steel too if you want some bling.

Honestly said, it was not easy for me to get one, because inch hardware is hardly available in Germany. Ordering at amazon.com was easy, no trouble with customs checks, etc.. With express option it arrived within 4 days from the States !! But there seem to be nothing in the amazon stock at the moment, so it will last longer. If you need it faster I would call customer support - maybe they transfer some to amazon stock. Or ask them where to get one in your area.
http://www.ruland.com/customer_service.asp

Skelly · Mar 1, 2014

Hi folks,

I dounloaded the instructions that Norton 73 pointed me to and build my own. No problem finding the clamps. Went to local beariing supplier and he had them in stock.

Thanks all!

drp · Mar 1, 2014

I don't know where you are located but McMaster - Carr sells them as split collars

http://www.mcmaster.com/#split-shaft-collars/=qwtrzx

Dave

Fast Eddie · Mar 2, 2014

These boys have made it easy for anyone in Europe, they're good guys and easy and professional to deal with. Scroll half way down this page:

http://www.hollandnortonworks.eu/?lang=EN&page=10

My own bike was down so far that I decided to do this 'properly' and Mr Norman White is doing his cotter pin mod on my cradle.
Actually he turns this mod around very quickly, so well worth considering if you're in a mid winter strip down state!

olChris · Mar 2, 2014

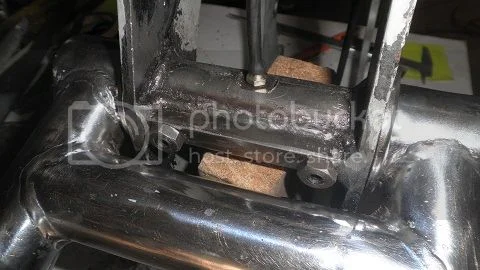

If you can drill tap and have a bit of material laying around, this is what i did

chasbmw · Mar 2, 2014

Fast Eddie said:
These boys have made it easy for anyone in Europe, they're good guys and easy and professional to deal with. Scroll half way down this page:

http://www.hollandnortonworks.eu/?lang=EN&page=10

My own bike was down so far that I decided to do this 'properly' and Mr Norman White is doing his cotter pin mod on my cradle.
Actually he turns this mod around very quickly, so well worth considering if you're in a mid winter strip down state!

How much does Norman charge?

Fast Eddie · Mar 2, 2014

chasbmw said:
Fast Eddie said:

These boys have made it easy for anyone in Europe, they're good guys and easy and professional to deal with. Scroll half way down this page:

http://www.hollandnortonworks.eu/?lang=EN&page=10

My own bike was down so far that I decided to do this 'properly' and Mr Norman White is doing his cotter pin mod on my cradle.
Actually he turns this mod around very quickly, so well worth considering if you're in a mid winter strip down state!

Click to expand...

How much does Norman charge?

According to Norman: cotter pin conversion, inc parts (set price) £270. Plus vat I assume.

L.A.B. · Mar 2, 2014

Andover Norton also sells a pre-Mk.III type cradle with the cotter pin location for £235 (+VAT)

http://www.andover-norton.co.uk/SI%20Frames.htm

Gearbox cradle for 750/850 Commando; suits both types of isolastics, those with steel shim adjustment and those updated with Mk3-type adjustable isolastics.
Similar to 06-4060, but with cotter fixing for the swinging arm axle à la 850Mk3.

http://www.nortonmotors.de/ANIL/Norton% ... e-list.php

PART NUMBER: 066972
DESCRIPTION: G/BOX CRADLE, COTTERED & ADJ"L
PRICE: £235

olChris · Mar 2, 2014

Hijack....

Being a colonial in OZ, i dont understand Vat how much does "VAT" represent % $ wise ............ We have "GST" being 10%, that some apply before or after you make a purchase in Oz and can irritate you after the purchase has been completed if not presented up front..

L.A.B. · Mar 2, 2014

olChris said:
Hijack....

Being a colonial in OZ, i dont understand Vat how much does "VAT" represent % $ wise ............

UK, 20%

https://www.gov.uk/vat
