Headlight/shell

Discussion in 'Norton Commando Motorcycles (Classic)' started by MexicoMike, Mar 10, 2019.

  1. MexicoMike

    MexicoMike

    Joined:
    Jan 31, 2010
    I just now, after owning my Norton for 13 years, realized that my headlight shell does not look like the headlight shells in the parts book. My bike is '73 per the plate, registered as a 74. My headlight shell has a toggle switch that is to the rear of the three warning lights. All the headshells I see in the parts book show the toggle switch forward of the warning lights. So does that mean my headlight shell is an aftermarket replacement part that "got it wrong?" FWIW Old Britts shows a headlight shell that looks like mine but, again, unless my Norton Parts book is wrong, it's different than those shown in the book.

    Also, I have a sealed beam headlight (a replacement from India when I bought the bike) but I want to go back to the OEM-style headlight and maybe install an LED bulb. I can't figure out what I need parts-wise to replace the sealed beam. I assume a reflector and a lens ???? Part numbers would be good!

  2. oldbeezer

    oldbeezer VIP MEMBER

    Joined:
    Nov 2, 2017

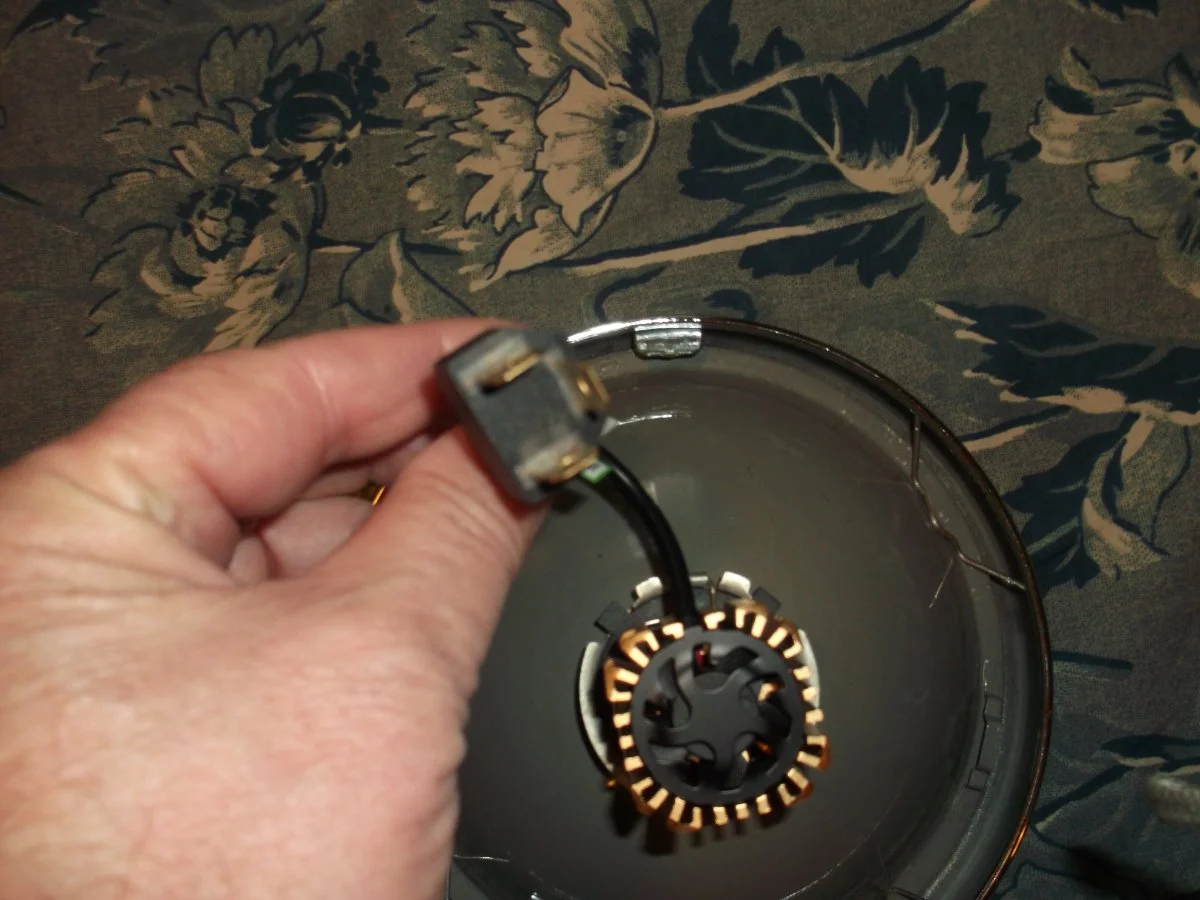

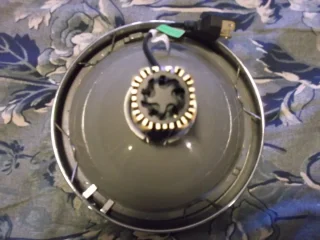

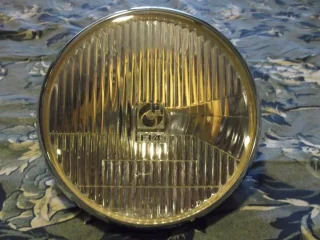

    Mexicomike, I have mounted a generic H4 reflector/lens with a fleabay led light "bulb" in a Lucas rim. I have not tried it yet as my bike is still mostly in pieces. The reflector/lens has a SAE mark on it so I am assuming it is for rhd. It is made in Japan and has the number 7022 on it. I can not find any part number. The LED is one of many different ones on fleabay. It has the dc converter and cooling fan on the back of the assembly but looks like it should fit in the shell. It also has the standard H4 connector on a short cable.
    DSCF0994.JPG DSCF0996.JPG DSCF0999.JPG

  3. illf8ed

    illf8ed

    Joined:
    Dec 30, 2003
    You have the original headlight shell. The parts book drawing is not correct. I just looked at my parts book and never noticed that before.

  4. Whiterabbit

    Whiterabbit

    Joined:
    Feb 8, 2019
  5. MexicoMike

    MexicoMike

    Joined:
    Jan 31, 2010
    Thanks Guys! :)

  6. oldbeezer

    oldbeezer VIP MEMBER

    Joined:
    Nov 2, 2017
  7. oldbeezer

    oldbeezer VIP MEMBER

    Joined:
    Nov 2, 2017
  8. Whiterabbit

    Whiterabbit

    Joined:
    Feb 8, 2019
  9. Tornado

    Tornado VIP MEMBER

    Joined:
    Dec 5, 2017
    I've got the BPF one linked from DynamoRegulators above...but it is also available in USA from Classic British Spares for similar pricing:

    [​IMG]

    https://www.classicbritishspares.com/products/british-pre-focus-led-headlight-bulbs
    Direct fitment to oem shell & connector. Decent beam pattern Hi/Lo and brightness.

    For excellent light throw with LED's, you'll likely need one of the more higher output types with bigger heat sinks, cooling fans and voltage controllers which are typically H4 or other modern connection formats. I've put one (Philips LumiLED 3000 Lumens with flexible woven copper-ribbon heat sink) in my 5 3/4" 2013 Triumph T100 Bonneville shell.

  10. river700

    river700 VIP MEMBER

    Joined:
    Dec 25, 2010
    Put a Cibie in my 73 750 shortly after I bought it new. Great light but couldn't have been more than $30 bucks then. Have to look for original box with lucas lens in -may have price on it. Other 73 has original light, gotta try an led or something before I go out at night on it.

  11. 998cc

    998cc "Cheap" is rarely the least expensive. VIP MEMBER

    Joined:
    Oct 1, 2018
    Not plugging any particular dealer here, but these guys have Lucas and aftermarket headlamp parts, including LED "bulbs" for old-style Lucas sockets (and Positive ground). I have been happy with their service with several orders in the past few months. Just bought the repop 7" and 5-3/4" reflector kits for everyday use on my Vin and Tiger Cub.

    https://thebonnevilleshop.com/lighting/?sort=featured&page=2

    ~998cc

    Commando750 and eskasteve like this.
  12. Commando750

    Commando750

    Joined:
    Sep 18, 2017
    Yes I just got one from them and popped out the old popped in the new-LED that is. Just got back from a nice 68 degree ride and the light is a nice bright white. Don't do too much night riding anymore but nice to know if I do my old eyes will be able to see.
