Hi all,

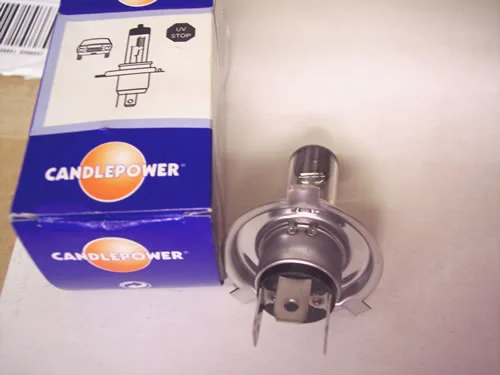

I purchased a headlight bulb from my 1973 MK2A from Old Britts and it is the wrong one. For some reason they won't exchange it for the correct one. I've never seen this type of bulb on a Commando before. I am assuming it is off a later model. Please can someone confirm. Also does anybody want to buy it from me? (I have not touched the glass on it as i know that is bad for a Halogen bulb). Here it is:

Headlight bulb


Cheers Jerry


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
18,922
Country flag
That type of bulb base is what we would refer to in the UK as a P43t, which is now a far more common bulb than the P45t H4 type fitted to late Lucas motorcycle headlamps.

P45t.
http://www.bitzforbikes.co.uk/generalPr ... dTypeID=91
Headlight bulb


As far as I know, there was no standard Commando headlamp that used the P43t, however, many aftermarket headlamp units use the P43t bulb.

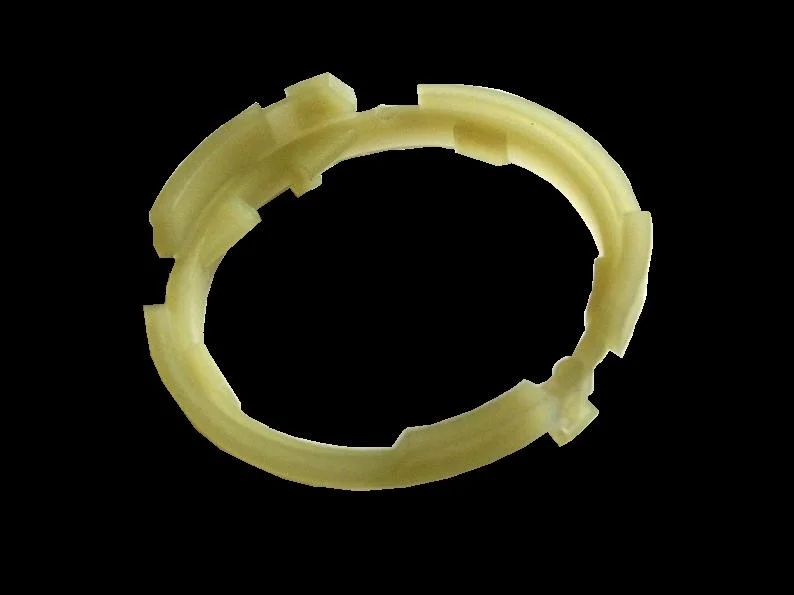

An adaptor ring is available that allows a P43t bulb to be used in the P45t reflector.

http://www.norbsa02.freeuk.com/goffybulbs.htm
Headlight bulb


[Edit] Some Commando headlamps may take P36d (370)/P36t (463) bulbs?
Headlight bulb


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
18,922
Country flag
I said:
L.A.B. said:
As far as I know, there was no standard Commando headlamp that used the P43t,

I must make a slight correction to that, because it would appear that headlamp reflectors on the later continental European model Commandos used a type '472' bulb, and 472 is the same as P43t,-apparently.


maylar

VIP MEMBER
Joined
May 13, 2007
Messages
4,213
Country flag
I'm pretty sure my MKII came with the old Lucas 'pre-focus' 45/50 watt bulb. I had to change the socket to fit a Halogen lamp. That was a loong time ago.


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
18,922
Country flag
maylar said:
I'm pretty sure my MKII came with the old Lucas 'pre-focus' 45/50 watt bulb. I had to change the socket to fit a Halogen lamp. That was a loong time ago.

Which I think would have been the P36d or 370 type bulb?
Headlight bulb

Joined
Dec 27, 2008
Messages
295
Country flag
did they say why they wouldn't take it back. I've dealt with them a lot and they seem reasonable

Joined
Oct 25, 2006
Messages
38
Most part suppliers wont take returns on small electrical items such as globes etc. its just something you have live with..
:cry:
JUG


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
18,922
Country flag
rgrigutis said:
did they say why they wouldn't take it back.

I think a lot of parts suppliers refuse to take back consumable items such as bulbs and spark plugs etc.?

However the fault appears to be with them, as they don't even list a type 472 bulb for a 1973/74 model Commando. They only list the 370 tungsten bulb.

http://www.oldbritts.com/nor_comm_73_30.html

It's interesting to note that certain components on their list are either not available, or have had their identities changed?

Items listed as:
[31]410 Not available
[32]411 ALLEN BOLT SETS
[37]463 CAMSHAFTS,HI-PERFORMANCE
[39]472 Cable End, Barrel Type, No. 47-2

-should all be various bulb options (410 Continental, 411 France, 463 Q/Halogen, 472 Continental Q/Halogen) according to the parts book?
