handle bar switch electrics

radiofun · May 20, 2011

Hi all,

Can anyone point me to a simple diagram or explanation of wire colors for the handle bar switches for a 74 850 Commando? A list of wire colors and their function would be great. Thanks.

Rohan · May 20, 2011

I don't know about simple, but the standard wiring diagram is available from british Only.

http://www.vintage-motorcycle.com/index ... 79&limit=0

Colours are listed on the far righthand side.
As with anything Brit, you have to work at it.

Ye are doing a Commando without a manual ?
Folly, sheer folly....

P.S. Click on it for a bigger view.

Cheers.

radiofun · May 20, 2011

I have an original manual, but like you said, you really have to work at it. And I admit, I am somewhat electrically challenged. So looking at several diagrams will help me "get it". thanks.

jeffdavison · May 20, 2011

http://www.easternbeaver.com/Main/Stuff ... 972-74.gif

geo46er · May 20, 2011

Hi Radiofun,
Drop me an email, I have exactly what you want. When I rewired a number of years ago I drew a simple diagram for each switch neatly labeled (well, I think so). :mrgreen:

GB geo46er@yahoo.com

geo46er · May 20, 2011

Hi again,
I had the diagrams in my photobucket album, I don't know how they will look on here, but here's a try.

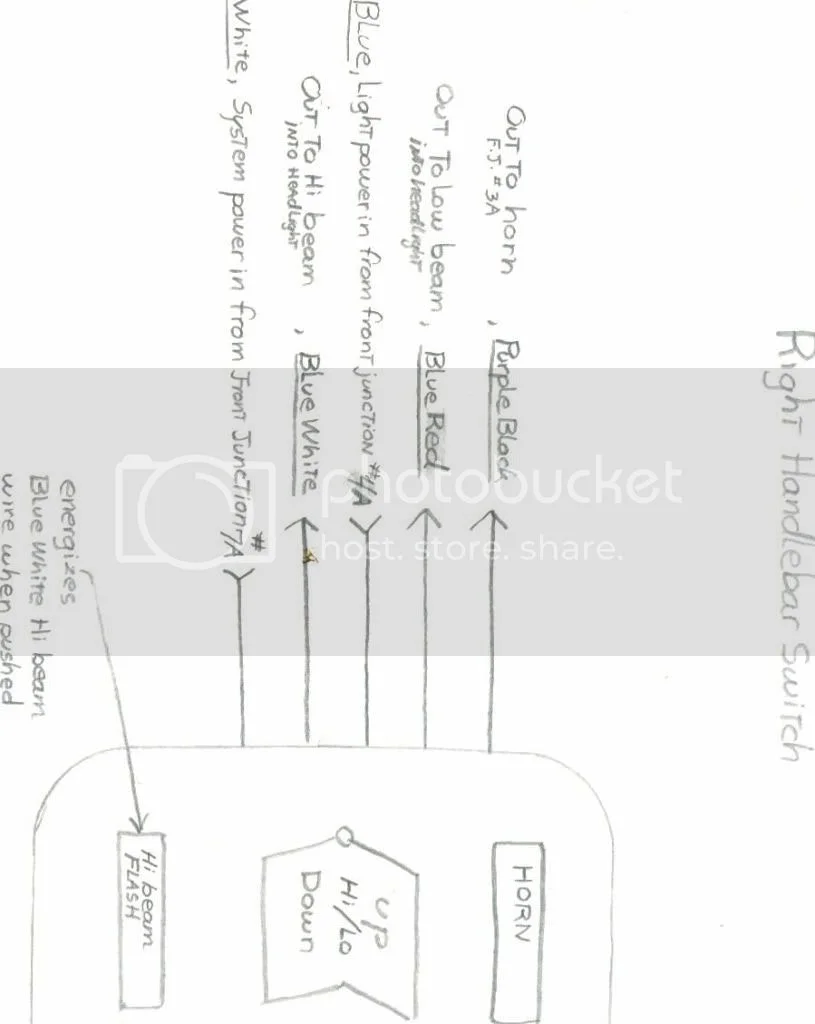

one side:

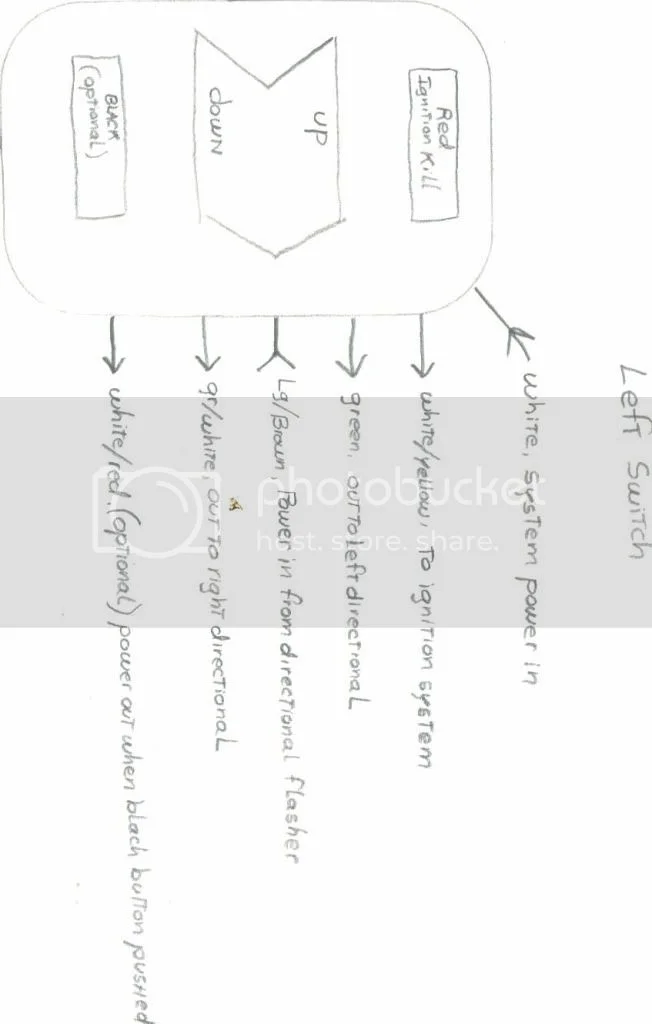

and the other side:

GB

rvich · May 21, 2011

radiofun · May 21, 2011

great help everyone. thanks....now, to the garage.

radiofun · May 21, 2011

Electrics working. Thanks again.
