H-D oil cooler on my MKIII

Status
Not open for further replies.
Joined
Sep 8, 2018
Messages
95
Country flag
I have a oil cooler on my '75 I recently picked up. The bike had injectors on the inlet manifolds, perhaps nitro. Is an oil cooler of any value? I live in western NY, not a hot hot spot.

I'm running a cooler/thermostat combo. Have had it for 2 seasons now, and in that time have installed 2 oil pumps rebuilt by AMR. I think it's worthwhile; aside from the slight increase in oil capacity, I find that it works to lower oil temps during highway runs in hot weather riding. My "empirical" assessment is based on the readings/activity gleaned from an oil pressure warning light and the recent addition of an oil pressure gauge.

Around town, not so much. The temp rises enough to open the stat, but not enough airflow to effect change in the oil temps. Running straight 50w synthetic, but that will change in light of Comstock's recent oil tests.

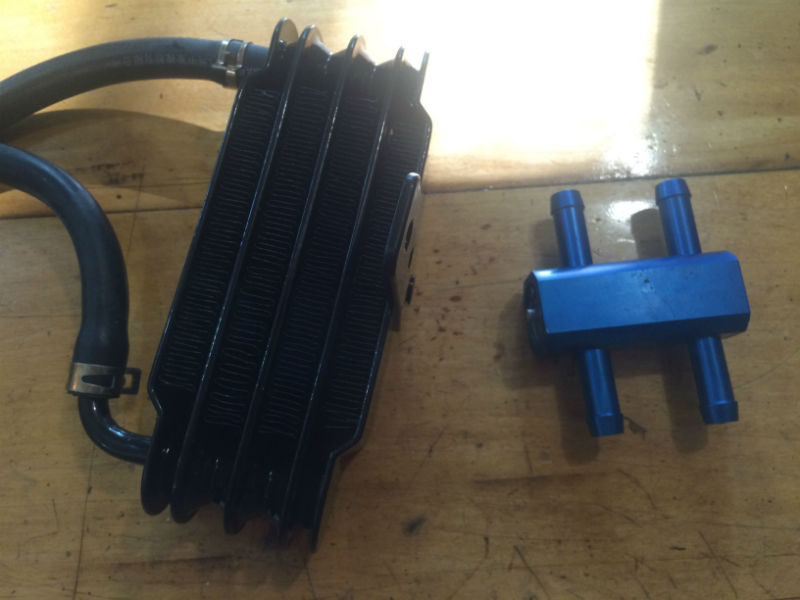

cooler + thermostat (the stat is from a transmission oil cooler used in large trucks)
H-D oil cooler on my MKIII


installed, thermostat is the blue item plumbed along the lower frame
H-D oil cooler on my MKIII

Wot about stone hits on the cooler? Looks rather vulnerable.
In town hot day is when you really need it, is there a way to put
a muffin fan behind it?

A fan is a good idea-can just be switched on and off. My oil cooler has a thermostat but it's the original H-D part. The oil cooler is off a Harley.

"Screw the cooler, plug the nitro kit back on, that WILL add value...!!" The Big Bang Theory :D

Are you sure the holes were not the balance tubes? Nitro injection? Are you thinking Nitrous?
