Gear (Pinion) "sets" available?

Discussion in 'Norton Commando Motorcycles (Classic)' started by 998cc, Mar 31, 2019.

  1. 998cc

    998cc "Cheap" is rarely the least expensive. VIP MEMBER

    Joined:
    Oct 1, 2018
    Finally got around to inspecting my gears (pinions). All but one are pitted to varying degrees. Andover has them individually, but does anyone sell complete sets at a reduced cost?

    Thanks.
    ~998cc

  2. Time Warp

    Time Warp .......back to the 70's. VIP MEMBER

    Joined:
    Dec 3, 2012
    I don't think there is any complete cluster set with shafts available new for under $1000, good second hand sets come up on US eBay now and again.
    Any complete set that seems to reasonable is probably made from recycled Reliant Robin hub caps so buyer beware..... The pirate gear thing springs to mind if it is true.

    I read on FarceBook (or somewhere) that the US dude who is going to make the Norton heads is working on a gearbox set so that might be a future option.

  3. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    How badly pitted are they?
    I've seen a few that looked bad but function well
    There are people on this site that deal with a lot more gearbox stuff than I ever will
    Maybe put some photos up for scrutiny before committing
    Cheers

  4. bill

    bill

    Joined:
    Jun 1, 2003
    you are correct, it is john at STS who does the E start for CNW and bought out fullauto. i talked to stan keys at nortona and he is testing one of his gear sets right now.


  5. Time Warp

    Time Warp .......back to the 70's. VIP MEMBER

    Joined:
    Dec 3, 2012
    Thanks Bill... I had (rudely) forgotten John's name but will keep an eye out for progress on that cluster set.
    I would imagine it will be a higher quality and finish over anything currently available.

    #
    For a economical rebuild, there is no real problem using good used gears if they are installed as a matching pair/set, it could be 1st through to 4th out of four bikes.

    Last edited: Apr 1, 2019
  6. oldbeezer

    oldbeezer VIP MEMBER

    Joined:
    Nov 2, 2017
  7. 998cc

    998cc "Cheap" is rarely the least expensive. VIP MEMBER

    Joined:
    Oct 1, 2018
    I have uploaded thumbnail photos below. Any thoughts from the group?

    Thank you!
    ~998cc

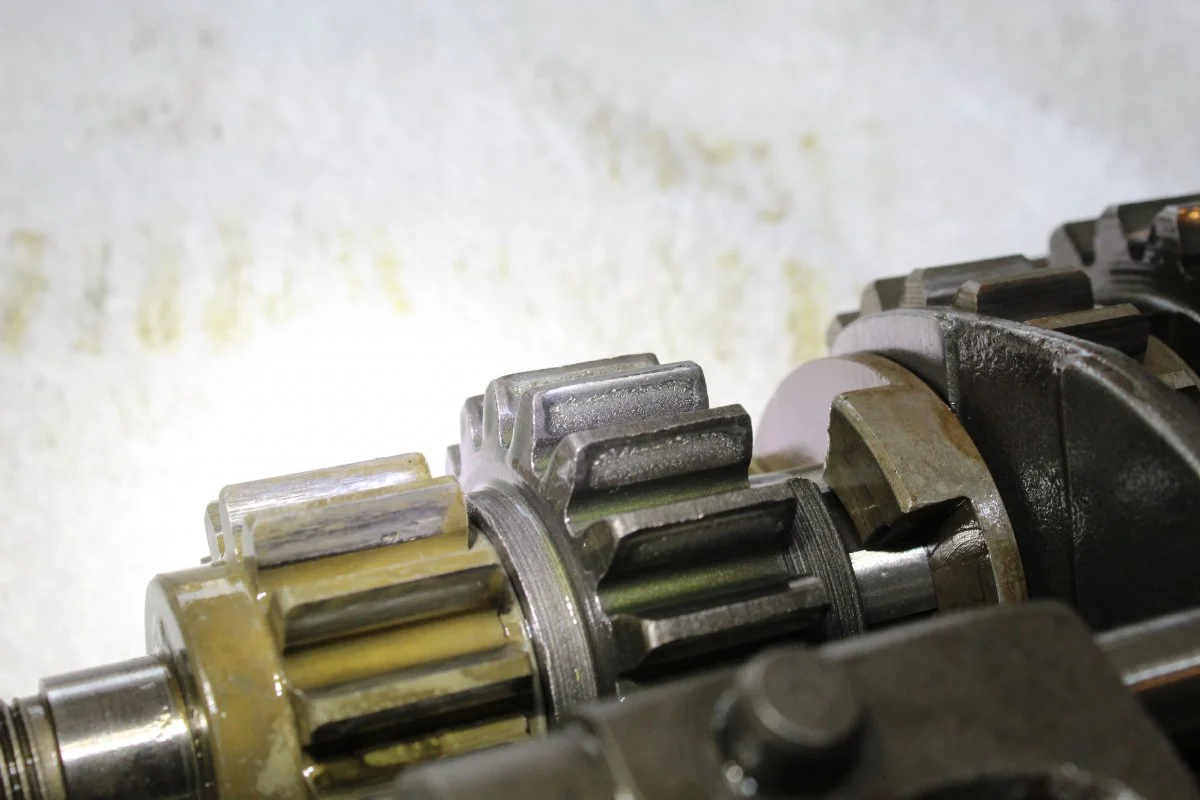

    1st and 2nd mainc.JPG
    1st and 2nd Main: 2nd gear has the most wear of all.

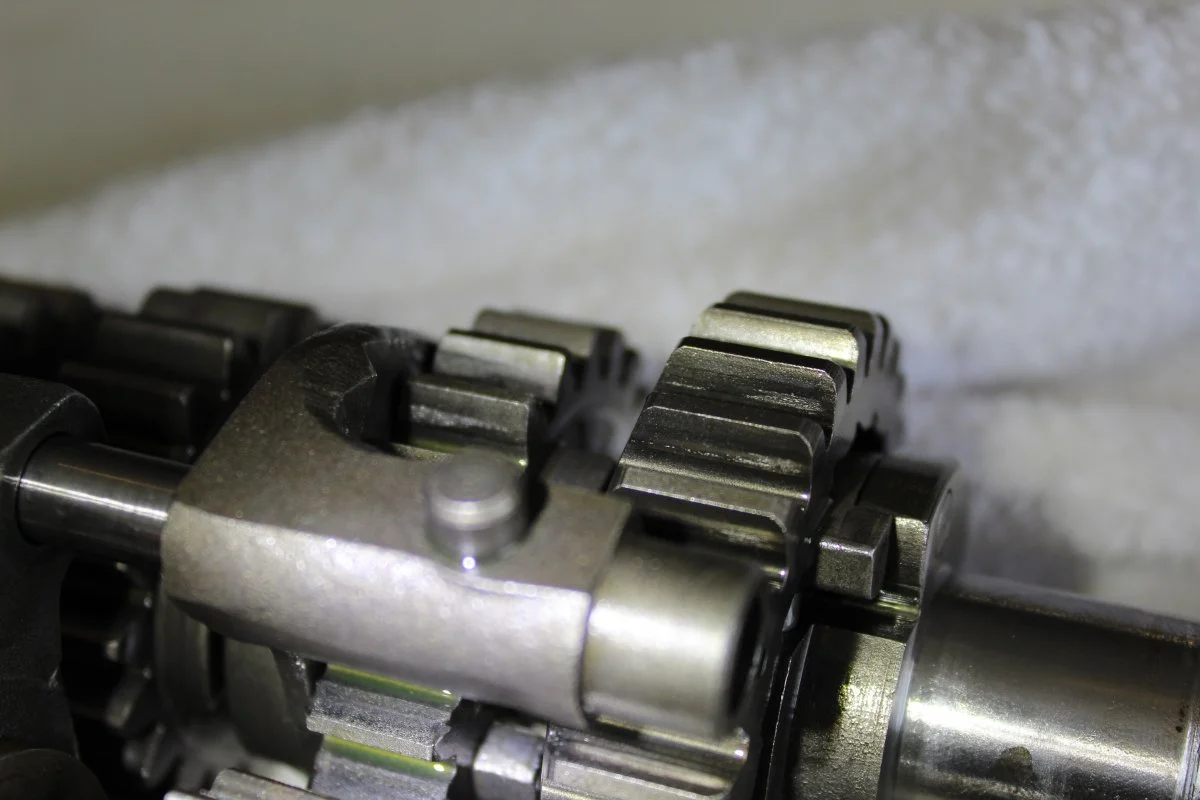

    1st and 2nd layc.JPG
    1st and 2nd Layshaft

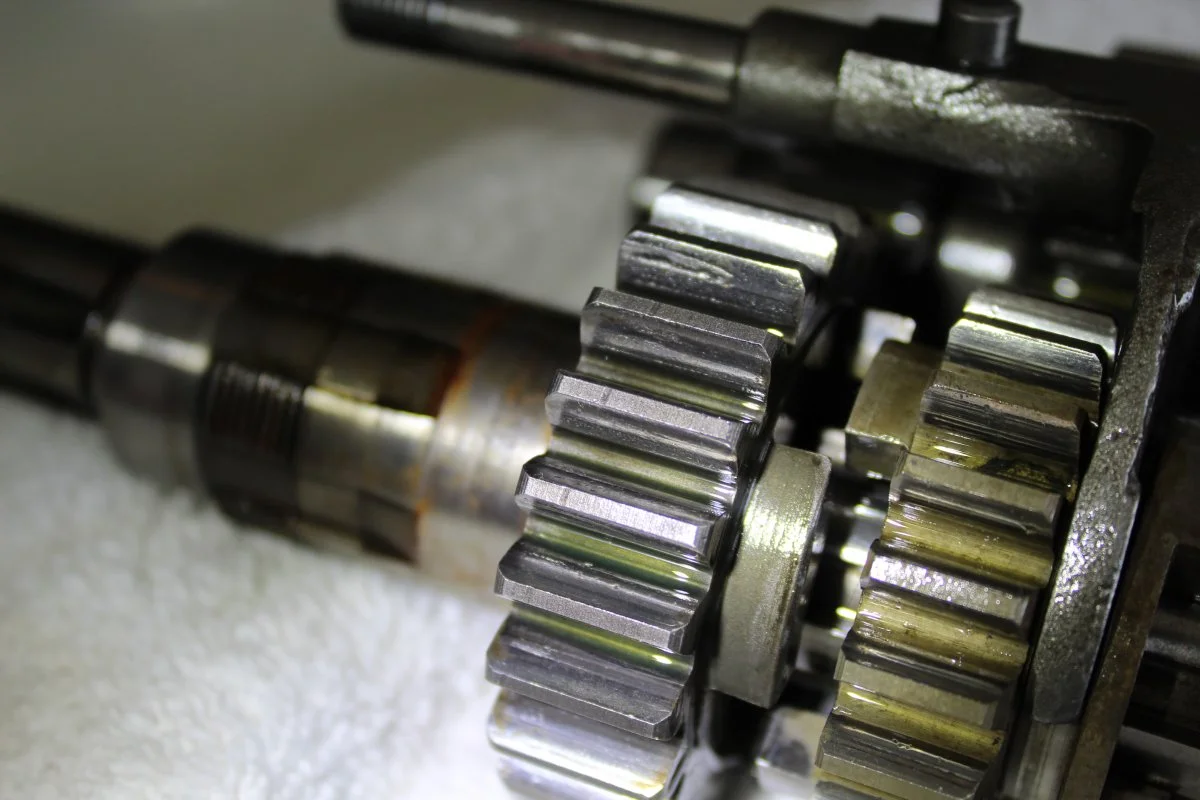

    Sleeve geara.JPG
    Sleeve gear and 3rd Main.

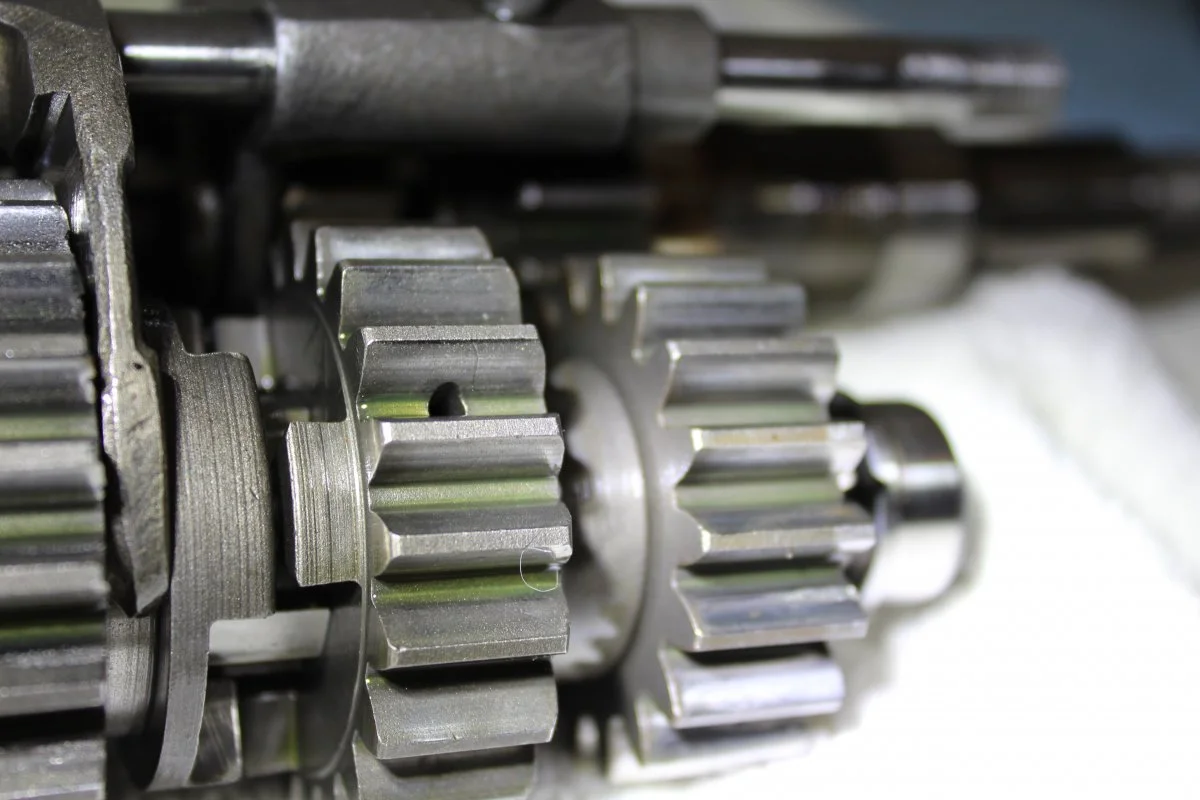

    Layshaft 3rd and 4th.JPG
    Layshaft 3rd and 4th

    Layshaft 3rd and 4th b.JPG
    Layshaft 3rd and 4th another view

  8. bill

    bill

    Joined:
    Jun 1, 2003
    put a second pair in it along with what bushings are needed, my guess is 1st lay will need one and look closely at the kick start pawl and run it.

  9. 998cc

    998cc "Cheap" is rarely the least expensive. VIP MEMBER

    Joined:
    Oct 1, 2018
    Thanks Bill. Much appreciated. I have an order pending at AN. The pawl shows wear and will be replaced. Will take a closer look and will likely put in 1st pair as well.

    This started as the install of the Andover Norton gearbox bearing/bushing/spring kit.

    Thank you.
    ~998cc
