Fuel Tank Front Rubber Washers

Status
Not open for further replies.
Joined
Aug 5, 2017
Messages
1,399
Country flag
Hi gents
With a Roadster tank using the OE front tank studs, show many rubber washers per side please....4 or 5???

Thank you

As Baz plus maybe one buffer, but if you want to use the buffers and studs then you put enough on so once the nuts are tightened up the tank sits correctly.

One exhaust mounting causes the front lower tank seam to contact the support arms there not physically tall enough... so I'd have to place a rubber washer beneath
I'm using the exhaust mounts at the rear OK

One exhaust mounting causes the front lower tank seam to contact the support arms there not physically tall enough... so I'd have to place a rubber washer beneath
I'm using the exhaust mounts at the rear OK
I found that same issue when trying the iso's on the front but like you, I have used them on the back. My tank is a re-pop and not sure if its shaped right or if I put the foam cushion precisely where it needs to be so that might be causing the issue.

Last edited:
Don't let the wings support the tank or you will break them, don't ask. The wings should just support the tank from flopping around and the thickness will vary bike to bike, tank to tank. The main tank support comes from the pad on the main tube, IMHO. For my worn out pads in both places I used cut up flip-flops. It's a very nice substantial material and easy to shape and cut. Comes in colors and cheap too, you can usually get a couple pair or more at the dollar store for a buck or 2.

Anyone else call them Zories?

I think I picked that name up in Taiwan. I lived there in the 50's. May be a Japanese takeoff.

I remember my mom calling them Zorie sandals when we were kids. Almost 60 years ago.

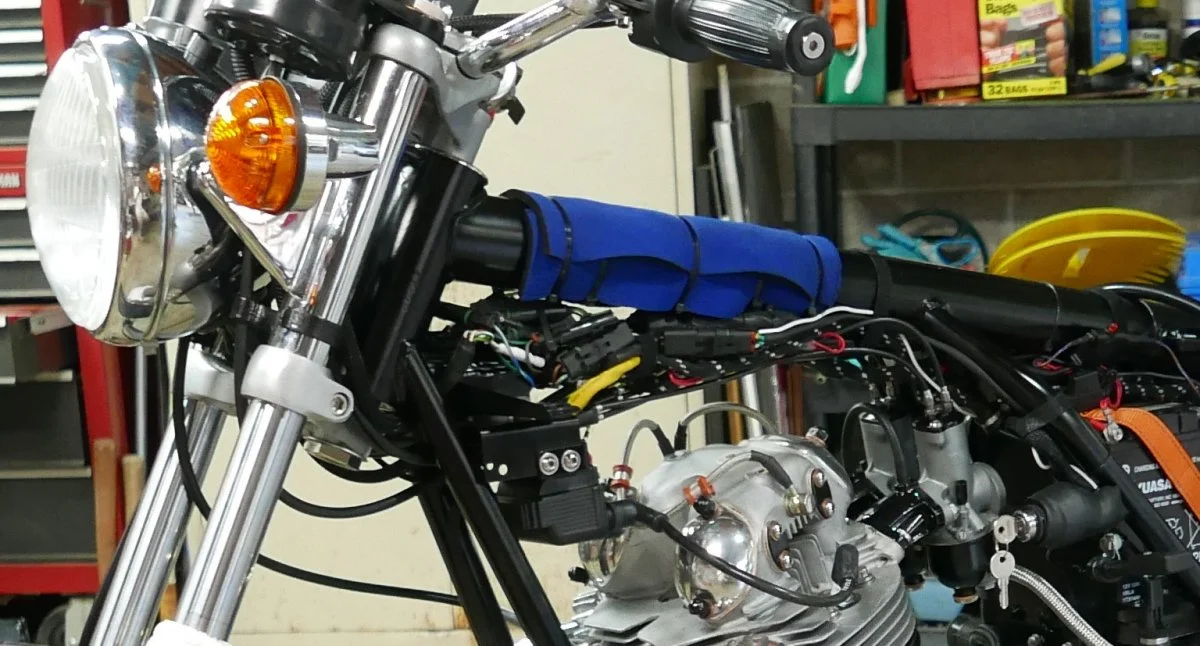

I wrapped the backbone of the frame with two pieces of 1/4" neoprene from one of my old wet suits.
The tanks slides on in a smooth and snug manner and the spine of the entire tank is supported by the frame, not sitting on the four studs.
The rubber washers were added accordingly. to keep it in place...works nicely.

Fuel Tank Front Rubber Washers

Don't let the wings support the tank or you will break them, don't ask. The wings should just support the tank from flopping around and the thickness will vary bike to bike, tank to tank. The main tank support comes from the pad on the main tube, IMHO. For my worn out pads in both places I used cut up flip-flops. It's a very nice substantial material and easy to shape and cut. Comes in colors and cheap too, you can usually get a couple pair or more at the dollar store for a buck or 2.

Anyone else call them Zories?
Many thanks for this ...good reasoning

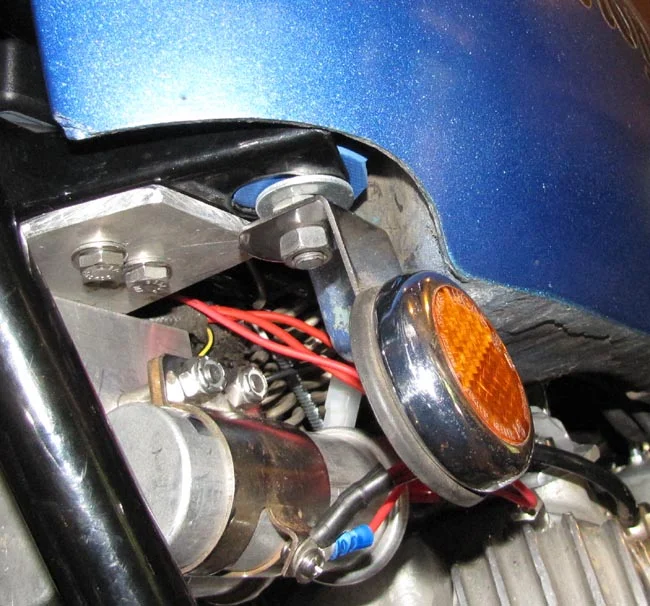

I also added a 1/4" plate below the wings for more support. I also got rid of those hateful nylocks on the tank front studs and used lock nuts. That way I can adjust the tension on the wings to my desire too. You can see it here, I used blue flip-flops, even for the front mount spacers.
Fuel Tank Front Rubber Washers

I also added a 1/4" plate below the wings for more support.

The 1971-on models have the inverted 'U' shaped coil bracket bolted to the underside of tank brackets so don't need a plate.

I also added a 1/4" plate below the wings for more support. I also got rid of those hateful nylocks on the tank front studs and used lock nuts. That way I can adjust the tension on the wings to my desire too. You can see it here, I used blue flip-flops, even for the front mount spacers.
View attachment 13124

Do you think using a pink Flip Flop will make any difference?? :):eek:
