Front wheel reassembling

NKN

Joined
Mar 28, 2016
Messages
275
Country flag
I must admit that it is a project that has dragged a bit ...

So I'm a little lost in putting things back together, even if I made photos before...

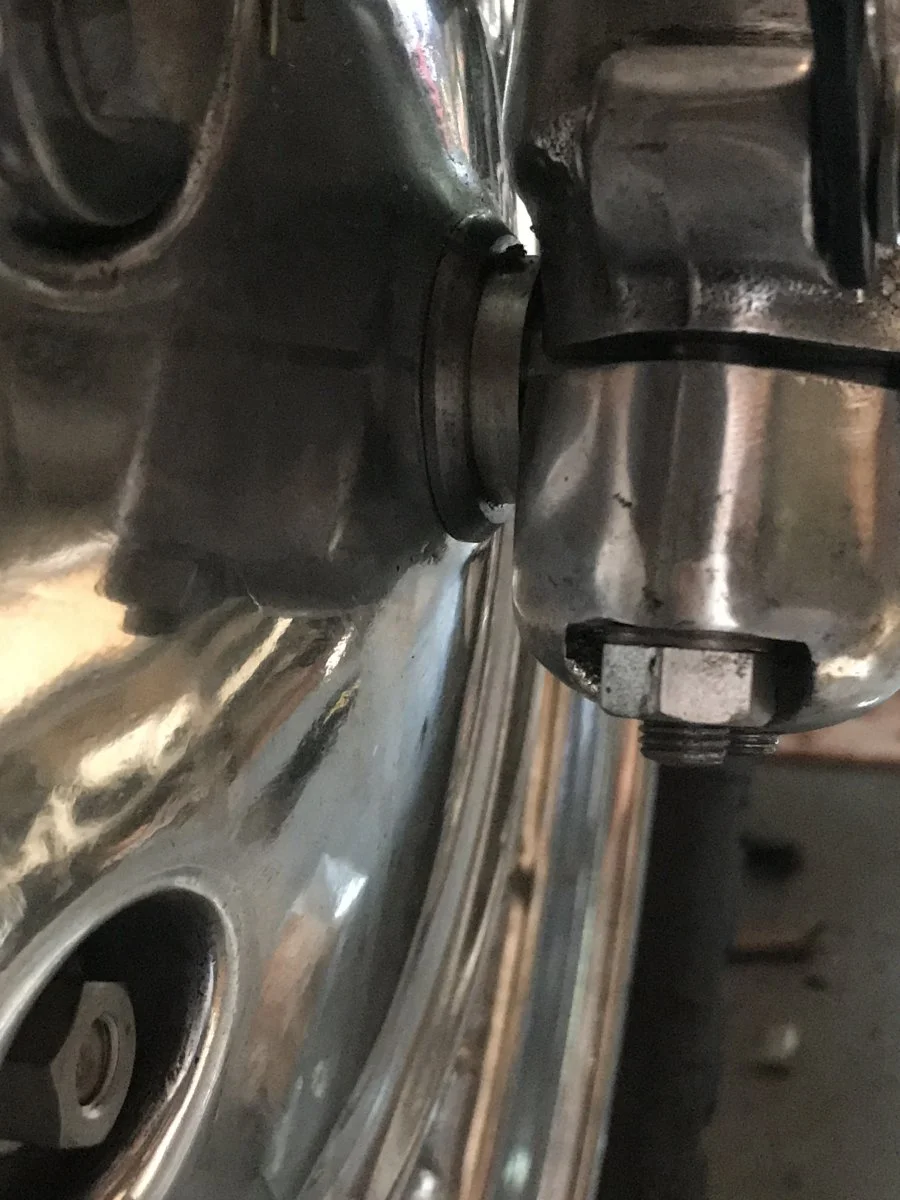

Looks like some spacer is missing because I can't tighten the spindle without blocking the wheel on the fork.

My P11 is a 1967 with a shaved hub.





Front wheel reassembling


Front wheel reassembling
picture hosting
Any idea?
Front wheel reassembling

Last edited:
mine has a spacer 24mm OD x 4mm thick on left side, steel zinc plated, now rusty.

looks like you are missing pieces on right side......and this spacer , I mention, is on your right side, should be moved to left.

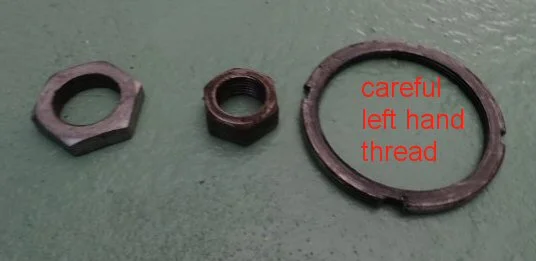

I see a missing a large ring nut, and another medium size nut on right side.

my front axle is installed with nut on left side.

pictures later

Front wheel reassembling

Last edited:

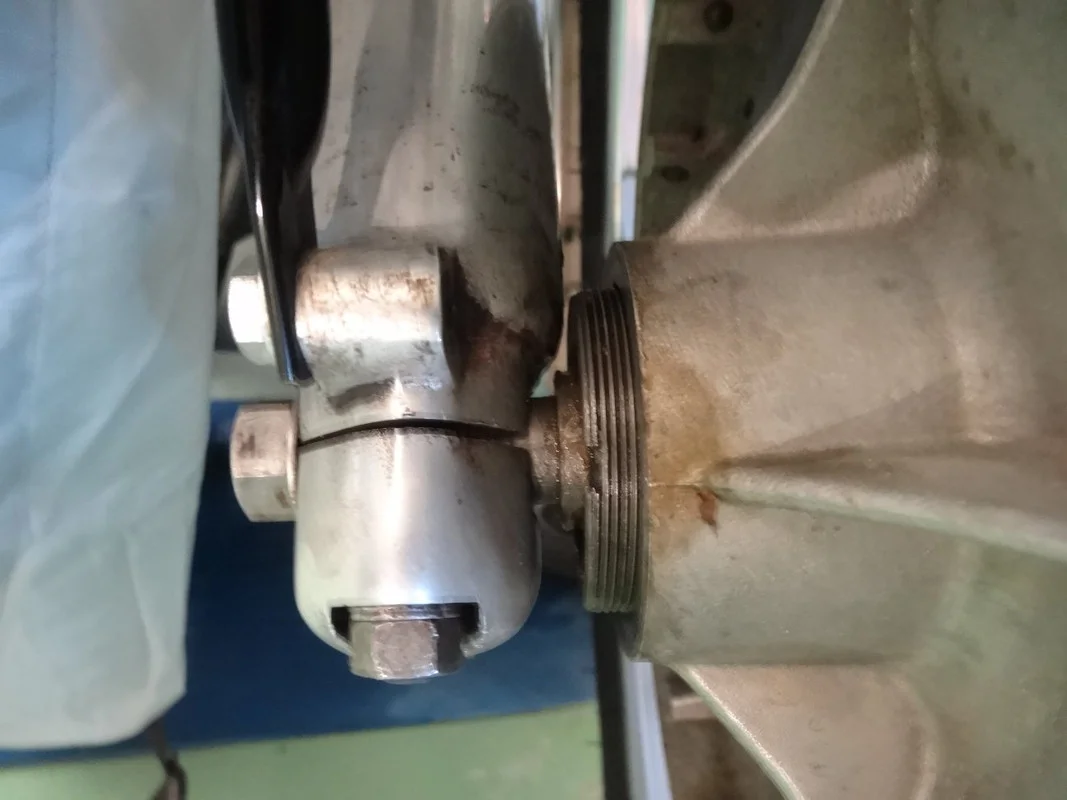

here is my right side , I have to admit it doesn't look quite right, so what does another look like?

Front wheel reassembling

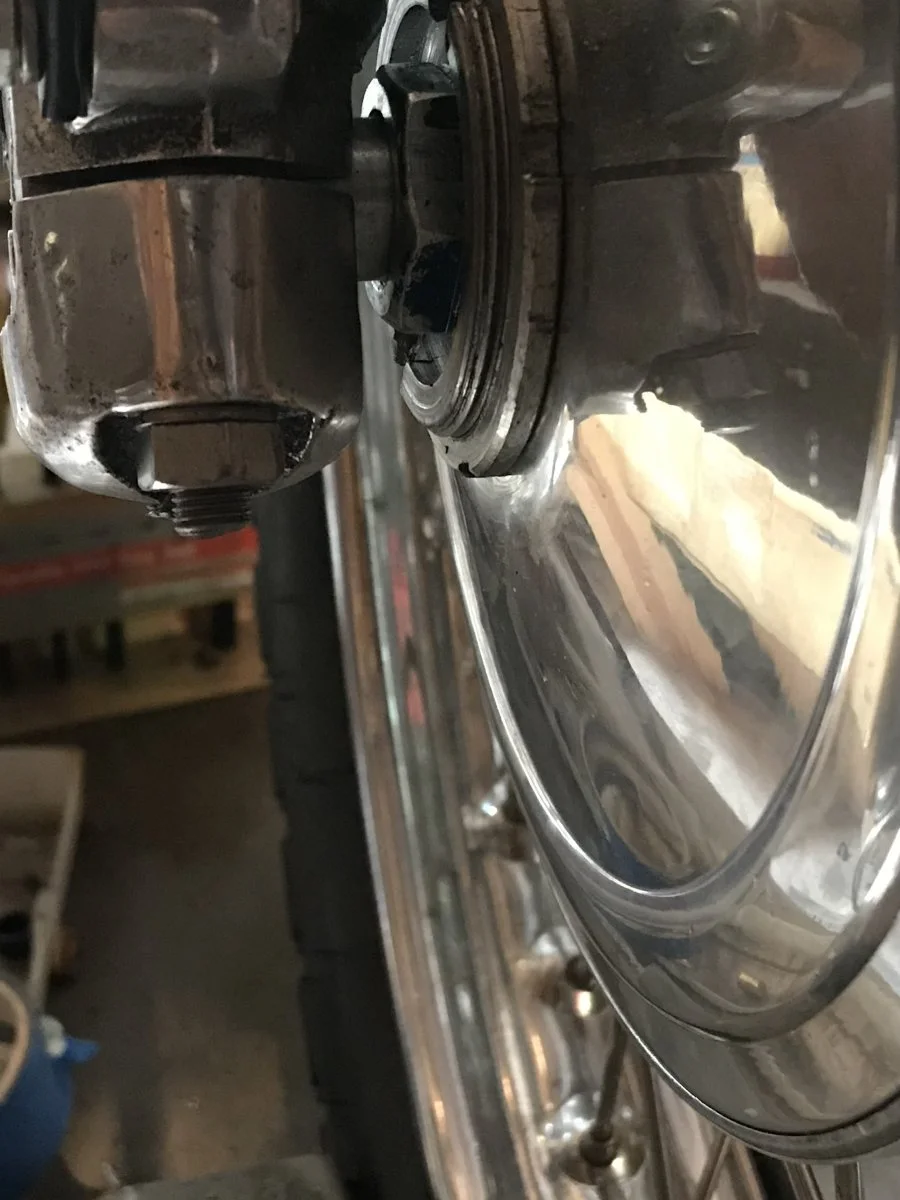

here is a photo from 1967 magazine cover shoot. I think you will find the front axle is installed with nut on the left side. I don't know if this impacts the wheel install.
you are missing some parts as pictured above.

Front wheel reassembling

Watching at the picture, you might be 100% right elefantrider, but as Piero, the bike was driving well before with the spindle backwards.



p400, must be the missing parts, no?

Front wheel reassembling

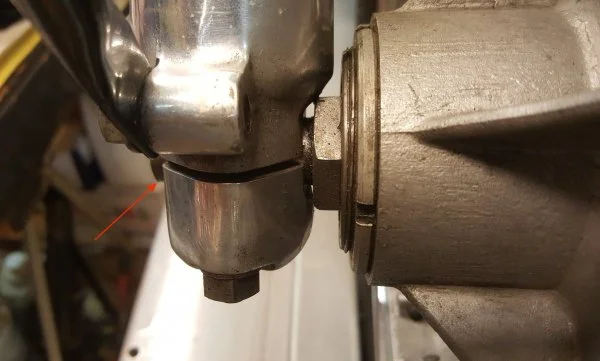

Wondering if your spindle in not protruding too much p400

Front wheel reassembling


Might let the fork not touch the nut?

The raised step on the right side of this spindle should be outside the brake assembly plate. In the first photo, you can see a shadow of where it once lay.

Front wheel reassembling

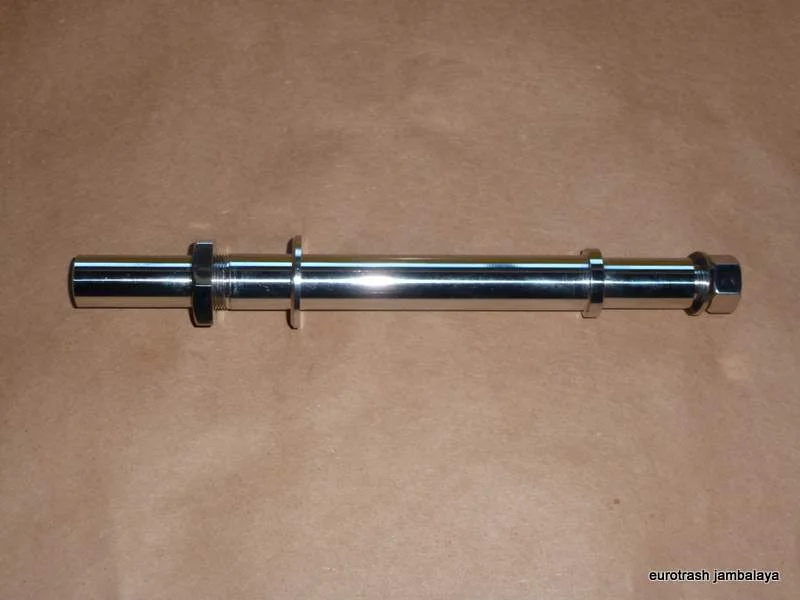

we need an exploded view of the front hub and axle.

I cant find one.....anyone?

Front wheel reassembling

And yes, here spindle have the thread on the LH side.

Last edited:
Thanks Ron L, looks better one yours.

Can you confirm that there are no spacer or washer on RH, and what we see is the spindle.

Front wheel reassembling


And on LH side, number 2 is the spindle and number 1 a washer or spacer

Front wheel reassembling

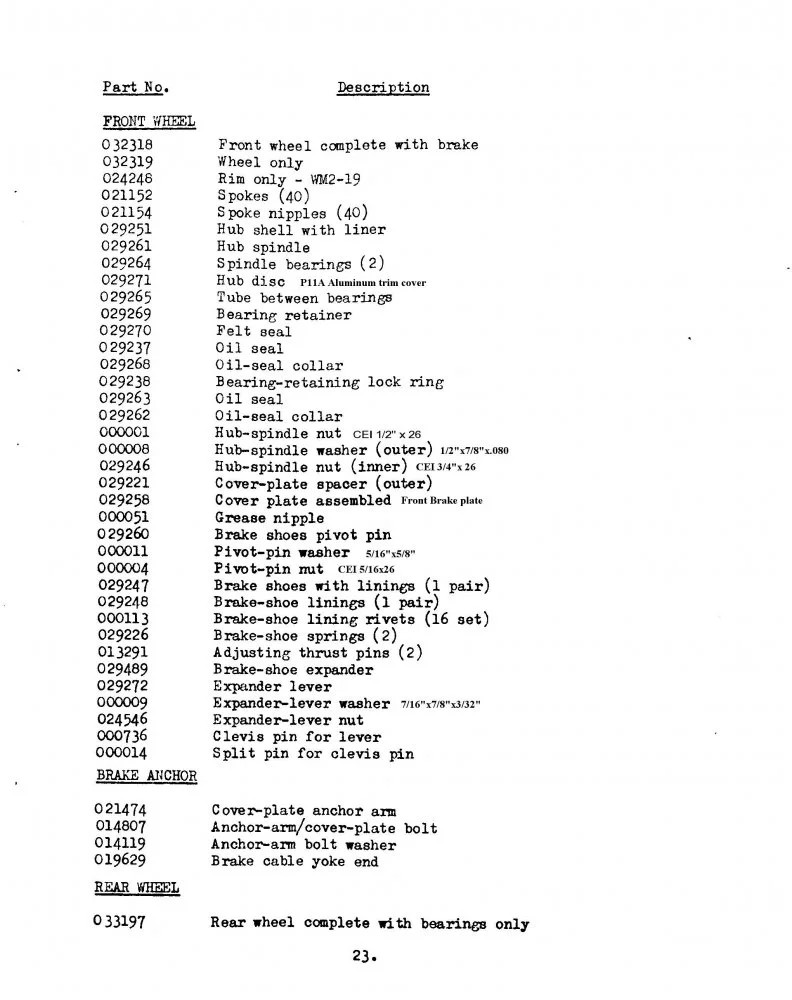

Replacement Parts P11 page 23

The "Cover-plate" is the front Brake plate

I am not seeing this two piece spacer (1 & 2) at the brake plate being listed in spares, only 02-9221. Brake plate spacer - Cover-plate.

Perhaps the two piece is a P11A Ranger addition for trim?

Front wheel reassembling

Last edited:
