Hi people i,m having a wee problem with my front brake. There,s no more adjustment on the handle bars or the Brake drum. I've had the front wheel out and checked the the shoes and there fine. I have bought a new cable with the inline switch but still no good . HELP PLEASE.
Front Brake twin leading shoe.
- Thread starter Northy
- Start date
- Status
DogT
VIP MEMBER
- Joined
- Jan 20, 2009
- Messages
- 7,393
What do you mean no more adjustment? Too tight or too loose? Either can be fixed easily. If they're too tight, I'll tell you how to arc them. If they're too loose do you have new shoes and are the slippers on the ends of the shoes? #28 here http://www.oldbritts.com/1971_g17.html
Mine work great, but not for racing.
Dave
69S
Mine work great, but not for racing.
Dave
69S
- Joined
- Oct 28, 2009
- Messages
- 1,385

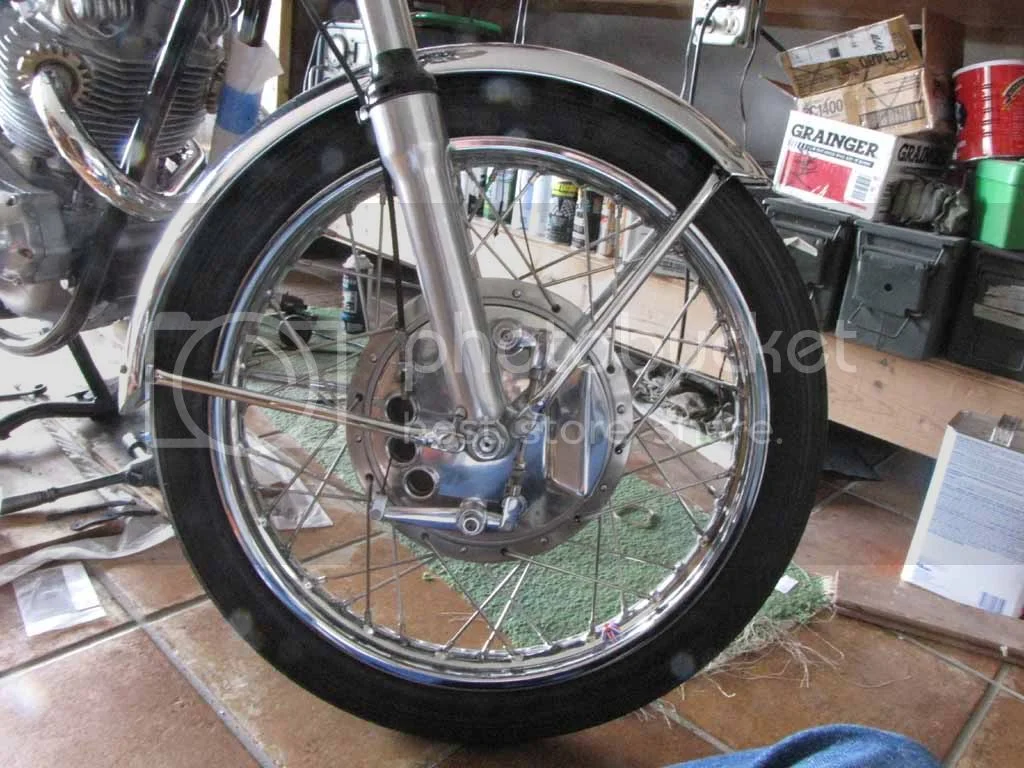

Is the arm the cable attaches to (see DogT's photo) on the right way? I think it can go on two ways: one will make the cable slack, the other way will make it tight.
Stephen Hill
Stephen Hill
- Joined
- May 31, 2012
- Messages
- 1,399

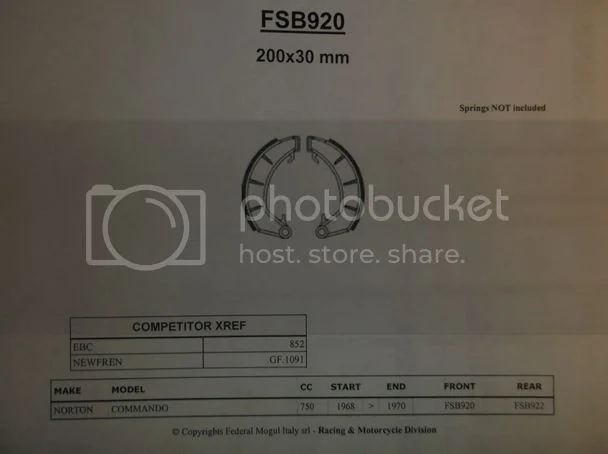

Have you replaced shoes lately? The Ferodo shoes I bought had too thin a lining right out of the box, no better than the shoes I replaced. Contact Madass on this board, he sells the proper thickness linings, or if your OK with your linings, shim the abutments on your shoes where they contact the cam.
- Joined
- Jul 15, 2007
- Messages
- 278
As per my 1973 vintage factory workshop manual-
Should the adjustment run out at the handlebar and cable adjusters, providing the brake linings are examined to ensure that the rivets are not flush with the lining friction surface, the operating cam levers can be reversed to regain adjustment.
Just had to do this with mine the other day. It works but you end up having to look at the crappy finish on the back side of the lever.
Should the adjustment run out at the handlebar and cable adjusters, providing the brake linings are examined to ensure that the rivets are not flush with the lining friction surface, the operating cam levers can be reversed to regain adjustment.
Just had to do this with mine the other day. It works but you end up having to look at the crappy finish on the back side of the lever.
- Joined
- Jul 25, 2010
- Messages
- 5,914

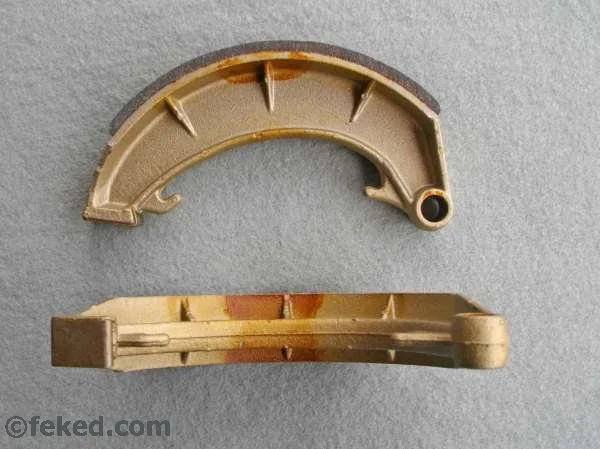

You can just see the steel anti wear pads , here. Where it sits on the cam . Are they there .
Strip , clean , lube & reset ( This is ' overhaul , or Service Maintanance ) balance rod .
You dont just throw a set of shoes in , unless you wear em out monthly .
Things can get dry & tight & bind up . Better without the switch , if its a option .
Strip , clean , lube & reset ( This is ' overhaul , or Service Maintanance ) balance rod .
You dont just throw a set of shoes in , unless you wear em out monthly .
Things can get dry & tight & bind up . Better without the switch , if its a option .
