Fork oil

Discussion in 'Norton Commando Motorcycles (Classic)' started by olympus, Jun 7, 2019.

  1. olympus

    olympus

    Joined:
    Aug 5, 2017
    Hi All
    Fork leg oil capacity ...to what's stated in the manual or something different please
    Nothing fancy fitted inside them

    Last edited: Jun 7, 2019
  2. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    Nothing fanny fitted inside them
    Well I should hope not!!:)

  3. olympus

    olympus

    Joined:
    Aug 5, 2017
  4. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    5 oz. each leg.

  5. olympus

    olympus

    Joined:
    Aug 5, 2017
    I take it this is 5 fl oz. US 147cc

  6. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    150cc is what my info calls for. Apples & Oranges. I don't think it'll 'splode Lucy.

    I'll flip you for the 3cc diff.

    Last edited: Jun 8, 2019
    johnm likes this.
  7. illf8ed

    illf8ed

    Joined:
    Dec 30, 2003
    And I prefer 30wt over thinner (less viscous) fluid.

  8. Madnorton

    Madnorton

    Joined:
    Jun 9, 2008
    170cc as per the racers documentation, not sure why it never made it to the road bikes. This little extra seems to help, I have not bottomed them out since I started to use this quantity.

  9. Classic Cycle Repair

    Classic Cycle Repair

    Joined:
    Apr 1, 2019
    What weight do you prefer?

  10. eskasteve

    eskasteve VIP MEMBER

    Joined:
    Sep 24, 2012
    In 1972 the fork seals on my almost new Combat failed just after the factory warranty had expired. A Norton nerd friend of mine had a set of seals that he gave me but he wasn't sure about how much fluid to add. I called Poke's Cycle in Seattle to get the correct amount and was told to mix 30 weight 50/50 with transmission fluid then add a Coke bottle's amount to each leg. So in went 12oz in the right leg. Well, guess what? Too much oil or too little capacity depending on if you're a half full or half empty person. Another call and Larry(Poke) let me know that first off I had better be buying a service manual soon as my free information bank was now empty. He graciously told me that they fill an 8oz Coke bottle to the top of the "C" in the cola part of the Coca-Cola logo not a whole damn 12oz bottle. There was a subtle implication that only lawyers or stockbrokers would even have a 12oz bottle in their possession. A nefarious group of soul stealers to be associated with especially at 19 years old.
    So I'm guessing about 5-6oz as I never did actually measure the bottle. I used the same 8oz bottle that I got out of Poke's vending machine for probably 20 years just for shits and grins. It was a sad day when that bottle shattered after getting knocked to the floor by the handlebar on my son's Honda. There may be an analogy to the whole English motorcycle industry buried somewhere in my Coke bottle experience.

    marinatlas and baz like this.
  11. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014

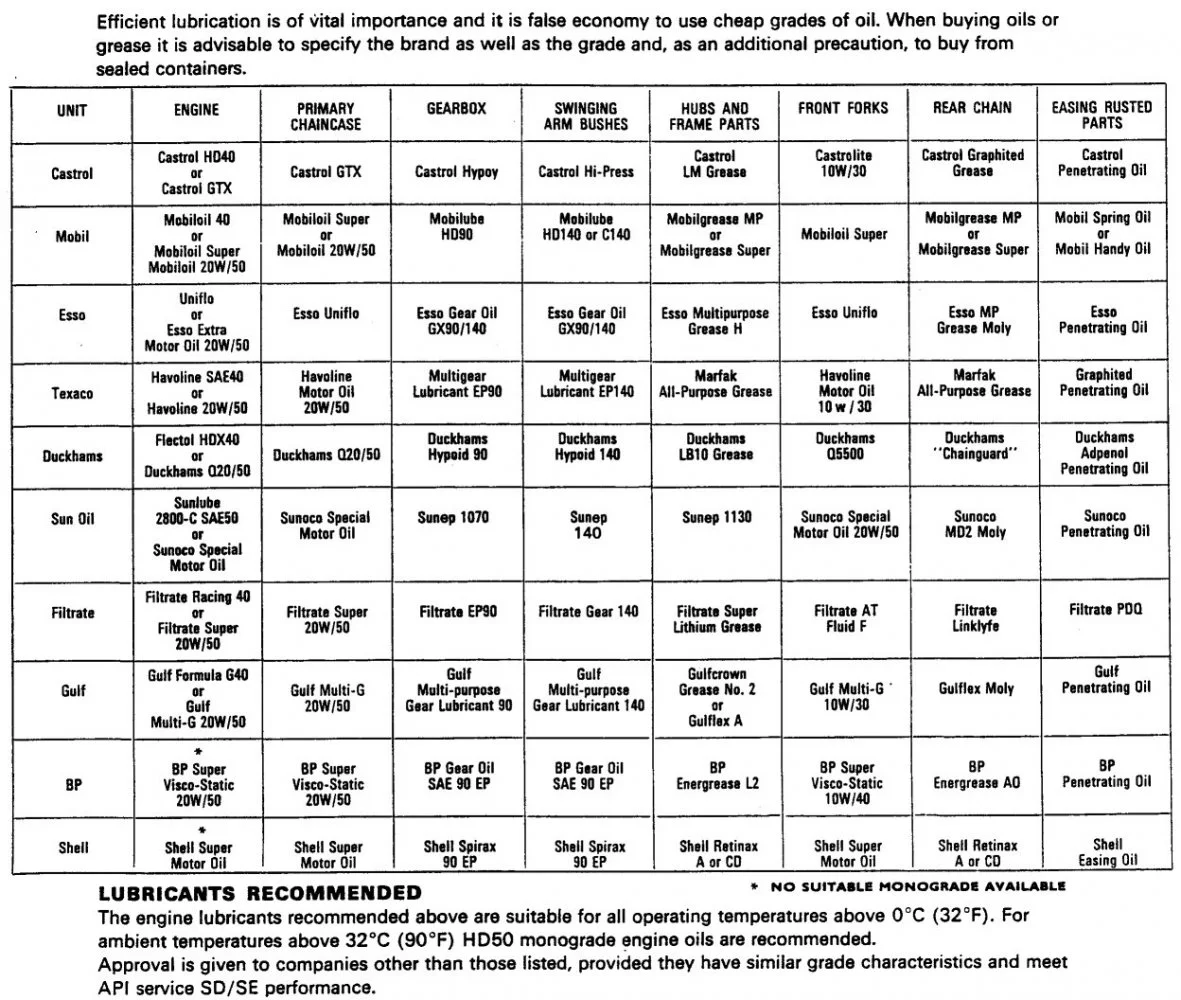

    No specific fork oil at the time was recommended. Fork oil viscosities all over the map. 20/50 vs AT?



  12. p400

    p400 VIP MEMBER

    Joined:
    Jul 14, 2014

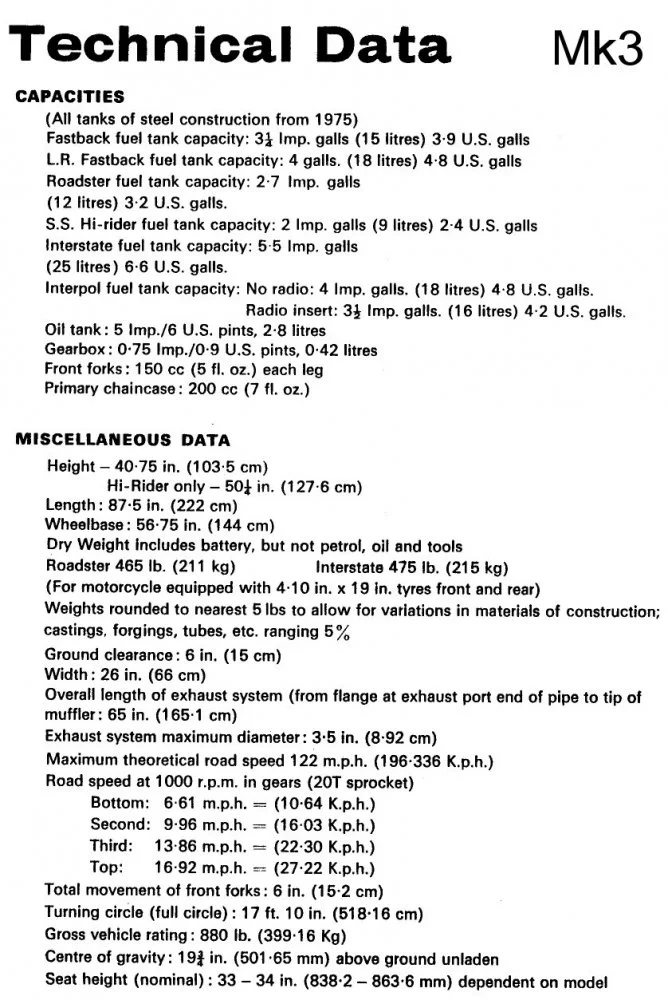

    First page of tech data Mk3


  13. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    The old Haynes called for 10w30 which is what I've always used, and yep, I stick with the 5 oz(150cc) stated therein. Right or wrong it works, unless the an unusually large pothole makes it past my 66 yr. old vision. The clunk only comes on the rebound unless I raise my big ass up off the saddle as an aide to diminish it.

  14. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Specific motorcycle fork oils still didn't exist at that time, or, if they did then they were not widely available so the usual recommendation was for either ATF/TQF or engine oil of some description and that didn't just apply to British bikes.

    Pre-Mk3 and Mk3 manual, Section G8: "150 cc of SAE 20".

    nortriubuell likes this.
  15. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    :)

    Very few people outside the USA will have any idea (of) what a (US fluid) ounce is!
    Even those of us who grew up with Imperial measures wouldn't normally use (Imperial or US) fluid ounces.

    "Quart" (US or Imp.) is another that's not generally used outside the USA.

    Last edited: Jun 10, 2019
  16. eskasteve

    eskasteve VIP MEMBER

    Joined:
    Sep 24, 2012
    Maybe that's why Poke used a universally available Coca-Cola bottle measuring tool. That man was ahead of his time.

    L.A.B. likes this.
  17. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    Well you folks send me running to Webster or Google whenever I see 'stone'. It's kind of like us trying to count English money...No one could understand it but the English, or we had absolutely no exposure to it. I believe the latter to be true.
    I read a lot and when younger could not fathom why the penny carried such high value until learning years later English pennies were sterling.

  18. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004


    No doubt you understand how many inches to the foot(12) or yard(36), feet in a yard(3) ounces in a pound(16) etc. etc. but somehow 12 pennies = 1 shilling and 20 shillings = £1 is apparently unfathomable? ;)

    However, we've had decimal currency in the UK since 1971. :)


    Now you've lost me.

    Edit:
    It seems pennies in common circulation were silver until 1707 but I don't go that far back.

    https://en.wikipedia.org/wiki/Penny_(English_coin)
    The English penny (plural "pence"), originally a coin of 1.3 to 1.5 grams (0.042 to 0.048 troy ounces; 0.046 to 0.053 ounces) pure silver, was introduced around the year 785 by King Offa of Mercia. These coins were similar in size and weight to the continental deniers of the period and to the Anglo-Saxon sceats which had preceded it.

    Throughout the period of the Kingdom of England, from its beginnings in the 9th century, the penny was produced in silver. Pennies of the same nominal value, one 240th of a pound sterling, were in circulation continuously until the creation of the Kingdom of Great Britain in 1707

    Last edited: Jun 10, 2019
  19. olympus

    olympus

    Joined:
    Aug 5, 2017
    Don't forget the dear old Guinea = 21 shillings

  20. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    I've always loved the older authors...Crowns, half crowns, farthings, etc. were confusing. This far south and you can figure the rest. Perhaps in a decade I meet a new Englander.
    A prayer from you folks in the Isles for a transplanted English friend of mine would be nice. Failing health & approaching eighty, and still fighting through. I know off topic but he's good people.
