Fluids

Discussion in 'Norton Commando Motorcycles (Classic)' started by Jcwilliams, Aug 22, 2019.

  1. Jcwilliams

    Jcwilliams

    Joined:
    May 20, 2019
    About ready to start this Norton. I received from my grandpa and just looking to see what fluids everyone runs and how to check and where to put it.
    Manual I have shows 20w50 for motor oil and 50wt transmission oil for gear box.
    Thanks

  2. dero

    dero VIP MEMBER

    Joined:
    Jan 22, 2010
    That has worked well for me for a fair while now .

  3. maylar

    maylar VIP MEMBER

    Joined:
    May 13, 2007
    20W50 in the engine, 80-90 gear oil in the gearbox, ATF in the primary.

  4. Craig

    Craig VIP MEMBER

    Joined:
    Dec 20, 2005
    And a little bit liquid courage in your belly if it your first ride out on it , haha! ..... good luck and enjoy ,you a very lucky rider to have a Norton passed down to you !

  5. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    20w50, 80/90, 10w30.

  6. Craig

    Craig VIP MEMBER

    Joined:
    Dec 20, 2005
    I would vote the ATF type F in primary I like the colour which makes leak chasing easier , “knock on wood” no drips now in a few years ....

  7. alan hodge

    alan hodge VIP MEMBER

    Joined:
    Oct 10, 2017
    20/50 Vulvaleane motorsickel oil in oil tank ATF in primary Redline Heavy Shockproof in gearbox

    baz likes this.
  8. rvich

    rvich VIP MEMBER

    Joined:
    Jul 25, 2009
  9. acadian

    acadian VIP MEMBER

    Joined:
    Mar 5, 2010

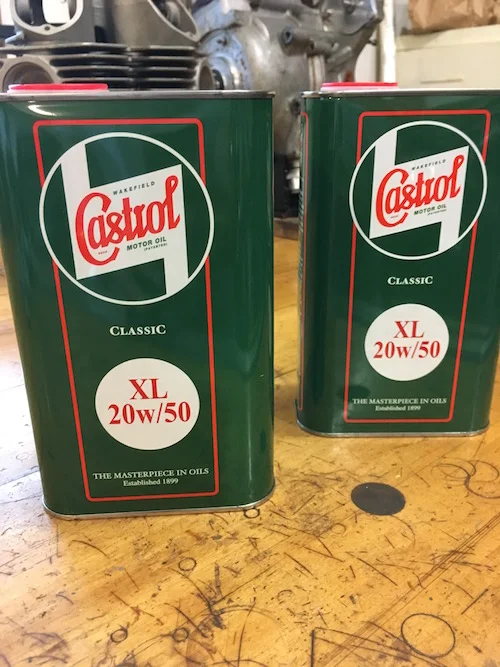

    Freshly delivered from Walridge, Mike started bringing this over from the UK partly because of Jim's oil tests, impossible to find in NA otherwise


  10. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    Now I'd use that if I could grab it without having to leap through flaming hoops in a circus. Alas we poor Americans have to suffer through lesser oils....My faithful road whore really deserves that stuff too for being so good to me...Treating me like pimp daddy all the time.

  11. acadian

    acadian VIP MEMBER

    Joined:
    Mar 5, 2010
    I believe Walridge ships to USA... no?

  12. Jcwilliams

    Jcwilliams

    Joined:
    May 20, 2019
    Ok so now I'm a lil lost. There's 3 spots to put lubrication? Lol

    Where are the drains and fills for these lubrications?

    My Norton has a oil tank so I assume that's where the engine oil goes....

    Thanks for info guys as I'm a noob to these bikes.

  13. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004

    This is the later (70-on) model workshop manual but it contains more detailed information than the early Commando manual.
    http://www.classicbike.biz/Norton/Repair/70up_Commando/70upCommando.pdf

  14. rvich

    rvich VIP MEMBER

    Joined:
    Jul 25, 2009
    Oil for the engine goes in the oil tank. Oil for the transmission/gearbox goes in via the round inspection port on the right side above the kickstart lever. The gearbox oil level plug is just behind the kickstart lever. It should be removed and oil added until it starts to drip out of the level plug hole. The primary transmission is the large case on the left side that houses the drive chain that connects the engine output gear to the transmission. It gets filled through a large inspection hole near the top of the case and also has an oil level plug low on the case below the foot peg, not to be confused with the center fixing bolt which is pretty much in the center.

    And then there is oil in the front forks, so that is four. And then there is the swingarm pivot, which is number five, but I'm not going into that here!

  15. rvich

    rvich VIP MEMBER

    Joined:
    Jul 25, 2009
    PS - if the bike is wet sumped (i.e. the oil has drained from the tank into the crank case) then it needs to be drained before adding more.

    Yakatak likes this.
  16. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
