Float bowl drain bolt that also grips the jet holder..

o0norton0o

o0norton0o

VIP MEMBER
Joined
Apr 27, 2015
Messages
1,940
Country flag
I don't know if anyone knows the guy, Owen Greenfield, who used to post here. He always wrote "ta" after his posts which I assume was short for ta ta (goodbye) I think some people here disagreed with him on some things and he erased all his posts....

Anyway, he had this fuel line system that he sold which were these "push connectors" which assembled and disassembled really quickly with a spring loaded O ring type fitting. They were pretty cool. I saw him demo the system at the elma norton rally.

He also sold a modified amal carb float bowl drain bolt which threaded onto the jet holder to hold the bowl in place securely and replaced the need for the screws on the side of the bowl which bolt the float bowl to the underside of the carb. I was looking in my parts bin and thinking of making the same modification. I know he had a youtube channel called "Needing Power?" which seems to be gone now.

Does anyone have his drain bolt/bowl fastener system on their amals?

I wonder if he still sells them. Does anyone here know this guy?

thanks in advance

o0norton0o said:
I don't know if anyone knows the guy, Owen Greenfield, who used to post here. He always wrote "ta" after his posts which I assume was short for ta ta (goodbye) I think some people here disagreed with him on some things and he erased all his posts....

Anyway, he had this fuel line system that he sold which were these "push connectors" which assembled and disassembled really quickly with a spring loaded O ring type fitting. They were pretty cool. I saw him demo the system at the elma norton rally.

He also sold a modified amal carb float bowl drain bolt which threaded onto the jet holder to hold the bowl in place securely and replaced the need for the screws on the side of the bowl which bolt the float bowl to the underside of the carb. I was looking in my parts bin and thinking of making the same modification. I know he had a youtube channel called "Needing Power?" which seems to be gone now.

Does anyone have his drain bolt/bowl fastener system on their amals?

I wonder if he still sells them. Does anyone here know this guy?

thanks in advance
Click to expand...
those are called dry-break fittings.
Used on many modern bikes

www.jpcycles.com

Motion Pro Fuel System Quick Disconnect Coupling | JPCycles.com

The Motion Pro Quick Disconnect Coupling makes fast work of removing your gas tank with no more fighting with hose clamps.
www.jpcycles.com www.jpcycles.com

Thanks for the info guys...

Concours, I wasn't all that much interested in the fittings. I looked at the link you posted and his were different, and way nicer, not that it matters because I'm not looking for that product anyhow.

I do think fastening the float bowl from drain hole bolt pressure is better than by the ears on the float bowl, having bent my share of float bowl ears...

o0norton0o said:
Thanks for the info guys...

Concours, I wasn't all that much interested in the fittings. I do think fastening the float bowl from drain hole pressure is better than by the ears on the float bowl, having bent my share of float bowl ears...
Click to expand...
I understand.


I figured I'd offer that to those interested.


As for the multi-use drain plug/bowl retainer, I have nothing. Other than, if it was a big improvement, it would be available. JMWO


Cheers, and good luck with the search.

You know how it is.... There are always people who say, "There's nothing wrong with the original design." and that's cool. This was a nice modification. I have extra amals, so I was looking to steal his design or more simply buy a pair of his modified drain bowl nut hardware kits and save myself the trouble of going through the design and fabricate process. (again....) I spent more money on my damper modification project than it would have cost to just buy the Cosentino dampers which mine are similar to...

In the case of his float bowl fastening modification, I don't even know what he did to make it work, so I don't have a design to copy....

The guy came all the way from Aussie to our Norton gathering in Elma Washington and gave a tech session on his modified parts. I don't think too many were interested, and at the time neither was I but I did like the drain bolt modification. I have some time and a lathe, and some extra amal carbs so I was thinking about doing the mod.... or just buying the parts

o0norton0o said:
You know how it is.... There are always people who say, "There's nothing wrong with the original design." and that's cool. This was a nice modification. I have extra amals, so I was looking to steal his design or more simply buy a pair of his modified drain bowl nut hardware kits and save myself the trouble of going through the design and fabricate process. (again....) I spent more money on my damper modification project than it would have cost to just buy the Cosentino dampers which mine are similar to...

In the case of his float bowl fastening modification, I don't even know what he did to make it work, so I don't have a design to copy....

The guy came all the way from Aussie to our Norton gathering in Elma Washington and gave a tech session on his modified parts. I don't think too many were interested, and at the time neither was I but I did like the drain bolt modification. I have some time and a lathe, and some extra amal carbs so I was thinking about doing the mod.... or just buying the parts
Click to expand...
Not retired yet, so full tilt bozo time management.

Lots of time to make trinkets not in my schedule yet

Acadian ( This forum ) , made up some special screw bolts for his brit bikes to use central pressure via central drain plug / jet assembly retention , instead of the feeble bowl side tabs . He still runs the bowl side tab posidrive screws for visuals and a final retention .

Torontonian said:
Acadian ( This forum ) , made up some special screw bolts for his brit bikes to use central pressure via central drain plug / jet assembly retention , instead of the feeble bowl side tabs . He still runs the bowl side tab posidrive screws for visuals and a final retention .
Click to expand...
awesome, thank you so much. I'm not surprised because he's a talented ebeniste' I'll message him directly 🤣

o0norton0o said:
awesome, thank you so much. I'm not surprised because he's a talented ebeniste' I'll message him directly 🤣
Click to expand...
Any time . I'm about to give him a new gearbox for his new racebike build . In exchange for his labour to remove my old engine and gearbox for a newly prepared motor ( J.S. rods , pistons ) and CNW hydraulic clutch ( gearbox build ) exchange and drop into place , once the driving season is over in Nov. Off north tomorrow , on new Avon Roadriders MK 11 , to Manitoulin Isl. to fish and hang with first nations .

Wowza! lightening the pistons has to be right up there with some of the smartest things you can do to a parallel twin. I always wanted to ride a bike with lightened pistons to see how noticeable the difference is... I'm jealous. That's not in the budget for me these days...

Torontonian said:
Acadian ( This forum ) , made up some special screw bolts for his brit bikes to use central pressure via central drain plug / jet assembly retention , instead of the feeble bowl side tabs . He still runs the bowl side tab posidrive screws for visuals and a final retention .
Click to expand...
Del'Orto carbs also use the center drain plug system very successfully, but they use an O-ring to seal, and have a lip to locate and orientate the drain bowl. Amals lack both, so it's a bit more difficult to do successfully. I would also be interested in seeing a solution, but mostly out of curiosity rather than a need to use it.

I remember Owen from the INOALIST. Thought he was a great innovator for all things Commando and really enjoyed his articles.

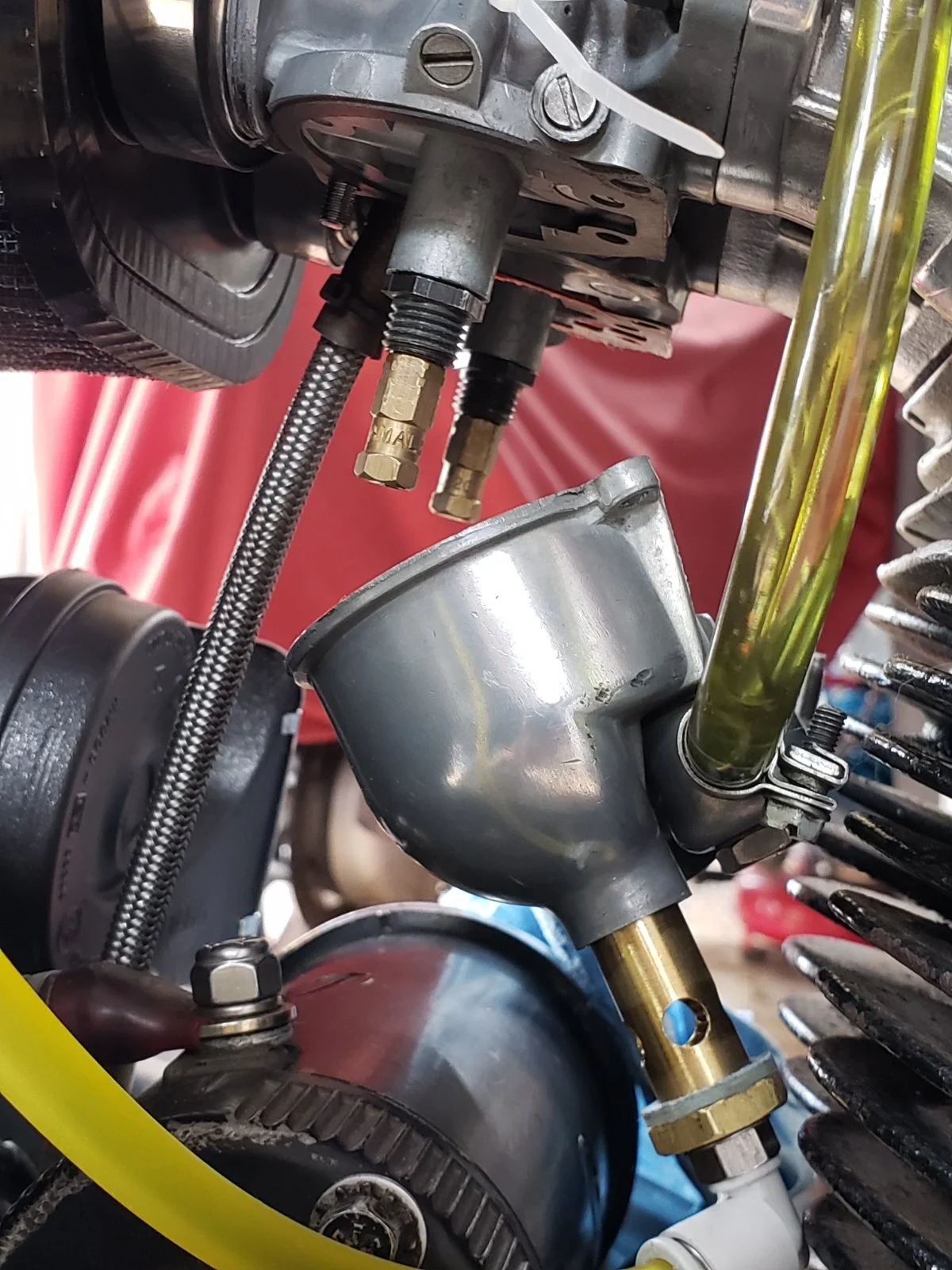

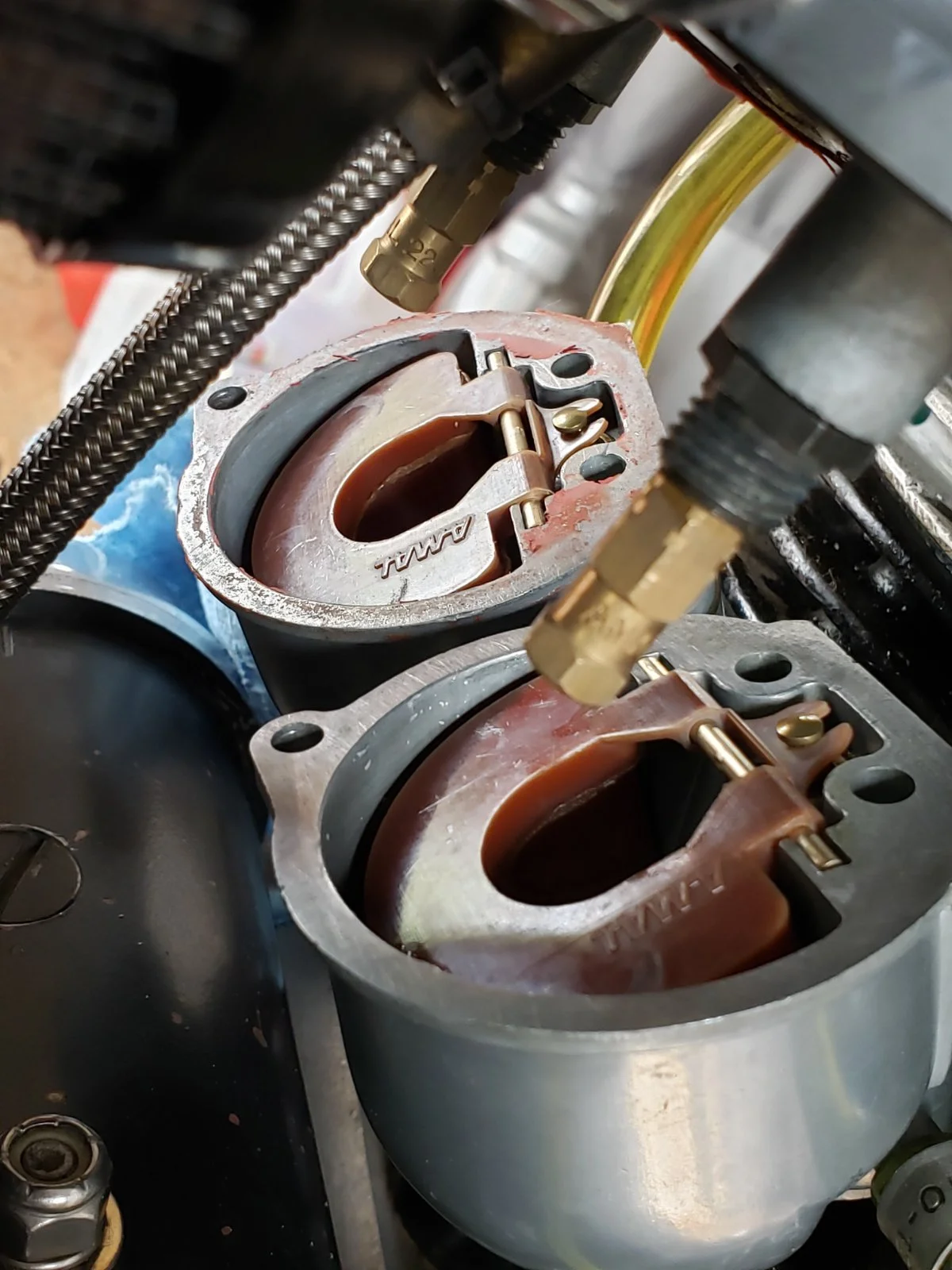

Is it these ?
Float bowl drain bolt that also grips the jet holder..
Float bowl drain bolt that also grips the jet holder..

speirmoor said:
I remember Owen from the INOALIST. Thought he was a great innovator for all things Commando and really enjoyed his articles.
Is it these ?
View attachment 115825View attachment 115824
Click to expand...


Yes, that's the idea. I'm not sure why he puts a fuel line on the bottom drain bolt because then how would the float shut off the flow of fuel if it doesn't flow past the float needle. Anyway, Acadian is hooking me up so I'll get to analyze the whole thing and come up with my own version... Thank you everyone.... 👍

o0norton0o said:
Yes, that's the idea. I'm not sure why he puts a fuel line on the bottom drain bolt because then how would the float shut off the flow of fuel if it doesn't flow past the float needle. Anyway, Acadian is hooking me up so I'll get to analyze the whole thing and come up with my own version... Thank you everyone.... 👍
Click to expand...
fuel line is on original inlet banjo fitting.
The white 90 ell appears to be a remote bowl drain. Used on Polaris sleds for years to combat water/impurity from being sucked into main. Or, he was using it for float height checking.

Last edited:
concours said:
fuel line is on original inlet banjo fitting.
The white 90 ell appears to be a remote bowl drain. Used on Polaris sleds for years to combat water/impurity be sucked into main. Or, he was using it for float height checking.
Click to expand...
That's the only way it would make sense to me... good to have a gut check... thanks

I recall these mods being offered on his ebay store. Also interested in his carb needle holder which permitted needle clip position changes without needing to remove throttle slider...just the bowl.was "under development" last i saw it.
