I have been resisting posting about this for a while because it seems kind of silly. My fastback came with some ghetto rigged aluminum stock holding the mufflers up. I got the correct brackets, but am having a hard time figuring how they fit. The way i think they should fit, they're too high and block the kickstarter. If anyone has close up pics of the left and right side (different brackets) i would be grateful. All the pics ive googled are too grainy to get any real detail.

a bit blurry but hopefully these help. The mount attaches to inside of the Z plate. When i bought this bike the previous owner had it set on the outside of the Z plate causing the kickstart lever to hit the exhaust pipe.


Attachments

that definitely helps thanks. I cant quite make it out exactly, but i think i can figure it out from there.

The flat plate bolts to the inside of the Z plate with the two rubber mounts on the inner face of the plate.

The hooked bracket then mounts to the rubbers so it is also attached inboard of the flat plate but with the hooked section extending around the front of the flat plate so the mounting holes for the silencer/muffler are outboard of the flat plate.

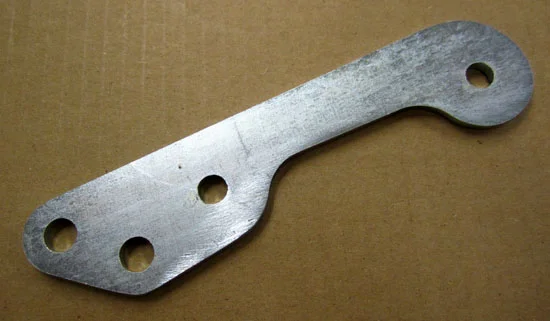

ok a bit late and its seems you have it sorted but here ya go
early fastback exhaust brackets

early fastback exhaust brackets

cheers
