Dzus fastener
- Thread starter jseng1
- Start date
jamesp
VIP MEMBER
- Joined
- Aug 17, 2011
- Messages
- 466
If you mean on the indent on the left cover, I believe it was only the Mk2a and the Mk III.
- Joined
- Nov 20, 2004
- Messages
- 20,313
Mk1A and Mk2A, not MK3 Roadster.
The Mk3 Interstate panel had the indent but not the Dzus.
Last edited:
- Joined
- Jun 28, 2009
- Messages
- 2,176
'69 & '70 'S' & Roadster with the ham can oil tank had a captive metal Dzus fastener (06-2489) attached to the frame with a circlip, holding the RH panel via a bracket riveted on the front of the panel.
From '71 this moved to the LHS with the introduction of the RHS oil tank, and remained until the 'A' model 850 & MkIII, as already covered by LAB.
The early Fastback used a plastic Rotolock screw for the LH panel, which was similar-ish to the half-turn plastic screw (06-6435) on the 'A' and Mk 3 models, which is described as a 'fastener' in the parts book, and strictly speaking not a Dzus fastener.
From '71 this moved to the LHS with the introduction of the RHS oil tank, and remained until the 'A' model 850 & MkIII, as already covered by LAB.
The early Fastback used a plastic Rotolock screw for the LH panel, which was similar-ish to the half-turn plastic screw (06-6435) on the 'A' and Mk 3 models, which is described as a 'fastener' in the parts book, and strictly speaking not a Dzus fastener.
Last edited:
- Joined
- Nov 20, 2004
- Messages
- 20,313
The correct Mk3 Dzus parts are 06.6307* and 06.6435 not 06.2489 which was not used on the Mk3 and that's why you can't find it.
If you have a side panel with that type of fastener then it's not original (presumably because the original black plastic airbox has been removed as the Dzus bracket is attached to the airbox?).
*(Andover Norton shows the correct receptacle but the part number is 06.4066 according to the Mk3 parts book, 06.6307 is the Mk1A/2A type but it could be the parts book number that's wrong).
Last edited:
The yaki
VIP MEMBER
- Joined
- Feb 7, 2020
- Messages
- 154

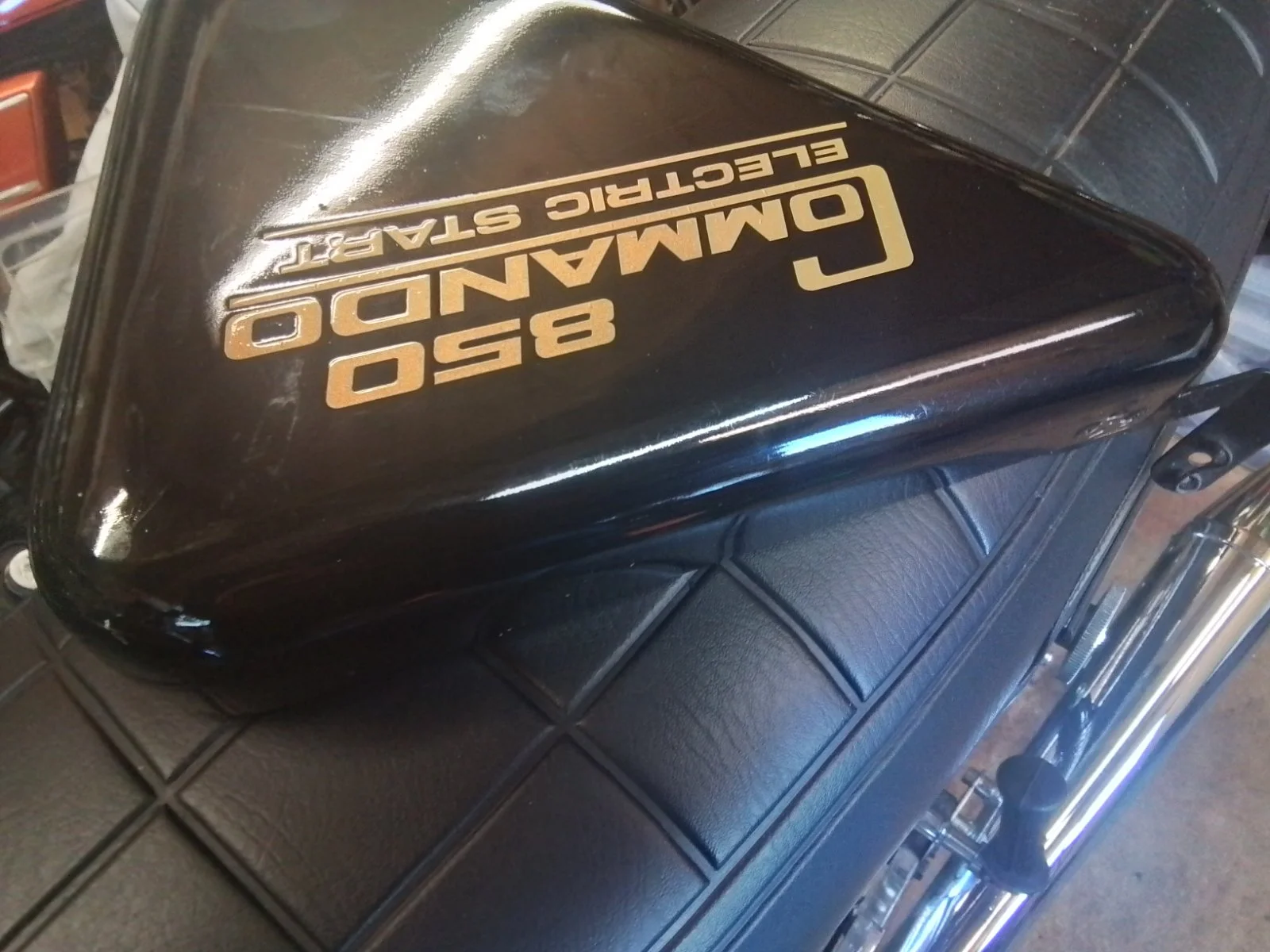

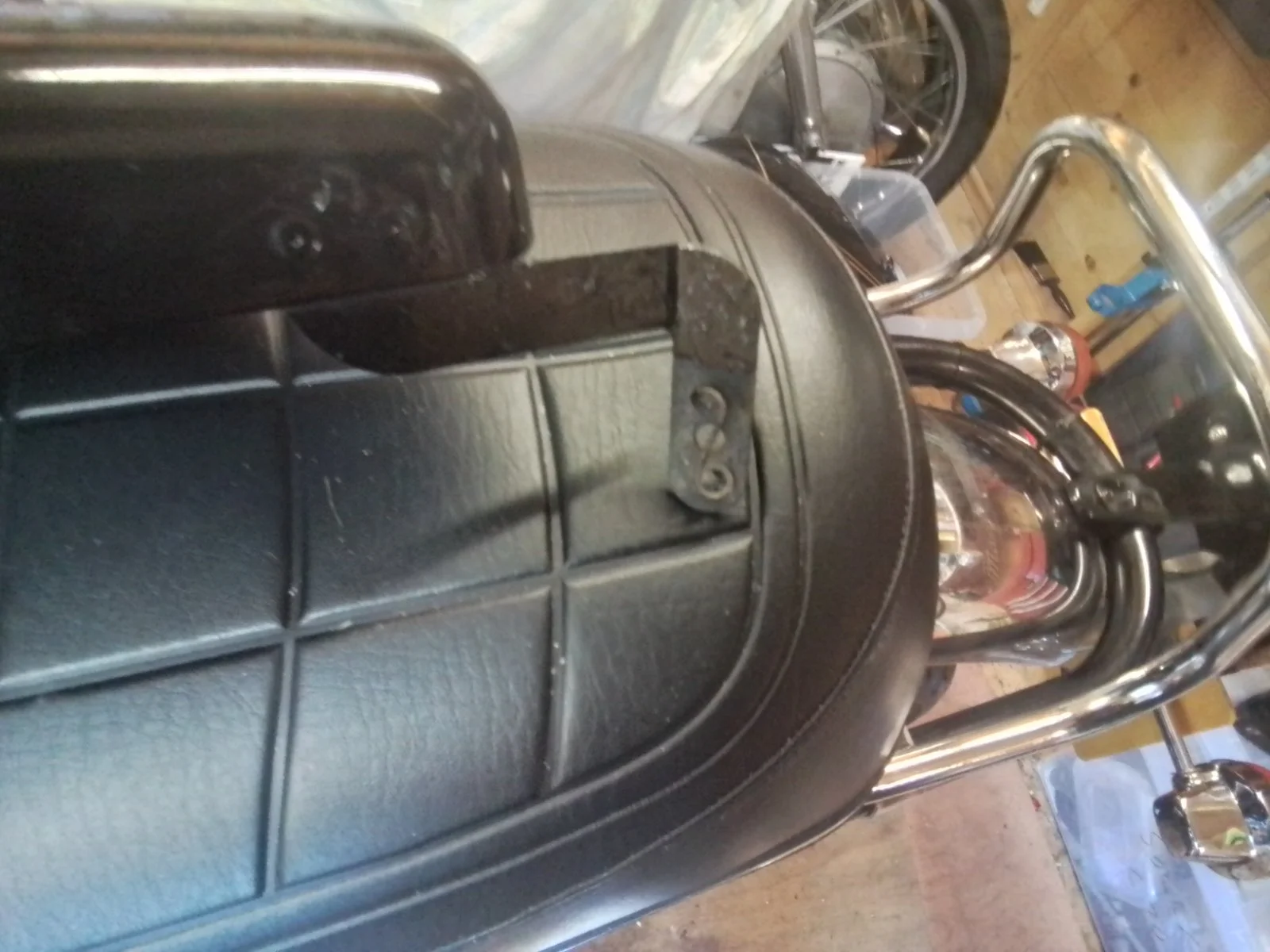

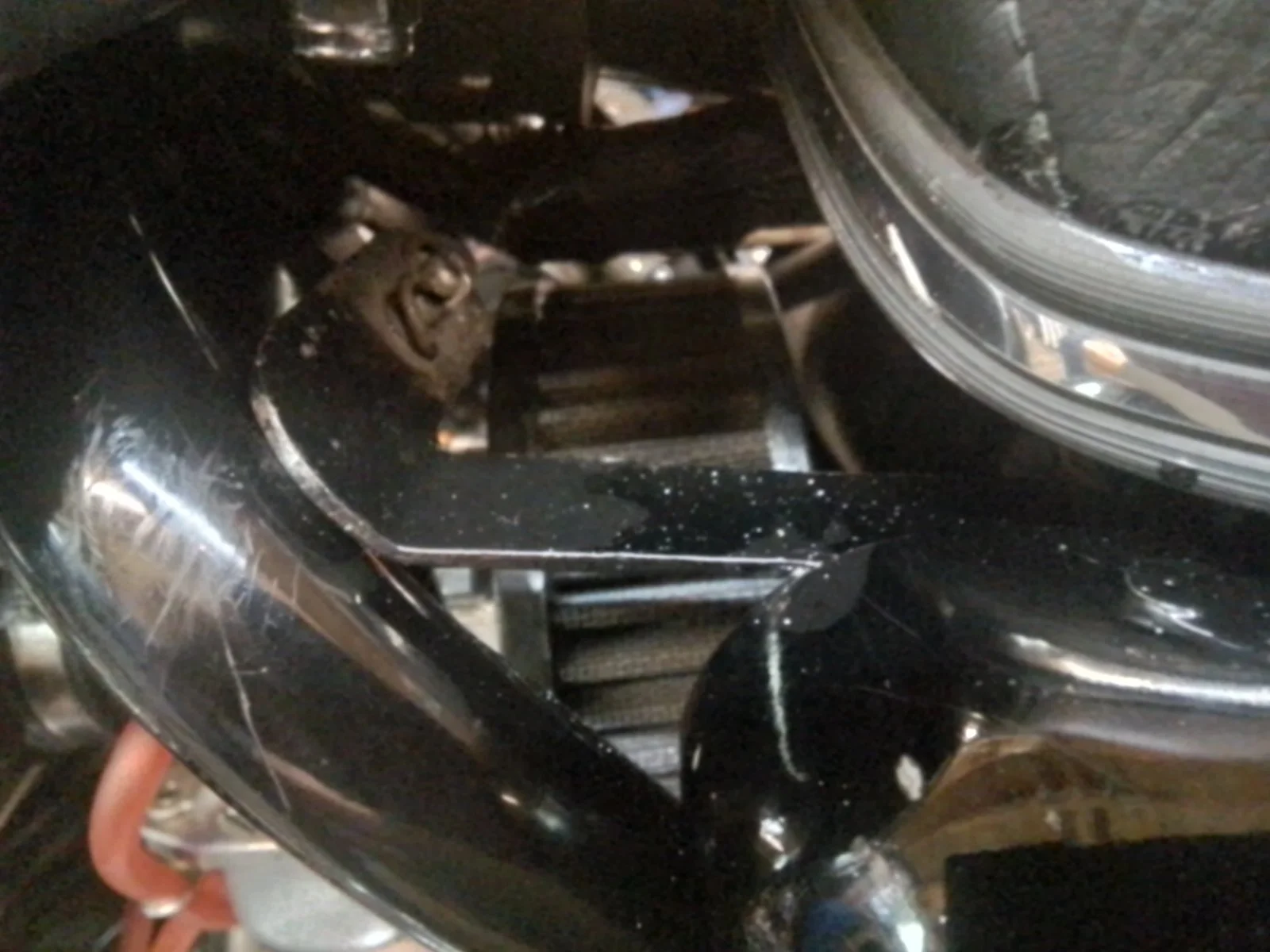

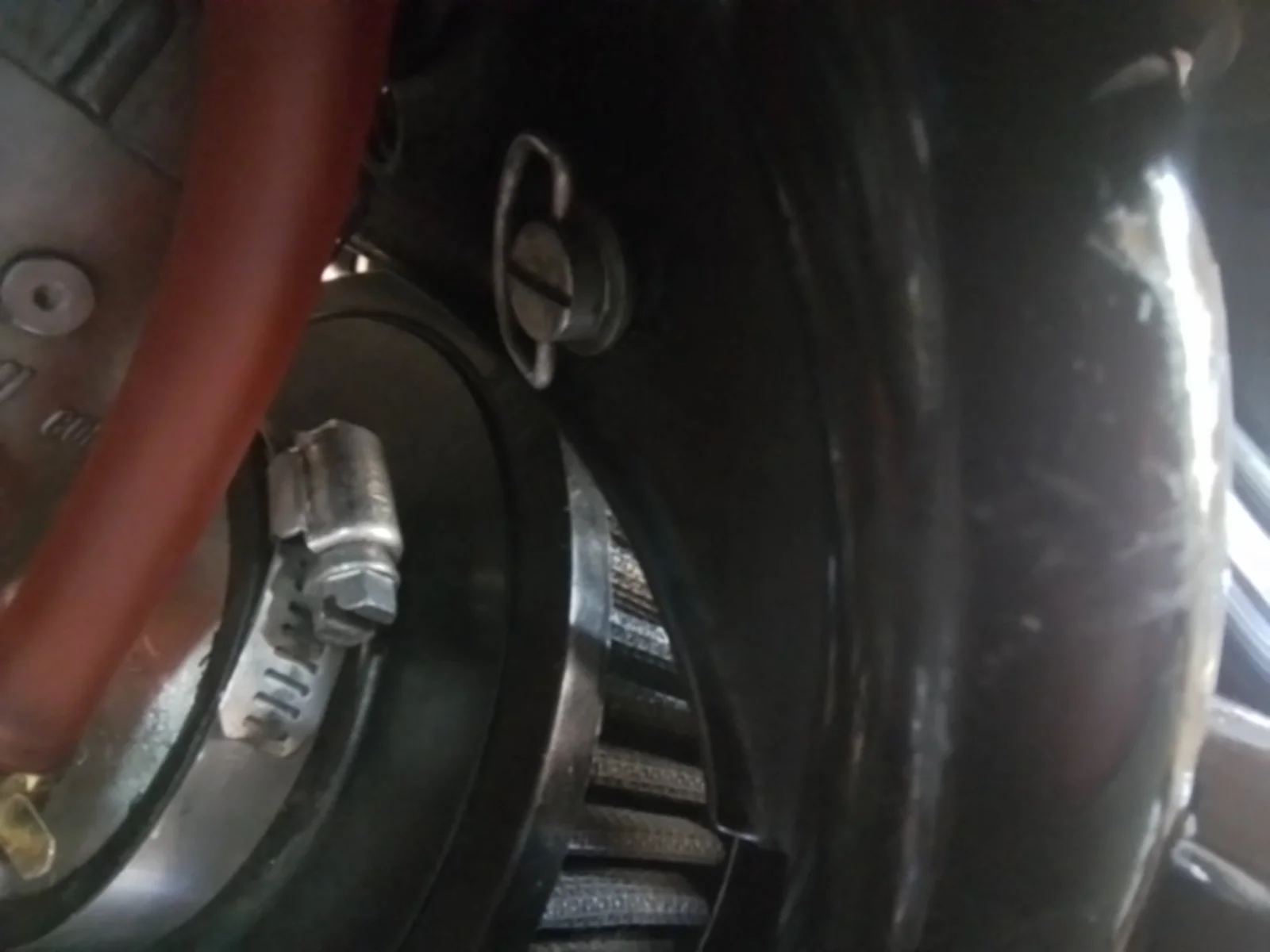

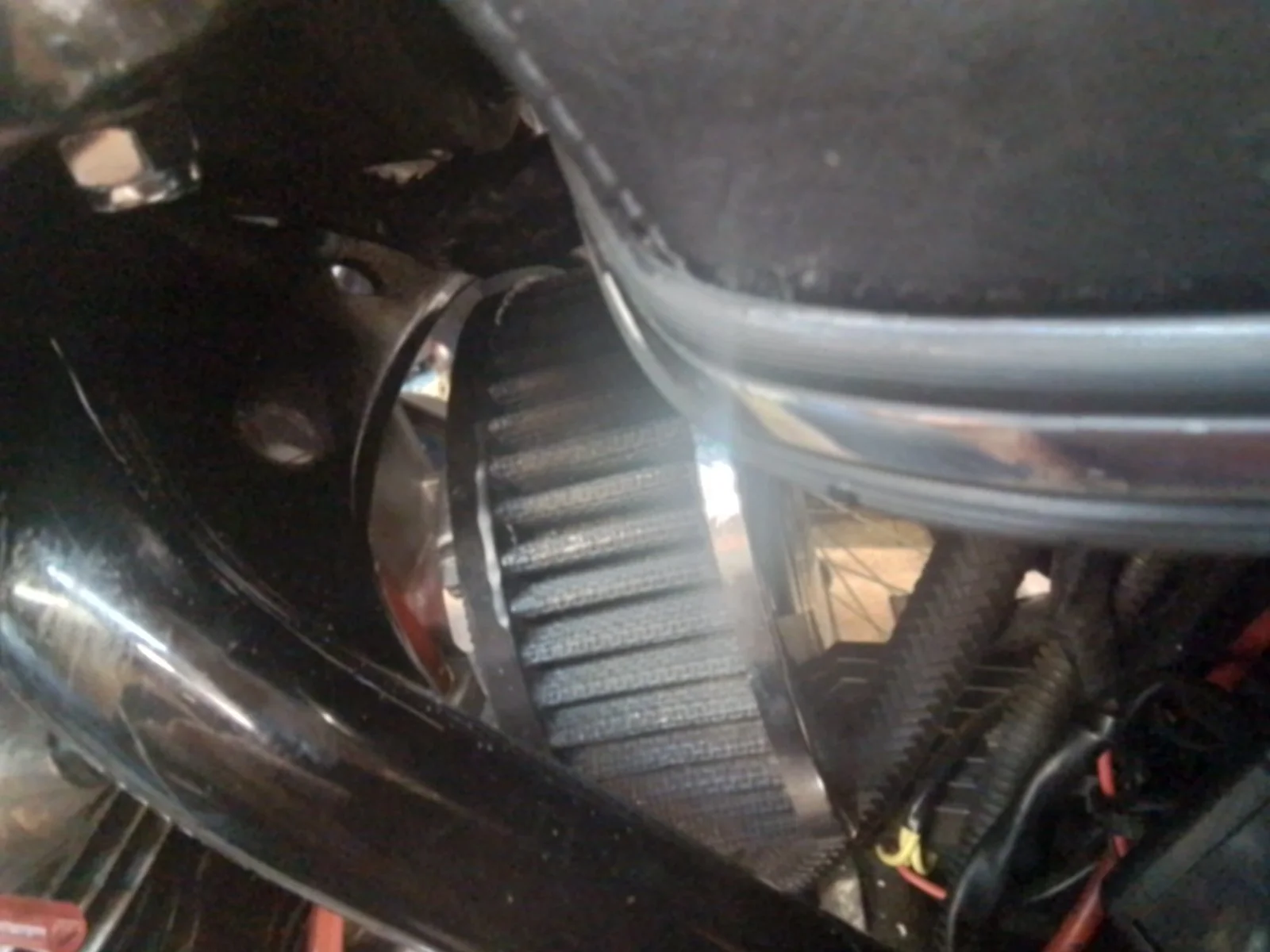

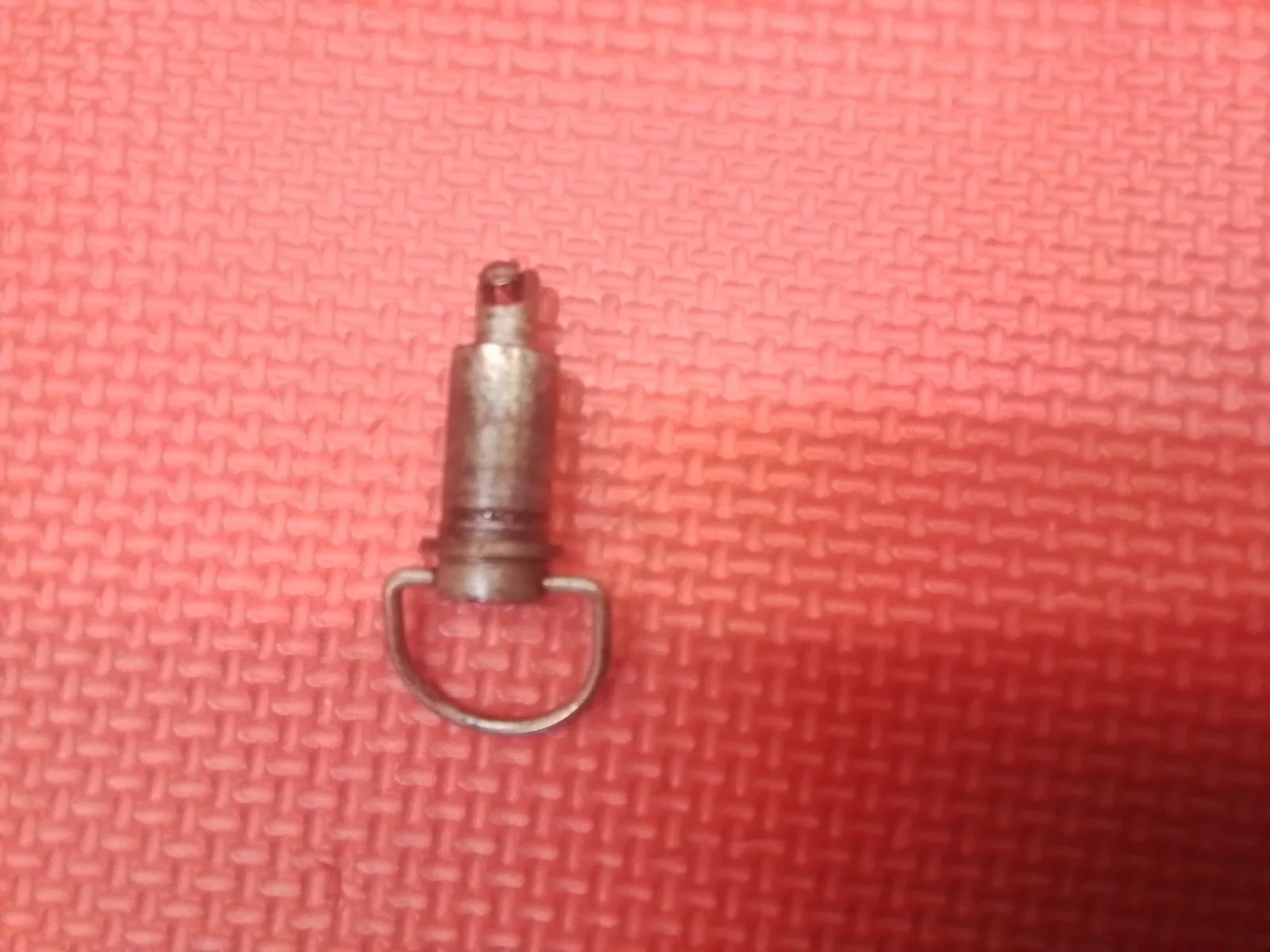

Someone has done a precise job on this one. Seems then that the fastener on mine is from a 70 roadster ? Fooled me as it all looks factory designed and manufactured. Is this bracket off another commando ? Roy.
Attachments
- Joined
- Nov 20, 2004
- Messages
- 20,313
That fastener lasted until the 850 Mk2. The bracket is available now as a separate part.
Andover Norton - FRONT BRACKET FOR GRP LEFT SIDE COVER (ROADSTER) - 06.1688
FRONT BRACKET FOR GRP LEFT SIDE COVER (ROADSTER)
andover-norton.co.uk
I can't tell from the pictures if it's a modified Mk3 panel or an earlier panel. An original Mk3 panel would have one hole in the top (for the Dzus), one at the rear (for the pin) and a lug at the bottom for the rubber grommet (same as the oil tank panel).
The yaki
VIP MEMBER
- Joined
- Feb 7, 2020
- Messages
- 154
- Joined
- Nov 20, 2004
- Messages
- 20,313

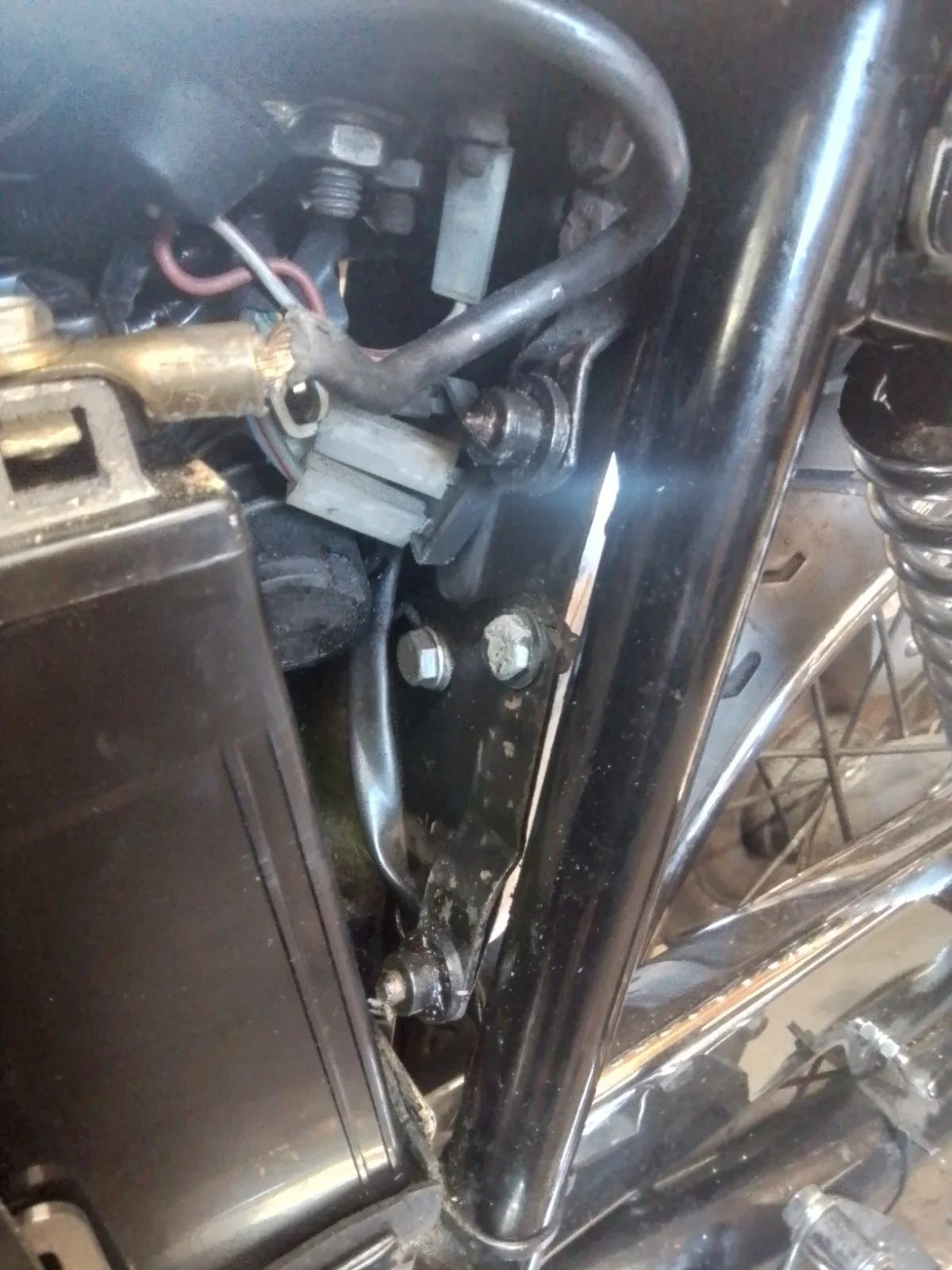

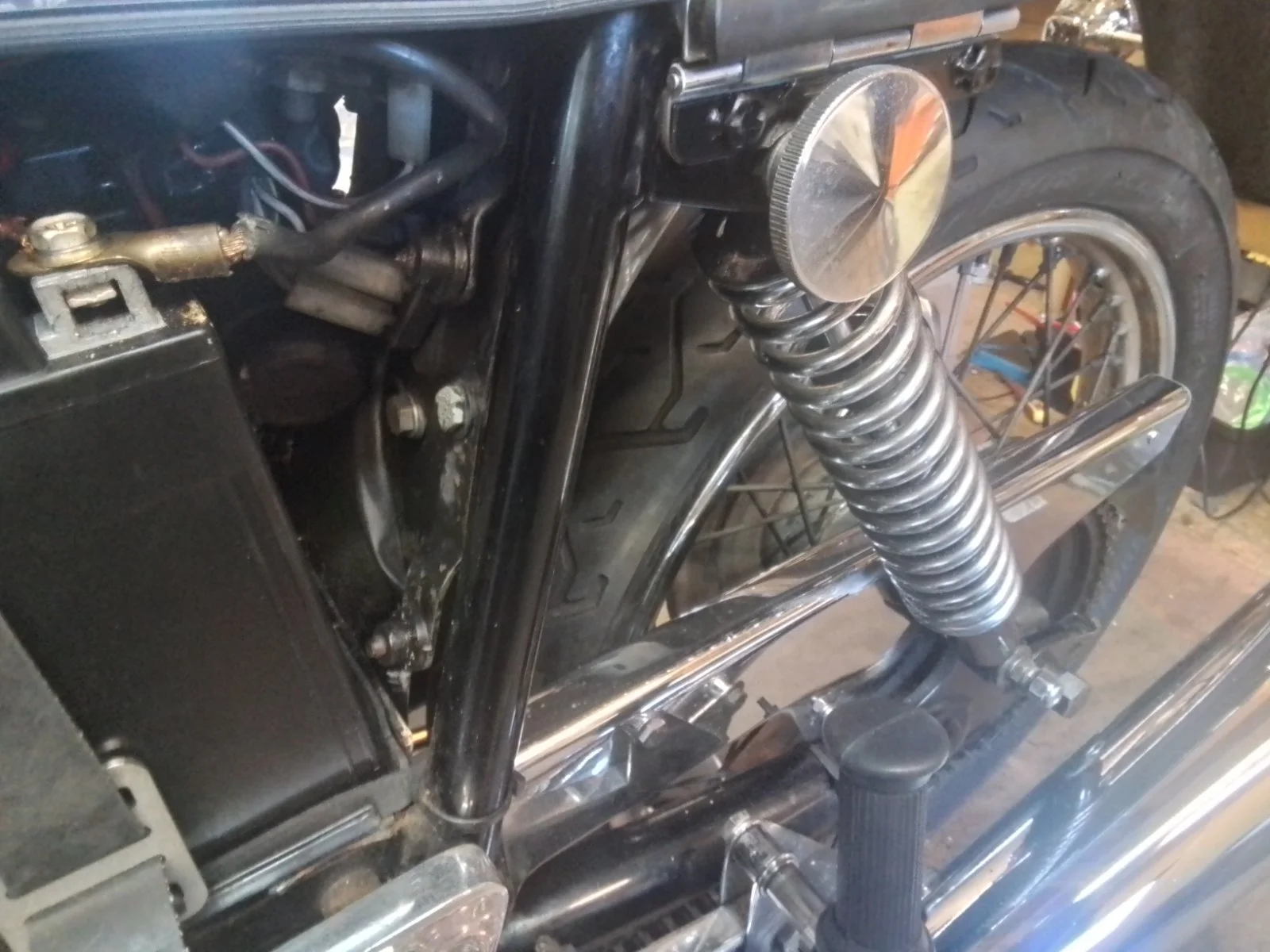

In that case it would have two support bracket holes and grommets at the rear (as your later picture shows two brackets). The Mk3 panel only has one.
Last edited:
robs ss
VIP MEMBER
- Joined
- Aug 16, 2016
- Messages
- 3,495
Not sure if your'e aware, but the rubbers on the spikes in your photos should be inserted into the rear of the side cover. That is how it is located.
I have found a little lubricant on the spikes makes it easier the install/remove the side cover.
- Joined
- Nov 20, 2004
- Messages
- 20,313
No, the head of the grommet should still be on the outside of the panel but note that the grommets are the type for fibreglass panels.
Metal panels use a different grommet.
The yaki
VIP MEMBER
- Joined
- Feb 7, 2020
- Messages
- 154
It's the fibreglass grommets and panels that I have. See what difference it would make. Mine seems right for its fitment however It's not the correct side cover or fitment. Ps, It had twin amals whenI got it. I just took out the airbox etc. Sidepanel is as was. Factory using up leftovers ? It's been known. Roy. It fits and looks perfectly.
- Joined
- Nov 20, 2004
- Messages
- 20,313
No, I don't think so. It is more likely to have been a previous owner's modification.
Look for the bracket or rivet holes in the old airbox if you still have it.
Last edited:
The yaki
VIP MEMBER
- Joined
- Feb 7, 2020
- Messages
- 154
Is it a steel panel you have? Roy.
