Ducati filter

Discussion in 'Norton Commando Motorcycles (Classic)' started by swooshdave, Feb 9, 2019.

  1. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    I mentioned it a while ago that oil filters are readily available from places like NAPA.

    The old part number from NAPA was something like PS7013. It's a chrome filter so it looks quite presentable.

    The Wix cross reference number (Wix makes the filter for NAPA) is 557013.

    This fits a ton of Ducatis including most if not all of the Monster line. PartApplications.aspx

    And easily ordered on Amazon. Prime even...

    https://www.amazon.com/gp/product/B0014BHVZ6/ref=ppx_yo_dt_b_asin_title_o00__o00_s00?ie=UTF8&psc=1

    It set me back a crushing $10.52 and of course, free delivery!

    I'm having a time getting my old filter off, the chrome is slippery. I broke my HF strap wrench but that didn't surprise me. I used that strap wrench a bit over the years.

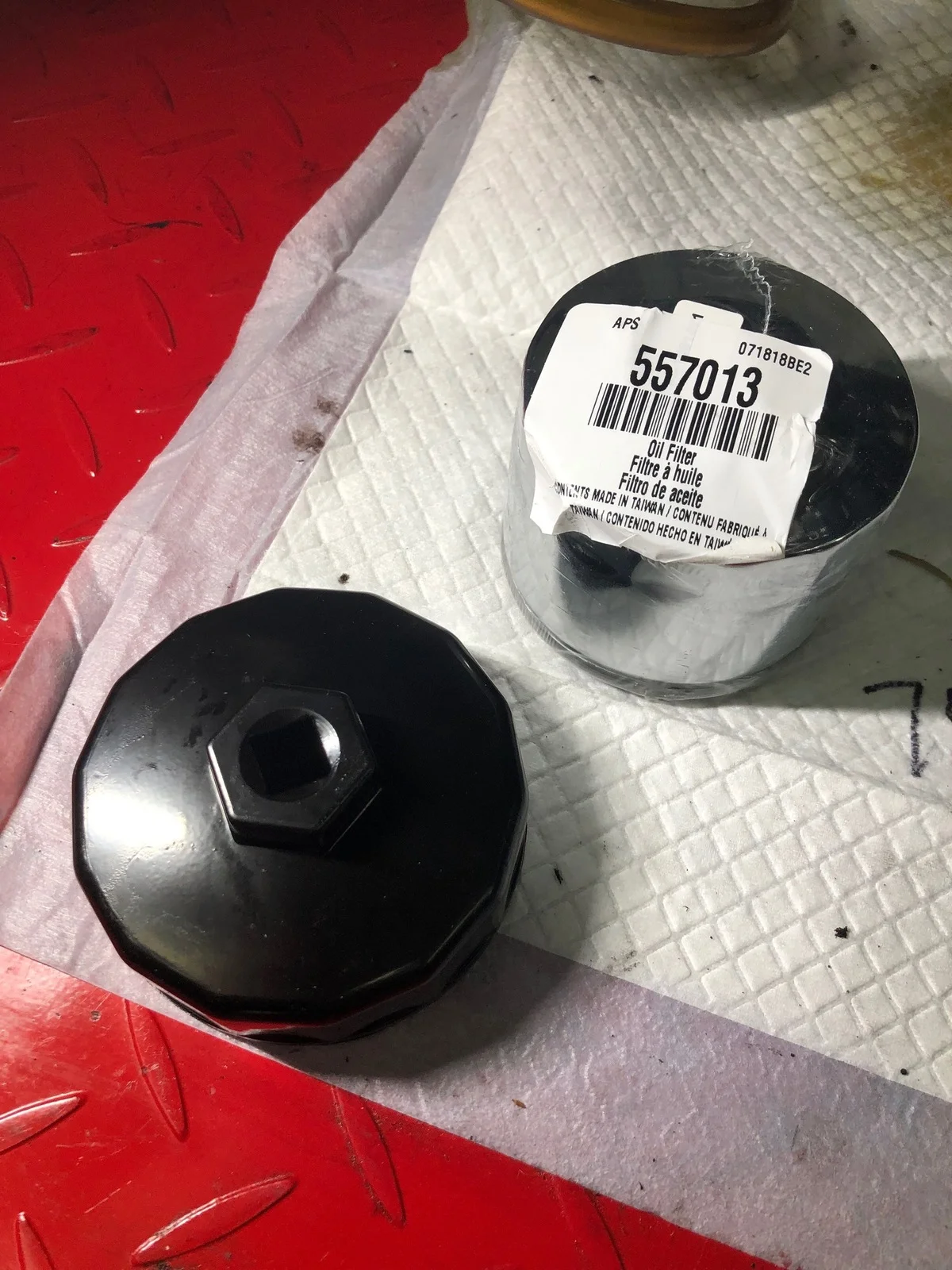

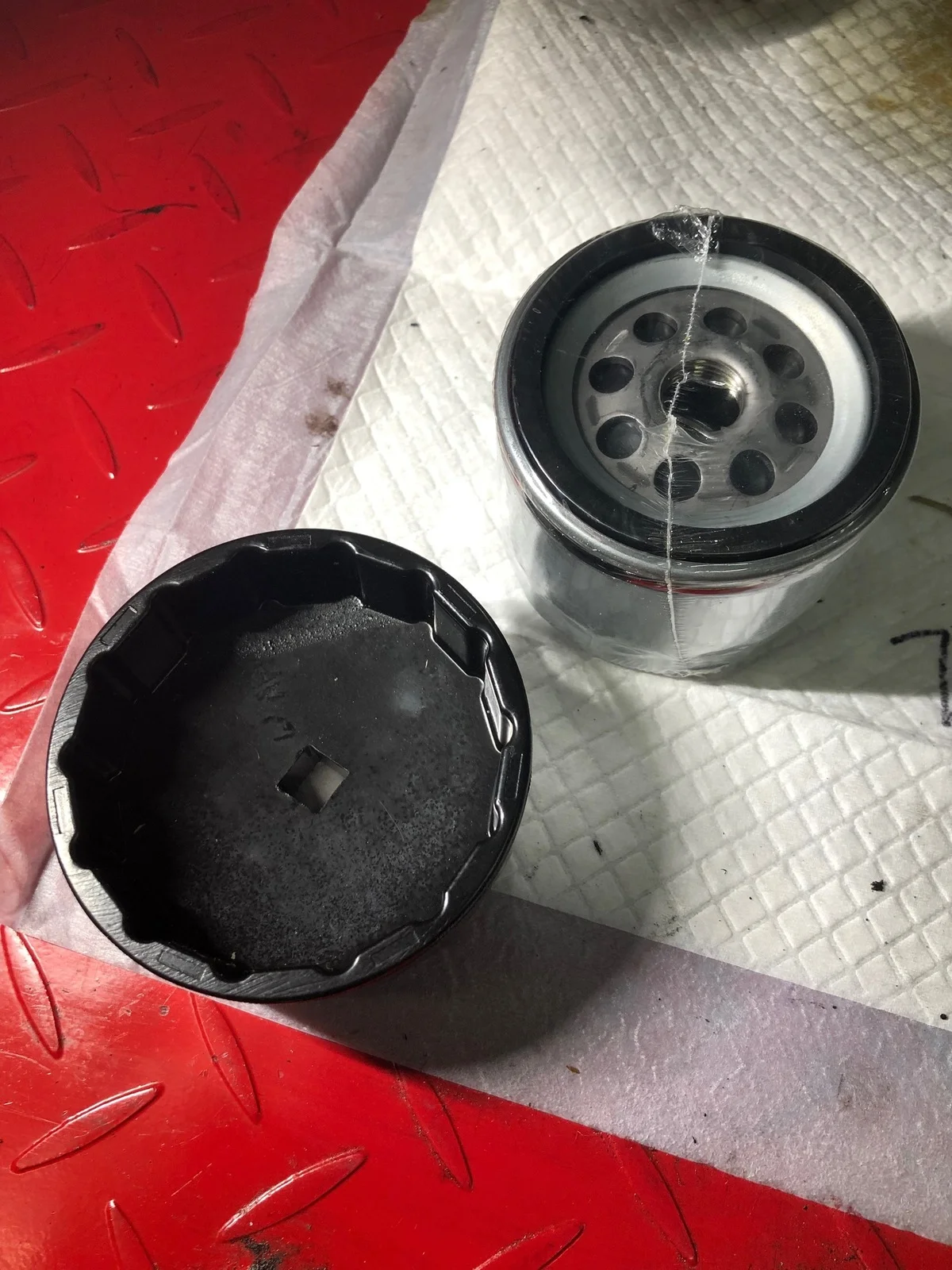

    These days I way prefer a filter socket.

    [​IMG]

    [​IMG]

    I don't anticipate any issues now...

    The socket also fits a ton of German and other cars so there's a chance you could use it there too!

    https://www.amazon.com/gp/product/B07BHJ12GY/ref=ppx_yo_dt_b_asin_title_o00__o00_s00?ie=UTF8&psc=1

    At $9.99 it was also a deal. There are different sockets out there, some are thicker so be aware there may be clearance issues with the swingers. Right now with the engine out the cradle and swingarm are at unusual angles.

    I ordered these parts late last night and they showed up today. I thought it was a mistake! A happy one!

    Last edited: Feb 9, 2019
  2. Brooking 850

    Brooking 850 VIP MEMBER

    Joined:
    Oct 3, 2011
    I dropped the oil filter mount housing by 1/4" by slotting the holes in the cradle on my Roadster to allow more room between the swingarm crossmember and the filter. Then you can get a good grip with a filter strap as well.
    Regards Mike

  3. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Andover Norton sell filters that fit Norton’s quite well too! ;)

    But seriously, what’s the advantage to the Ducati after market filter over the ‘correct’ one ?

  4. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013

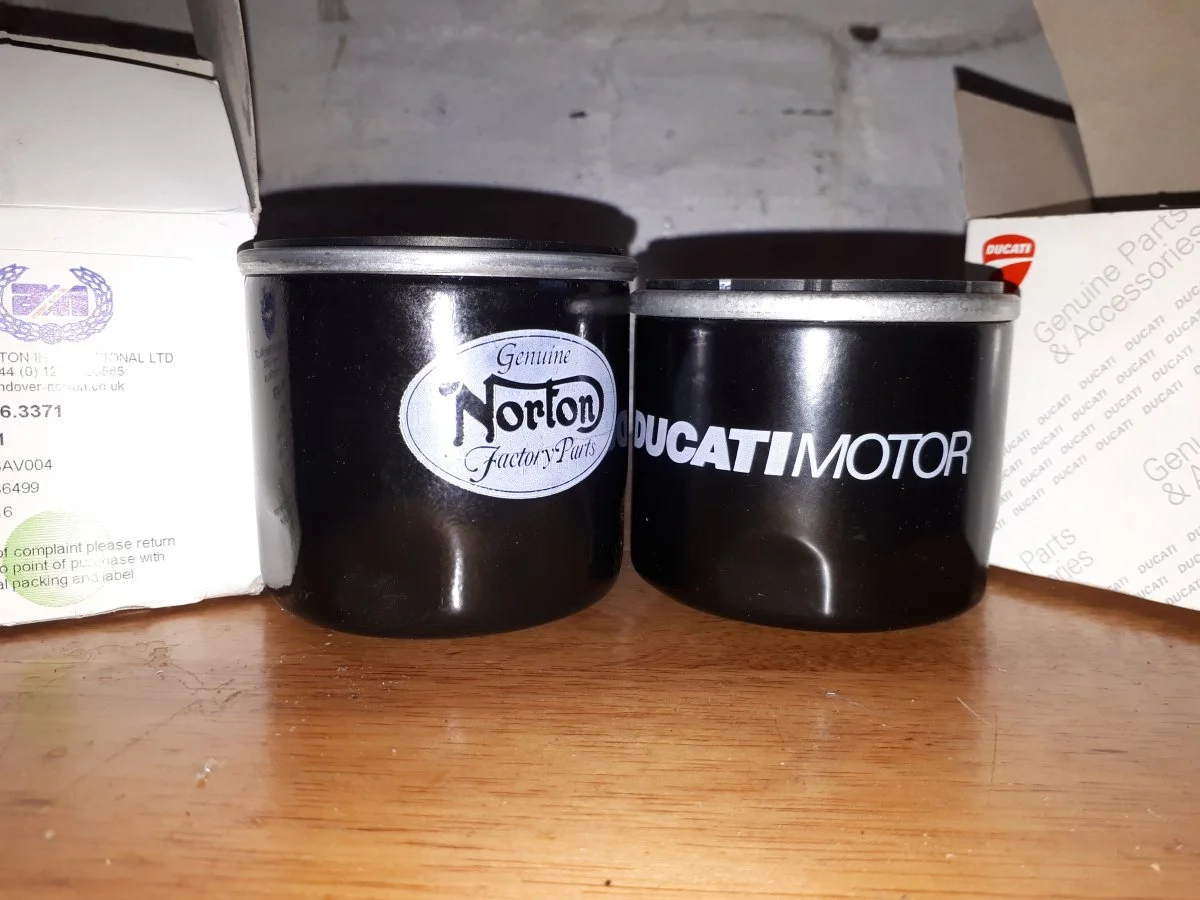

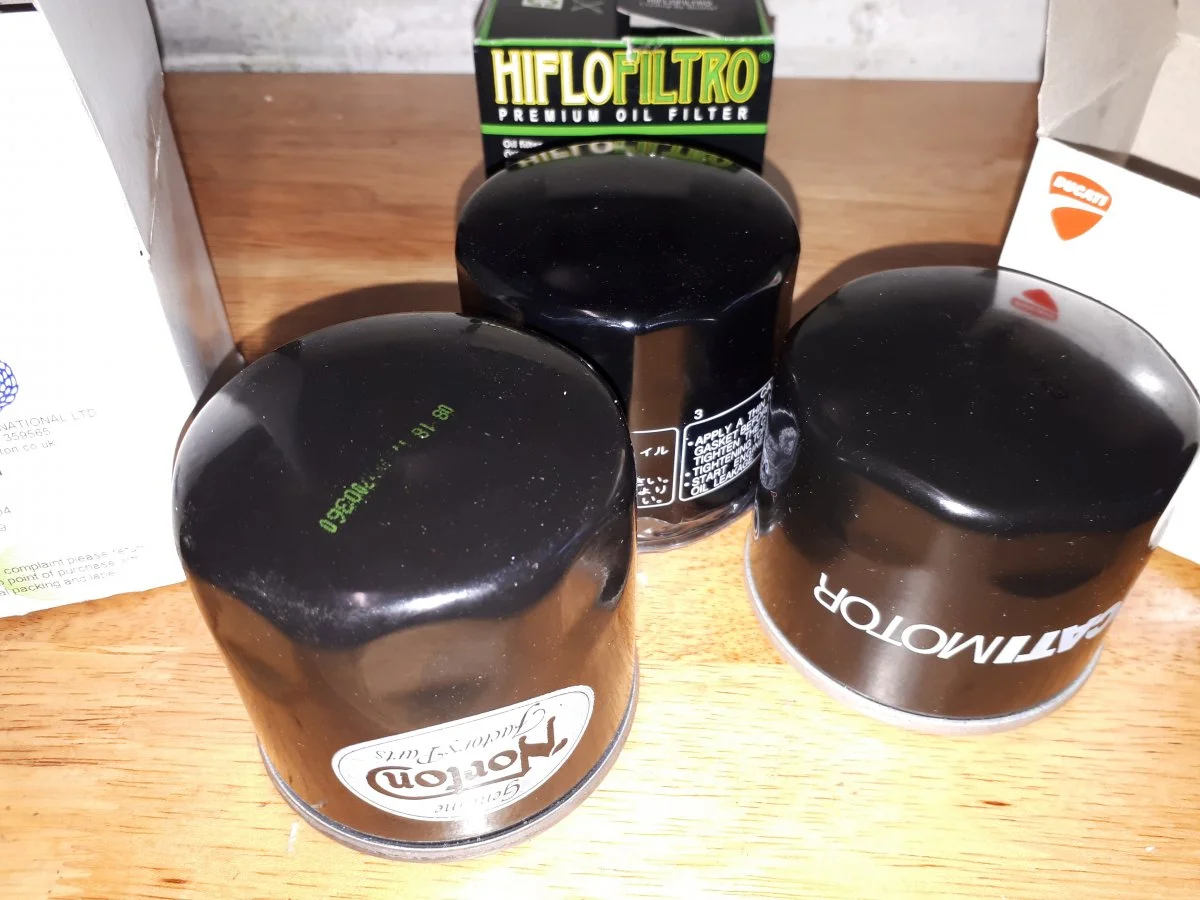

    15497899659013078875625862234881.jpg 15497900179712570766471527791373.jpg It's handy that the Commando uses the same size oil filter as my 748 so I can use the same cup tool. A genuine Ducati filter is a little shorter in length than the Andover Norton one. I've also got some HF 153 filters but the number of facets is different so a different cup tool is required for removal.
    There was little room to get a socket wrench on the end of the cup with my Commando at the time when I fitted it so I used a square drive peg in the cup and a spanner. Some cups have a hex drive and square drive hole (like Swooshdave's above photo) which is useful.

    Last edited: Feb 10, 2019
  5. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    If space is an issue, is it resolved using the shorter Ducati filter?

    The AN oil filter tool looks wrong if space is an issue:
    https://andover-norton.co.uk/en/shop-details/18716

    Does anyone have a UK source for a slimmer one, with hexagon ?

    I’ve previously used a Magnifine filter but intend to use the standard one in future, hence the questions !

  6. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013

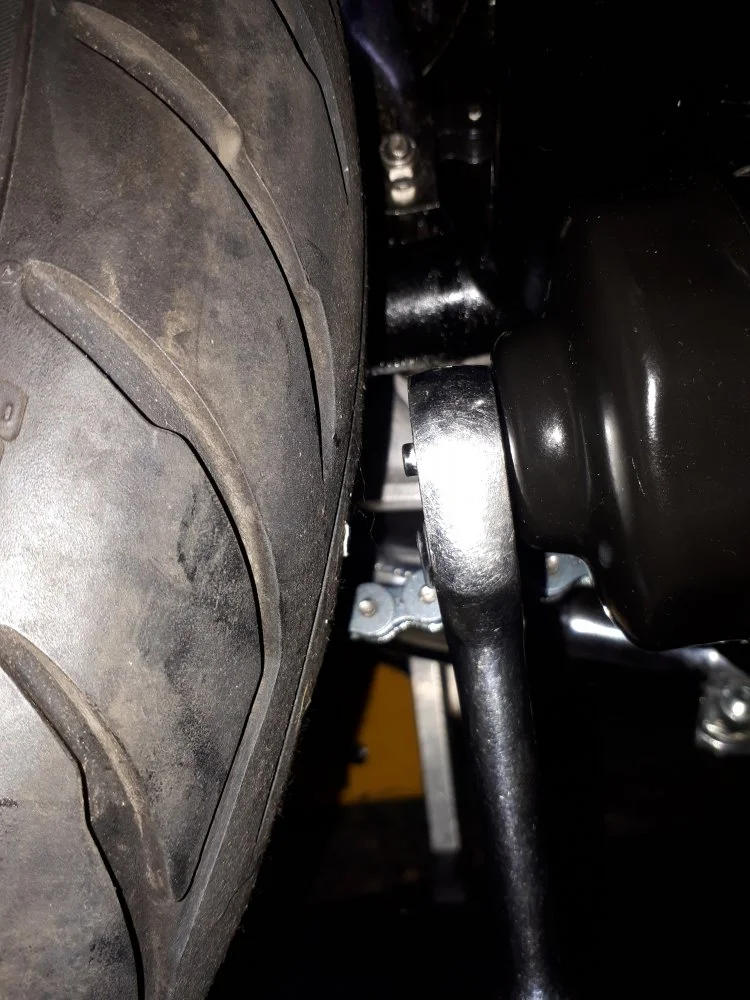

    20190210_122052.jpg Having had another look the OE standard filter should be fine with a socket wrench. My wheel was further forward when I fitted the filter. Nigel if you want a cup filter socket I have two, so pm your address, I owe you a favour.
    I edited my previous post to avoid a bum steer btw.

    Last edited: Feb 10, 2019
  7. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Thanks Cab.

  8. dynodave

    dynodave

    Joined:
    May 28, 2003
    Me to.... quite a long time ago..high or low bypass ????
    http://atlanticgreen.com/oilfilter.htm

  9. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    PartDetails.aspx

    Product Specifications
    Part Number: 57013
    UPC Number: 765809570139
    Style: Spin-On Lube Filter
    Service: Lube
    Type: Full Flow
    Media: Cellulose
    Height: 2.5 (64mm)
    Outer Diameter Top: 3.01 (76mm)
    Outer Diameter Bottom: Closed:
    Thread Size: 16X1.5 MM
    By-Pass Valve Setting-PSI: 7-9
    Anti-Drain Back Valve: Yes
    Nominal Micron Rating: 20

  10. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Two things. I can order one from Amazon. And it's chrome. As in CHROME. :cool:

  11. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Well you can order a Norton one on line too.

    But you got me on the shiny !

  12. Craig

    Craig VIP MEMBER

    Joined:
    Dec 20, 2005
    For me I can save a bit at local shop having them bring in a box of filters for me , I have 2 bikes the filter works on , lots of same components on Griso as Duc , too bad the filter is different , then it would be 3

  13. 998cc

    998cc "Cheap" is rarely the least expensive. VIP MEMBER

    Joined:
    Oct 1, 2018
    Fullauto likes this.
  14. Hortons Norton

    Hortons Norton

    Joined:
    Oct 12, 2007
    Glad to see he still has these, I couldn't find them awhile back. I put these on a couple bikes and now need another, same filters as the Buell. Thanks, Chuck.

    Fullauto likes this.
  15. dynodave

    dynodave

    Joined:
    May 28, 2003
    "Norton oil filter adapter:This is NOT a helicoil. It is a threaded steel ring.With this piece you can now use a standard auto filter on your Norton oil filter assy. Just thread it on. $12.95"
    https://www.britishbikeconnection.com/
    I recall Jim being one of, if not the first to make and sell this product starting in the early 90's.
    Then all the copycat's jump in...I could have made them too, but I felt it was unethical to do that...

    Atlas Commando likes this.
  16. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    I wish people would stop selling the adapters. With the availability of the Ducati filters there's no need whatsoever for them. Sure back when the only filter was for a f'n Simca it was one thing but now that you can go into just about any shop and buy a filter it's a waste to get an adapter.

    And it just makes it worse for the next owner who has to deal with the adapter.

    I still have a threaded insert and a metric tap for when I was going to make the adapter myself many, many, many years ago. I need to throw that away.

    I might keep the tap...

  17. Hortons Norton

    Hortons Norton

    Joined:
    Oct 12, 2007
    LOL send it to me! Don't know what you have but there is no need for a tap.

  18. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009

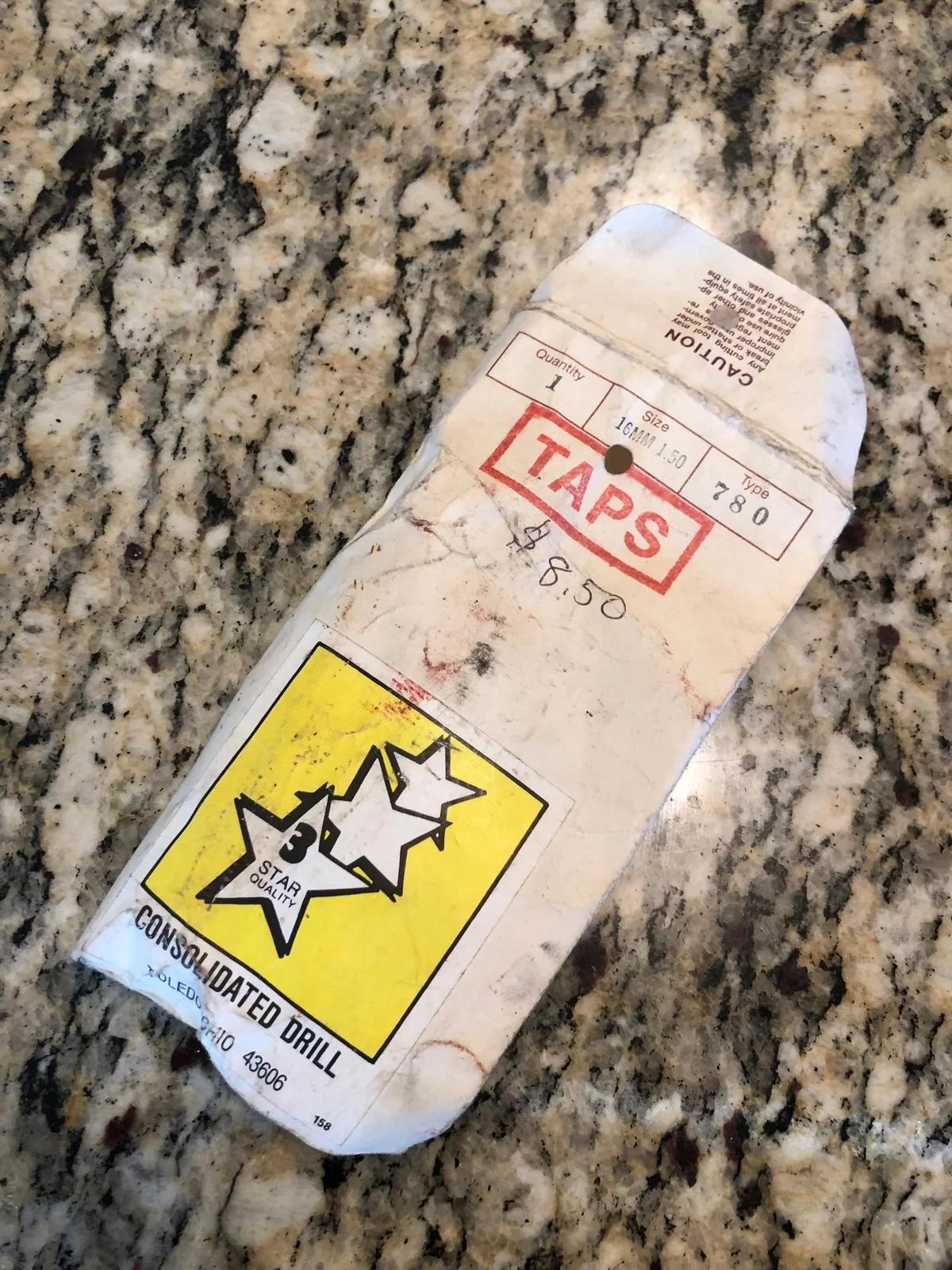

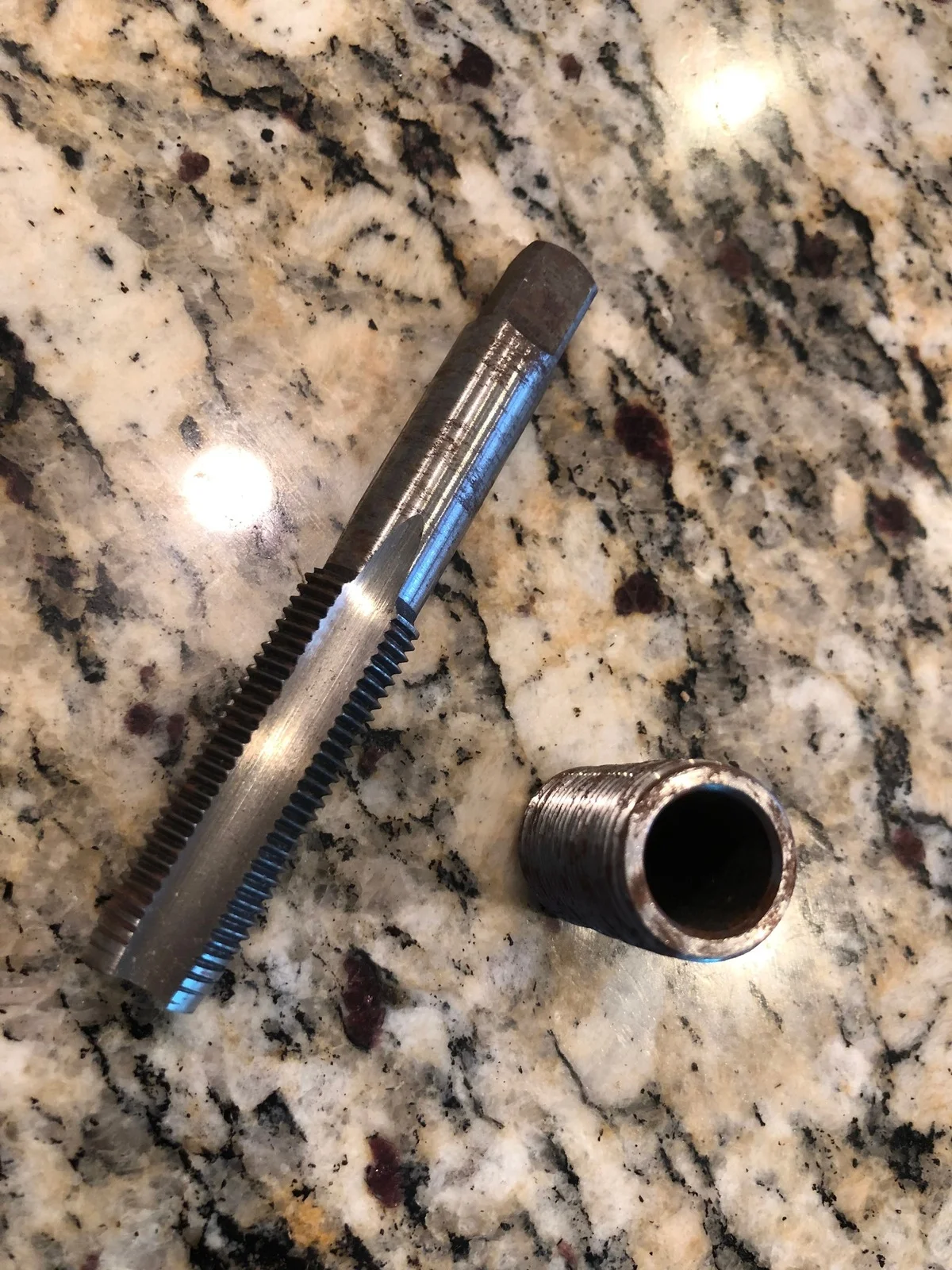

    [​IMG]

    [​IMG]

    No, you really did need a tap. I bet I read this in something like the Norton Club Tech Guide or whatever it was called. I bet it's still in there...

    Tap still looks good but that threaded thing will get tossed.

  19. Hortons Norton

    Hortons Norton

    Joined:
    Oct 12, 2007
    Yea your right that must have been a long time ago, the new ones just thread onto the current threaded part. this allows me to use the same filter on my Buell and my truck as the Nortons, no brainer.

    Fullauto likes this.
  20. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    This was a DIY option. And yes, a disturbingly long time ago.
