Dual engine Triumph

Joined
Oct 18, 2018
Messages
79
Country flag
So here it is. a land speed racer... Built in my home work shop using a 70 year old lathe and hand held tools...I had the frame made than modified it to suit the situation...All the rest is made from a pile mismatched parts...Basics are two 1956 650's, MAP steel rods and 10.5 forged pistons,nitrided unit cranks, stock heads with a good valve job, Web #330 grind cams, 34mm Mikuni flatslides and so on. Harley 5 speed and clutch and I retained the electric starter.Primary drive has an idler pulley .Pazon Smartfire ignition. 90's Suzuki wheels, forks and brakes...

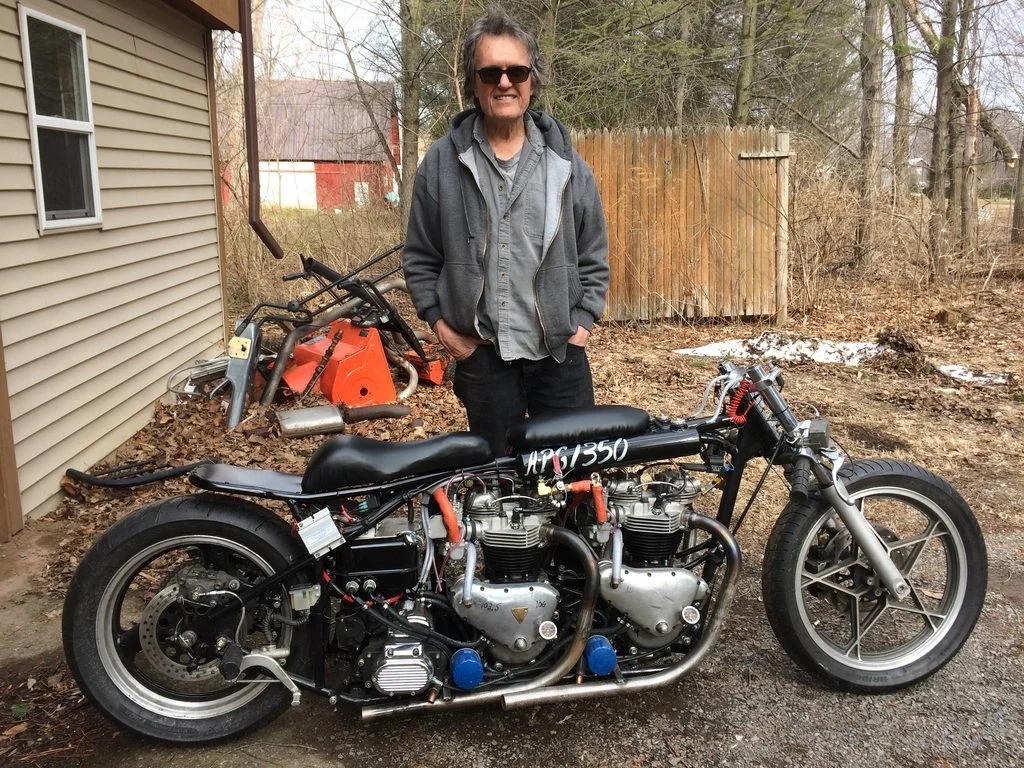

This is me standing with the just completed bike about 4 years ago

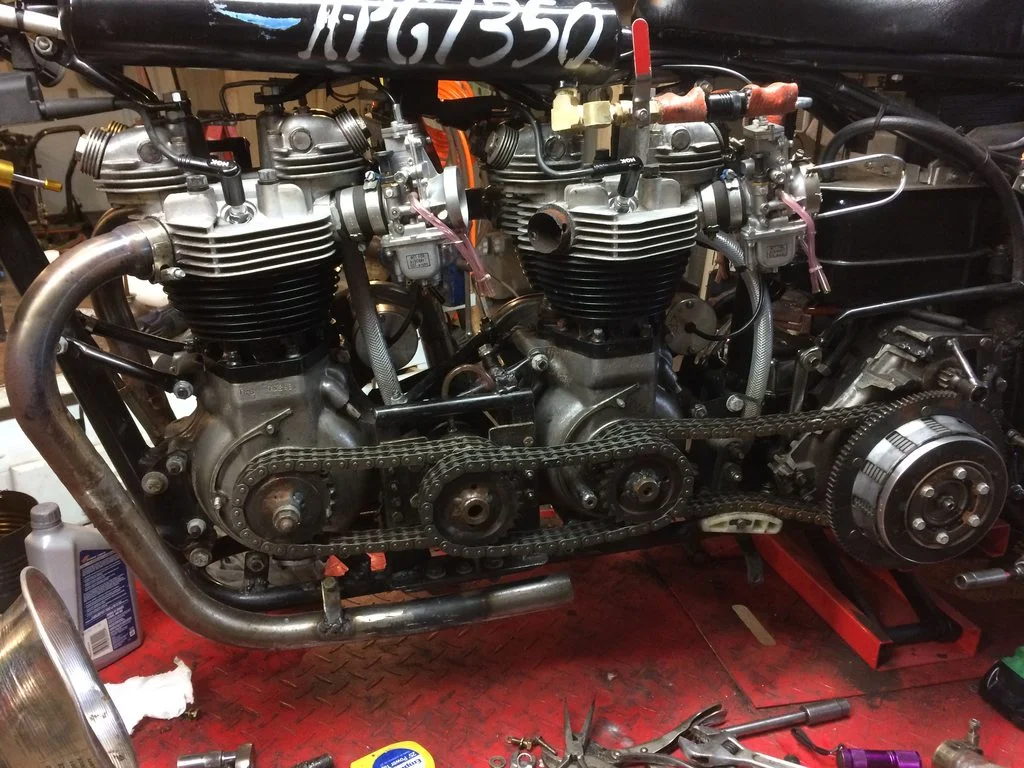

This is the primary drive. he idler is supported on a Subaru wheel bearring and hub. Harley primary chains shortened to suit the situation. The first primary was T140 primary chain but the idler bearing set made from industrial high speed conveyor bearings faile quickly.



This video was taken when the engines had about 10 minutes running...Blipping the throttle to vary speed.

Dual Triumph

I shot this crappy video while the bike was on the dyno..My friend and rider is controlling throttle...Made about 5 runs like this in high gear to 7400 rpm for reliability testing.. The bike made 100 HP at the rear wheel.. I was expecting 110 based on my experience with the single engine 650 bike..Nothing broke during the brutal testing

Dyno

Shortly after this the bike went to the 1.5 mile standing start LSR track in Maine...I was not able to go so my rider, a novice mechanic ,was on his own...Off the trailer the bike ran an easy 142 MPH on a 158 mph record in the 1350 cc pushrod rod gas altered class. The rider felt the bikehad much more could get close to the record..On the next run the front engine lost oil pressure, lucky the rider spotted it. He messed around a bit but the pressure was only 30 psi..So he ran the 650 Triumph modified production bike and set a new record of 133 mph..
When he arrived back home the oil pressure issue was a blown out timing cover seal. I had machined the covers for seals rather than use the bushings. That was two years ago...Due to whatever, we just never seem to have time to get back to the track...Next year for sure

Last edited:
Joined
Oct 18, 2018
Messages
79
Country flag

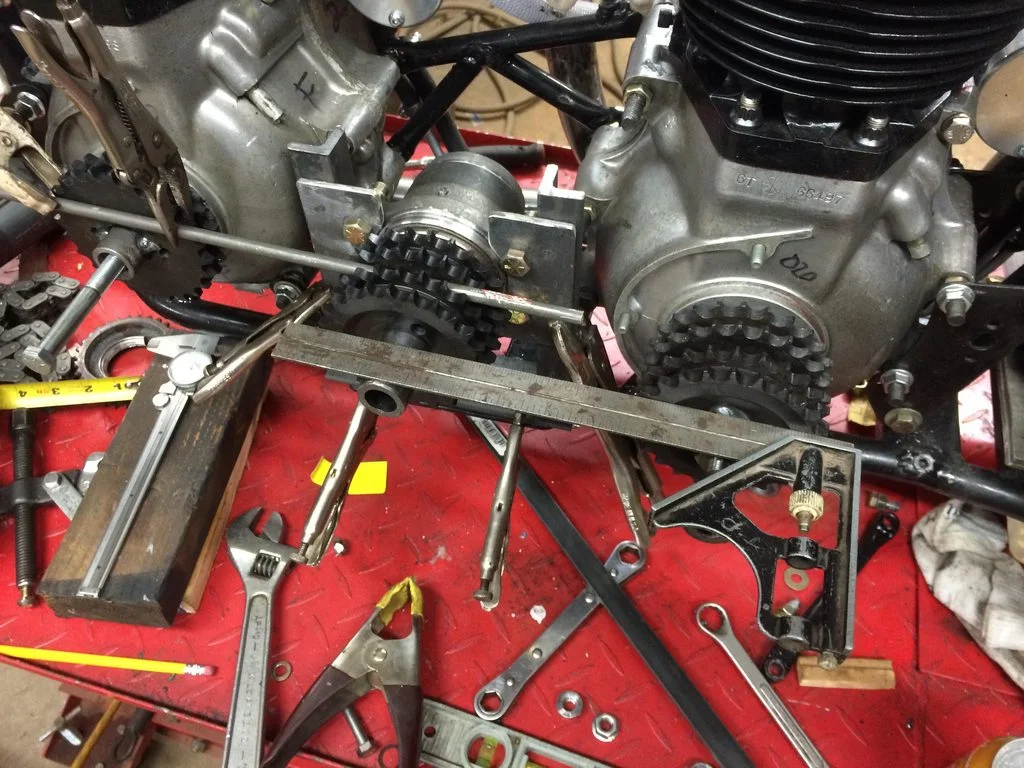

Aligning the engines in the frame using simple tools.

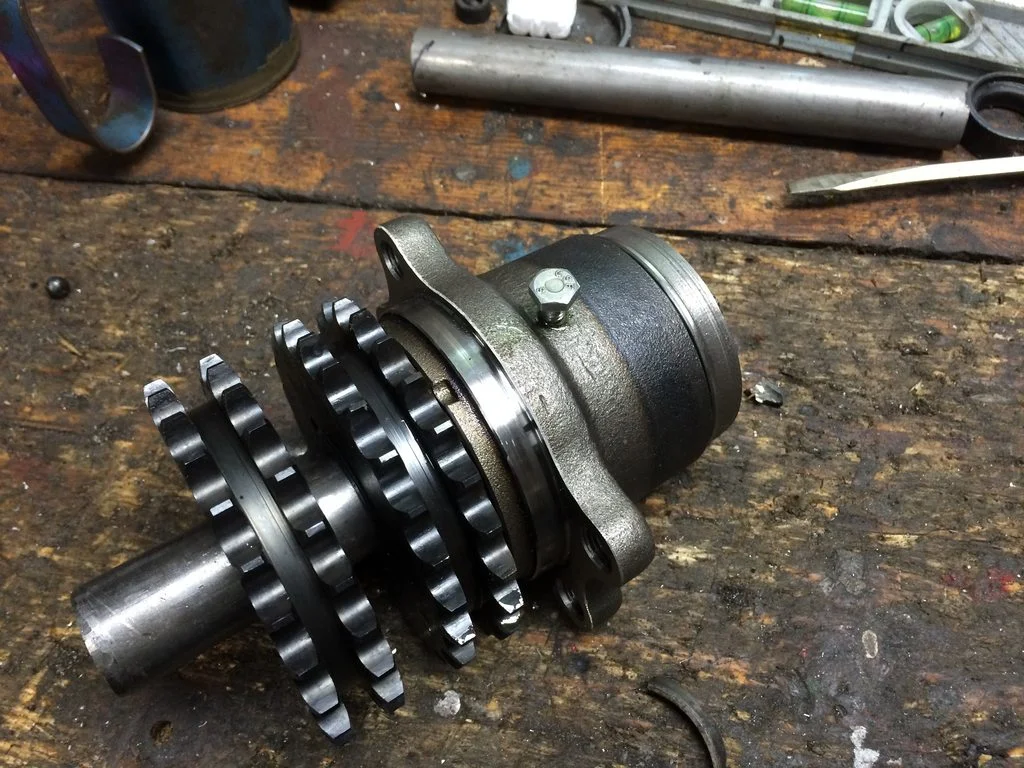

Subaru wheel bearing idler..

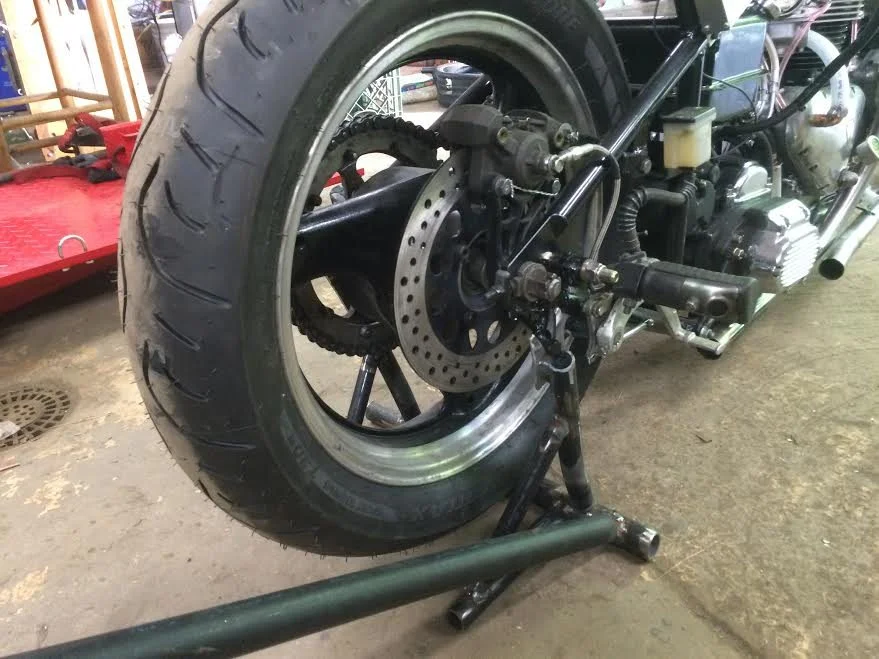

More hillbilly engineering....You can just see the drive sprocket...A Triumph OIF sprocked is bolted to a modified Suzuki sprocket..It all worke out well on the track...


  • Like
Reactions: baz

Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,350
Country flag
Thanks for that. Impressive stuff. The sound on the dyno is spine tingling !

You GOTTA get this out on the track again...!

Last edited:
Joined
Jan 30, 2020
Messages
202
Country flag
Thanks for the info, it’s always a steep learning curve when you want to do something a little bit different. I managed to melt 3 sets of cylinder heads when I was running my 1400cc nitrous Hayabusa - at the time I was trying to sort out a constant pressure system to allow me to run nitrous through all the gears for the whole mile and a quarter. I ended up using a promod car trick of pressurising the nitrous to 1250psi with an additional bottle of nitrogen @3000 psi. Add a couple of pressure switches and a couple of solenoids and light the blue touch paper :cool: Sadly, my fuel pump couldn’t keep up with the needs of 265hp and so it kind of melted things.
keep at it, this world needs people who can improvise.


MichaelB

"Sons of Arthritus"
VIP MEMBER
Joined
Jan 14, 2004
Messages
1,289
Country flag
LOVE IT!!!!!!!!!!!!!
Yes, you've got to get it out again and give a report......
